LiftMaster 877LM Wireless Keyless Entry Keypad User Manual

تعارف

The LiftMaster 877LM wireless keypad garage door opener provides a secure and convenient keyless entry system for your garage. It allows access using a private 4-digit code and features a temporary password option for visitors or service personnel. Designed for durability, it includes a weatherproof, flip protective cover and utilizes Security+ 2.0 rolling code technology for enhanced security. This keypad is powered by a 9-volt battery and is compatible with LiftMaster and Chamberlain garage door openers with Security+ 2.0 and Assure Link Sears Craftsman models that have a round yellow learn button and yellow antenna wire.

اهم خاصيتون

• مطابقت: Works exclusively with LiftMaster and Chamberlain garage door openers featuring Security+ 2.0 and Assure Link Sears Craftsman models with a round yellow learn button and yellow antenna wire.
• وائرلیس ڊيزائن: Eliminates the need for additional wiring, offering a clean and simple installation.
• بغير چاٻي جي رسائي: Provides convenient entry to your garage without requiring a remote control or key.
• سيڪيورٽي + 2.0: Ensures a unique, secure code is transmitted with every use, enhancing protection against unauthorized access.
• موسم جي حفاظت: Equipped with a durable, flip protective cover to withstand various weather conditions.
• پوئتي لائيٽ ڪي پيڊ: Numbers are illuminated for easy visibility in low-light conditions.
• Temporary Password Option: Allows programming of a temporary PIN for guests or service personnel (requires compatible garage door opener).
• One-Button-to-Close Feature: For garage door openers manufactured since 2006 with built-in radio receivers, allowing single-button closing (can be enabled/disabled).

سيٽ اپ ۽ تنصيب

Before beginning installation, ensure your garage door opener is compatible with the LiftMaster 877LM keypad (Security+ 2.0 with a round yellow learn button and yellow antenna wire).

1. چڙهڻ جو هنڌ: Choose a convenient location outside your garage door, ensuring it is within range of your garage door opener. The keypad is designed for wall-mounting.
2. بيٽري لڳائڻ: The keypad is powered by one 9-volt battery. Ensure the battery is correctly installed. The battery compartment is typically located at the bottom of the unit, accessible by sliding a cover.
3. پروگرامنگ ڪي پيڊ:
   • Locate the "Learn" button on your garage door opener. This is typically a yellow button.
   • Press and release the "Learn" button. The learn indicator light will glow steadily for 30 seconds.
   • Within 30 seconds, enter your desired 4-digit Personal Identification Number (PIN) on the keypad.
   • Press and hold the "ENTER" button on the keypad.
   • Release the "ENTER" button when the garage door opener lights flash or two clicks are heard. This indicates successful programming.
   • Test the keypad by entering your PIN and pressing "ENTER". The garage door should activate.

Figure 1: The LiftMaster 877LM keypad with its protective cover closed, showing its compact and weatherproof design.

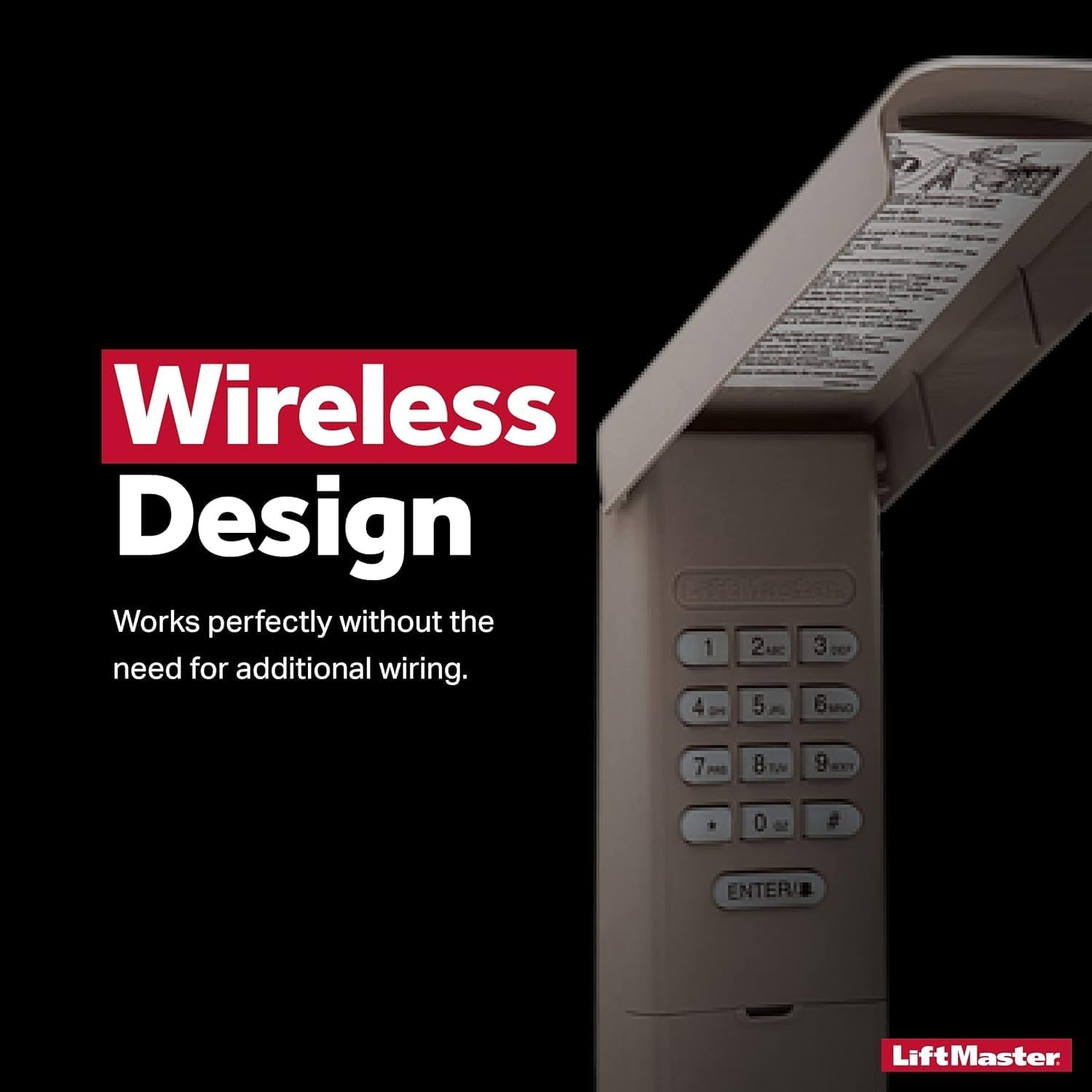

Figure 2: The keypad with its cover open, revealing the numeric buttons and the 'ENTER' key. The cover protects the keypad from elements.

آپريٽنگ هدايتون

Using your LiftMaster 877LM keypad is straightforward once programmed.

1. Opening the Garage Door:
   • Flip open the protective cover.
   • پنهنجو 4 عددي پن داخل ڪريو.
   • Press the "ENTER" button. The garage door will begin to open or close.
2. Closing the Garage Door (One-Button-to-Close Feature):
   • If your garage door opener supports this feature (manufactured since 2006 with built-in radio receiver), you can simply press the "ENTER" button without entering a PIN to close the door.
   • This feature can be enabled or disabled through the keypad's programming.
3. عارضي پاسورڊ:
   • To set a temporary password, refer to the detailed programming instructions provided with your garage door opener or on the inside of the keypad cover. This feature allows temporary access without revealing your main PIN.

Figure 3: The keypad highlighting its model number and function as a wireless keyless entry system.

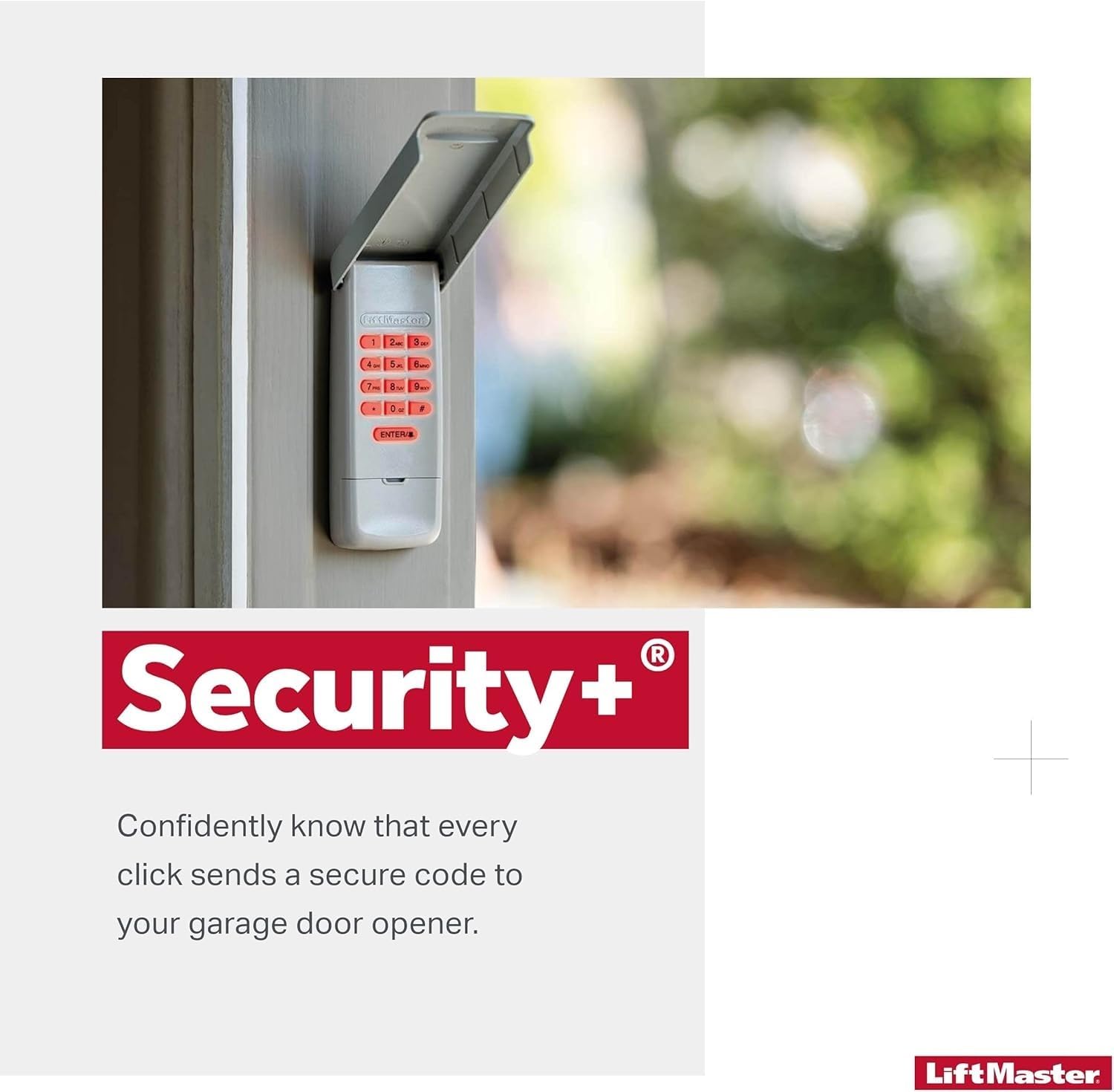

Figure 4: This image emphasizes the Security+ 2.0 technology, ensuring secure code transmission with each use.

سار سنڀال

Regular maintenance ensures the longevity and reliable operation of your keypad.

• بيٽري مٽائڻ: The keypad is powered by a 9-volt battery. When the battery is low, the keypad's backlight may dim or it may become unresponsive. To replace the battery, slide open the battery compartment cover, typically located at the bottom of the unit. Replace with a new 9-volt alkaline battery.
• صفائي: Periodically wipe the keypad and its cover with a soft, damp cloth to remove dirt and debris. Avoid using abrasive cleaners or solvents.
• ڪپڙا ڪارڪردگي: Ensure the protective flip cover opens and closes smoothly to maintain its weatherproof seal.

مشڪلاتون

If you encounter issues with your LiftMaster 877LM keypad, consider the following common solutions:

• ڪي پيڊ جواب نه ڏئي رهيو آهي:
  • Check the battery. A low or dead battery is a common cause. Replace the 9-volt battery if necessary.
  • Ensure the keypad is within range of your garage door opener.
• پروگرامنگ ۾ ڏکيائي:
  • Verify that your garage door opener has a round yellow learn button and yellow antenna wire, indicating Security+ 2.0 compatibility.
  • پڪ ڪريو ته توهان دٻايو ۽ ڇڏايوasing the "Learn" button on the opener correctly, and then entering your PIN and holding "ENTER" on the keypad within the 30-second window.
  • If repeated attempts fail, try clearing all previous codes from your garage door opener and reprogramming the keypad. Consult your garage door opener's manual for instructions on clearing codes.
• Garage Door Not Opening/Closing After Programming:
  • Confirm the PIN entered is correct.
  • Ensure the "ENTER" button is pressed firmly after entering the PIN.
  • Check for any obstructions in the path of the garage door sensors.

وضاحتون

وارنٽي ۽ سپورٽ

For specific warranty information, technical support, or to purchase replacement parts, please contact LiftMaster customer service directly or visit their official webسائيٽ. وارنٽي دعوائن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.

توهان وڌيڪ معلومات ۽ سپورٽ وسيلا ڳولي سگهو ٿا LiftMaster Store on Amazon.
