1. اھم حفاظتي ھدايتون
Please read these instructions carefully before using the appliance and keep them for future reference. Smeg is not responsible for any damage or injury caused by improper use of this appliance.
- هميشه پڪ ڪريو ته اوزار اسيمبلي، ڌار ڪرڻ، يا صفائي ڪرڻ کان اڳ ان پلگ ٿيل آهي.
- موٽر يونٽ، تار، يا پلگ کي پاڻي يا ڪنهن ٻئي مائع ۾ نه ٻوڙيو.
- زخم کان بچڻ لاءِ آپريشن دوران هٿن، وارن، ڪپڙن ۽ برتنن کي هلندڙ حصن کان پري رکو.
- ڪڏهن به اوزار کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو، يا اوزار جي خراب ٿيڻ کان پوءِ يا ڪنهن به طريقي سان ڪري پيو يا خراب ٿي ويو آهي.
- هي اوزار استعمال ڪرڻ جو ارادو نه ڪيو ويو آهي ماڻهن (بشمول ٻارن سميت) گھٽ جسماني، حسي يا ذهني صلاحيتن سان، يا تجربو ۽ ڄاڻ جي کوٽ، جيستائين انهن جي حفاظت لاء ذميوار شخص طرفان اوزار جي استعمال بابت نگراني يا هدايت نه ڏني وئي آهي.
- ٻارن کي نگراني ڪرڻ گهرجي انهي کي يقيني بڻائڻ ته اهي اوزار سان راند نه ڪن.
- ٺاهيندڙ طرفان سفارش ڪيل صرف منسلڪ ۽ لوازمات استعمال ڪريو.
- ٻاهران اوزار استعمال نه ڪريو.
- Always place the appliance on a stable, level, and dry surface.
2. پراڊڪٽ ختمview
The Smeg SMF01CREU Planetary Stand Mixer is a robust kitchen appliance designed for various mixing tasks, featuring a die-cast aluminum body and a powerful direct drive motor. It offers 10 variable speed levels with a smooth start function for optimal control.
2.1 اجزاء
- Motor Head (with safety stop mechanism)
- Speed Control Knob (10 variable speeds with Smooth Start)
- Attachment Hub (for optional accessories)
- Planetary Agitator Shaft
- 4.8 L Stainless Steel Mixing Bowl (with safety bayonet fitting)
- غير پرچي پير
- Standard Attachments (e.g., whisk, flat beater, dough hook - specific attachments may vary by package)
Image 1: The Smeg SMF01CREU Planetary Stand Mixer in Cream, ready for use with its stainless steel bowl and a variety of fresh ingredients.

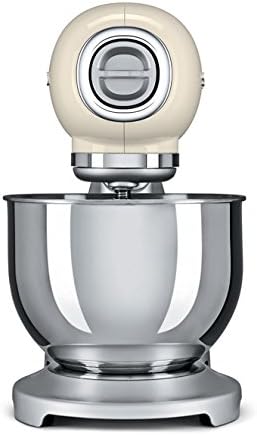

تصوير 2: سامهون view of the Smeg SMF01CREU Stand Mixer, showcasing its design and the attachment point for the mixing bowl.
تصوير 3: ريئر view of the Smeg SMF01CREU Stand Mixer, illustrating the robust construction of the motor unit.
3. سيٽ اپ
3.1 پيڪنگ ۽ شروعاتي صفائي
- سڀني پيڪنگنگ مواد کي احتياط سان هٽايو ۽ انهن کي ذميواري سان ضايع ڪريو.
- اشتهار سان موٽر يونٽ کي صاف ڪريوamp ڪپڙو. ان کي پاڻي ۾ نه وجھو.
- Wash the stainless steel mixing bowl and all attachments (whisk, flat beater, dough hook) in warm, soapy water, then rinse thoroughly and dry. These parts are dishwasher safe.
- پڪ ڪريو ته اسيمبلي کان اڳ سڀئي حصا مڪمل طور تي سڪي ويا آهن.
3.2 اسيمبلي
- اسٽينڊ ميڪر کي صاف، سڪل ۽ مستحڪم مٿاڇري تي رکو.
- Lift the motor head by pressing the release button (if applicable) and tilting it back until it locks into place.
- Place the mixing bowl onto the base, aligning the bayonet fitting, and twist clockwise until it locks securely.
- Select the desired attachment (whisk, flat beater, or dough hook) and push it onto the planetary agitator shaft, then twist to secure it.
- Lower the motor head until it clicks into its operating position. Ensure it is fully locked before proceeding.
4. آپريٽنگ هدايتون
The Smeg SMF01CREU features 10 variable speed settings with a Smooth Start function to prevent splashing and ensure gradual mixing.
4.1 بنيادي آپريشن
- Ensure the appliance is properly assembled and the motor head is locked down.
- پنهنجا اجزا ملائي پيالي ۾ شامل ڪريو.
- Plug the appliance into a suitable power outlet (240 Volt).
- Turn the speed control knob to the desired speed setting (1-10). The Smooth Start function will gradually increase the speed.
- Monitor the mixing process. If necessary, stop the mixer by turning the knob to '0' and scrape down the sides of the bowl with a spatula.
- Once mixing is complete, turn the speed control knob to '0' and unplug the appliance.
- Lift the motor head and remove the attachment and mixing bowl.
4.2 Recommended Speeds for Attachments
| منسلڪ | سفارش ٿيل استعمال | رفتار جي حد |
|---|---|---|
| وَسُ | Whipping eggs, cream, light batters | 6-10 |
| فليٽ بيٽر | Mixing cakes, cookies, frostings, mashed potatoes | 2-6 |
| ٿلهو ٿلهو | Kneading yeast doughs for bread, pizza, pasta | 1-4 |
Image 4: The Smeg SMF01CREU Stand Mixer using the whisk attachment to prepare ingredients for a strawberry tart.
Image 5: The Smeg SMF01CREU Stand Mixer with the dough hook attachment, ideal for preparing pizza dough.
5. سنڀال ۽ صفائي
Regular cleaning ensures the longevity and optimal performance of your Smeg stand mixer.
5.1 موٽر يونٽ جي صفائي
- هميشه صاف ڪرڻ کان پهريان اوزار کي انپلگ ڪريو.
- موٽر يونٽ جي ٻاهرين حصي کي نرم، ڊي سان صاف ڪريوamp ڪپڙو.
- Do not use abrasive cleaners or scourers, as they may damage the finish.
- موٽر يونٽ کي ڪڏهن به پاڻي يا ڪنهن ٻئي مائع ۾ نه وجھو.
5.2 Cleaning the Bowl and Attachments
- The stainless steel mixing bowl, whisk, flat beater, and dough hook are dishwasher safe.
- Alternatively, wash them by hand in warm, soapy water, then rinse thoroughly and dry immediately to prevent water spots.
- پڪ ڪريو ته سڀئي حصا محفوظ ڪرڻ کان اڳ مڪمل طور سڪي ويا آهن.
6. مسئلا حل ڪرڻ
If you encounter any issues with your Smeg SMF01CREU stand mixer, please refer to the following common problems and solutions.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| مکسر آن نٿو ٿئي. | Not plugged in; Motor head not locked; Power outage. | Check power connection; Ensure motor head is fully lowered and locked; Check household circuit breaker. |
| آپريشن دوران موٽر بند ٿي وڃي ٿي. | Overload protection activated; Motor head lifted. | Reduce load/ingredients; Turn off, unplug, wait 30 minutes for motor to cool, then restart; Ensure motor head is locked. |
| اٽيچمينٽ اجزاء تائين نه پهچندي. | منسلڪ صحيح طرح سان نصب نه ٿيو آهي. | Ensure attachment is pushed fully onto the shaft and twisted to secure. |
| گهڻو شور يا وائبريشن. | Appliance not on a level surface; Bowl or attachment not secured. | Place mixer on a stable, level surface; Ensure bowl and attachment are securely locked. |
If the problem persists after trying these solutions, please contact Smeg customer support.
7. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نالو | SMF01CREU |
| برانڊ | سمگ |
| رنگ | ڪريم |
| مواد | Stainless steel, Aluminum, Zinc |
| خاص خصوصيت | Planetary motion, Dishwasher safe parts |
| ظرف | 4.8 ليٽر |
| جلدtage | 240 وولٽ |
| واتtage | 800 واٽ |
| ڪنٽرولن جو قسم | ڪَنوَ |
| رفتار جو تعداد | 10 |
| شيءِ جو وزن | 1000 گرام |
| جي ٽي اين | 08017709196905 |
8. وارنٽي ۽ سپورٽ
Your Smeg SMF01CREU Planetary Stand Mixer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or service, please contact Smeg customer support. You can find contact information on the official Smeg webسائيٽ يا توهان جي اوزار سان مهيا ڪيل دستاويزن ۾.
When contacting support, please have your model number (SMF01CREU) and proof of purchase readily available.
