ميڊيوون شياتسو CF-6302 گردن ۽ ڪلهي جو مساج گرمي فنڪشن استعمال ڪندڙ دستي سان

1. تعارف

Thank you for choosing the Medivon Shiatsu CF-6302 Neck and Shoulder Massager. This manual provides important information regarding the safe operation, setup, use, and maintenance of your device. Please read this manual thoroughly before first use and keep it for future reference.

The Medivon Shiatsu CF-6302 is designed to provide a relaxing and therapeutic massage experience for various body parts, including the neck, shoulders, back, thighs, and calves. Its features include four rotating massage heads, two massage direction options, and an optional heating function to enhance comfort.

2. حفاظتي هدايتون

محفوظ آپريشن کي يقيني بڻائڻ ۽ زخم يا نقصان کي روڪڻ لاءِ، مھرباني ڪري ھيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:

• Always unplug the massager from the power outlet after use and before cleaning.
• پاڻي جي ويجهو يا ڊي ۾ مساجر استعمال نه ڪريوamp ماحول.
• ڊوائيس ٻارن ۽ پالتو جانور کان پري رکو.
• Do not use the massager if you have any medical conditions, open wounds, skin irritations, or are pregnant, without consulting a physician.
• Avoid using the massager for prolonged periods on a single area. A typical massage session should not exceed 15-20 minutes.
• پاڻ ڊوائيس کي ڌار ڪرڻ يا مرمت ڪرڻ جي ڪوشش نه ڪريو. مدد لاءِ قابل سروس اهلڪارن سان رابطو ڪريو.
• Ensure the power cord is not damaged, kinked, or stretched.
• Do not cover the massager during operation to prevent overheating.
• Use only the provided power adapters (AC home adapter and 12V car adapter).

3. پراڊڪٽ ختمview

The Medivon Shiatsu CF-6302 massager is designed for ergonomic use, featuring a comfortable faux leather exterior and an intuitive control panel.

Figure 1: Medivon Shiatsu CF-6302 Neck and Shoulder Massager, showing its ergonomic design and general appearance.

اجزاء:

• مساج نوڊس: Four rotating Shiatsu massage heads.
• ڪنٽرول پينل: Integrated buttons for power, massage direction, and heat function.
• Arm Loops: Straps designed for comfortable positioning and applying pressure.
• پاور پورٽ: For connecting the AC home adapter or 12V car adapter.
• ساهه کڻڻ وارو ميش ڪپڙو: Covers the massage nodes for comfort and heat dissipation.

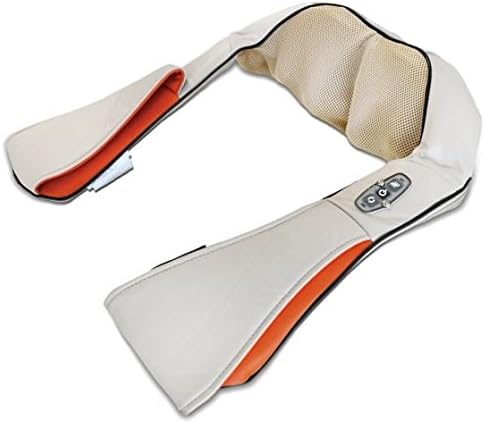

شڪل 2: اندروني view of the massager, highlighting the breathable mesh and indicating heat distribution areas.

4. سيٽ اپ

Before using your Medivon Shiatsu CF-6302 massager, follow these simple setup steps:

1. پيڪ ڪريو: پيڪنگ مان مساجر ۽ سڀني لوازمات کي احتياط سان هٽايو.
2. Power Connection (Home Use): Connect the AC home adapter to the power port on the massager. Plug the adapter into a standard electrical outlet.
3. Power Connection (Car Use): For in-car use, connect the 12V car adapter to the power port on the massager. Plug the car adapter into your vehicle's cigarette lighter socket.
4. پوزيشن: Place the massager on the desired body area (neck, shoulders, back, etc.). Use the arm loops to adjust the position and apply gentle pressure as needed.

5. آپريٽنگ هدايتون

The Medivon Shiatsu CF-6302 features an easy-to-use control panel located on one of the arm loops.

شڪل 3: بند اپ view of the control panel with power, direction, and heat buttons.

ڪنٽرول:

• پاور بٽڻ: Press once to turn the massager ON. Press and hold for a few seconds to turn it OFF.
• ھدايت وارو بٽڻ: Press to change the rotation direction of the massage nodes (clockwise/counter-clockwise).
• گرمي بٽڻ: Press to activate or deactivate the heating function. An indicator light will typically show when heat is active.

استعمال جا مرحلا:

1. مساج کي طاقت جي ذريعن سان ڳنڍيو.
2. Position the massager on the desired body area.
3. Press the Power Button to start the massage. The massage nodes will begin rotating.
4. Press the Direction Button to switch between massage directions as preferred.
5. Press the Heat Button to turn on the soothing heat function.
6. Adjust the intensity by gently pulling on the arm loops to apply more or less pressure.
7. After your massage session (recommended 15-20 minutes), press and hold the Power Button to turn off the device.
8. Unplug the massager from the power source.

Figure 4: User demonstrating the Medivon CF-6302 massager positioned on the shoulders.

Figure 5: User demonstrating how to hold the arm loops for optimal positioning and pressure.

6. سار سنڀال

Proper care and maintenance will extend the life of your Medivon massager:

• صفائي: Always unplug the device before cleaning. Wipe the surface with a soft, slightly damp ڪپڙو. رگڙيندڙ صاف ڪندڙ، محلول استعمال نه ڪريو، يا ڊوائيس کي پاڻي ۾ نه ٻوڙيو.
• اسٽوريج: Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid placing heavy objects on the device.
• ڪنڊ جي سنڀال: بجلي جي تار کي ڊوائيس جي چوڌاري مضبوطيءَ سان نه ويڙهو. نقصان کان بچڻ لاءِ تار کي ڍلو رکو.

7. مسئلا حل ڪرڻ

If you encounter any issues with your Medivon Shiatsu CF-6302, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Medivon customer support for further assistance.

8. وضاحتون

• ماڊل: CF-6302
• برانڊ: ميڊيوون
• مساج جو قسم: Shiatsu, 4 rotating heads
• Massage Directions: 2 (clockwise, counter-clockwise)
• گرمي جو ڪم: ها
• طاقت جو ذريعو: Wired (AC home adapter, 12V car adapter)
• مواد: مصنوعي چمڙو
• طول و عرض: 40.6 x 21.4 x 18.8 سينٽي ميٽر (تقريبن پيڪيج جي ماپ)
• وزن: 2.12 ڪلوگرام (تقريبن پيڪيج وزن)

9. وارنٽي ۽ سپورٽ

Medivon products are manufactured to high-quality standards. For information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Medivon webسائيٽ.

If you require technical support, have questions about your product, or need assistance with troubleshooting, please contact Medivon customer service. Contact details can typically be found on the product packaging, the official webسائيٽ، يا توهان جي خريداري دستاويز.
