CONDOR Self-Loader for Motorcycles Instruction Manual

تعارف

This manual provides detailed instructions for the safe and efficient use of the CONDOR Self-Loader for Motorcycles, specifically the kit designed for Dynamic 601 & Recovery Solutions 400 Series. The Self-Loader is engineered to facilitate the secure transport of various motorcycle types and sizes, requiring only one operator. Its patented adjustable wheel locking mechanism ensures the motorcycle remains upright and stable, minimizing the need for excessive tie-down tension that could damage suspension components.

Proper understanding and adherence to these instructions will ensure optimal performance and longevity of your CONDOR Self-Loader.

حفاظت جي ڄاڻ

Always prioritize safety when operating the CONDOR Self-Loader. Failure to follow safety guidelines can result in injury or damage to equipment.

• Ensure the self-loader is securely attached to the wrecker's self-loader system before loading any motorcycle.
• Verify all locking pins and fasteners are properly engaged and tightened.
• Use appropriate tie-downs to secure the motorcycle. While the self-loader provides stability, tie-downs are crucial for transport.
• Do not exceed the weight capacity of the self-loader or the wrecker's system.
• Keep hands and feet clear of moving parts during loading and unloading.
• Perform regular inspections for wear, damage, or loose components.

اجزاء ختمview

The CONDOR Self-Loader kit includes the main wheel chock assembly and the ramp/platform extension.

شڪل 1: Main components of the CONDOR Self-Loader, showing the wheel chock assembly on the left and the ramp/platform extension on the right.

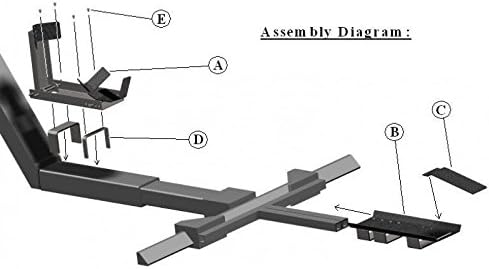

شڪل 2: ڌماڪو ٿيو view assembly diagram. (A) Wheel Chock Assembly, (B) Platform Base, (C) Ramp, (D) U-bolts for securing, (E) Pins for adjustment.

سيٽ اپ ۽ تنصيب

Follow these steps to properly set up and install the CONDOR Self-Loader onto your wrecker's system.

1. Prepare the Wrecker: Position the wrecker's self-loader arm in a stable, level position suitable for attachment.
2. Attach the Platform Base: Securely attach the platform base (B) to the wrecker's self-loader arm using the appropriate mounting hardware provided or compatible with your wrecker. Ensure it is centered and stable.
3. Install the Wheel Chock Assembly: Slide the wheel chock assembly (A) onto the platform base. Adjust its position to accommodate the motorcycle's wheelbase. Secure it using the provided pins (E) and U-bolts (D) to prevent movement during operation.
4. آر سان ڳنڍيوamp: آر سان ڳنڍيوamp (C) to the end of the platform base. This ramp facilitates easy loading and unloading of the motorcycle.
5. فائنل چيڪ: Before use, double-check all connections, pins, and bolts to ensure they are tight and secure.

شڪل 3: The CONDOR Self-Loader fully installed and extended from the rear of a wrecker, ready for motorcycle loading.

آپريٽنگ هدايتون

Loading a Motorcycle:

1. Position the Self-Loader: Extend the wrecker's self-loader arm and position the CONDOR Self-Loader on a level, stable surface.
2. Adjust Wheel Chock: Adjust the wheel chock's front cradle to match the diameter of the motorcycle's front wheel. This is done by repositioning the pins.
3. Roll Motorcycle On: Carefully roll the motorcycle onto the self-loader, guiding the front wheel into the wheel chock. The patented locking mechanism will engage, holding the motorcycle upright.
4. Secure with Tie-Downs: Once the motorcycle is securely held by the chock, attach appropriate tie-downs to the motorcycle and the self-loader's anchor points. Tighten the tie-downs just enough to prevent lateral movement; excessive tightening is not required due to the chock's stability.

شڪل 4: A motorcycle positioned and secured on the CONDOR Self-Loader, demonstrating the upright stability provided by the wheel chock.

شڪل 5: هڪ بند اپ view of a motorcycle's front wheel securely cradled within the CONDOR Self-Loader's wheel chock, illustrating the stability it provides.

شڪل 6: The rear wheel of a motorcycle resting on the platform extension of the CONDOR Self-Loader, with tie-downs attached for transport.

Unloading a Motorcycle:

1. Position for Unloading: Extend the wrecker's self-loader arm and position the CONDOR Self-Loader on a level, stable surface.
2. Release Tie-Downs: Carefully release all tie-downs securing the motorcycle. The self-loader will continue to hold the motorcycle upright.
3. Roll Motorcycle Off: Gently roll the motorcycle backward out of the wheel chock. The chock will release the wheel as it exits.
4. Retract Self-Loader: Once the motorcycle is safely off the self-loader, retract the wrecker's self-loader arm.

شڪل 7: A motorcycle fully secured on the CONDOR Self-Loader, demonstrating its readiness for transport by a wrecker.

سار سنڀال

Regular maintenance ensures the longevity and safe operation of your CONDOR Self-Loader.

• صفائي: Clean the self-loader regularly to remove dirt, grime, and road debris. Use a mild detergent and water, then dry thoroughly.
• لوڻ: Periodically lubricate all pivot points and moving parts with a suitable grease or lubricant to ensure smooth operation and prevent rust.
• چڪاس: Before each use, inspect the self-loader for any signs of wear, damage, cracks, or loose fasteners. Pay close attention to welds, pins, and the wheel chock mechanism.
• فاسٽنرز: Check and tighten all bolts, nuts, and pins regularly. Replace any worn or damaged fasteners immediately.
• اسٽوريج: When not in use, store the self-loader in a dry, protected area to prevent corrosion.

مشڪلاتون

وضاحتون

• ماڊل: SL-7000
• مطابقت: Designed for Dynamic 601 & Recovery Solutions 400 Series wrecker self-loaders.
• مواد: ڳري ڊيوٽي اسٽيل جي تعمير.
• Wheel Chock: Patented adjustable wheel locking mechanism.
• آپريشن: Single-operator loading/unloading.

وارنٽي ۽ سپورٽ

For warranty information or technical support regarding your CONDOR Self-Loader, please refer to the manufacturer's official webسائيٽ يا انهن جي ڪسٽمر سروس کاتي سان رابطو ڪريو.

ٺاهيندڙ: T.C. Development and Design, Inc.

وڌيڪ مدد لاءِ، توهان دورو ڪري سگهو ٿا CONDOR Store on Amazon.
