Butterball Masterbuilt MB23010618 XL Stainless Steel Electric Fryer Instruction Manual

تعارف

The Butterball XL Electric Fryer by Masterbuilt is designed for frying, steaming, or boiling a variety of foods. This fryer utilizes significantly less oil compared to traditional fryers and is engineered to commercial standards. Its extra-large basket can accommodate a 20 lb turkey, 5 lbs of chicken wings, or a large seafood boil. Cleanup is simplified with a built-in drain valve and dishwasher-safe components.

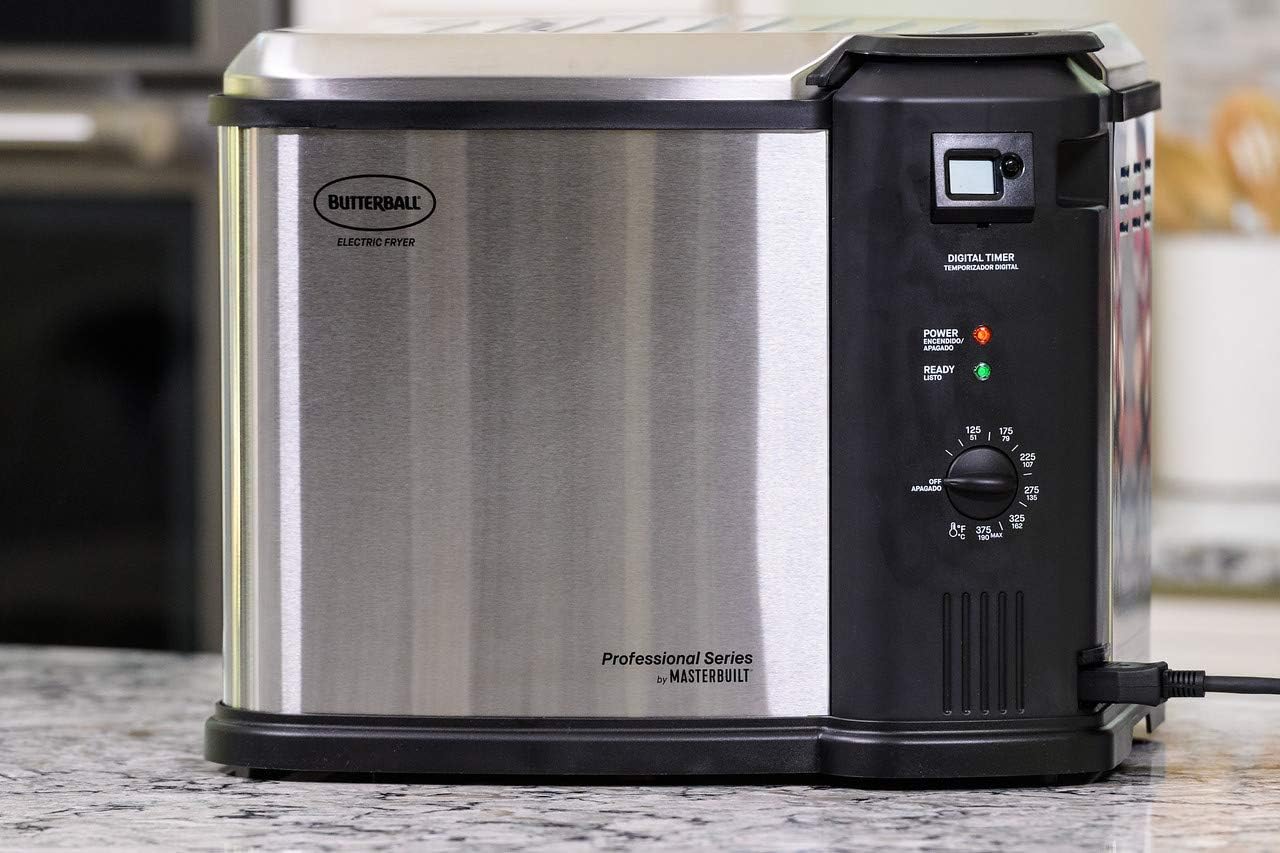

Image: The Butterball Masterbuilt XL Electric Fryer in its closed position, showcasing ان جي اسٽينلیس سٹیل جي ٻاهرين حصي ۽ ڪنٽرول پينل.

اهم حفاظتي ڄاڻ

خبردار: هي پراڊڪٽ توهان کي ڪيميائي مادن جي سامهون آڻي سگهي ٿو جنهن ۾ ليڊ شامل آهي، جيڪا ڪيليفورنيا جي رياست کي معلوم ٿئي ٿي ته سرطان ۽ پيدائش جي خرابين يا ٻيون پيدائشي نقصان. وڌيڪ معلومات لاءِ وڃو www.P65 ورننگس .ca.gov.

Always operate the fryer on a stable, level surface. Ensure adequate ventilation when in use. Keep children and pets away from the appliance during operation. Do not overfill the oil reservoir. Always ensure food items are completely dry before placing them into hot oil to prevent splattering. Use protective gloves when handling hot components or food. The magnetic breakaway cord is a safety feature designed to detach if pulled, preventing the fryer from tipping over.

پيداوار جا اجزاء

• Aluminum basket with patented drain clips
• Oil drain valve for easy clean-up
• Dishwasher safe components (pot, basket, lid, drain valve)
• Magnetic breakaway cord for safety
• Control panel with temperature dial and indicator lights

Image: The fryer shown with its lid open, revealing the internal basket and heating element.

Image: Close-up of the aluminum frying basket, highlighting its perforated design and integrated drain clips.

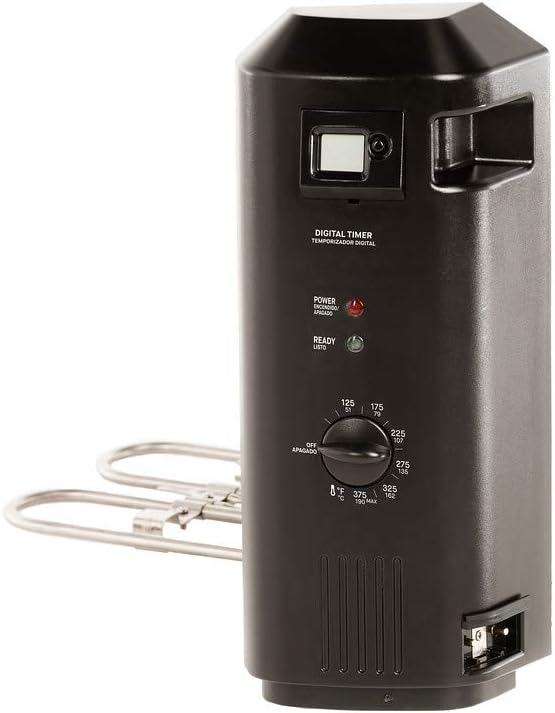

Image: The control panel featuring the digital timer, power and ready indicator lights, and temperature dial.

سيٽ اپ جون هدايتون

1. Position the Fryer: Place the fryer on a stable, heat-resistant, and level surface. Ensure it is in a well-ventilated area.
2. Check Drain Valve: Verify that the oil drain valve is in the closed position and the safety cap is securely mounted.
3. تيل شامل ڪريو: Pour cooking oil into the fryer. The unit features a MAX fill line to guide the appropriate oil level.
4. پاور Connectنيو: Attach the magnetic breakaway cord to the fryer's control panel. Then, plug the cord into a grounded electrical outlet.
5. درجه حرارت مقرر ڪريو: Turn the temperature dial to the desired setting, typically 375°F for frying. The 'Power' light will illuminate, and the 'Ready' light will turn on when the desired temperature is reached.
6. کاڌو تيار ڪريو: For poultry like turkey, ensure it is completely thawed. Give the turkey a warm water bath to remove any ice crystals or cold pockets. Pat the turkey completely dry with paper towels to eliminate excess water. Inject your favorite marinade (recommended 1 ounce per pound) and season the exterior and cavity.
7. Prepare Basket: Spray the frying basket with a non-stick cooking spray to prevent food from sticking.

Video: An official Masterbuilt video demonstrating the setup and preparation steps for frying a turkey in the Butterball XL Electric Fryer.

آپريٽنگ هدايتون

1. تيل کي اڳي گرم ڪريو: Allow the fryer to preheat until the 'Ready' indicator light illuminates, signifying the oil has reached the set temperature (e.g., 375°F).
2. کاڌو لوڊ ڪريو: Carefully place the prepared food item into the frying basket.
3. هيٺيون کاڌو: Wearing protective gloves, slowly lower the basket containing the food into the hot oil. Lowering slowly helps prevent oil from overflowing and reduces splattering.
4. پچائڻ جو وقت: For turkey, a general guideline is 4 minutes per pound. Always cook poultry to an internal temperature of 165°F.
5. کاڌو هٽايو: Once cooking is complete, carefully lift the basket using the patented drain clips. Hook the basket onto the side of the fryer to allow excess oil to drain and the food to rest before serving.

Image: A perfectly cooked turkey resting on a cutting board next to the Butterball Masterbuilt XL Electric Fryer.

Image: The fryer being used to cook crab legs, demonstrating its versatility beyond just turkey.

Video: A merchant video showcasing the Masterbuilt MB23010618 Fryer in action, demonstrating its ease of use.

سنڀال ۽ سار سنڀال

1. ٿڌي ڪريو: Always allow the oil to cool completely before attempting any cleaning or draining procedures.
2. تيل ڪڍڻ: Once cooled, open the oil drain valve to empty the oil into a suitable container for disposal or reuse.
3. صاف اجزاء: The pot, basket, lid, and drain valve are dishwasher safe. Wash these components thoroughly after each use. The exterior and control panel should be wiped clean with a damp ڪپڙو. بجليءَ جي حصن کي پاڻيءَ ۾ نه ٻوڙيو.

مشڪلاتون

• Fryer Not Heating: Ensure the magnetic breakaway cord is securely attached to both the fryer and the electrical outlet. Check that the temperature dial is set to a desired temperature and not 'OFF'.
• Oil Not Draining: Verify that the drain valve is fully open and not obstructed.
• کاڌو جيڪو ڪرسپي نه هجي: Ensure food is thoroughly patted dry before frying. Confirm that the oil has reached the correct temperature before adding food.

وضاحتون

وارنٽي ۽ سپورٽ

Specific warranty information is not provided in the product details. For detailed warranty information, product support, or to contact customer service, please visit the official Butterball store or the manufacturer's webسائيٽ.
