Uniden UM435BK Marine Radio User Manual

پيداوار ختمview

The Uniden UM435BK is a robust and reliable fixed mount VHF marine radio, engineered to provide essential communication and safety features for mariners. Its design prioritizes durability and ease of use, making it a vital tool for any vessel. The unit is fully submersible, ensuring performance even in challenging marine environments.

Key features include comprehensive channel access (USA, International, Canadian, new 4-digit, and CDN “B” channels), selectable 1 Watt or 25 Watt transmit power, and advanced Digital Selective Calling (DSC) functionalities. The radio is equipped with a dedicated receiver for Channel 70 DSC calls, supporting distress, individual, urgency, safety, and position report functions. Its compact chassis allows for flexible installation options on various boats.

Figure 1: The Uniden UM435BK Advanced Fixed Mount VHF Marine Radio, showcasing its compact design and included microphone.

اهم خاصيتون

• آبدوز ڊيزائن: IPX8/JIS8 waterproof rating ensures durability in marine conditions.
• چينل تائين رسائي: All USA, International, and Canadian Marine Channels, including new 4-Digit and CDN “B” Channels.
• پاور آئوٽ: Selectable 1 Watt or 25 Watt transmit power.
• ڊجيٽل سليڪٽو ڪالنگ (DSC): Dedicated receiver for Channel 70 DSC calls, supporting distress, individual, urgency, safety, position report, send, and DSC test calls.
• Triple Watch Plus: Monitors Channel 16, Channel 9, and one user-selected channel simultaneously.
• اسڪيننگ افعال: Memory Channel Scan and Weather Scan for efficient monitoring.
• A.M.E. Emergency/Weather Alert: Provides critical weather and emergency alerts.
• ڏيکاريو: Larger LCD (25mm x 51mm) full dot matrix display with intuitive menus and adjustable backlight.
• NMEA 0183: In/Out connectivity for integration with other marine electronics.
• مائڪروفون: Durable rubber grip microphone with integrated 16/09, channel up/down, and Scan/Mem keys.

سيٽ اپ ۽ تنصيب

The Uniden UM435BK is designed for fixed-mount installation, offering a shorter chassis for greater versatility in mounting locations. Proper installation is crucial for optimal performance and safety.

يونٽ لڳائڻ

Select a location that is dry, protected from direct sunlight, and allows for easy access to controls and clear visibility of the display. Ensure adequate space for cable connections at the rear of the unit. Use the supplied mounting bracket and hardware to securely fasten the radio to a flat surface.

شڪل 2: پاسي view of the UM435BK, illustrating its compact form factor suitable for various mounting configurations.

برقي ڪنيڪشن

• طاقت: Connect the red wire to the positive (+) terminal of a 12V DC power source and the black wire to the negative (-) terminal. Ensure an inline fuse is installed for protection.
• اينٽينا: Connect a marine VHF antenna to the antenna connector on the rear of the unit. A high-quality antenna is essential for effective communication range.
• NMEA 0183: If integrating with a GPS receiver or other NMEA 0183 compatible devices, connect the appropriate NMEA wires as per the wiring diagram in the full user manual. This enables features like position reporting for DSC.

شڪل 3: پوئتي view of the UM435BK, highlighting the various connection ports for power, antenna, and NMEA 0183.

آپريٽنگ هدايتون

Familiarize yourself with the controls and display of the UM435BK for efficient operation.

بنيادي آپريشن

• پاور آن / آف: Press and hold the power button (usually integrated with the volume knob) to turn the unit on or off.
• Volume and Squelch: Adjust the VOLUME knob to control audio output. Rotate the SQUELCH knob to eliminate background noise; adjust until the noise disappears but you can still hear weak signals.
• چينل چونڊ: Use the CHANNEL up/down buttons on the unit or microphone to cycle through available channels. The display will show the current channel number and its description.
• Channel Banks: کي دٻايو 1W/25W button to toggle between USA, International, and Canadian channel banks.
• منتقلي طاقت: کي دٻايو 1W/25W button to switch between 1 Watt (low power) and 25 Watt (high power) transmit modes. Use low power for short-range communication to conserve battery and reduce interference.

ترقي يافته افعال

• ڊجيٽل سليڪٽو ڪالنگ (DSC): The UM435BK supports various DSC calls. Press the ڪال button to access the DSC menu. Ensure your MMSI (Maritime Mobile Service Identity) is programmed into the radio for DSC functionality.
• Triple Watch Plus: Activate Triple Watch Plus to monitor Channel 16, Channel 9, and a user-selected channel simultaneously.
• Memory Scan: Store frequently used channels in memory and activate Memory Scan to continuously monitor them.
• موسم جي خبرداري: Access weather channels and enable the A.M.E. (All Hazards Message Encoding) Emergency/Weather Alert feature to receive critical weather warnings.

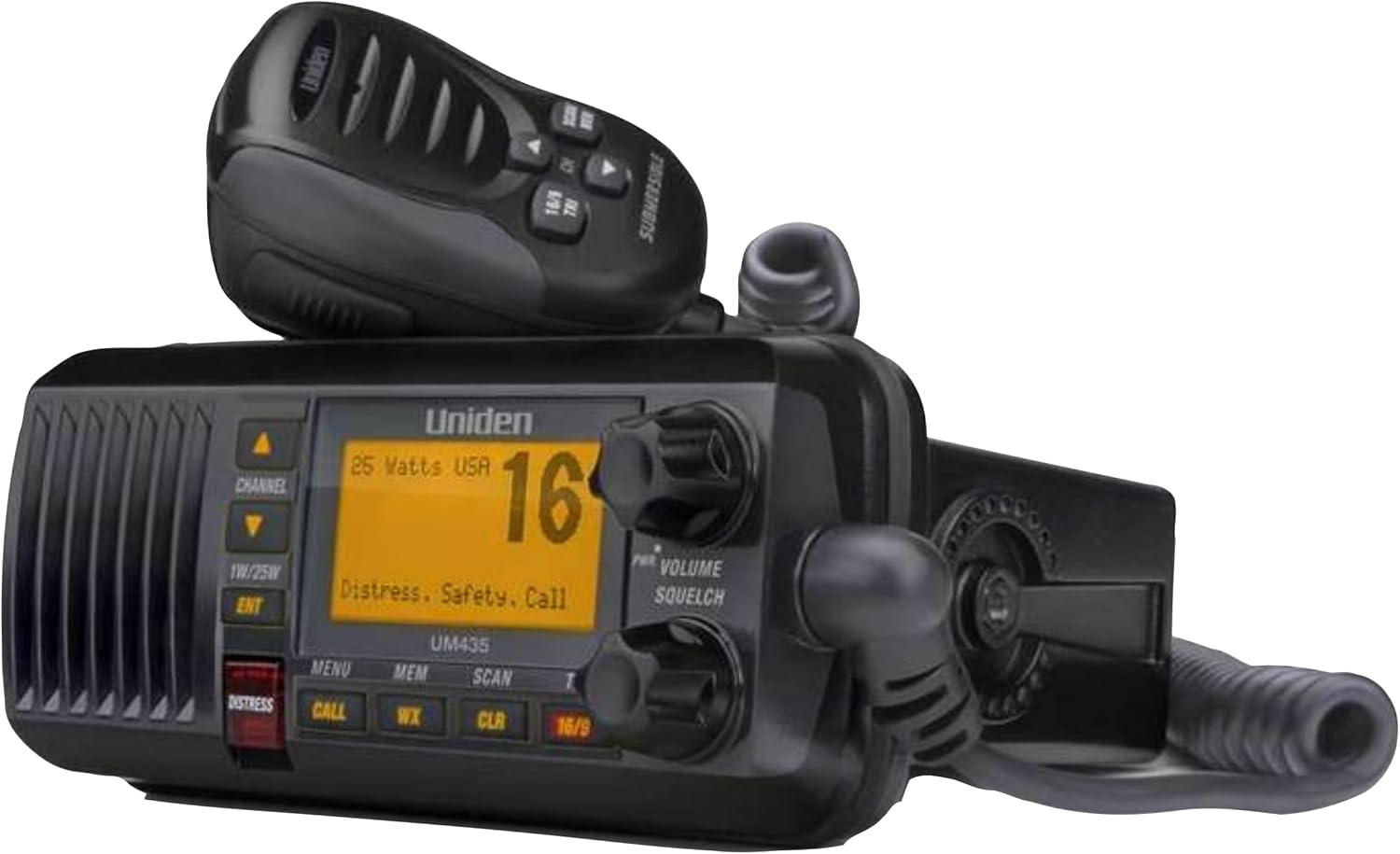

شڪل 4: بند اپ view of the UM435BK's LCD display and control knobs, showing channel information and function buttons.

سار سنڀال

Regular maintenance ensures the longevity and reliable performance of your Uniden UM435BK marine radio.

• صفائي: As the unit is IPX8 submersible, it can be rinsed with fresh water to remove salt residue after exposure to saltwater. Use a soft, damp ڊسپلي ۽ ٻاهرين حصي کي صاف ڪرڻ لاءِ ڪپڙو. رگڙيندڙ صاف ڪندڙن يا محلولن کان پاسو ڪريو.
• مائڪروفون سنڀال: Periodically inspect the microphone and its cable for any signs of wear or damage. Ensure the screws holding the microphone gasket are tight to maintain its waterproof integrity.
• ڪنيڪشن: Regularly check all electrical and antenna connections to ensure they are secure and free from corrosion. Apply dielectric grease to connections if operating in a high-moisture environment.
• ماحولياتي تحفظ: While the radio is waterproof, prolonged exposure to direct sunlight or extreme temperatures can affect its lifespan. When not in use, consider covering the unit if it's installed in an exposed area.

مشڪلاتون

This section addresses common issues you might encounter with your UM435BK radio.

وضاحتون

Detailed technical specifications for the Uniden UM435BK Marine Radio.

وارنٽي ڄاڻ

The Uniden UM435BK Marine Radio comes with a 3-year water protection warranty, demonstrating Uniden's commitment to the durability and reliability of this product in marine environments. For specific details regarding the warranty terms, conditions, and claim procedures, please refer to the official warranty documentation included with your product or visit the Uniden support webسائيٽ.

مدد ۽ رابطو

For further assistance, technical support, or to access additional resources for your Uniden UM435BK Marine Radio, please utilize the following options:

• Official User Manuals:
  • يوزر گائيڊ (PDF)
  • يوزر مينوئل (PDF)
• Uniden Store: Visit the official Uniden store on Amazon for product information and accessories: Uniden Store
• ڪسٽمر سروس: Refer to the contact information provided in your product packaging or on the official Uniden webسڌو سنئون گراهڪ سپورٽ لاءِ سائيٽ.
