Oasser P2A Cordless Air Compressor User Manual

1. تعارف

Thank you for choosing the Oasser P2A Cordless Air Compressor. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

The Oasser P2A is a portable, rechargeable electric air compressor designed for inflating tires on cars, motorcycles, bicycles, and other inflatable items. It features a built-in 2000 mAh lithium battery, a maximum pressure of 120 PSI, an LED light for dark conditions, and an LCD screen for precise pressure monitoring.

2. حفاظتي هدايتون

محفوظ آپريشن کي يقيني بڻائڻ لاءِ، هميشه انهن احتياطي تدبيرن تي عمل ڪريو:

• ڊوائيس استعمال ڪرڻ کان پهريان سڀ هدايتون احتياط سان پڙهو.
• ڊوائيس ٻارن جي پهچ کان پري رکو.
• ڪمپريسر کي گندي حالتن ۾ يا ٻرندڙ مائع يا گيسن جي ويجهو نه هلايو.
• Ensure the air hose is securely connected to both the compressor and the item being inflated before starting.
• Do not over-inflate items. Always refer to the manufacturer's recommended pressure for the item being inflated.
• Monitor the pressure gauge during inflation to prevent over-inflation. The device features automatic shut-off, but manual monitoring is still recommended.
• ڪمپريسر کي آپريشن دوران بغير نه ڇڏيو.
• Avoid directing the air stream at people or animals.
• Charge the battery in a well-ventilated area. Do not charge if the device or charger is damaged.
• If the device becomes unusually hot during use or charging, discontinue use immediately and contact customer support.
• Always disconnect the air hose and store the device properly after use.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي شيون توهان جي پيڪيج ۾ موجود آهن:

• 1 x Oasser P2A Air Pump
• 1 x Short Air Hose
• 1 x Long Air Hose
• 1 x بال سوئي
• 1 x Plastic Nozzle
• 1 x Presta والو اڊاپٽر
• 1 x USB Charging Cable (USB charger not included)
• 1 x اسٽوريج بيگ
• 1 x استعمال ڪندڙ دستياب

Image: Oasser P2A Cordless Air Compressor with all included accessories, such as air hoses, nozzles, and charging cable.

4. پراڊڪٽ ختمview

Familiarize yourself with the components of your Oasser P2A air compressor:

Image: Diagram illustrating the main components of the Oasser P2A, including the LED light, digital LCD display, and rechargeable lithium battery.

• LED لائيٽ: گهٽ روشني واري حالتن ۾ استعمال لاءِ روشني فراهم ڪري ٿو.
• ڊجيٽل LCD ڊسپلي: Shows real-time and preset pressure values.
• ڪنٽرول بٽڻ: Power, unit selection, and pressure adjustment (+/-).
• ايئر هوز ڪنيڪشن: Point for attaching the air hose.
• Trigger/Start Button: Initiates the inflation process.
• Rechargeable Lithium Battery (2000 mAh): بي تار بجلي فراهم ڪري ٿو.
• USB چارجنگ پورٽ: ڊوائيس کي ري چارج ڪرڻ لاءِ.

5. ڊوائيس کي چارج ڪرڻ

Before first use, fully charge the air compressor. It takes approximately 4 hours for a complete charge.

1. Connect the provided USB charging cable to the USB charging port on the compressor.
2. Connect the other end of the USB cable to a compatible USB power adapter (not included) or a USB port.
3. The charging indicator light will illuminate. Once fully charged, the light may change color or turn off depending on the model.

Important: Please charge the battery completely within 3 days after each use to maintain battery health.

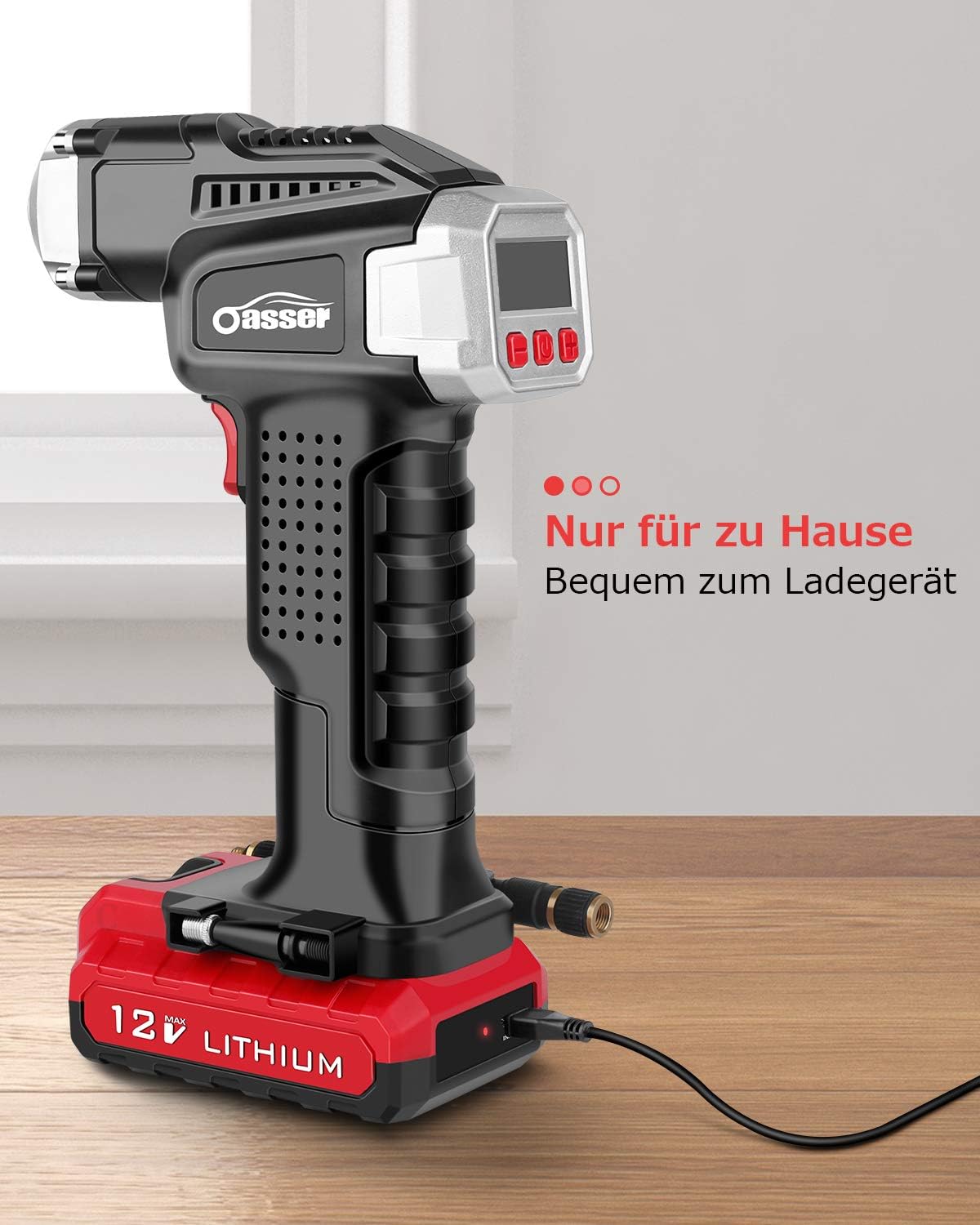

Image: The Oasser P2A air compressor connected to a USB charging cable, indicating the charging process.

6. سيٽ اپ

Prepare your air compressor for inflation:

1. ايئر هوز کي ڳنڍيو: Screw the desired air hose (short or long) onto the air hose connection port at the front of the compressor until secure.
2. صحيح اڊاپٽر چونڊيو: Choose the appropriate nozzle or adapter for the item you wish to inflate (e.g., Presta valve adapter for bicycles, ball needle for sports balls, plastic nozzle for inflatable toys). Attach it to the end of the air hose.

7. آپريٽنگ هدايتون

ڪنهن به شيءِ کي وڌائڻ لاءِ انهن قدمن تي عمل ڪريو:

1. پاور آن: Press the middle button on the control panel to turn on the device. The LCD display will illuminate.
2. والو سان ڳنڍيو: Securely connect the air hose adapter to the valve of the item you intend to inflate. The current pressure will be displayed on the LCD screen.
3. مطلوب دٻاء مقرر ڪريو: Use the '+' and '-' buttons to adjust the target pressure. You can cycle through pressure units (PSI, BAR, KPA, kg/cm²) by pressing the unit selection button (often the power button briefly).
4. مهانگائي جي شروعات: Press the red trigger/start button on the handle to begin inflation. The compressor will operate, and the real-time pressure will be shown on the display.
5. خودڪار ٿيل بند: The compressor will automatically stop once the preset target pressure is reached.
6. ڳنڍڻ: Carefully disconnect the air hose from the item's valve.
7. بجلي بند: Press and hold the middle button to turn off the device.

LED لائيٽ استعمال ڪندي: Press the dedicated LED light button (if available, often integrated with another button) to turn the light on or off for visibility in dark environments.

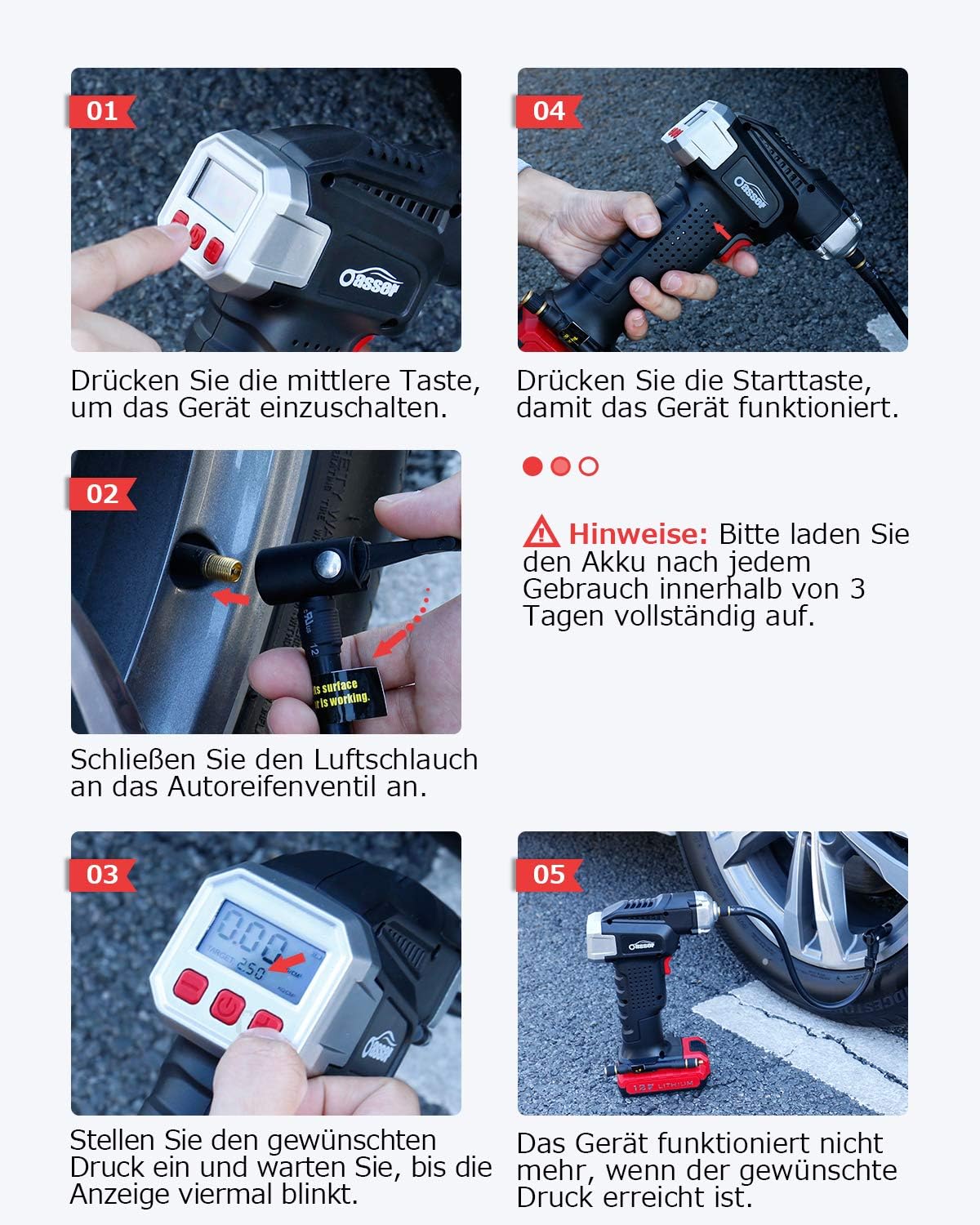

Image: Visual guide demonstrating the operational steps: powering on, connecting the hose, setting pressure, and starting inflation.

Image: The Oasser P2A air compressor actively inflating a car tire, demonstrating its practical application.

تصوير: هڪ تفصيلي view of the Oasser P2A's digital LCD display, clearly showing pressure readings and unit selection.

8. سار سنڀال

Proper maintenance ensures the longevity and performance of your air compressor:

• صفائي: ڊوائيس کي نرم سان مسح ڪريو، ڊيamp ڪپڙو. سخت ڪيميڪل يا رگڙيندڙ صاف ڪندڙ استعمال نه ڪريو. اسٽوريج کان اڳ پڪ ڪريو ته ڊوائيس سڪي وڃي.
• اسٽوريج: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage bag to protect it from dust and damage.
• بيٽري جي سنڀال: Recharge the battery regularly, especially if the device has not been used for an extended period. Avoid completely draining the battery frequently to prolong its lifespan.
• Hose and Nozzle Inspection: Periodically check the air hoses and nozzles for any signs of wear, cracks, or damage. Replace them if necessary to ensure a proper seal and efficient inflation.

9. مسئلا حل ڪرڻ

If you encounter issues with your Oasser P2A, refer to the following common problems and solutions:

10. وضاحتون

11. وارنٽي ۽ سپورٽ

Oasser is committed to providing high-quality products and excellent customer service. If you have any questions, concerns, or require assistance with your Oasser P2A Cordless Air Compressor, please refer to the contact information provided with your purchase or visit the official Oasser webحمايت لاء سائيٽ.
