1. تعارف
The PNI House IP516 is a 16-channel Network Video Recorder (NVR) designed for advanced surveillance systems, supporting up to 5MP IP cameras and H.265 video compression. This NVR allows for local and remote monitoring, recording, and management of your security cameras. It is compatible with ONVIF protocol cameras, offering flexibility in camera selection. This manual provides essential information for the proper installation, operation, and maintenance of your PNI House IP516 NVR.
2. پيڪيج مواد
مھرباني ڪري تصديق ڪريو ته ھيٺ ڏنل سڀ شيون توھان جي پيڪيج ۾ شامل آھن. جيڪڏھن ڪا به شيءِ غائب يا خراب آھي، ته پنھنجي پرچون ڪندڙ سان رابطو ڪريو.
- PNI House IP516 NVR Unit
- USB ماؤس
- پاور اڊاپٽر
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
- CD with Software
Image: Side of the NVR box detailing the package contents.
Image: The PNI House IP516 NVR unit, power adapter, and USB mouse included in the package.
3. پراڊڪٽ ختمview
3.1 فرنٽ پينل
The front panel of the NVR features indicator lights for system status.
- PWR (طاقت): Indicates the NVR is powered on.
- آر اي سي (ريڪارڊنگ): Flashes when recording is active.
- نيٽ (نيٽ ورڪ): ڏيکاري ٿو نيٽ ورڪ سرگرمي.
تصوير: سامهون view of the PNI House IP516 NVR, showing the power, record, and network indicator lights.
3.2 ريئر پينل
The rear panel provides all necessary connection ports for the NVR.
- VGA پورٽ: VGA مانيٽر سان ڳنڍي ٿو.
- HDMI پورٽ: Connects to an HDMI monitor or TV for high-definition video output.
- LAN Port (RJ45 10/100 Mbps): Connects to your network router or switch.
- USB پورٽس (x2): For connecting the USB mouse, external storage, or for system upgrades.
- ڊي سي 12V پاور ان پٽ: شامل ٿيل پاور اڊاپٽر سان ڳنڍي ٿو.

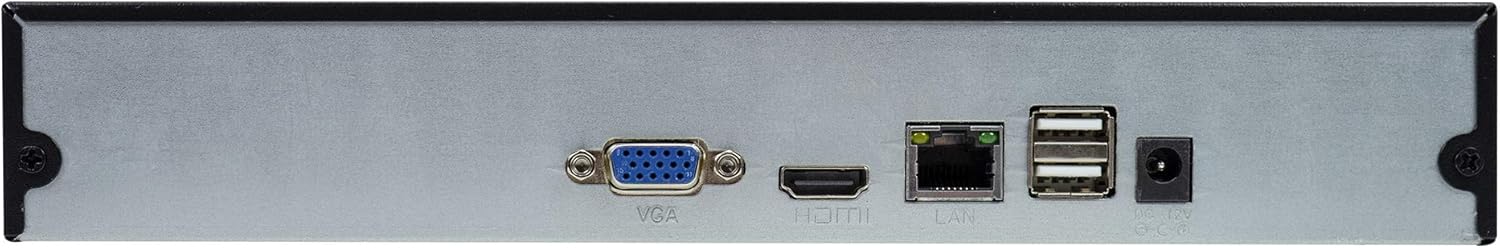

تصوير: پوئين پاسي view of the PNI House IP516 NVR, displaying VGA, HDMI, LAN, USB, and DC 12V power input ports.
4. سيٽ اپ
4.1 هارڊ ڊرائيو جي انسٽاليشن (اختياري)
The NVR supports a hard drive up to 8 TB for video storage. It is recommended to use dedicated CCTV hard drives for optimal reliability and endurance.
- NVR جي مٿين ڍڪ کي ختم ڪريو ۽ ختم ڪريو.
- SATA ڊيٽا ۽ پاور ڪيبلز کي NVR کان هارڊ ڊرائيو سان ڳنڍيو.
- مهيا ڪيل اسڪرو استعمال ڪندي هارڊ ڊرائيو کي NVR چيسس سان محفوظ ڪريو.
- مٿيون ڍڪ تبديل ڪريو ۽ ان کي اسڪرو سان محفوظ ڪريو.
4.2 شروعاتي ڪنيڪشن
- Connect a monitor to the NVR's VGA or HDMI port.
- Connect the USB mouse to one of the NVR's USB ports.
- Connect an Ethernet cable from the NVR's LAN port to your network router or switch.
- Connect the power adapter to the NVR's DC 12V input and then plug it into a power outlet. The NVR will power on automatically.
4.3 First Boot and Basic Configuration
Upon the first boot, the NVR will guide you through an initial setup wizard. Follow the on-screen prompts to:
- Set up a strong password for the administrator account.
- تاريخ ۽ وقت سيٽنگون ترتيب ڏيو.
- Format the installed hard drive (if applicable).
- Perform network settings (DHCP is usually enabled by default).
- ڳولھيو and add IP cameras to the NVR. The NVR supports up to 16 cameras at 2560x1920px (5MP) and is compatible with ONVIF protocol cameras.
5. اين وي آر هلائڻ
5.1 لوڪل آپريشن
Use the connected mouse to navigate the NVR's graphical user interface (GUI) on the monitor. Right-click to access the main menu, which includes options for live view, playback, recording settings, system configuration, and more.
5.2 ريموٽ رسائي
The PNI House IP516 NVR can be accessed remotely for live viewing, playback, and configuration.
- Mobile Application (XMEye): Download the XMEye app from the Android Play Store or Apple App Store. Register an account, add your NVR by scanning its QR code or entering its serial number, and then you can view your cameras from anywhere with an internet connection.
- PC Software (General CMS): Install the General CMS software from the included CD or download it from the PNI support website. This software allows for comprehensive management of your NVR and cameras from a Windows PC.
5.3 رڪارڊنگ مئنيجمينٽ
اين وي آر مختلف رڪارڊنگ طريقن کي سپورٽ ڪري ٿو:
- مسلسل رڪارڊنگ رڪارڊ 24/7.
- مقرر ڪيل رڪارڊنگ. مخصوص وقت جي عرصي دوران رڪارڊ.
- حرڪت جي چڪاس جي رڪارڊنگ: Records only when motion is detected by the cameras.
Configure these settings in the NVR's menu under 'Record' or 'Storage' settings.
5.4 حرڪت جي ڳولا ۽ خبرداريون
When motion is detected, the system can trigger various alerts:
- موبائل نوٽيفڪيشن: Text notifications sent via the XMEye mobile application.
- اي ميل جون خبرون: An email sent to a predefined address.
- ايف ٽي پي اپلوڊ: The recording saved to an FTP server.
These alert settings can be configured in the NVR's 'Alarm' or 'Event' menu.
6. سار سنڀال
6.1 هارڊ ڊرائيو جو انتظام
Regularly check the status of your hard drive in the NVR's storage settings. If the hard drive becomes full, the NVR will typically overwrite the oldest recordings (loop recording). You may need to format the hard drive periodically if you encounter issues or wish to clear all data.
6.2 سسٽم اپڊيٽس
Periodically check the PNI support website for firmware updates. Firmware updates can improve performance, add new features, or fix bugs. Follow the instructions provided with the firmware update carefully to avoid damaging the device.
6.3 صفائي
Ensure the NVR unit is kept clean and free from dust. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols directly on the unit.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| NVR does not power on | No power supply; faulty power adapter | Check power connection; test power adapter; try a different outlet. |
| مانيٽر تي ڪو به وڊيو آئوٽ پُٽ ناهي | Loose cable; incorrect input selected on monitor | Ensure VGA/HDMI cable is securely connected; select correct input on monitor. |
| NVR تائين ريموٽ رسائي نه ٿي سگهي | Network issue; incorrect app settings; NVR not connected to internet | Verify NVR network connection; check router settings; ensure correct NVR ID/serial in app. |
| ڪئميرا نه ڏيکاري رهيا آهن | Camera not powered; network issue; incorrect camera IP/protocol | Check camera power and network cables; ensure cameras are ONVIF compatible; verify camera IP addresses. |
| ڪابه رڪارڊنگ ناهي | Hard drive not installed/formatted; recording schedule not set; motion detection not configured | Install and format HDD; configure recording schedule; set up motion detection zones and sensitivity. |
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | IP516 |
| چينل | 16 |
| وڌ ۾ وڌ ريڪارڊ | 5MP (2560 x 1920px) |
| وڊيو ڪمپريشن | ايڇ.265 |
| مطابقت رکندڙ ڊوائيسز | IP Cameras, Smartphone |
| رابطي ٽيڪنالاجي | HDMI, USB, VGA, RJ45 Ethernet |
| ڪميونيڪيشن انٽرفيس | RJ45 10/100 Mbps |
| وڌ ۾ وڌ اسٽوريج جي گنجائش | 8 ٽي بي (ايڇ ڊي ڊي) |
| USB بندرگاهن | 2 |
| بجلي جو استعمال | 10 واٽ |
| ٺاهيندڙ حصو نمبر | PNI-1920P |
9. وارنٽي
The PNI House IP516 NVR comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official PNI webوارنٽي ڪوريج، مدت، ۽ سروس جي طريقيڪار بابت تفصيلي شرطن ۽ ضابطن لاءِ سائيٽ. وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
10. سپورٽ
For technical support, troubleshooting assistance, or further inquiries regarding your PNI House IP516 NVR, please visit the official PNI website or contact their customer service department. You can find contact information and additional resources on the PNI brand store page: PNI Brand Store.
