MOSFiATA 3.5L Warm and Cool Mist Humidifier User Manual

1. تعارف

Thank you for choosing the MOSFiATA 3.5L Warm and Cool Mist Humidifier. This ultrasonic humidifier is designed to improve air quality and comfort in your home or office. It features a large 3.5-liter capacity, offering both warm and cool mist options with three adjustable mist levels. Additional features include a programmable timer, a 7-color night light, and an aromatherapy function.

Please read this manual thoroughly before operating the device to ensure safe and optimal performance. Keep this manual for future reference.

2. اھم حفاظتي ھدايتون

باهه، بجليءَ جي جھٽڪي، يا زخم جي خطري کي گهٽائڻ لاءِ، هميشه انهن بنيادي حفاظتي احتياطن تي عمل ڪريو:

• Before initial use, ensure the protective sponge is removed from the base of the humidifier. Failure to do so may prevent the ON/OFF button from functioning correctly.
• Always unplug the humidifier from the power supply before adding water, cleaning, or moving the unit.
• Use only clean, fresh tap water or pure water in the water tank.
• Avoid water leakage when filling the tank. Do not place the humidifier in wet areas.
• The warm mist temperature at the nozzle is approximately 104℉ (40℃). Exercise caution, especially around children, as direct contact with the mist may cause discomfort.
• This humidifier is not intended to function as an environmental heater.
• ضروري تيل سڌو سنئون پاڻي جي ٽانڪي ۾ شامل نه ڪريو. Use only the designated aromatherapy box.
• Keep essential oils out of reach of children.
• The humidifier features an automatic shut-off when water levels are low, indicated by a flashing power button light.

3. پراڊڪٽ ختمview

Familiarize yourself with the components of your MOSFiATA humidifier:

تصوير 3.1: سامهون view of the MOSFiATA 3.5L Warm and Cool Mist Humidifier, showing the main unit, transparent water tank, and control panel.

اجزاء:

• مِسٽ نوزل: Emits mist into the air.
• پاڻي جي ٽانڪي: 3.5L capacity, transparent for easy water level monitoring.
• بنيادي يونٽ: Contains the ultrasonic transducer and control electronics.
• ڪنٽرول پينل: Features touch buttons for ON/OFF, Mist mode, and Time/Light functions.
• پاڻي جي سطح ونڊو: A vertical transparent strip on the front of the unit to view پاڻي جي سطح.
• خوشبوءِ جو دٻو: A small compartment for adding essential oils (located on the side or back of the unit, refer to image 3.3).

تصوير 3.2: تفصيلي view of the control panel and product dimensions (approximately 7.1 inches wide and 12.6 inches high).

تصوير 3.3: The humidifier in use, highlighting the aromatherapy box for essential oils.

4. سيٽ اپ

شروعاتي سيٽ اپ لاءِ ھنن قدمن تي عمل ڪريو:

1. پيڪ ڪريو: احتياط سان ان جي پيڪنگنگ مان humidifier هٽايو.
2. Remove Protective Sponge: Locate and remove the protective foam/sponge from the base of the humidifier. This is crucial for proper operation.
3. Place Humidifier: Position the humidifier on a flat, stable, and water-resistant surface. Ensure it is not placed directly on wood furniture or in wet areas.
4. پاڻي جي ٽانڪي ڀريو:


   تصوير 4.1: Illustration of the top-fill water tank design, showing water being poured directly into the top opening.

   The humidifier features a top-fill design. Remove the top cover and pour clean, fresh water directly into the water tank. Do not exceed the maximum fill line. The transparent water level window allows you to monitor the water volume.
5. پاور Connectنيو: Plug the power cord into a standard 120V AC electrical outlet. The unit is now in standby mode.

5. آپريشن

Operate your humidifier using the touch-sensitive control panel:

5.1 Power On/Off and Mist Level Adjustment

• پاور آن: کي ڇڪيو آن/بند بٽڻ () once to turn on the humidifier. It will default to Cool Mist, Low level.
• ڌنڌ جي سطح کي ترتيب ڏيو: While the humidifier is on, repeatedly touch the آن/بند button to cycle through mist levels: Low (L), Medium (M), High (H).
• بجلي بند: Continue touching the آن/بند button until the unit turns off, or press and hold for a few seconds.

5.2 Warm/Cool Mist Selection

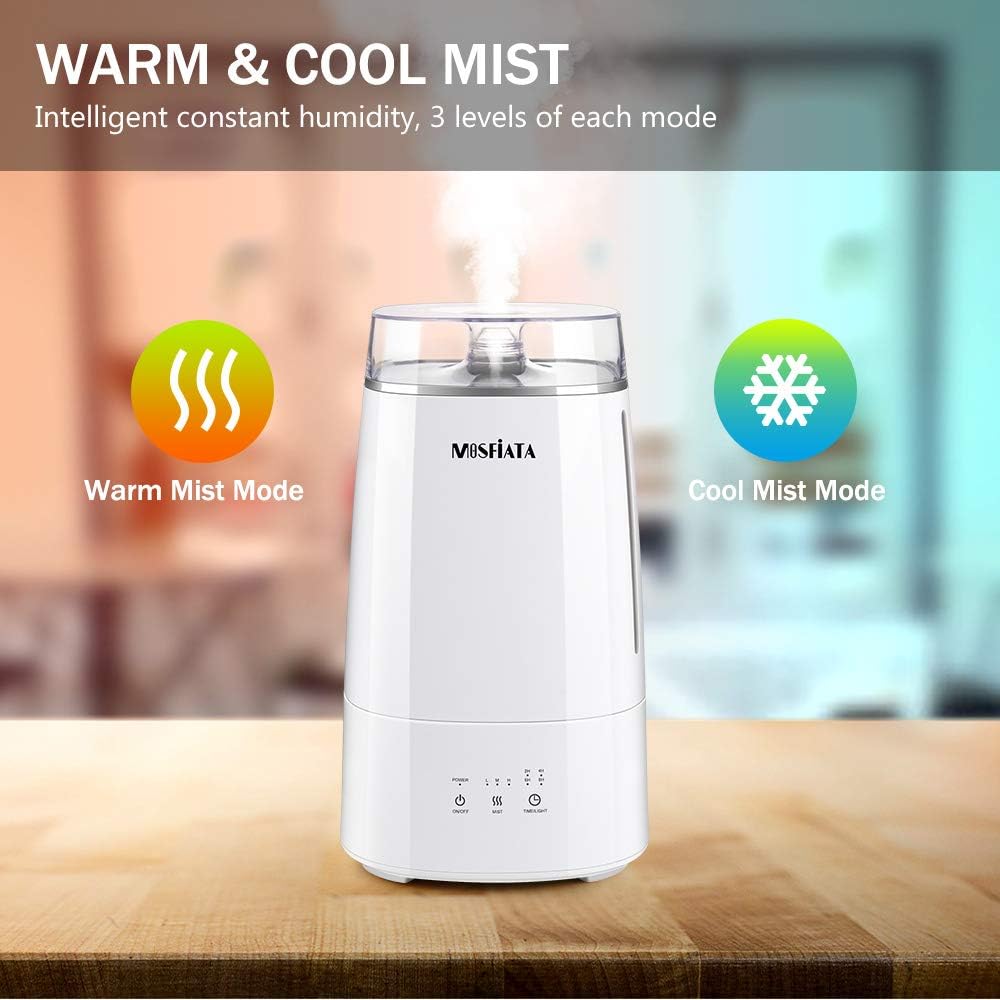

تصوير 5.1: Visual representation of the warm mist (red wavy lines) and cool mist (blue snowflake) modes.

• سوئچ موڊ: کي ڇڪيو MIST بٽڻ () to switch between Warm Mist and Cool Mist modes.
• اشارو: An LED light above the MIST button will blink when in Warm Mist mode.
• Mist Emission: Allow a few minutes for the humidifier to heat or cool the water before the selected mist type is fully emitted.

5.3 ٽائمر فنڪشن

• ٽائمر سيٽ ڪريو. مختصر رابطو TIME/LIGHT بٽڻ () to set the operating timer. Available settings are 2 hours (2H), 4 hours (4H), 6 hours (6H), and 8 hours (8H). The humidifier will automatically turn off after the set time.

5.4 رات جي روشني جو ڪم

• چالو / غير فعال ڪرڻ: Long touch (press and hold for 3 seconds) the TIME/LIGHT button to turn the 7-color mood light ON or OFF.

5.5 خوشبوءِ جو ڪم

• لازمي تيل شامل ڪريو: Locate the aromatherapy box (refer to Image 3.3). Open the box and add a few drops of your preferred essential oil onto the aroma pad. Close the box securely.
• اهم: ضروري تيل سڌو سنئون پاڻي جي ٽانڪي ۾ نه شامل ڪريو، ڇاڪاڻ ته اهو يونٽ کي نقصان پهچائي سگهي ٿو ۽ وارنٽي کي رد ڪري سگهي ٿو.

6. سار سنڀال ۽ صفائي

Regular cleaning is essential to maintain optimal performance and prevent scale buildup or unpleasant odors.

1. روزاني سار سنڀال: Empty any remaining water from the tank and base daily. Refill with fresh water.
2. هفتيوار صفائي:
   • پاور آئوٽليٽ مان هيميڊيفائر کي ان پلگ ڪريو.
   • پاڻي جي ٽانڪي کي هٽايو ۽ ان کي مڪمل طور تي خالي ڪريو.
   • Clean the water tank and base with a soft cloth and mild detergent. For stubborn mineral deposits, use a solution of white vinegar and water (1:1 ratio). Let it soak for 15-20 minutes, then gently scrub and rinse thoroughly.
   • Ensure all parts are rinsed free of cleaning solutions before reassembly.
3. اسٽوريج: If storing the humidifier for an extended period, ensure the water tank and base are completely clean and dry. Store in a cool, dry place.

7. مسئلا حل ڪرڻ

جيڪڏهن توهان کي پنهنجي humidifier سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

8. وضاحتون

9. وارنٽي ۽ سپورٽ

Specific warranty details are not provided in this manual. For warranty information, technical support, or customer service inquiries, please contact MOSFiATA customer support through their official channels or the retailer where the product was purchased.
