FLEXISPOT H1W Hand-Crank Adjustable Standing Desk Instruction Manual

1. اهم حفاظتي ڄاڻ

Please read this manual carefully before assembly and use. Keep this manual for future reference.

• وزن جي گنجائش: Do not exceed the maximum weight capacity of 80 kg (176 lbs). Overloading can cause instability and potential damage.
• استحڪام: Ensure the desk is stable and level on a flat surface before placing items on it and during height adjustments.
• صفائي: Keep the area around the desk clear of obstructions during operation to prevent pinching or damage.
• ٻار ۽ پالتو جانور: حادثن کان بچڻ لاءِ آپريشن دوران ٻارن ۽ پالتو جانورن کي ڊيسڪ کان پري رکو.
• اسيمبلي: Follow all assembly instructions precisely. Incorrect assembly can lead to instability and injury.

2. پراڊڪٽ ختمview

The FLEXISPOT H1W is a hand-crank adjustable standing desk frame designed to provide a flexible and ergonomic workspace. It allows for smooth transitions between sitting and standing positions.

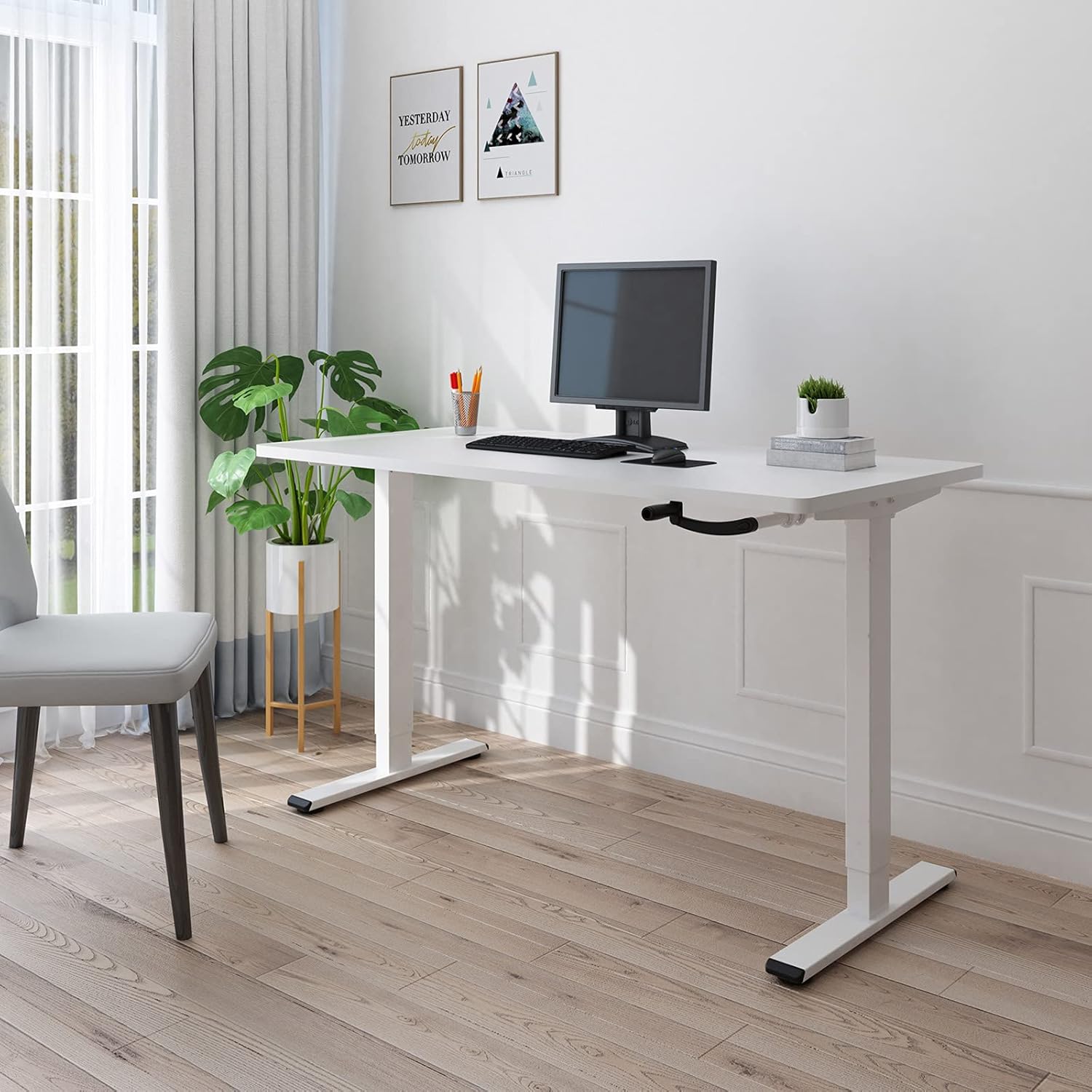

Figure 2.1: The FLEXISPOT H1W Hand-Crank Adjustable Standing Desk frame with a white tabletop, set up in an office environment.

اهم خاصيتون:

• هموار اوچائي جي ترتيب: The innovative hand-crank system provides a smooth and quiet height adjustment experience.
• Adjustable قد جي حد: The desk frame can be adjusted from 71 cm (27.9 inches) to 121 cm (47.6 inches).
• Customizable Frame Width: The frame extends laterally from 85 cm (33.5 inches) to 129 cm (50.8 inches) to accommodate various tabletop sizes.
• اعلي وزن جي صلاحيت: Designed for maximum structural integrity, supporting up to 80 kg (176 lbs).
• پائيدار تعمير: Features double-walled steel tubes for enhanced strength and stability.
• Flexible Crank Installation: The hand crank can be installed on either the left or right side, or completely removed when not in use.

3. سيٽ اپ ۽ اسيمبلي

Assembly of the FLEXISPOT H1W desk frame is designed to be straightforward. It is recommended that one person performs the assembly.

3.1 پيڪنگ ۽ چڪاس

• احتياط سان دٻي مان سڀئي حصا کوليو.
• Verify that all parts listed in the packing list are present and undamaged. Contact customer support immediately if any parts are missing or damaged.
• All necessary tools for assembly are included in the package.

3.2 اسيمبليءَ جا مرحلا

Follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. Key steps include:

1. Assemble the leg columns and feet.
2. Attach the crossbar and side brackets, adjusting the width to match your tabletop.
3. Install the hand-crank mechanism. The hand crank can be positioned on the left or right side of the desk, or removed entirely when not needed.
4. Securely attach your chosen tabletop to the assembled frame using appropriate screws (tabletop not included).

Figure 3.1: The desk frame's width can be adjusted from 850mm to 1290mm to fit various tabletops.

Figure 3.2: The hand crank offers flexible installation options, allowing it to be placed on either side or removed.

3.3 Recommended Tabletop Dimensions

• ڊگھائي: 100 سينٽي کان 160 سينٽي (39.4 انچ کان 63 انچ)
• ويڪر: 60 سينٽي کان 80 سينٽي (23.6 انچ کان 31.5 انچ)
• ٿولهه: 2 سينٽي (0.8 انچ) يا وڌيڪ

Figure 3.3: Recommended tabletop dimensions for optimal fit and stability.

4. آپريٽنگ هدايتون

The FLEXISPOT H1W desk frame features a manual hand-crank system for height adjustment.

4.1 ڊيسڪ جي اوچائي کي ترتيب ڏيڻ

1. Ensure the area above and below the desk is clear of any obstacles.
2. Locate the hand crank on the side of the desk.
3. To raise the desk, turn the hand crank clockwise.
4. To lower the desk, turn the hand crank counter-clockwise.
5. Adjust the desk to your desired sitting or standing height within the range of 71 cm to 121 cm.

Figure 4.1: The desk frame offers a height adjustment range from 710mm to 1210mm.

4.2 وزن جي گنجائش

The desk frame is designed to safely support a maximum load of 80 kg (176 lbs). Distribute weight evenly across the tabletop to maintain stability.

Figure 4.2: The desk frame supports a maximum weight of 80 kg (176 lbs).

5. سار سنڀال

Regular maintenance helps ensure the longevity and smooth operation of your FLEXISPOT H1W desk frame.

• صفائي: ڊيسڪ فريم کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. سخت ڪيميڪلز يا رگڙيندڙ صاف ڪندڙن کان پاسو ڪريو جيڪي ختم کي نقصان پهچائي سگهن ٿا.
• فاسٽنرز: وقت بوقت سڀني اسڪرو ۽ بولٽن کي چيڪ ڪريو ته جيئن پڪ ٿئي ته اهي تنگ آهن. استحڪام برقرار رکڻ لاءِ جيڪڏهن ضروري هجي ته ٻيهر سخت ڪريو.
• حرڪت وارا حصا: The hand-crank mechanism is designed for smooth operation. If you notice any stiffness, ensure no debris is obstructing the mechanism. Do not lubricate unless specifically instructed by the manufacturer.
• وزن جي تقسيم: Always distribute weight evenly on the tabletop. Avoid placing heavy items on one side only.

6. مسئلا حل ڪرڻ

If you encounter any issues with your FLEXISPOT H1W desk frame, refer to the following common troubleshooting tips:

• ڊيسڪ ڊبل آهي:
  • پڪ ڪريو ته سڀئي اسيمبلي اسڪرو ۽ بولٽ محفوظ طور تي مضبوط ڪيا ويا آهن.
  • Check that the desk is placed on a level surface. Adjust the leveling feet if necessary.
  • Verify that the tabletop is securely attached to the frame.
• Hand Crank is Stiff or Difficult to Turn:
  • Check for any obstructions in the crank mechanism or along the lifting columns.
  • Ensure the desk is not overloaded beyond its 80 kg capacity.
  • Confirm that the crank handle is properly installed.
• Desk Does Not Adjust Height Smoothly:
  • Ensure the weight on the desk is within the specified limit and evenly distributed.
  • Inspect the lifting columns for any visible damage or foreign objects.

جيڪڏهن انهن قدمن سان مسئلو حل نه ٿيو ته مهرباني ڪري وڌيڪ مدد لاءِ FLEXISPOT ڪسٽمر سپورٽ سان رابطو ڪريو.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official FLEXISPOT webسائيٽ.

If you have any questions or require assistance with your FLEXISPOT H1W desk frame, please contact FLEXISPOT customer service directly.
