Philips CoreLine Panel RC133V G4 LED36S/840 Recessed Luminaire Instruction Manual

1. تعارف

Thank you for choosing the Philips CoreLine Panel RC133V G4 LED36S/840 Recessed Luminaire. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new lighting product. Please read this manual thoroughly before installation and retain it for future reference.

2. اهم حفاظتي ڄاڻ

پيداوار کي زخم يا نقصان کان بچڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو.

• برقي حفاظت: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the main power supply is switched off before commencing any installation, maintenance, or repair work.
• پيداوار جي سالميت: Do not modify or alter the luminaire in any way. Use only genuine Philips replacement parts if necessary.
• سنڀالڻ: Handle the luminaire with care to avoid damage to the LED components or housing.
• ماحول: This luminaire is designed for indoor use in dry locations. Do not expose to moisture or extreme temperatures unless specified otherwise.
• نيڪال: Dispose of the product and its components responsibly, following local regulations for electronic waste.

3. پيڪيج مواد

Verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, contact your supplier immediately.

• 1 x Philips CoreLine Panel RC133V G4 LED36S/840 Recessed Luminaire
• 1 x پاور سپلائي يونٽ (PSU)
• هدايت نامو (هي دستاويز)

4. سيٽ اپ ۽ تنصيب

4.1 توهان کان اڳ شروع ڪريو

• Ensure the power supply to the installation area is switched off at the circuit breaker.
• Gather necessary tools: screwdriver, wire strippers, measuring tape, safety gloves, safety glasses.
• Confirm the ceiling opening dimensions are suitable for the W62L62 (62x62 cm) panel.

4.2 تنصيب جا مرحلا

The luminaire requires assembly and professional installation.

1. ڇت جي کولڻ کي تيار ڪريو: Ensure the recessed ceiling opening is clean and correctly sized for the luminaire.
2. Connect the PSU: Connect the mains power supply cable (L, N, E) to the Power Supply Unit (PSU) terminals. Ensure correct polarity and secure connections.
3. Connect Luminaire to PSU: Connect the output cable from the PSU to the input connector on the luminaire. Ensure a firm and secure connection.
4. Position the Luminaire: Carefully insert the luminaire into the prepared ceiling opening. Ensure it sits flush and is securely held by the ceiling grid or mounting clips (if applicable, not included).
5. فائنل چيڪ: Double-check all electrical connections and ensure the luminaire is properly seated.
6. پاور بحال ڪريو: انسٽاليشن مڪمل ٿيڻ ۽ تصديق ٿيڻ کان پوءِ، سرڪٽ بريڪر تي بجلي بحال ڪريو.

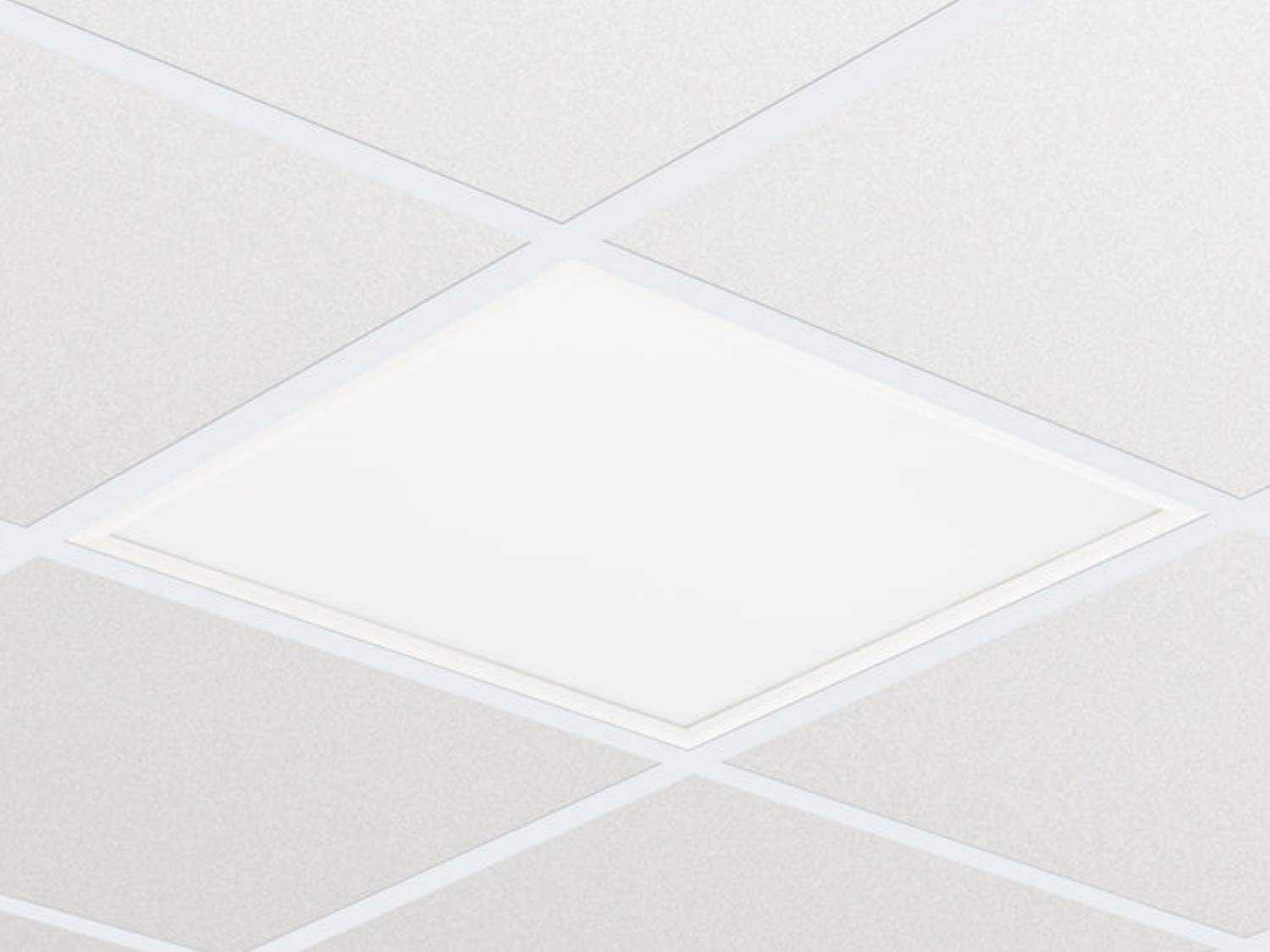

تصوير 1: اڳوڻيample of the Philips CoreLine Panel RC133V G4 LED36S/840 Recessed Luminaire. This image illustrates the general appearance of the panel, which is designed for seamless integration into a suspended ceiling grid.

5. آپريٽنگ هدايتون

The Philips CoreLine Panel RC133V G4 LED36S/840 is designed for straightforward operation.

• پاور آن / آف: Once installed and connected to the mains power supply, the luminaire will operate via the standard wall switch or building lighting control system it is wired to.
• ڪوبه صارف ڪنٽرول ناهي: This luminaire does not feature integrated user controls (e.g., dimmers, color temperature adjustments) on the unit itself. Operation is external.

6. سار سنڀال

Regular maintenance helps ensure optimal performance and longevity of your luminaire.

• صفائي: صفائي کان اڳ بجلي بند ڪريو. نرم، سڪل، يا ٿورو ڊي استعمال ڪريوamp cloth to wipe the surface of the luminaire. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or optical components.
• چڪاس: Periodically inspect the luminaire for any signs of damage, loose connections, or unusual operation. If any issues are detected, disconnect power and consult a qualified electrician.
• ڪوبه استعمال ڪندڙ-خدمت وارو حصو: The LED light source and driver are integrated and not user-replaceable. Do not attempt to open or repair the unit.

7. مسئلا حل ڪرڻ

If you encounter issues with your luminaire, refer to the table below for common problems and solutions.

8. ٽيڪنيڪل وضاحتون

Key technical details for the Philips CoreLine Panel RC133V G4 LED36S/840.

9. وارنٽي ۽ سپورٽ

Warranty information for the Philips CoreLine Panel RC133V G4 LED36S/840 is typically provided with your purchase documentation or can be found on the official Philips website. For technical support, service, or warranty claims, please contact your retailer or visit the Philips lighting support portal.
