Medivon Stream PRO Professional Muscle Electro Stimulator User Manual

1. تعارف

Thank you for choosing the Medivon Stream PRO Professional Muscle Electro Stimulator. This device is designed to provide Transcutaneous Electrical Nerve Stimulation (TENS), Electrical Muscle Stimulation (EMS), and Fitness programs to support muscle training, relaxation, and pain relief. Please read this manual carefully before using the device to ensure safe and effective operation. Keep this manual for future reference.

2. اهم حفاظتي ڄاڻ

ڊيڄاريندڙ:

• استعمال کان اڳ هميشه پراڊڪٽ سان گڏ ڏنل ليبل، ڊيڄاريندڙ ۽ هدايتون پڙهو.
• Do not use this device if you have a pacemaker, implanted defibrillator, or other metallic or electronic implants.
• Consult your doctor before use if you have any medical conditions, including but not limited to heart disease, epilepsy, cancer, or if you are pregnant.
• Do not apply electrodes to the head, neck (carotid sinus), chest, or over open wounds, rashes, or swollen, infected, or inflamed areas.
• ٻارن جي پهچ کان پري رکو.
• Do not use while driving, operating machinery, or during any activity where involuntary muscle contractions could put you at risk of injury.
• Discontinue use immediately if you experience any adverse reactions such as skin irritation, discomfort, or dizziness, and consult a medical professional.
• Use only the accessories supplied or recommended by Medivon.

3. پراڊڪٽ ختمview

The Medivon Stream PRO is a compact and professional electro stimulator featuring an LCD display for easy program selection and intensity adjustment. It offers TENS, EMS, and Fitness modes with multiple intensity levels.

3.1 ڊوائيس جا حصا

• Main control unit with LCD display
• Electrode pads
• Connection cables for electrodes
• چارج ڪيبل

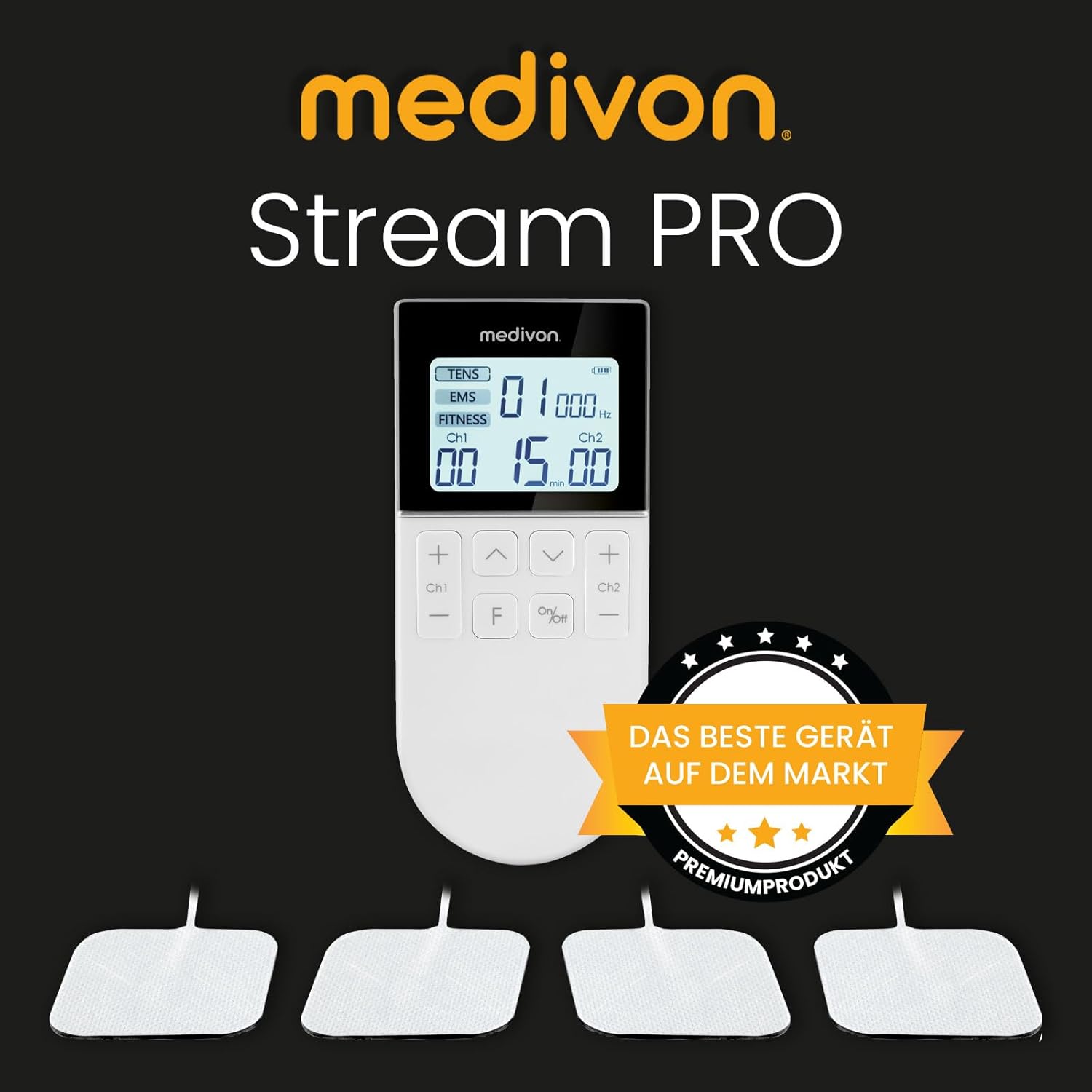

Figure 1: Medivon Stream PRO main unit and electrode pads. The device features a clear LCD screen and intuitive buttons for control.

Figure 2: Close-up of the Medivon Stream PRO LCD display, showing program selection (TENS, EMS, FITNESS), frequency, and time settings. A finger is shown interacting with the screen.

4. سيٽ اپ ۽ پهريون استعمال

4.1 ڊوائيس چارج ڪرڻ

1. چارجنگ ڪيبل کي ڊوائيس جي چارجنگ پورٽ سان ڳنڍيو.
2. Plug the other end of the cable into a suitable USB power adapter (not included) or a computer USB port.
3. The battery indicator on the LCD display will show charging status. Charge fully before first use.

4.2 Attaching Electrodes

1. پڪ ڪريو ته ڊوائيس بند ٿيل آهي.
2. Connect the electrode cables to the main unit's output ports (Ch1, Ch2).
3. Attach the electrode pads securely to the ends of the cables.
4. Clean and dry the skin area where the electrodes will be placed.
5. Remove the protective film from the electrode pads and firmly press them onto the skin. Ensure good contact.

شڪل 3: مثالample of proper electrode placement on the abdominal area for muscle stimulation. Ensure pads are firmly attached to clean, dry skin.

شڪل 4: مثالample of electrode placement on the knee for targeted relief or stimulation.

5. آپريٽنگ هدايتون

5.1 آن/بند ڪرڻ

کي دٻايو ۽ رکو آن/بند ڊوائيس کي آن يا بند ڪرڻ لاءِ بٽڻ.

5.2 Selecting a Program Mode (TENS, EMS, FITNESS)

After turning on, the device will display the available modes: TENS, EMS, and FITNESS. Use the F button to cycle through the modes. The selected mode will be highlighted on the LCD.

• ٽينس (ٽرانسڪيوٽنيئس اليڪٽريڪل نروس اسٽيموليشن): Primarily for pain relief.
• اي ايم ايس (برقي عضلاتي محرک): For muscle strengthening, rehabilitation, and recovery.
• فٽنيس: Designed for muscle toning and training.

شڪل 5: پاسي view of the Medivon Stream PRO, showing its compact design. The control buttons are visible on the front.

5.3 شدت کي ترتيب ڏيڻ

Each channel (Ch1, Ch2) can be adjusted independently.

• استعمال ڪريو + ۽ - buttons for Channel 1 (Ch1) to increase or decrease intensity.
• استعمال ڪريو + ۽ - buttons for Channel 2 (Ch2) to increase or decrease intensity.
• Start with the lowest intensity and gradually increase until you feel a comfortable, yet effective, muscle contraction or tingling sensation. Avoid painful levels. The device offers 16 intensity levels.

5.4 علاج جو وقت مقرر ڪرڻ

استعمال ڪريو Up ۽ هيٺ arrow buttons to adjust the treatment duration. The time is displayed in minutes on the LCD. The device will automatically shut off after the set time.

5.5 عام استعمال جا طريقا

• Ensure electrode pads are always moist and sticky for optimal conductivity. Replace them when they lose their adhesiveness.
• Do not use the device for more than 60 minutes per session on the same area.
• Allow at least 30 minutes between sessions on the same muscle group.
• For specific conditions or muscle groups, consult a healthcare professional or physical therapist for optimal electrode placement and program settings.

Figure 6: The Medivon Stream PRO can be used for various body areas, including the head, neck, back, and legs, to address different types of discomfort or for muscle training.

6. مينٽيننس ۽ اسٽوريج

6.1 ڊوائيس کي صاف ڪرڻ

• Turn off the device and disconnect all cables before cleaning.
• مکيه يونٽ کي نرم، ٿوري ڊي سان صاف ڪريوamp ڪپڙو. گھڻائي صاف ڪندڙ استعمال نه ڪريو يا ڊوائيس کي پاڻي ۾ وجھو.
• Clean electrode pads by gently wiping the adhesive surface with a damp cloth. Allow them to air dry before reattaching the protective film.

6.2 اسٽوريج

• ڊوائيس ۽ لوازمات کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
• Ensure electrode pads have their protective film reattached to maintain adhesiveness and prolong their lifespan.
• Keep the device fully charged if storing for extended periods to preserve battery health.

7. مسئلا حل ڪرڻ

8. وضاحتون

9. وارنٽي ۽ سپورٽ

For warranty information and customer support, please refer to the documentation included in your product packaging or contact Medivon customer service directly. Contact details can typically be found on the manufacturer's webسائيٽ تي يا پراڊڪٽ پيڪنگنگ تي.
