Devoko 5-Piece Outdoor Patio Furniture Set with 28-inch Propane Fire Pit Table Instruction Manual

1. پراڊڪٽ ختمview

This manual provides instructions for the Devoko 5-piece outdoor patio furniture set, which includes four armless rattan chairs and one 28-inch propane fire pit table. This set is designed for outdoor use, offering a versatile and comfortable arrangement for your patio, garden, or poolside area.

Image 1.1: Complete Devoko 5-piece outdoor patio furniture set, featuring four armless chairs and a central propane fire pit table, arranged on a patio.

The furniture components are constructed from durable rattan and acrylic materials, designed for all-weather use. The modular design of the chairs allows for various configurations to suit your space and needs.

Image 1.2: Illustration of multiple arrangement possibilities for the Devoko outdoor sectional sofa chairs, demonstrating flexibility in setup.

2. حفاظت جي ڄاڻ

Read and understand all safety warnings before assembly and operation. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or death.

• Always keep children and pets away from the fire pit table when in use.
• Never leave the fire pit table unattended while lit.
• Do not use the fire pit table in enclosed spaces. Ensure adequate ventilation.
• Maintain a safe distance from the fire pit table when lit.
• Do not expose the product to rain or excessive moisture for prolonged periods.
• Assemble and disassemble the product with care, being mindful of sharp edges and small parts.
• Do not exceed the weight limit of the furniture components.
• Ensure the propane tank is securely connected and free of leaks before operation.

3. سيٽ اپ ۽ اسيمبلي

The Devoko 5-piece patio furniture set is shipped in three separate boxes. Please ensure all boxes have arrived before beginning assembly. Complete installation tools and instructions are included.

3.1 Sofa Chair Assembly

Each armless rattan chair requires assembly. The process typically takes 15-30 minutes per chair. Follow the detailed instructions provided in the packaging. Ensure all screws are tightened securely for stability.

تصوير 3.1: ويجهو تصوير view highlighting the compact manual rattan weave, thick seat cushion (3 inches), and horn button fixing mechanism for the cushions on the Devoko sofa chairs.

3.2 Fire Pit Table Assembly

The 28-inch propane fire pit table is designed for straightforward assembly. Follow the provided instructions carefully. The main assembly step involves screwing the parts together. A propane tank is required for operation but is not included with the set.

Image 3.2: The 28-inch Devoko fire pit table, showcasing its internal structure, external frame, fire pit cover, table dustcoat, and volcanic rock accessories.

تصوير 3.3: تفصيلي view of the Devoko fire pit table, illustrating its internal structure for propane tank placement and the external frame with a removable fire pit cover.

4. Operating the Fire Pit Table

The fire pit table features a pulse ignition device for safe and stable flame output. It provides 40,000 BTU of heat, suitable for outdoor use on cool evenings.

4.1 Ignition Procedure

1. Ensure a propane tank (not included) is correctly installed and connected inside the fire pit table's compartment.
2. Insert the required battery into the pulse ignition device.
3. Slowly turn the control knob to the 'ON' position while simultaneously pressing and holding the ignition button.
4. Once the flame ignites, release the ignition button.
5. Adjust the flame size by turning the control knob to your desired setting.

4.2 Shutting Down the Fire Pit

To turn off the fire pit, turn the control knob to the 'OFF' position. Close the valve on the propane tank when the fire pit is not in use for extended periods.

Image 4.1: The 28-inch Devoko fire pit table in operation, highlighting its 40,000 BTU heat output, stable firepower, pulse ignition device, and included fire pit cover.

تصوير 4.2: هڪ ويجهو تصوير view of the Devoko fire pit table with a visible flame, demonstrating its operational state.

5. سار سنڀال

Regular maintenance will extend the life and appearance of your Devoko patio furniture set.

5.1 Rattan Furniture Care

• Clean rattan surfaces with a soft cloth, mild soap, and water. Rinse thoroughly and dry completely.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the rattan.
• Store cushions indoors or cover them during inclement weather to prevent fading and mildew.
• The back cushions may not stay upright on their own; consider adding non-slip pads or ties if this is an issue.

5.2 Fire Pit Table Care

• After the fire pit has cooled completely, use the provided fire pit cover to protect the burner area from debris and moisture.
• Utilize the included table dustcoat for overall protection of the fire pit table when not in use.
• Clean the exterior surfaces of the fire pit table with a damp ڪپڙو.
• Periodically check gas connections for any signs of wear or leaks.

6. مسئلا حل ڪرڻ

• Fire Pit Not Igniting: Check if the propane tank is open and has sufficient fuel. Ensure the battery in the pulse ignition device is correctly installed and functional. Verify all gas connections are secure.
• گهٽ شعلو: Confirm the propane tank is not low on fuel. Check for any kinks in the gas hose. Ensure the control knob is fully turned to the desired flame setting.
• کشن سلائيڊنگ: If back cushions tend to fall down, consider adding non-slip mats underneath or securing them with ties to the chair frame.
• Moving Fire Pit on Rugs: If the fire pit table is placed on a plastic rug, lift the table when moving it instead of sliding to prevent snagging the rug on the table's feet.
• Missing Parts/Damaged Items: If you receive only one or two of the three boxes, please wait for the remaining boxes to arrive. For any missing parts or damaged items, contact customer service.

7. وضاحتون

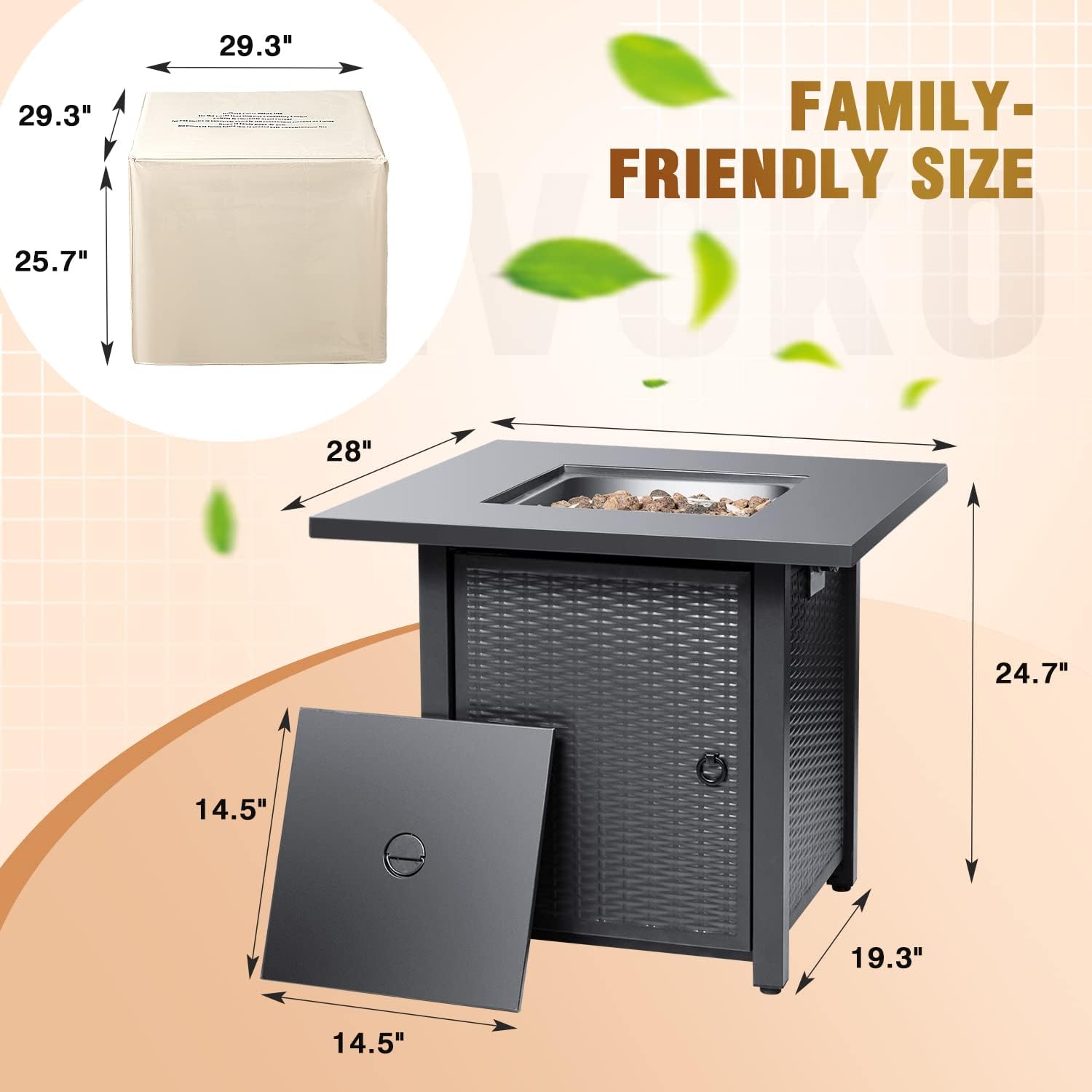

Image 7.1: Dimensional diagram of the Devoko 28-inch fire pit table and its protective cover, showing height, width, and depth measurements.

Image 7.2: Dimensional diagram of a single Devoko rattan sofa chair, indicating its height, width, and depth measurements.

8. وارنٽي ۽ سپورٽ

Devoko offers worry-free after-sale service and friendly customer support for this product. For detailed tracking information, product-related questions, or assistance with any issues, please contact us directly through Amazon message services.
