Mobility Lab ML312194 Solar Power Bank 10000 mAh User Manual

تعارف

Thank you for choosing the Mobility Lab ML312194 Solar Power Bank. This portable 10000 mAh power bank is designed to provide reliable power for your electronic devices, featuring both USB and solar charging capabilities, an integrated LED flashlight, and a convenient carabiner for portability. Please read this manual carefully to ensure proper use and maintenance of your device.

دٻي ۾ ڇا آهي

• Mobility Lab ML312194 Solar Power Bank
• مائڪرو USB چارجنگ ڪيبل
• ڪاربينر

Image: The product packaging for the Mobility Lab ML312194 Solar Power Bank, showing the device and its key features.

پيداوار جون خاصيتون

• اعلي ظرفيت: 10000 mAh بيٽري ڪيترن ئي ڊوائيس چارجز لاءِ.
• ٻٽي چارج: Solar panel for emergency charging and Micro USB input for standard charging.
• ٻٽي آئوٽ Two USB output ports to charge multiple devices simultaneously.
• LED اشارا: باقي بيٽري جي گنجائش ڏيکاريو.
• انٽيگريٽيڊ ايل اي ڊي ٽارچ: گهٽ روشني واري حالتن ۾ روشني لاءِ.
• پائيدار ڊيزائن: Robust construction suitable for outdoor use.
• پورٽيبلٽي: Lightweight (250g) with an included carabiner for easy attachment to bags.

سيٽ اپ ڪريو

1. شروعاتي چارج Before first use, fully charge the power bank using the Micro USB input port and the provided cable connected to a 5V/1A USB power adapter (not included). This ensures the internal battery is fully activated.
2. Familiarize Components: Identify the Micro USB input port, USB output ports, LED indicators, solar panel, and LED flashlight.

تصوير: مٿي کان هيٺ تائين view of the power bank, highlighting the solar panel and the location of the USB output and Micro USB input ports.

آپريٽنگ هدايتون

پاور بئنڪ کي چارج ڪرڻ

The power bank can be charged via two methods:

1. Via Micro USB (Recommended): Connect the provided Micro USB cable to the power bank's Micro USB input port and to a USB power source (e.g., wall adapter, computer USB port). The LED indicators will illuminate to show charging progress. A full charge typically takes several hours depending on the power source.
2. شمسي پينل ذريعي: Place the power bank in direct sunlight. The solar panel will begin to convert sunlight into electrical energy to charge the internal battery. Solar charging is slower and primarily intended for emergency power replenishment or maintaining charge, not as a primary charging method. Ensure the solar panel is clean and unobstructed for optimal performance.

خارجي ڊوائيسز کي چارج ڪرڻ

To charge your smartphone, tablet, or other electronic devices:

1. پنهنجي ڊوائيس جي USB چارجنگ ڪيبل کي پاور بينڪ جي USB آئوٽ پُٽ پورٽن مان هڪ سان ڳنڍيو.
2. ڪيبل جي ٻئي پڇاڙي کي پنهنجي ڊوائيس سان ڳنيو.
3. پاور بينڪ خودڪار طريقي سان توهان جي ڊوائس کي چارج ڪرڻ شروع ڪندو. LED اشارا پاور بينڪ جي باقي بيٽري ليول ڏيکاريندا.
4. Disconnect your device once fully charged or when you wish to stop charging.

Image: The solar power bank is shown connected to a smartphone with a USB cable, demonstrating its charging function. A carabiner is attached to the power bank.

LED اشارو بتيون

The power bank features LED indicators to display its battery status:

• Each illuminated LED typically represents a percentage of the battery capacity (e.g., 4 LEDs = 75-100%, 3 LEDs = 50-75%, 2 LEDs = 25-50%, 1 LED = 0-25%).
• During charging, the LEDs will blink to indicate active charging and will become solid when that segment of charge is complete. All LEDs will be solid when fully charged.

ايل اي ڊي ٽارچ آپريشن

To use the integrated LED flashlight:

• Locate the power button (usually on the side or front).
• Press and hold the power button for approximately 2-3 seconds to turn the flashlight ON.
• Press and hold the power button again for 2-3 seconds to turn the flashlight OFF.

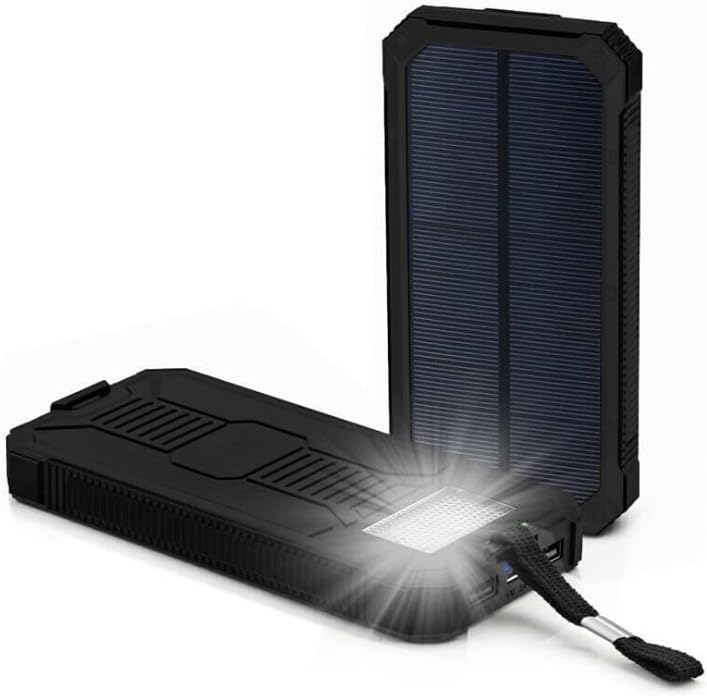

Image: The solar power bank is shown with its integrated LED flashlight turned on, providing illumination.

سار سنڀال

• صفائي: Use a soft, dry cloth to clean the power bank. Do not use harsh chemicals or abrasive materials. Ensure the solar panel is kept clean for efficient charging.
• اسٽوريج: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the power bank to about 50-75% every 3 months to preserve battery life.
• نقصان کان بچڻ: Do not drop, disassemble, or expose the power bank to water or fire.

مشڪلاتون

• پاور بينڪ چارج نه ٿي رهيو آهي:
  • پڪ ڪريو ته مائڪرو USB ڪيبل پاور بينڪ ۽ پاور سورس ٻنهي سان محفوظ طور تي ڳنڍيل آهي.
  • Try a different Micro USB cable or power adapter.
  • If using solar charging, ensure the panel is in direct, strong sunlight and clean. Remember solar charging is slow.
• پاور بئنڪ مان ڊوائيس چارج نه ٿي رهي آهي:
  • پڪ ڪريو ته پاور بينڪ ۾ ڪافي چارج آهي (ايل اي ڊي اشارن کي چيڪ ڪريو).
  • پڪ ڪريو ته توهان جي ڊوائيس جي چارجنگ ڪيبل پاور بينڪ ۽ توهان جي ڊوائيس ٻنهي سان محفوظ طور تي ڳنڍيل آهي.
  • پاور بئنڪ تي هڪ مختلف USB آئوٽ پُٽ پورٽ آزمايو.
  • پنهنجي ڊوائيس لاءِ هڪ مختلف چارجنگ ڪيبل آزمايو.
• سست چارج:
  • Ensure you are using a 5V/1A or higher power adapter for charging the power bank via Micro USB.
  • Solar charging is inherently slower than USB charging.

وضاحتون

حفاظت جي ڄاڻ

• Do not expose the power bank to high temperatures (above 60°C/140°F) or direct sunlight for extended periods, as this may damage the battery.
• Do not immerse the power bank in water or expose it to rain or moisture.
• پاور بينڪ کي نه ڇڏيو، نه ڇڪيو، يا جدا نه ڪريو.
• ٻارن جي پهچ کان پري رکو.
• صرف تصديق ٿيل چارجنگ ڪيبل ۽ اڊاپٽر استعمال ڪريو.
• جيڪڏهن پاور بينڪ سُڄي وڃي، بدبو خارج ڪري، يا تمام گهڻو گرم ٿي وڃي ته فوري طور تي استعمال بند ڪريو.

وارنٽي ۽ سپورٽ

This Mobility Lab ML312194 Solar Power Bank comes with a 2 سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي پيداوار جي خرابين کي ڍڪيندي آهي. اهو غلط استعمال، حادثن، غير مجاز ترميمن، يا عام لباس ۽ آنسو جي ڪري ٿيندڙ نقصان کي ڍڪيندي ناهي.

For technical support or warranty claims, please contact your retailer or visit the official Mobility Lab website for customer service information. Please have your proof of purchase and product model number (ML312194) ready.
