Devoko Electric Standing Desk User Manual

1. تعارف

This manual provides detailed instructions for the assembly, operation, and maintenance of your Devoko Electric Standing Desk. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.

The Devoko Electric Standing Desk is designed to offer a flexible workspace, allowing users to switch between sitting and standing positions. It features an adjustable height range, memory presets, a USB-C charging port, and an anti-collision system for enhanced safety.

2. پيڪيج مواد

اسيمبلي شروع ڪرڻ کان اڳ، پڪ ڪريو ته هيٺ ڏنل سڀئي حصا موجود آهن ۽ انهن کي نقصان نه پهتو آهي. جيڪڏهن ڪو به حصو غائب يا خراب آهي، مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

• Right Table Leg (1)
• Left Table Leg (1)
• Leg Base (2)
• Transmission Rod (1)
• ڪنٽرول پينل (1)
• Side Plate (2)
• Left Crossbar (1)
• Right Crossbar (1)
• ڳنڍيندڙ (1)
• Tabletop Sections (4)
• ڪيبل مينيجمينٽ ٽري (1)
• Headphone Hanger (1)
• Various Screws (A, B, C, D, E)
• Wood Tips (F)
• Tabletop Connectors (J, M)
• Cable Hole Covers (L)

تصوير: ڌماڪو ٿيو view of all desk components and hardware.

3. اسيمبليءَ جون هدايتون

Assembly requires two people. Please follow the steps carefully. All mounting holes are pre-drilled for quick installation.

Step 1: Attach Right Crossbar to Right Table Leg

• Secure the Right Crossbar (9) to the Right Table Leg (1) using screws (A).

Step 2: Attach Side Plate to Right Assembly

• Attach a Side Plate (7) to the assembled Right Table Leg and Crossbar using screws (C).

Step 3: Attach Left Crossbar to Left Table Leg

• Secure the Left Crossbar (8) to the Left Table Leg (2) using screws (A).

Step 4: Attach Side Plate to Left Assembly

• Attach the remaining Side Plate (7) to the assembled Left Table Leg and Crossbar using screws (C).

Step 5: Connect the Crossbars

• Join the two crossbar assemblies using the Connector (10) and screws (A).

Step 6: Assemble Tabletop Sections

• Insert Wood Tips (F) into the pre-drilled holes of Tabletop sections (12) and (13) to join them.

Step 7: Secure Tabletop Connectors

• Attach Tabletop Connectors (J and M) to the underside of the tabletop sections (11 and 14) using screws (E).

قدم 8: ٽنگون ٽيبل ٽاپ سان ڳنڍيو

• Carefully place the assembled leg frame onto the underside of the tabletop. Align the holes and secure the legs to the tabletop using screws (E).

قدم 9: ٽرانسميشن راڊ انسٽال ڪريو

• Insert the Transmission Rod (4) into the designated slots, ensuring it connects both leg mechanisms.

Step 10: Mount Cable Management Tray

• Attach the Cable Management Tray (15) to the underside of the desk using screws (D).

Image: The cable management tray helps keep your workspace tidy.

Step 11: Attach Leg Bases

• Secure the Leg Bases (3) to the bottom of each table leg using screws (B).

Step 12: Install Control Panel

• Mount the Control Panel (5) to the underside of the desk in the designated area using screws (E). Connect the necessary cables.

Step 13: Attach Headphone Hanger

• Attach the Headphone Hanger (K) to the underside of the desk using screws (E).

Your Devoko Electric Standing Desk is now assembled.

Image: The desk features pre-drilled holes for quick and easy assembly.

4. آپريٽنگ هدايتون

Familiarize yourself with the control panel to effectively use your electric standing desk.

ڪنٽرول پينل افعال

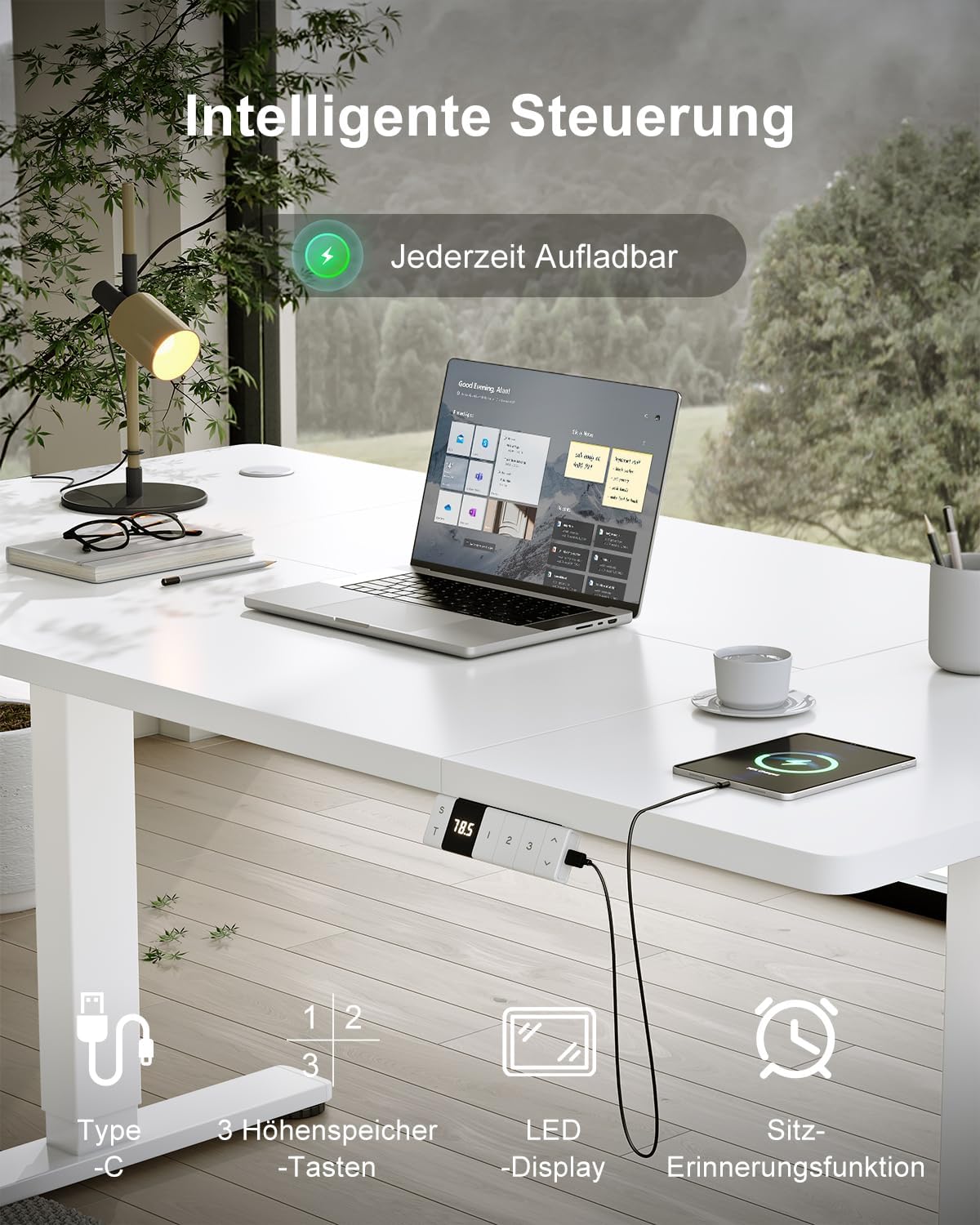

Image: The intelligent control panel features an LED display, memory buttons, and a USB-C charging port.

• مٿي/هيٺ تير: Press and hold to adjust the desk height manually. Release to stop at the desired height.
• ياداشت جا اڳواٽ سيٽ (1، 2، 3): Save your preferred sitting and standing heights. To set a memory position: Adjust the desk to the desired height, then press the 'S' button followed by the desired number (1, 2, or 3). The height will be saved. To recall a saved height, simply press the corresponding number button.
• USB-C چارجنگ پورٽ: Located on the control panel, this port allows convenient charging of your devices directly from the desk.

Image: Convenient USB-C charging integrated into the desk control panel.

اونچائي جي ترتيب

The desk offers an adjustable height range from 72 cm (minimum) to 118 cm (maximum), accommodating various user heights and preferences.

Image: The desk's flexible height adjustment allows users to easily switch between sitting and standing positions.

Anti-Collision System

The desk is equipped with an anti-collision feature. If the desk encounters an obstruction while adjusting height, it will stop and slightly reverse direction to prevent damage to objects or injury to users. This feature enhances safety for children, pets, and surrounding furniture.

Image: The anti-collision system ensures safety by stopping and reversing if an obstruction is detected.

بيڪار ياد ڏياريندڙ

The desk includes a sedentary reminder function to encourage regular changes in posture. This feature can be programmed to alert you when it's time to switch from sitting to standing, promoting a healthier work routine.

Image: The sedentary reminder helps users maintain a healthy balance between sitting and standing.

چائلڊ سيفٽي لاڪ

The control panel features a child safety lock to prevent accidental adjustments. Refer to the control panel instructions for activation and deactivation.

5. سار سنڀال

To maintain the appearance and functionality of your Devoko Electric Standing Desk, follow these simple care instructions:

• صفائي: ڊيسڪ جي مٿاڇري کي اشتهار سان صاف ڪريوamp ڪپڙو. سخت ڪيميڪلز يا رگڙيندڙ صاف ڪندڙن کان پاسو ڪريو جيڪي ختم کي نقصان پهچائي سگهن ٿا.
• چڪاس: وقت بوقت سڀني پيچرن ۽ ڪنيڪشنن کي چيڪ ڪريو ته جيئن پڪ ٿئي ته اهي تنگ آهن. جيڪڏهن ضروري هجي ته ٻيهر مضبوط ڪريو.
• موٽر سنڀال: Avoid contact with the mechanical components of the desk. The motor is designed for long-term use and requires no special maintenance.

6. مسئلا حل ڪرڻ

If you encounter any issues with your Devoko Electric Standing Desk, please refer to the following common solutions:

• ڊيسڪ نه هلي رهيو آهي: Check if the power cable is securely connected to both the desk and the power outlet. Ensure the child safety lock is not activated.
• غير برابر حرڪت: Perform a reset by holding down the 'Down' arrow button until the desk reaches its lowest position, then release and press again until it slightly moves up. This recalibrates the system.
• ڊسپلي تي غلطي ڪوڊ: If an error code appears, try unplugging the desk for 10 minutes and then plugging it back in. If the error persists, contact customer support.
• آپريشن دوران شور: A low noise level (≤45dB) is normal during height adjustment. If you notice unusual or loud noises, ensure all screws are tightened.

For problems not listed here, or if solutions do not resolve the issue, please contact Devoko customer support.

7. وضاحتون

Detailed technical specifications for the Devoko Electric Standing Desk (Model: 0077-1822).

Image: The desk offers a generous workspace and robust construction.

Image: The motor has been tested for over 10,000 cycles, ensuring long-term durability.

Image: The desk's robust construction supports a load capacity of up to 80 kg.

8. وارنٽي ۽ سپورٽ

Your Devoko Electric Standing Desk comes with a limited warranty. Please refer to the warranty documentation included with your purchase for specific terms and conditions regarding parts and labor.

For technical assistance, troubleshooting, or warranty claims, please contact Devoko customer support through the retailer where you purchased the product or visit the official Devoko webسائيٽ.
