Polini Black Collection Exhaust System User Manual

تعارف

This manual provides essential information for the installation, operation, and maintenance of your Polini Black Collection Exhaust System, model 190.0053 / Black. Designed for Honda 300 SH scooters manufactured after 2015, this exhaust system is engineered for optimal performance and durability. It features a matte black finish and is CE approved (norm 97/24/EC cap.9).

The Polini Black Collection exhaust systems are known for their robust construction and reliability, offering exceptional mechanical resistance. They are designed to enhance engine performance, improving extension and recovery characteristics. The sound level is carefully managed using proven sound-absorbing materials to keep noise within legal limits.

اهم حفاظتي ڊيڄاريندڙ

خبردار:

• Installation and use of this product should only be performed by individuals with the necessary skills and expertise. Improper installation can lead to serious injury or damage to the vehicle.
• Always ensure the engine is cool before attempting any installation or maintenance to prevent burns.
• انسٽاليشن ۽ سار سنڀال دوران مناسب ذاتي حفاظتي سامان (پي پي اي) پائڻ، جنهن ۾ دستانا ۽ اکين جي حفاظت شامل آهي.
• Ensure the vehicle is stable and securely supported before working underneath it.
• Dispose of old parts and packaging materials responsibly and in accordance with local regulations.

پيڪيج مواد

مھرباني ڪري تصديق ڪريو ته ھيٺ ڏنل سڀئي جزا توھان جي پيڪيج ۾ موجود آھن:

• Polini Black Collection Exhaust Muffler (Matte Black)
• Exhaust Header/Adapter Pipe
• وingندڙ Clamp
• Mounting Bolts (typically 3)
• ڌوئڻ وارا
• Spacer/Bushing

شڪل 1: مٿانview of the Polini Black Collection Exhaust System and its included installation components, such as the muffler, adapter pipe, mounting clamp, bolts, and washers.

سيٽ اپ ۽ تنصيب

This section outlines the general steps for installing the Polini Black Collection Exhaust System. Due to the specialized nature of this product, it is highly recommended that installation be performed by a qualified mechanic or technician.

1. تياري:
   • Ensure the scooter's engine is completely cool.
   • Park the scooter on a stable, level surface and secure it to prevent movement.
   • Gather all necessary tools (e.g., wrenches, sockets, torque wrench, penetrating oil).
2. Removal of Old Exhaust:
   • Locate and loosen the mounting bolts and clamps securing the existing exhaust system to the engine manifold and frame.
   • Carefully remove the old exhaust system. Be mindful of any gaskets or seals that may need replacement.
3. Installation of New Exhaust:
   • Attach the new exhaust header/adapter pipe to the engine manifold. Ensure a proper seal.
   • Slide the Polini muffler onto the adapter pipe.
   • Align the mounting points of the muffler with the scooter's frame.
   • Insert the mounting bolts with washers and the spacer/bushing as required.
   • Hand-tighten all bolts and clamps first to ensure proper alignment.
   • Once aligned, progressively tighten all bolts and clamps to the manufacturer's specified torque settings. Do not overtighten.
4. فائنل چيڪ:
   • سڀني ڪنيڪشنن کي سختي ۽ صحيح سيٽنگ لاءِ ٻه ڀيرا چيڪ ڪريو.
   • Start the engine and listen for any exhaust leaks. If leaks are detected, re-tighten connections or inspect gaskets.
   • Allow the engine to reach operating temperature and check for any unusual noises or vibrations.

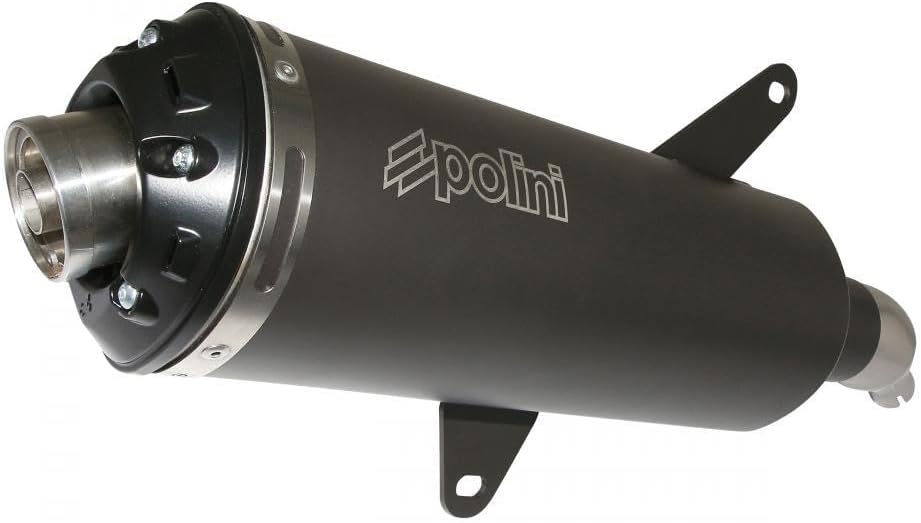

شڪل 2: The Polini Black Collection Exhaust System muffler, showcasing its matte black finish and Polini branding.

شڪل 3: بند ڪرڻ view of the essential installation components: the adapter pipe, mounting clamp, and various bolts and washers.

آپريٽنگ هدايتون

Once properly installed, the Polini Black Collection Exhaust System operates automatically as part of your scooter's engine system. No specific user interaction is required for its operation.

Key operational characteristics:

• بهتر ڪارڪردگي: The exhaust system is designed to optimize engine performance, contributing to improved power delivery and throttle response.
• صوتيات: The system is engineered to produce a pleasant sound level while adhering to legal noise limits.
• گرمي جو انتظام: Exhaust systems become very hot during operation. Avoid touching the exhaust pipe or muffler immediately after use to prevent burns.

سار سنڀال

Regular maintenance will help prolong the life and maintain the performance of your Polini Black Collection Exhaust System.

• صفائي: Periodically clean the exterior of the exhaust system with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the matte black finish. Ensure the exhaust is cool before cleaning.
• چڪاس: Regularly inspect all mounting points, bolts, and clamps for tightness. Vibrations from scooter operation can cause fasteners to loosen over time.
• نقصان جي چڪاس: Check for any signs of physical damage, cracks, or corrosion on the exhaust pipe and muffler. Address any issues promptly to prevent further damage or performance degradation.
• گاسڪيٽ ۽ سيل: If you notice any exhaust leaks, inspect the gaskets and seals at the manifold and pipe connections. Replace them if they show signs of wear or damage.

شڪل 4: تفصيلي view of the exhaust outlet, showing the quality of construction and finish.

مشڪلاتون

This section provides solutions to common issues you might encounter with your exhaust system.

وضاحتون

وارنٽي ۽ سپورٽ

For warranty information, technical support, or to purchase replacement parts, please contact Polini directly or refer to their official webسائيٽ. ڪنهن به وارنٽي دعوائن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.

Polini provides a 10-year availability period for EU spare parts for this product.
