1. تعارف
This manual provides detailed instructions for the safe and efficient operation of the Generic 600W DC-DC Boost Converter Step-up Module. This module is designed to convert a lower DC input voltage (10V-60V) into a higher, continuously adjustable DC output voltage (12V-80V), suitable for various electronic applications requiring a step-up voltage تبادلي.
2. حفاظت جي ڄاڻ
Please read and understand all safety warnings before operating this device. Failure to follow these instructions may result in electric shock, fire, or damage to the module or connected equipment.
- وڏي ويلtage ۽ موجوده: This module operates with high voltages and currents. Exercise extreme caution during installation and operation. Always ensure power is disconnected before making any connections or adjustments.
- Proper Insulation: Ensure all connections are properly insulated to prevent short circuits.
- گرمي جي خاتمي: The module generates heat during operation, especially at higher power levels. Ensure adequate ventilation and consider additional cooling if operating near maximum current.
- قطبيت: Always observe correct input and output polarity. Incorrect connections can damage the module and connected devices.
- پيشه ورانه تنصيب: If you are unfamiliar with electronic circuits, seek assistance from a qualified professional.
- اندروني استعمال: This module is intended for indoor use in a dry environment. Avoid exposure to moisture or extreme temperatures.
3. پراڊڪٽ ختمview
The 600W DC-DC Boost Converter module features robust components designed for stable voltage step-up. It includes input and output terminals, potentiometers for voltage and current adjustment, and an integrated heat sink for thermal management.
شڪل 3.1: مجموعي طور view of the 600W DC-DC Boost Converter module.

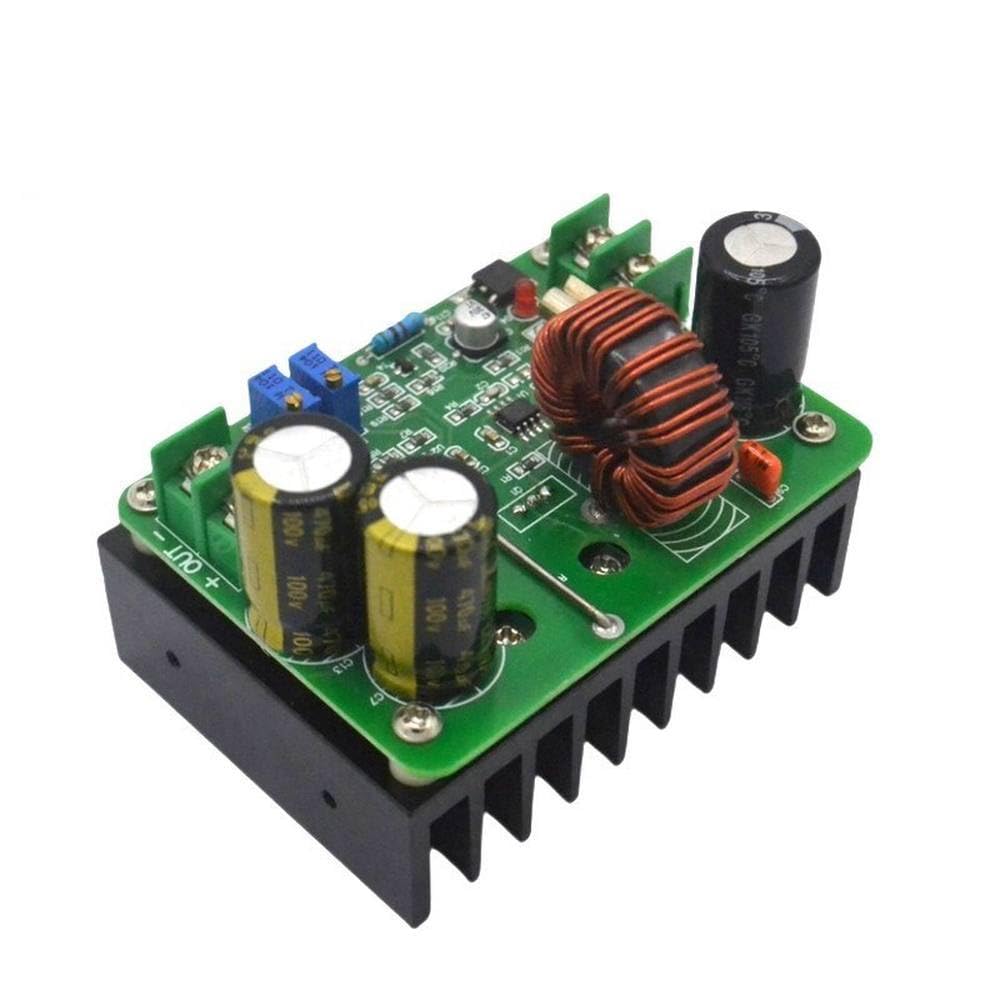

شڪل 3.2: مٿي کان هيٺ view highlighting input and output terminals.
شڪل 3.3: View showing voltage and current adjustment potentiometers.
شڪل 3.4: هيٺيون view with integrated heat sink.
4. وضاحتون
| پيرا ميٽر | قدر |
|---|---|
| انٽ واليمtage | 10V - 60V ڊي سي |
| ان پٽ ڪرنٽ | 15A (Maximum), strengthen heat dissipation above 10A |
| اوٽ وولٽtage | 12V - 80V DC (Continuously Adjustable) |
| آئوٽ پٽ ڪرنٽ | 10A (Maximum), strengthen heat dissipation above 10A |
| ٻاھر نڪرڻ جي طاقت | انٽ واليمtage * 10A (e.g., 12V*10A=120W, 60V*10A=600W) |
| تبادلي جي ڪارڪردگي | Up to 95% (efficiency varies with input/output voltage, current, and differential pressure) |
| آپريٽنگ فريڪئنسي | 150KHz |
| آپريٽنگ جي درجه حرارت | -40°C to +85°C (strengthen heat dissipation if ambient temperature is high) |
| Module Nature | Non-isolated boost module (BOOST) |
| شارٽ سرڪٽ جي حفاظت | Yes (Input 20A fuse, double short-circuit protection) |
| اوور-موجوده تحفظ | Yes (Input over 17A automatically reduces output voltage, with a certain error range) |
| ان پٽ ريورس تحفظ | ڪو به |
| ماڊل سائيز | 73mm * 51mm |
| وزن | 265 جي |
5. سيٽ اپ ۽ تنصيب
- ڪنيڪشن تيار ڪريو: Ensure all power sources are disconnected before making any connections. Use appropriate gauge wires for the expected current.
- ان پٽ ڪنيڪشن: پنھنجي ڊي سي ان پٽ پاور سورس کي سان ڳنڍيو IN+ (مثبت) ۽ ۾- (negative) terminals. Observe correct polarity.
- آئوٽ پٽ ڪنيڪشن: Connect your load or device to the ٻاهر + (مثبت) ۽ ٻاهر- (negative) terminals. Observe correct polarity.
- گرمي جي خاتمي: For continuous operation at high currents (above 10A input or output), ensure the module has sufficient airflow. Additional cooling, such as a fan, may be required to prevent overheating.
- Parallel Operation (Optional): For applications requiring higher output current (e.g., 15A), two modules can be used in parallel. In such cases, adjust the current limit of each module to approximately half of the total desired current (e.g., 8A per module for a 15A total output).
6. آپريٽنگ هدايتون
After completing the setup, you can power on the module and adjust the output voltage ۽ موجوده.
- پاور آن: Connect the input power source.
- جلدtagاي ايڊجسٽمينٽ: Use a multimeter to monitor the output voltage. Turn the V-ADJ potentiometer (typically the one closer to the output terminals) clockwise to increase the output voltage and counter-clockwise to decrease it. Adjust to your desired voltage.
- موجوده ترتيب: To set the output current limit, connect a suitable load or a current meter in series with the output. Turn the I-ADJ potentiometer (typically the one closer to the input terminals) clockwise to increase the current limit and counter-clockwise to decrease it. نوٽ: Do not short-circuit the output to adjust the current limit on a boost converter, as this can damage the module. Always adjust with a load connected.
7. سار سنڀال
This module requires minimal maintenance. Keep the module clean and free from dust and debris. Ensure proper ventilation to prevent overheating. Regularly check connections for tightness and signs of wear or corrosion.
8. مسئلا حل ڪرڻ
- ڪو به ٻاڦ وارو حجمtage:
- Check input power supply and ensure it is within the specified range (10V-60V).
- Verify all input and output connections for correct polarity and secure contact.
- Check the input fuse for continuity.
- اوٽ وولٽtage is Lower Than Expected:
- ان پٽ حجم کي يقيني بڻايوtage is sufficient for the desired output voltage.
- Check if the current limit (I-ADJ) is set too low for the connected load.
- Verify the load is not drawing excessive current, causing the module to enter over-current protection.
- ماڊيول اوور هيٽنگ:
- Reduce the output current or power.
- Improve ventilation around the module. Consider adding a cooling fan.
- Ensure the ambient temperature is within the operating range.
9. ايپليڪيشنون
This versatile boost converter module can be used in various applications, including:
- DIY regulated power supplies.
- شمسي پينل voltage boosting for battery charging.
- Battery charging applications (e.g., boosting 12V to charge 24V or 48V batteries).
- High-power LED drivers.
- Automotive power conversions.
10. وارنٽي ۽ سپورٽ
This product is provided by Generic. For any technical support, warranty claims, or inquiries, please contact the seller or manufacturer directly through your purchase platform. Please retain your proof of purchase for warranty purposes.
