Generic Mini PC Fan Instruction Manual

1. پراڊڪٽ ختمview

This document provides instructions for the Generic Mini PC Fan, designed for use with Beelink SER SER5, SER5-E, SER5-E-16500EJ0W64PRO, SER5-E-16500EJ0W64PRO-D, 5500U, 5600H, and 5700U models. This fan operates at DC 5V and 0.5A, and is constructed from durable plastic. It serves as a replacement or upgrade component for your mini PC's cooling system.

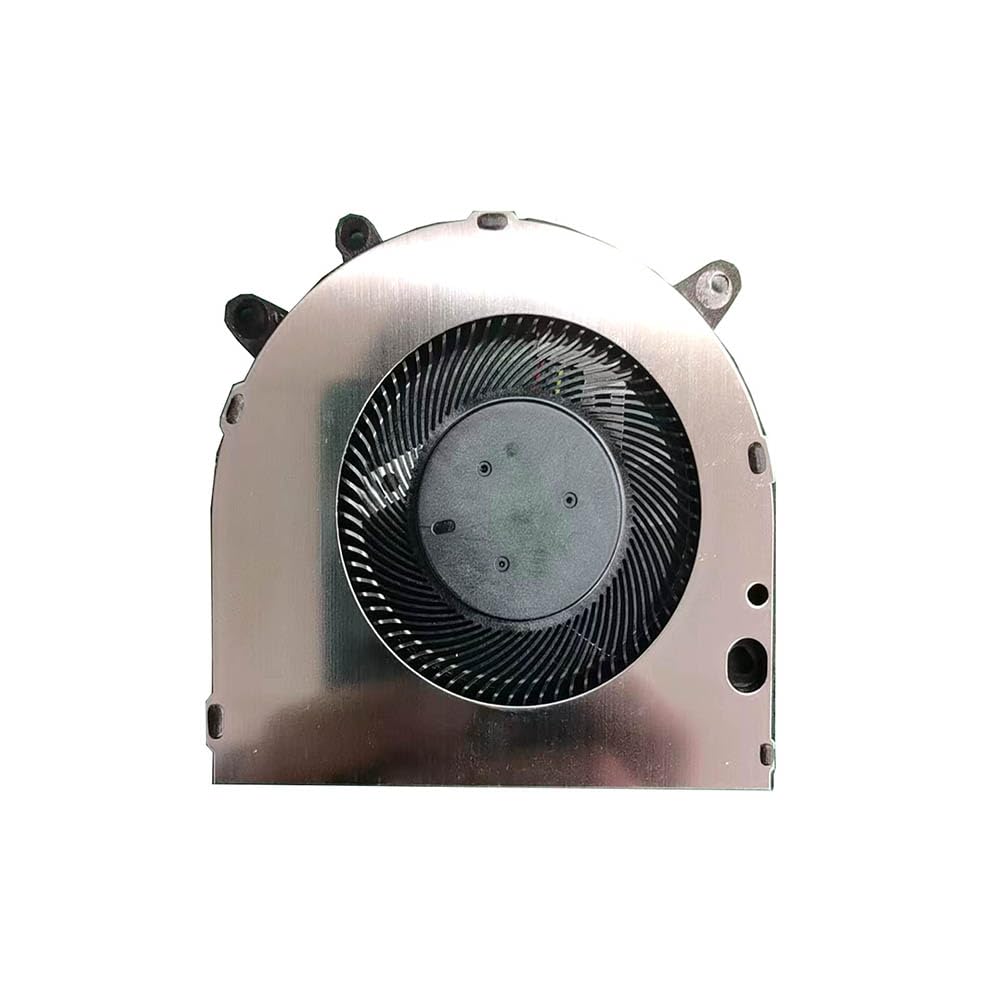

Image 1.1: The Generic Mini PC Fan. This fan is designed to provide efficient cooling for compatible Beelink mini PC models.

2. Important Notice Regarding Wire Sequences

Please note: This fan may have various wire sequences. The order of the wires can differ and may not be universally compatible with all Beelink SER5 series models. It is crucial to verify the wire sequence of your existing fan against this replacement fan before installation.

Incorrect wire sequence can lead to malfunction or damage to your device. If you are unsure about compatibility, please contact the seller for assistance before proceeding with the purchase or installation.

Image 2.1: Close-up of the fan's connector, highlighting the wire arrangement. Always compare this to your original fan's connector.

3. سيٽ اپ ۽ تنصيب

This section outlines general steps for replacing a mini PC fan. Specific disassembly and reassembly procedures may vary depending on your Beelink SER5 model. Always refer to your mini PC's specific service manual or manufacturer guidelines for detailed instructions.

1. تياري: Power off your mini PC and disconnect all cables (power, display, peripherals).
2. رسائي: Carefully open the mini PC casing to access the internal components, including the existing fan.
3. Disconnect Old Fan: Gently disconnect the old fan's power connector from the motherboard. Note the orientation and wire sequence.
4. پراڻو فين هٽايو: Unscrew and remove the old fan from its mounting points.
5. نئون فين انسٽال ڪريو: Place the new Generic Mini PC Fan into position, ensuring it aligns with the mounting holes. Secure it with screws.
6. نئون فين ڳنڍيو: Carefully connect the new fan's power connector to the motherboard. Ensure the wire sequence matches your original fan's connector. If the sequences do not match, do not force the connection and consult the Important Notice section (Section 2).
7. ٻيهر گڏ ڪرڻ: Close the mini PC casing، يقيني بڻائڻ ته سڀئي پيچ مناسب طور تي مضبوط ڪيا ويا آهن.
8. جاچ: Reconnect all cables and power on the mini PC to verify fan operation. Listen for unusual noises and check for proper airflow.

4. آپريٽنگ هدايتون

The Mini PC Fan operates automatically, controlled by your mini PC's system. It will adjust its speed based on the internal temperature to maintain optimal cooling performance. No manual intervention is typically required for its operation.

5. سار سنڀال

Regular maintenance helps ensure the longevity and efficiency of your fan.

• مٽي هٽائڻ: Periodically (e.g., every 3-6 months), power off and unplug your mini PC. Open the casing and use compressed air to gently remove dust accumulation from the fan blades and heatsink. Hold the fan blades to prevent them from spinning rapidly during cleaning, which can damage the bearings.
• چڪاس: Visually inspect the fan for any signs of damage, loose wires, or obstructions.

6. مسئلا حل ڪرڻ

If you encounter issues with your fan, consider the following troubleshooting steps:

• نه ڦرندڙ پنکڙو:
  • Ensure the fan connector is securely seated on the motherboard.
  • Verify that the wire sequence matches your original fan.
  • Check for any physical obstructions preventing the blades from turning.
• زياده شور:
  • Clean the fan blades to remove dust or debris.
  • پڪ ڪريو ته پنکڙو محفوظ طور تي لڳل آهي ۽ ٻين حصن جي خلاف وائبريٽ نه ڪري رهيو آهي.
  • If the noise persists and is a grinding sound, the fan bearings may be worn, requiring replacement.
• گهڻو گرم ٿيڻ:
  • Confirm the fan is spinning correctly.
  • Ensure proper airflow within the mini PC case; check for blocked vents.
  • Clean the heatsink fins, as dust can significantly reduce cooling efficiency.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

هي پراڊڪٽ هڪ سان گڏ اچي ٿو 90 ڏينهن وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ پيداوار جي خرابين کي ڍڪيندي آهي.

For technical support, warranty claims, or inquiries regarding wire sequence compatibility, please contact the seller or manufacturer directly. Ensure you have your purchase details and product model number (SER5 FAN) available when contacting support.
