ELECTROPRIME K22T Multifunctional Rotatable Clock Night Light Wireless Fast Charger User Manual

1. تعارف

خريد ڪرڻ لاءِ مهربانيasing the ELECTROPRIME K22T Multifunctional Rotatable Clock Night Light Wireless Fast Charger. This device combines a digital clock, an adjustable night light, and a 15W wireless fast charger into one compact unit. This manual provides essential information for safe operation, setup, and maintenance of your new device. Please read it thoroughly before use and retain it for future reference.

2. حفاظت جي ڄاڻ

• ڊوائيس کي پاڻي، نمي، يا انتهائي گرمي پد جي سامهون نه آڻيو.
• ڊوائيس کي مضبوط اثرن لاءِ ڇڏڻ يا تابع ڪرڻ کان پاسو ڪريو.
• Use only the provided or a certified power adapter (9V/2A recommended) to prevent damage.
• Do not disassemble, repair, or modify the device yourself. Contact qualified service personnel for assistance.
• ڊوائيس ٻارن ۽ پالتو جانور کان پري رکو.
• چارج ڪرڻ وقت مناسب وينٽيليشن کي يقيني بڻايو وڃي ته جيئن وڌيڪ گرم ٿيڻ کان بچي سگهجي.
• Remove any metal objects or magnetic cards from the charging area before placing a device for wireless charging.

3. پراڊڪٽ ختمview

3.1 اجزاء

The ELECTROPRIME K22T features a sleek design integrating multiple functions:

• ڊجيٽل ڪلاڪ ڊسپلي: LED display for time.
• وائرليس چارجنگ پيڊ: Top surface for wireless charging compatible devices.
• Rotatable Night Light: Adjustable light source for ambient illumination.
• ڪنٽرول بٽڻ: Touch-sensitive buttons for operating the clock and light functions.
• USB-C/Type-C Input Port: بجلي جي ڪنيڪشن لاءِ.
• Silicone Base: Provides stability and prevents slipping.

3.2 اهم خاصيتون

• 15W Wireless Fast Charging: Supports 5W, 7.5W, 10W, and 15W output.
• ملٽي فنڪشنل ڊيزائن: Combines alarm clock, night light, and wireless charger.
• Rotatable Night Light: Adjustable angle for optimal lighting.
• ايل ايل ڊسپلي: Clear time display with three levels of brightness adjustment.
• ٽچ ڪنٽرول: مختلف ڪمن لاءِ وجداني آپريشن.
• ڪيترائي تحفظ جا ڪم: Built-in overcurrent, overtemperature, and short circuit protection for safe charging.
• گرم سفيد روشني: 3500K color temperature for comfortable illumination.

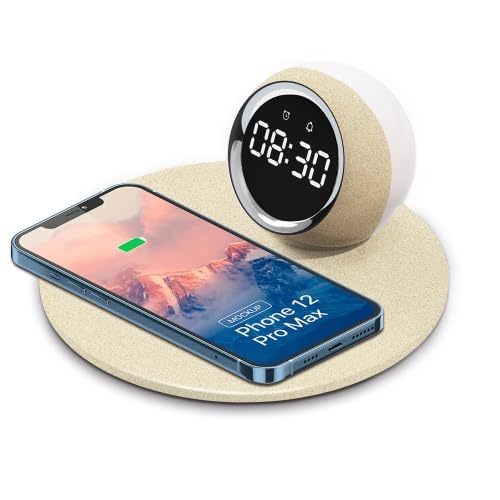

Image 1: The ELECTROPRIME K22T device, showcasing its digital clock, wireless charging pad, and night light.

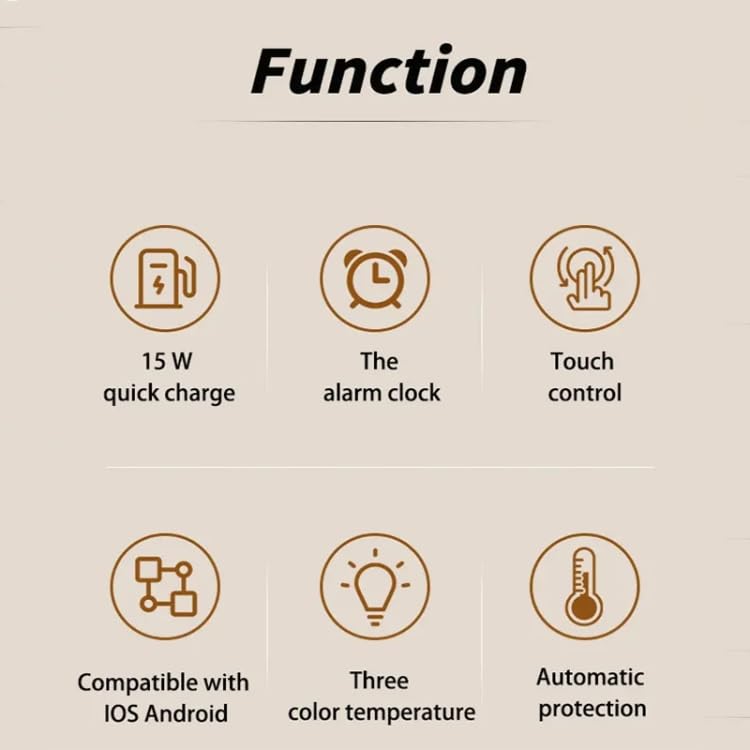

Image 2: Visual representation of the key functions including 15W quick charge, alarm clock, touch control, compatibility, adjustable color temperature, and automatic protection.

4. سيٽ اپ

1. ڊوائيس کوليو: Carefully remove the ELECTROPRIME K22T from its packaging.
2. پاور Connectنيو: Insert the USB-C connector of the power cable into the input port on the back of the device. Connect the other end of the cable to a compatible power adapter (9V/2A recommended) and plug it into a wall outlet.
3. شروعاتي پاور آن: The digital clock display will illuminate, indicating the device is powered on and ready for use.

5. آپريٽنگ هدايتون

5.1 ڪلاڪ مقرر ڪرڻ

The device typically features touch-sensitive buttons for time adjustment. Refer to the icons near the display for specific functions (e.g., 'M' for Mode, '+' for Increase, '-' for Decrease).

1. وقت جي سيٽنگ موڊ ۾ داخل ٿيو: Press and hold the 'Mode' button (or similar icon) for a few seconds until the hour digits start blinking.
2. ڪلاڪ ترتيب ڏيو: Use the '+' and '-' buttons to set the correct hour.
3. منٽ ترتيب ڏيو: Press the 'Mode' button again to switch to minute adjustment. Use the '+' and '-' buttons to set the correct minutes.
4. سيٽنگ موڊ مان نڪرڻ: Press the 'Mode' button once more, or wait a few seconds for the display to stop blinking, to save the time.

5.2 رات جي روشني استعمال ڪرڻ

The night light offers adjustable brightness and a rotatable design.

1. آن/بند ڪريو: Tap the light icon button (or similar) to turn the night light on or off.
2. روشني کي ترتيب ڏيو: With the light on, tap the light icon button repeatedly to cycle through brightness levels: 100% > 50% > 10% > Off.
3. زاويه ترتيب ڏيو: Gently rotate the night light component to direct the illumination as desired.

5.3 وائرليس چارجنگ

The device supports 15W wireless fast charging for compatible smartphones and other devices.

1. لڳائڻ: Place your wireless charging compatible device (e.g., smartphone) centrally on the charging pad.
2. چارجنگ اشارو: The device's display or a dedicated LED indicator (if present) may show a charging status. Your phone will also indicate that it is charging.
3. بهترين چارجنگ: Ensure your device is properly aligned on the charging pad for efficient charging. Remove phone cases thicker than 3mm or those containing metal.

6. سار سنڀال

• صفائي: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface of the device. Do not use abrasive cleaners, solvents, or harsh chemicals.
• اسٽوريج: جڏهن گهڻي عرصي تائين استعمال ۾ نه هجي، ته ڊوائيس کي سڌي سج جي روشني کان پري ٿڌي، سڪل جاءِ تي رکو.
• رڪاوٽن کان بچڻ: Keep the charging pad clear of dust and debris to ensure optimal performance.

7. مسئلا حل ڪرڻ

8. وضاحتون

9. وارنٽي ۽ سپورٽ

For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.

Manufacturer Contact Information: ELECTROGADGETSSTORE
