ISUDAR 10.1 Inch IPS Touchscreen Android 13 Car Stereo User Manual

1. Important Compatibility Notes

This ISUDAR Android 13 car stereo is designed for compatibility with Honda Civic models manufactured between 2006 and 2011. Before proceeding with installation, it is crucial to verify the shape and size of your vehicle's center console to ensure a proper fit.

اهم: This car stereo is مطابقت نه رکندڙ with Honda Civic vehicles originally equipped with an amplifier or a large factory screen. Please confirm your vehicle's original configuration to avoid compatibility issues.

2. پيڪيج مواد

مھرباني ڪري پڪ ڪريو ته ھيٺ ڏنل سڀ شيون توھان جي پيڪيج ۾ موجود آھن:

• Car Radio with Frame
• پاور ڪيبل
• جي پي ايس ماڊل
• USB ڪيبل (x2)
• آر سي سي ڪيبل
• ڪئميرا ان پٽ ڪيبل
• هٽائڻ وارو اوزار
• Rear Camera (Gift)

Image: The ISUDAR car radio unit with its custom frame, alongside all included cables and installation accessories, including the complimentary rear camera and removal tools.

3. انسٽاليشن گائيڊ

The ISUDAR car stereo is designed for a 'Plug and Play' installation, simplifying the process by utilizing existing vehicle wiring harnesses. However, professional installation is recommended for optimal results and to prevent damage to your vehicle or the unit.

عام لڳائڻ جا مرحلا:

1. تياري: ڪو به بجلي جو ڪم شروع ڪرڻ کان اڳ گاڏي جي بيٽري کي ڊسڪنيڪٽ ڪريو.
2. اصل يونٽ هٽايو: Carefully remove the existing car stereo and surrounding dash panels. Specialized removal tools are provided. Refer to vehicle-specific guides or online resources (e.g., YouTube tutorials) for detailed instructions on dash panel removal for your Honda Civic model.
3. وائرنگ ڳنڍڻ: Connect the provided wiring harnesses to the vehicle's corresponding connectors. Ensure all connections are secure.
4. اينٽيننا ۽ جي پي ايس: Connect the radio antenna and position the GPS module in a location with a clear view آسمان جو (مثال طور، ڊيش بورڊ تي).
5. ٽيسٽ ڪارڪردگي: Before fully reassembling the dashboard, temporarily reconnect the battery and test the stereo's basic functions (power, audio, touch screen, CarPlay/Android Auto, backup camera).
6. ٻيهر گڏ ڪرڻ: Once all functions are verified, carefully reassemble the dash panels and secure the new stereo unit.

Note on Passenger Airbag Light: Some Honda Civic models may have a passenger airbag indicator light integrated into the original dash panel. The ISUDAR unit's frame may not include a dedicated slot for this light. If this is the case, the original airbag light module may need to be reconnected and secured within the dash cavity, even if not visible, to prevent dashboard warning lights.

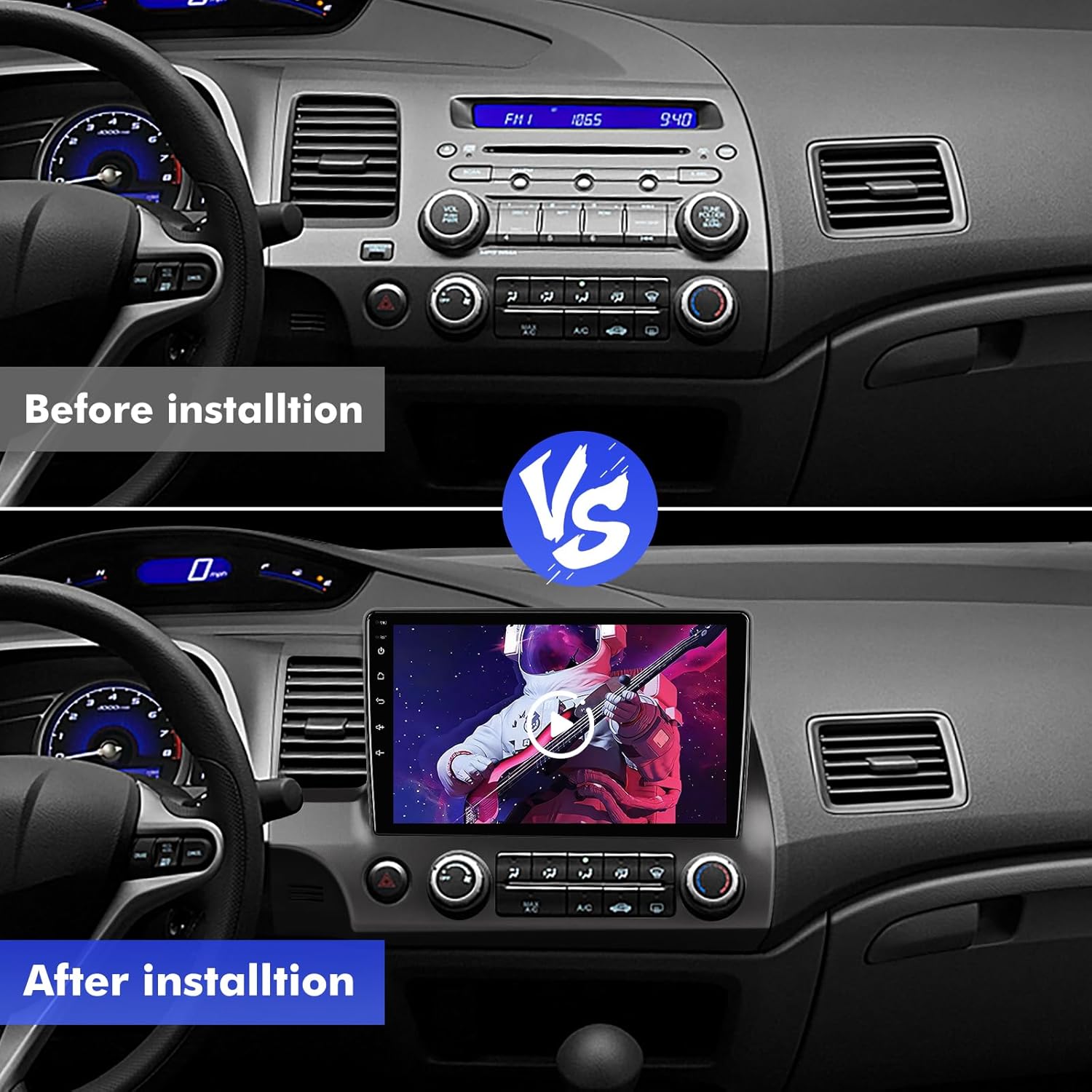

Image: Visual comparison of the dashboard before and after installation, demonstrating the integrated fit of the ISUDAR stereo.

Image: Diagram illustrating the 'Plug and Play' connection system for simplified installation.

4. آپريٽنگ هدايتون

4.1 اينڊرائيڊ 13 سسٽم اوورview

The ISUDAR car stereo operates on a customized Android 13 system, featuring 4GB RAM for smooth performance and 64GB ROM for application storage. The 1280*720P HD IPS touchscreen display offers clear visuals and vibrant colors.

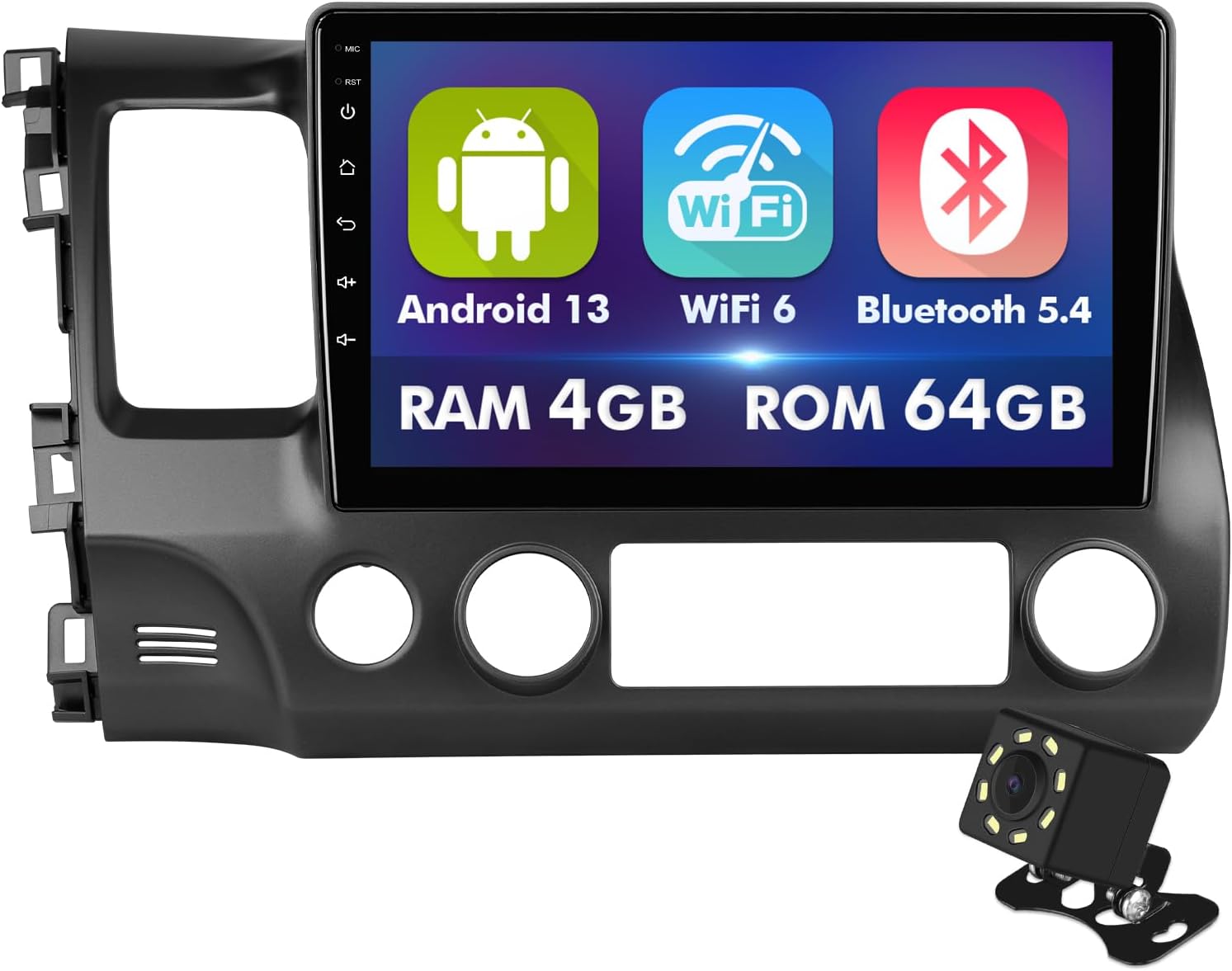

Image: The main interface of the ISUDAR Android 13 car stereo, highlighting key features and specifications.

4.2 وائرليس ڪار پلي ۽ اينڊرائيڊ آٽو

Connect your smartphone wirelessly via CarPlay (for iPhone) or Android Auto (for Android devices) for seamless integration. This feature allows access to navigation, music, calls, and messages directly from the stereo's display. Voice control via Siri or Google Assistant is supported.

Image: Demonstrates the wireless CarPlay and Android Auto functionality, showing phone mirroring and voice assistant integration.

4.3 بلوٽوٿ 5.4 ڪنيڪٽوٽي

The unit features Bluetooth 5.4 for stable and fast wireless connections. Enjoy hands-free calling with the built-in microphone and stream audio from your device. Bluetooth 5.4 offers improved transmission rates and range compared to older versions.

Image: Highlights the enhanced performance of Bluetooth 5.4, including improved range, stability, and transfer rates.

4.4 GPS نيويگيشن

Utilize the integrated GPS for navigation. The system supports various mapping applications, allowing you to find destinations and receive turn-by-turn directions.

4.5 ايف ايم ريڊيو

The built-in FM radio allows you to tune into your favorite stations. It includes 18 preset stations for quick access.

4.6 App Store

Access the integrated App Store to download and install various applications, expanding the functionality of your car stereo.

4.7 آئيني لنڪ

The Mirror Link function allows you to mirror your smartphone's screen directly onto the car stereo display, enabling you to view content from your phone on a larger screen.

Image: Shows the Mirror Link feature in action, displaying a phone's content on the car stereo screen.

4.8 Backup Camera Support

The system supports a backup camera, providing an HD image with a 170° wide-angle view. The included camera is waterproof and assists with safe parking and reversing.

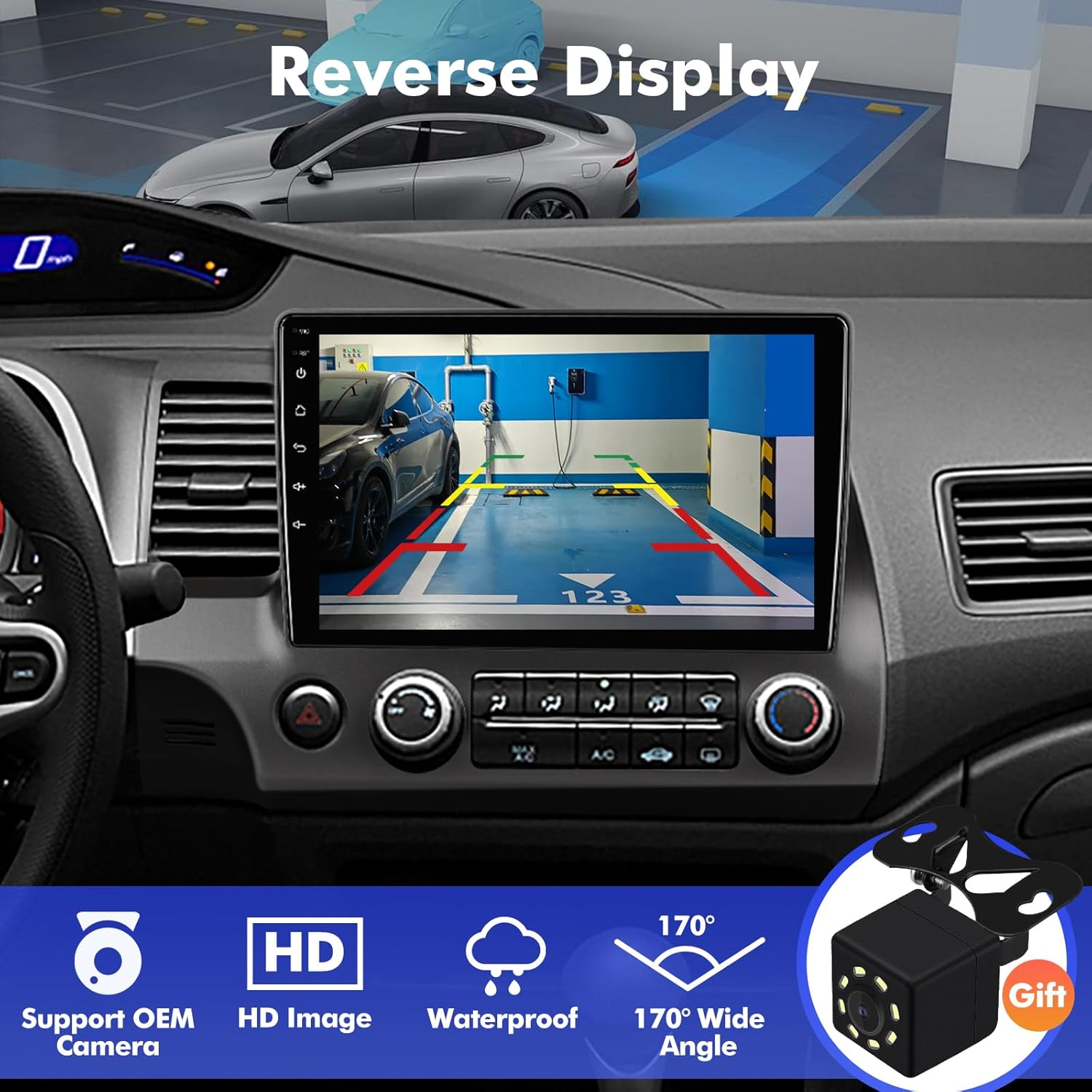

Image: Displays the reverse camera view on the stereo screen, highlighting its features.

4.9 اسٽيئرنگ ويل ڪنٽرول (SWC)

The unit supports integration with your vehicle's existing steering wheel controls, allowing you to manage audio, calls, and navigation functions without taking your hands off the wheel. The system provides an interface for mapping these controls.

4.10 ميڊيا پلے بیک

The stereo supports 4K HD video playback, offering a high-quality visual experience. You can play local video files, stream online music, and watch online videos through various applications.

Image: Illustrates the 4K HD video playback capability and high-resolution display.

4.11 آواز جي معيار

The unit features a built-in HiFi system with a 12-band equalizer (EQ), allowing for detailed audio customization to suit your preferences and vehicle acoustics.

Image: Depicts the high sound quality and customizable equalizer settings.

4.12 کولنگ سسٽم

The car stereo is equipped with a cooling fan to enhance heat dissipation, ensuring stable performance during extended use.

Image: Diagram illustrating the integrated cooling fan for heat management.

4.13 Real-time Weather

The system can display real-time weather information and forecasts, providing useful data for your journeys.

5. سار سنڀال

To ensure the longevity and optimal performance of your ISUDAR car stereo, follow these maintenance guidelines:

• اسڪرين جي صفائي: Use a soft, lint-free cloth specifically designed for electronics to clean the touchscreen. Avoid abrasive materials or harsh chemical cleaners, which can damage the screen coating.
• سافٽ ويئر اپڊيٽ: Periodically check for and install available software updates to ensure the system runs efficiently and has the latest features and security patches.
• انتهائي گرمي پد کان بچاء: While designed for automotive use, prolonged exposure to extreme heat or cold can affect electronic components.
• ڪيبل ڪنيڪشن: وقتي طور تي سڀني ڪيبل ڪنيڪشنن کي چيڪ ڪريو ته جيئن پڪ ڪري سگهجي ته اهي محفوظ آهن ۽ سنکنرن يا نقصان کان پاڪ آهن.
• سسٽم ري سيٽ: If the unit becomes unresponsive or experiences minor glitches, a soft reset (usually a small reset button or a menu option) can often resolve the issue. Refer to the device settings for specific reset procedures.

6. مسئلا حل ڪرڻ

This section addresses common issues you might encounter with your ISUDAR car stereo.

• ڪابه بجلي ناهي / يونٽ آن نه ٿي رهيو آهي:
  • سڀني پاور ڪنيڪشنن کي چيڪ ڪريو ته جيئن پڪ ڪري سگهجي ته اهي محفوظ طور تي پلگ ان ٿيل آهن.
  • پڪ ڪريو ته گاڏي جو اسٽيريو لاءِ فيوز صحيح آهي.
  • پڪ ڪريو ته گاڏي جي بيٽري صحيح طرح سان ڳنڍيل ۽ چارج ٿيل آهي.
• آواز ناهي:
  • اسپيڪر وائر ڪنيڪشن چيڪ ڪريو.
  • پڪ ڪريو ته حجم خاموش يا تمام گهٽ نه آهي.
  • Verify audio output settings in the stereo's menu.
• Wireless CarPlay/Android Auto Connectivity Issues:
  • پڪ ڪريو ته توهان جي فون جو بلوٽوٿ ۽ وائي فائي فعال آهن.
  • Forget the device from both your phone and the stereo, then attempt to re-pair.
  • For Android Auto, ensure the 'tlink5' app has background connection permissions enabled.
  • If switching between multiple phones, temporarily disable Bluetooth on the previously connected device to facilitate a new connection.
• بيڪ اپ ڪئميرا نه ڏيکاري رهيو آهي:
  • Check the camera input cable connection at the back of the stereo.
  • Verify the camera's power supply and ground connections.
  • Ensure the reverse trigger wire is correctly connected to the vehicle's reverse light circuit.
  • Confirm the camera itself is functional (if possible, test with an alternative display).
• GPS Signal Loss / Inaccurate Navigation:
  • پڪ ڪريو ته GPS اينٽينا محفوظ طور تي ڳنڍيل آهي ۽ هڪ بي رڪاوٽ جڳهه تي رکيل آهي view آسمان جو.
  • Update mapping software if available.
• Internet Connectivity (Wi-Fi) Issues:
  • Verify your Wi-Fi hotspot (e.g., smartphone hotspot) is active and providing internet access.
  • Check the Wi-Fi settings on the stereo to ensure it's connected to the correct network.
  • Restart both the stereo and the Wi-Fi hotspot device.
• Screen Brightness / Auto Screen Saver Issues:
  • Adjust brightness settings manually in the display menu.
  • If 'auto screen saver' is not functioning as expected, ensure the setting is enabled and check for any conflicting display options.
• Wireless Audio Quality (Compression):
  • If experiencing severe audio compression via wireless connections (Bluetooth/Android Auto), try playing audio from a USB drive to compare quality.
  • Ensure your phone's audio settings are optimized for streaming.
  • Check for firmware updates for the stereo, as this may be a software-related issue.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

ISUDAR offers a comprehensive 12-مهيني وارنٽي for this touchscreen car radio. This warranty covers manufacturing defects and ensures the product's advanced processing power, superior performance, enhanced anti-interference capabilities, and exceptional stability.

For any inquiries or concerns regarding the installation or usage process, a dedicated 24/7 professional after-sales team is available to assist you. Please do not hesitate to contact ISUDAR customer support for assistance.
