TANLANIN TE-2019A Bluetooth 3-Speed Vinyl Record Player User Manual

Model: TE-2019A

تعارف

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your TANLANIN TE-2019A Bluetooth 3-Speed Vinyl Record Player. Please read this manual thoroughly before using the product to ensure proper function and longevity.

پيڪيج مواد

پڪ ڪريو ته هيٺ ڏنل سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:

  • TANLANIN TE-2019A Turntable Unit
  • پاور ڪنڊ
  • 45 آر پي ايم اڊاپٽر
  • استعمال ڪندڙ جو دستياب (ھي دستاويز)

پيداوار ختمview ۽ اجزاء

Familiarize yourself with the various parts of your record player.

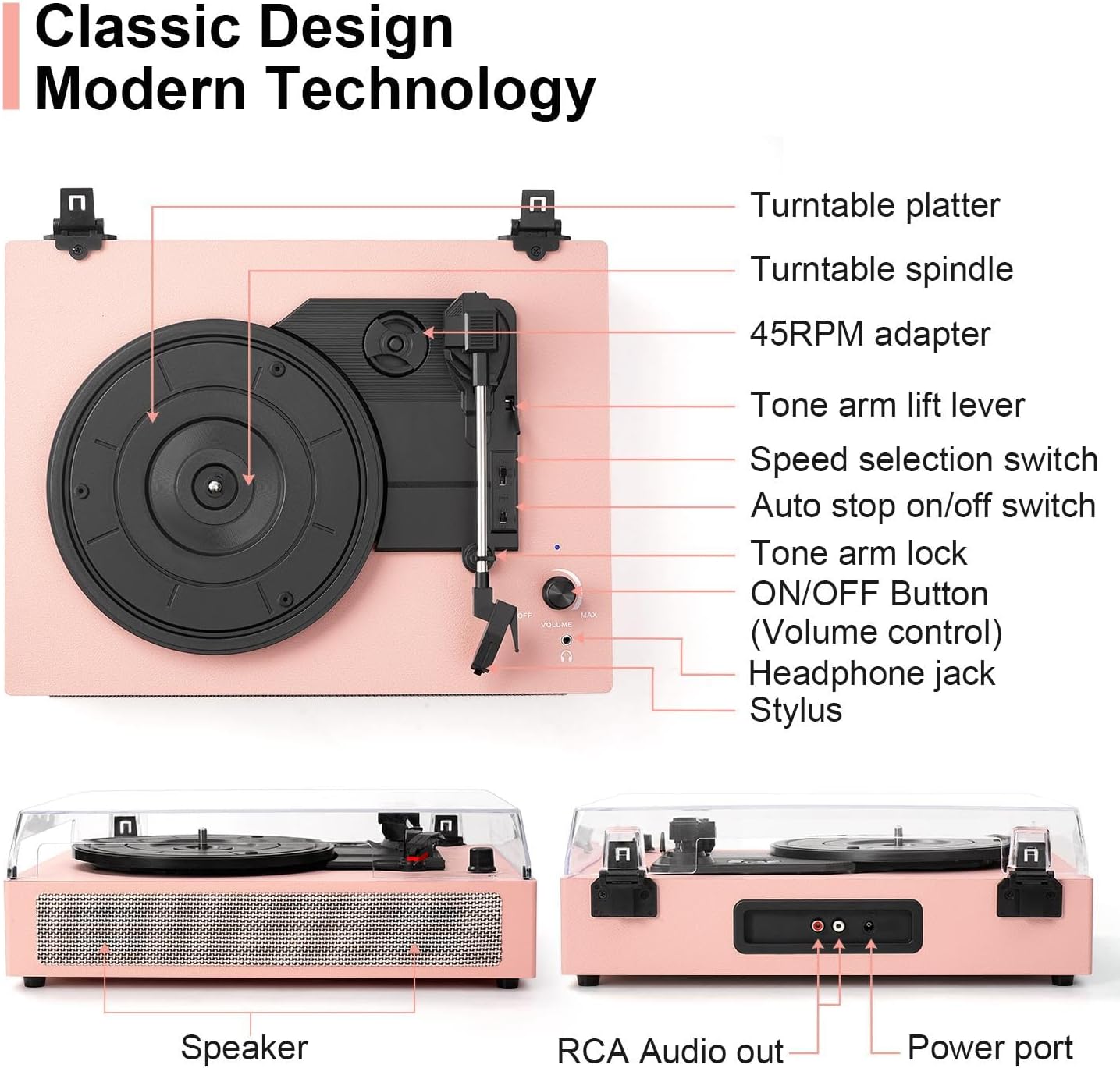

Diagram of TANLANIN TE-2019A record player components

تصوير: Labeled diagram of the TANLANIN TE-2019A record player, showing the turntable platter, spindle, 45 RPM adapter, tone arm lift lever, speed selection switch, auto stop on/off switch, tone arm lock, ON/OFF button (volume control), headphone jack, and stylus.

  • ٽرنبل ٽيبل: Surface where records are placed.
  • Turntable Spindle: Center pin for records.
  • 45 RPM اڊاپٽر: وڏن سينٽر هولن سان 7 انچ رڪارڊ کيڏڻ لاءِ استعمال ٿيندو آهي.
  • Tone Arm Lift Lever: ٽون بازو کي مٿي ۽ گھٽ ڪري ٿو.
  • اسپيڊ سليڪشن سوئچ: پلے بیک اسپيڊ (33، 45، يا 78 RPM) چونڊيندو آهي.
  • Auto Stop ON/OFF Switch: Engages or disengages the auto-stop function.
  • ٽون آرم لاڪ: استعمال ۾ نه هجڻ جي صورت ۾ ٽون بازو کي محفوظ بڻائي ٿو.
  • ON/OFF Button/Volume Control: Powers the unit on/off and adjusts speaker volume.
  • هيڊ فون جڪ هيڊفون سان ذاتي طور تي ٻڌڻ لاءِ.
  • اسٽائلس سُئي جيڪا رڪارڊ جي نالن کي پڙهي ٿي.
  • بلٽ ان اسٽيريو اسپيڪر: آڊيو آئوٽ پُٽ لاءِ مربوط اسپيڪر.
  • آر سي اي آڊيو آئوٽ: Connects to external ampلائفائر يا طاقتور اسپيڪر.
  • پاور پورٽ: پاور ڪنڊ کي ني ٿو.

سيٽ اپ ڪريو

  1. پيڪنگ کولڻ: پيڪنگ مان رڪارڊ پليئر ۽ سڀئي لوازمات احتياط سان هٽايو. مستقبل جي ٽرانسپورٽ يا اسٽوريج لاءِ پيڪنگ کي برقرار رکو.
  2. لڳائڻ: رڪارڊ پليئر کي هڪ مستحڪم، هموار مٿاڇري تي رکو جيڪو سڌي سج جي روشني، گرمي جي ذريعن، ۽ گهڻي مٽي يا وائبريشن کان پري هجي.
  3. پاور ڪنيڪشن: Connect the power cord to the Power Port on the back of the unit and then plug it into a standard wall outlet.
  4. مٽي ڍڪڻ: The clear dust cover protects the platter and tone arm. It can be opened or closed during operation.
  5. Tone Arm Preparation: ٽون آرم لاڪ کي ڇڏيو.
TANLANIN TE-2019A record player in Light Pink

تصوير: The TANLANIN TE-2019A record player in Light Pink, with its dust cover open, ready for use.

آپريٽنگ هدايتون

ونائل ريڪارڊز کيڏڻ

  1. پاور آن: Turn the ON/OFF Button/Volume Control clockwise to power on the unit. The power indicator light will illuminate.
  2. رفتار چونڊيو: Set the Speed Selection Switch to the appropriate speed (33, 45, or 78 RPM) for your record. Use the 45 RPM adapter for 7-inch singles if needed.
  3. جڳھ جو رڪارڊ: ٽرنٽيبل پليٽ تي هڪ ونائل رڪارڊ رکو.
  4. خودڪار اسٽاپ: Set the Auto Stop ON/OFF Switch to ON if you want the platter to stop spinning automatically when the record finishes. Set to OFF for continuous play or for some records that may trigger auto-stop prematurely.
  5. پلے بیک شروع ڪريو:
    • Lift the tone arm using the Tone Arm Lift Lever.
    • دستي طور تي ٽون بازو کي رڪارڊ جي گهربل شروعاتي ٽريڪ تي منتقل ڪريو.
    • Gently lower the tone arm onto the record using the Tone Arm Lift Lever. The record will begin to play.
  6. حجم کي ترتيب ڏيو: Rotate the ON/OFF Button/Volume Control to adjust the listening volume.
  7. هلڻ کي روڪڻ
    • Lift the tone arm using the Tone Arm Lift Lever.
    • Return the tone arm to its rest and secure it with the Tone Arm Lock.
    • Turn the ON/OFF Button/Volume Control counter-clockwise to power off the unit.
Close-up of record player stylus, belt-drive mechanism, and speed options

تصوير: تفصيلي view showing the stylus on a record, the belt-driven design for smooth music playback, and illustrations of 7", 10", and 12" records with their corresponding 33, 45, and 78 RPM speeds.

Bluetooth Wireless Playback

رڪارڊ پليئر بلوٽوٿ-فعال ڊوائيسز کان وائرليس طور تي آڊيو وصول ڪري سگهي ٿو.

  1. پاور آن: Turn the ON/OFF Button/Volume Control clockwise to power on the unit.
  2. بلوٽوٽ موڊ: The unit will automatically enter Bluetooth pairing mode. The Bluetooth indicator light will flash.
  3. جوڙ جو سامان: On your smartphone or tablet, enable Bluetooth and search for "TE-2019A" (or similar model name). Select it to pair.
  4. تصديق: هڪ ڀيرو جوڙيو ويو، بلوٽوٿ انڊيڪيٽر لائيٽ چمڪائڻ بند ڪري ڇڏيندي ۽ مضبوط رهندي.
  5. آڊيو هلايو: Start playing music on your connected device. The audio will play through the record player's built-in speakers.
  6. حجم کي ترتيب ڏيو: Adjust volume using both your connected device and the record player's Volume Control.

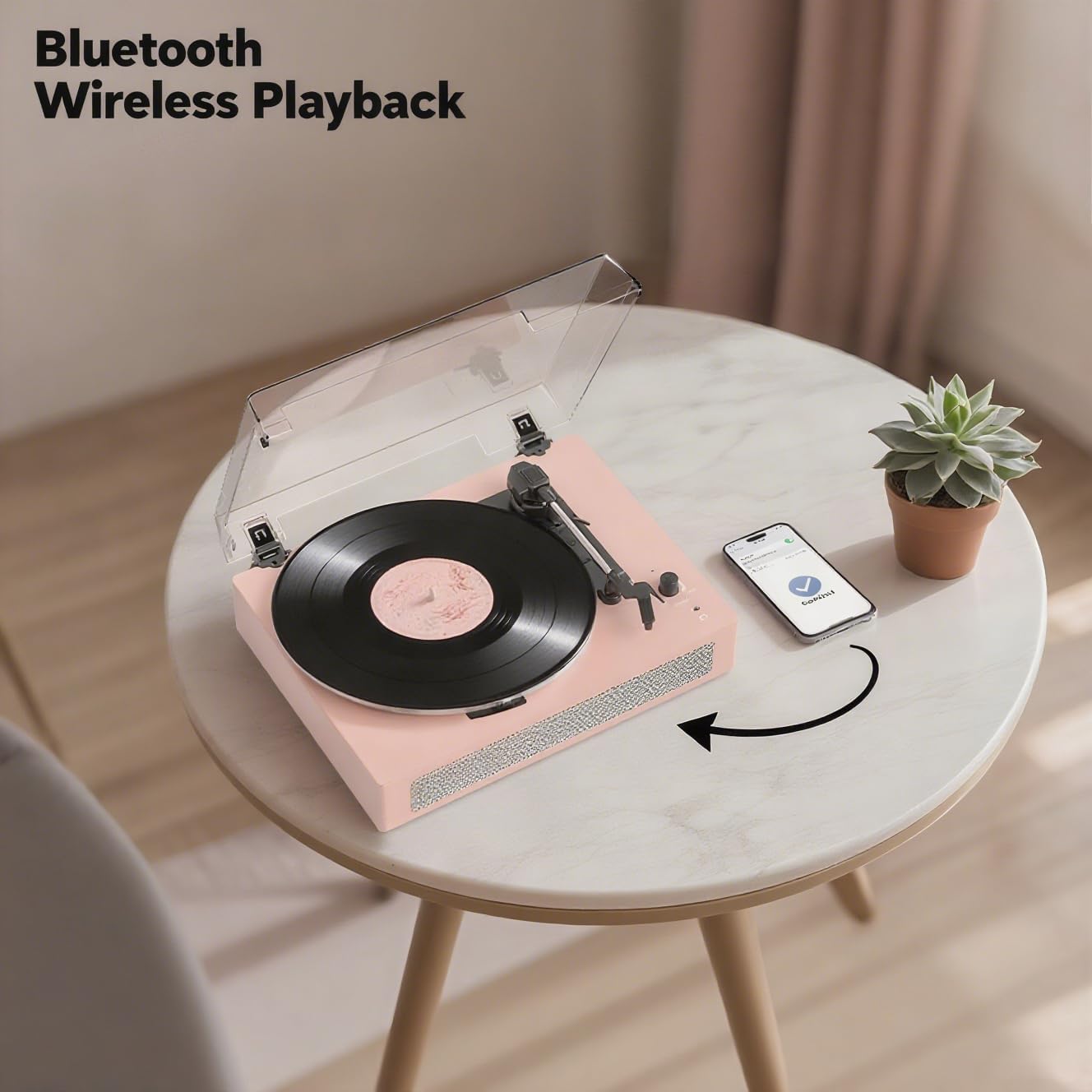

TANLANIN TE-2019A record player with a smartphone displaying Bluetooth connection

تصوير: The record player connected wirelessly via Bluetooth to a smartphone, demonstrating its wireless playback capability.

AUX ان پٽ

Connect external audio devices (e.g., MP3 players, CD players) using an AUX cable.

  1. ڪيبل ڳنڍيو: Plug one end of a 3.5mm AUX cable into the AUX-in port on the record player and the other end into the headphone jack or AUX-out port of your external device.
  2. پاور آن: Turn the ON/OFF Button/Volume Control clockwise to power on the unit.
  3. آڊيو هلايو: Start playing music on your external device. The audio will play through the record player's built-in speakers.
  4. حجم کي ترتيب ڏيو: Adjust volume using both your external device and the record player's Volume Control.

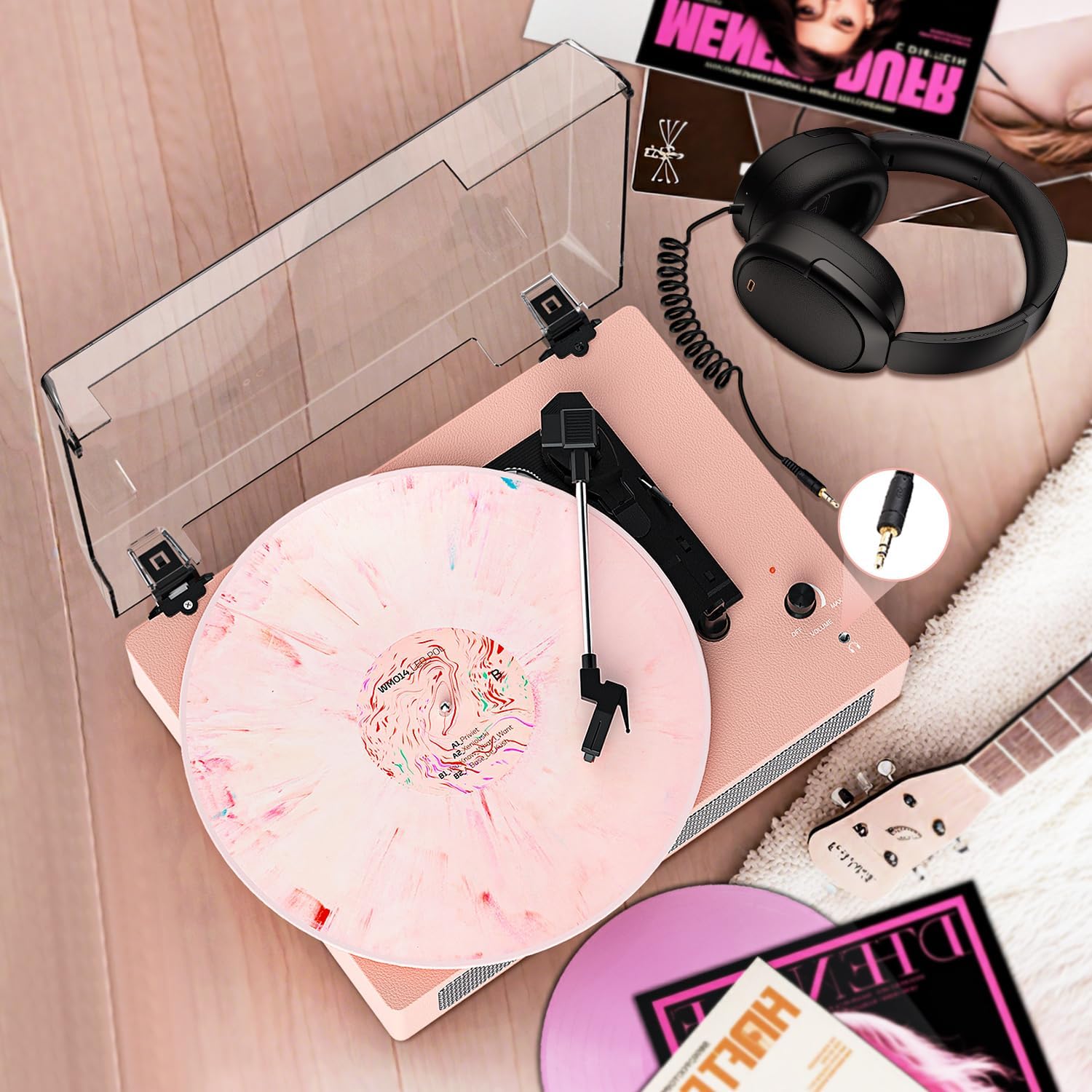

Record player with headphones connected via AUX cable

تصوير: The record player with headphones connected to the AUX-in port, illustrating the wired audio input option.

آر سي سي اوٽ

رڪارڊ پليئر کي ٻاهرين سان ڳنڍيو ampبهتر آڊيو آئوٽ پُٽ لاءِ لائفائر يا پاورڊ اسپيڪر.

  1. ڪيبل ڳنڍڻ: Connect RCA cables (not included) from the RCA Audio Out ports on the back of the record player to the corresponding input ports on your external ampلائفائر يا طاقتور اسپيڪر.
  2. پاور آن: Power on the record player and your external audio system.
  3. ان پٽ چونڊيو: Select the correct input on your external audio system.
  4. آڊيو هلايو: Play a record or stream via Bluetooth/AUX. Audio will be routed through your external system.
  5. حجم کي ترتيب ڏيو: Adjust volume primarily through your external audio system. The record player's volume control will affect the built-in speakers, if active.
Record player showing RCA output and other connectivity options

تصوير: هڪ اوورview of the record player highlighting its wireless connectivity, AUX-in jack, RCA output, built-in speaker, and inclusion of a 45-speed adapter.

سار سنڀال

  • يونٽ جي صفائي: Wipe the record player with a soft, dry cloth. Do not use abrasive cleaners or solvents.
  • مٽي ڍڪڻ: پليٽر ۽ اسٽائلس تي مٽي جمع ٿيڻ کان روڪڻ لاءِ استعمال ۾ نه هجڻ وقت مٽيءَ جي ڍڪ کي بند رکو.
  • اسٽائلس جي سنڀال:
    • اسٽائلس کي تمام گهڻي احتياط سان هٿ ڪريو. اسٽائلس جي چوٽي کي ڇهڻ کان پاسو ڪريو.
    • اسٽائلس کي وقت بوقت نرم برش سان صاف ڪريو، پوئتي کان اڳيان برش ڪندي.
    • Replace the stylus when sound quality deteriorates or if the stylus is visibly damaged.
  • رڪارڊ جي سنڀال: Keep records clean and free of dust. Store them vertically in their sleeves to prevent warping.

مشڪلاتون

مسئلوممڪن سببحل
طاقت نه آهيبجلي جي تار ڳنڍيل نه آهي؛ پاور آئوٽليٽ فعال نه آهي؛ يونٽ آن نه آهي.Ensure power cord is securely connected. Check power outlet. Turn the ON/OFF Button/Volume Control clockwise.
.الهائيندڙن مان آواز ڪونهيVolume too low; Incorrect input selected (if using external speakers); Stylus not on record; Tone arm lift lever engaged.Increase volume. Ensure tone arm is lowered onto the record. Check input selection on external system.
رڪارڊ اسڪپسDirty or scratched record; Stylus dirty or worn; Record player not level; Excessive vibration.Clean record. Clean or replace stylus. Ensure unit is on a stable, level surface. Avoid placing near vibrating objects.
بلوٽوٿ ڳنڍي نه ٿوBluetooth not enabled on device; Device too far; Incorrect device selected.Ensure Bluetooth is enabled on your device. Keep device within range (approx. 10 meters). Select "TE-2019A" from your device's Bluetooth list.
پليٽ نه ڦري رهي آهيPower off; Belt dislodged; Auto-stop engaged prematurely.Check power. If belt is dislodged, contact support. Try setting Auto Stop to OFF.

وضاحتون

  • برانڊ: تانلانين
  • ماڊل نالو: TE-2019A-PK-TA
  • رنگ: هلڪو گلابي
  • مواد: Acrylic, Engineered Wood
  • رفتار: 33 1/3، 45، 78 RPM
  • ڊرائيو جو قسم: بيلٽ ڊرائيو
  • رابطي: Bluetooth 5.0, AUX-in, RCA Output
  • بلٽ ان اسپيڪرز: ها
  • خودڪار اسٽاپ: ها
  • طول و عرض (L x W x H): 14" x 11" x 5" (تقريبن)
  • طاقت جو ذريعو: تار ٿيل برقي
  • شامل اجزاء: Turntable, Power cord, 45 RPM Adapter, User manual

سرڪاري پراڊڪٽ وڊيو

وڊيو: An official product video demonstrating the TANLANIN TE-2019A record player in pink, showcasing its features such as playing vinyl, built-in stereo speakers, RCA line output, and Bluetooth connectivity. The video illustrates the process of placing a record, adjusting volume, and connecting a smartphone via Bluetooth.

وارنٽي ۽ سپورٽ

This TANLANIN record player comes with a 1 سال وارنٽي from the date of purchase, covering manufacturing defects. For warranty claims, technical assistance, or any questions regarding your product, please contact TANLANIN customer support through the retailer where the product was purchased or visit the official TANLANIN webرابطي جي معلومات لاء سائيٽ.

Please have your model number (TE-2019A) and proof of purchase ready when contacting support.
