1. پراڊڪٽ ختمview
The Muzata Side Mount Cable Railing Post (Model PF02 LH4S) is a 36-inch square post designed for side-mounted installation on horizontal sections of decks, stairs, porches, balconies, and fences. It features pre-drilled level holes for cable installation and is constructed from high-quality T304 stainless steel, offering excellent rust resistance for both indoor and outdoor applications.
Figure 1: Key features of the Muzata Side Mount Cable Railing Post, highlighting regulation compliance, weldless design for easy installation, and smooth edges for safety.
اهم خاصيتون:
- Side-mounted Installation: 36-inch square post with a brushed finish, designed for installation against the side of a landing. Pre-drilled with 10 pairs of level holes for horizontal sections.
- مواد: High-quality T304 stainless steel for excellent rust resistance and long-term durability.
- درخواستون: Suitable for indoor and outdoor use, including decks, stairs, porches, balconies, and fences.
- خلائي بچت ڊيزائن: Side mount posts maximize usable deck or stair tread space compared to top-mount posts.
- ڪوڊ جي تعميل: Designed with 3-inch cable spacing. Consult local building codes for specific requirements.

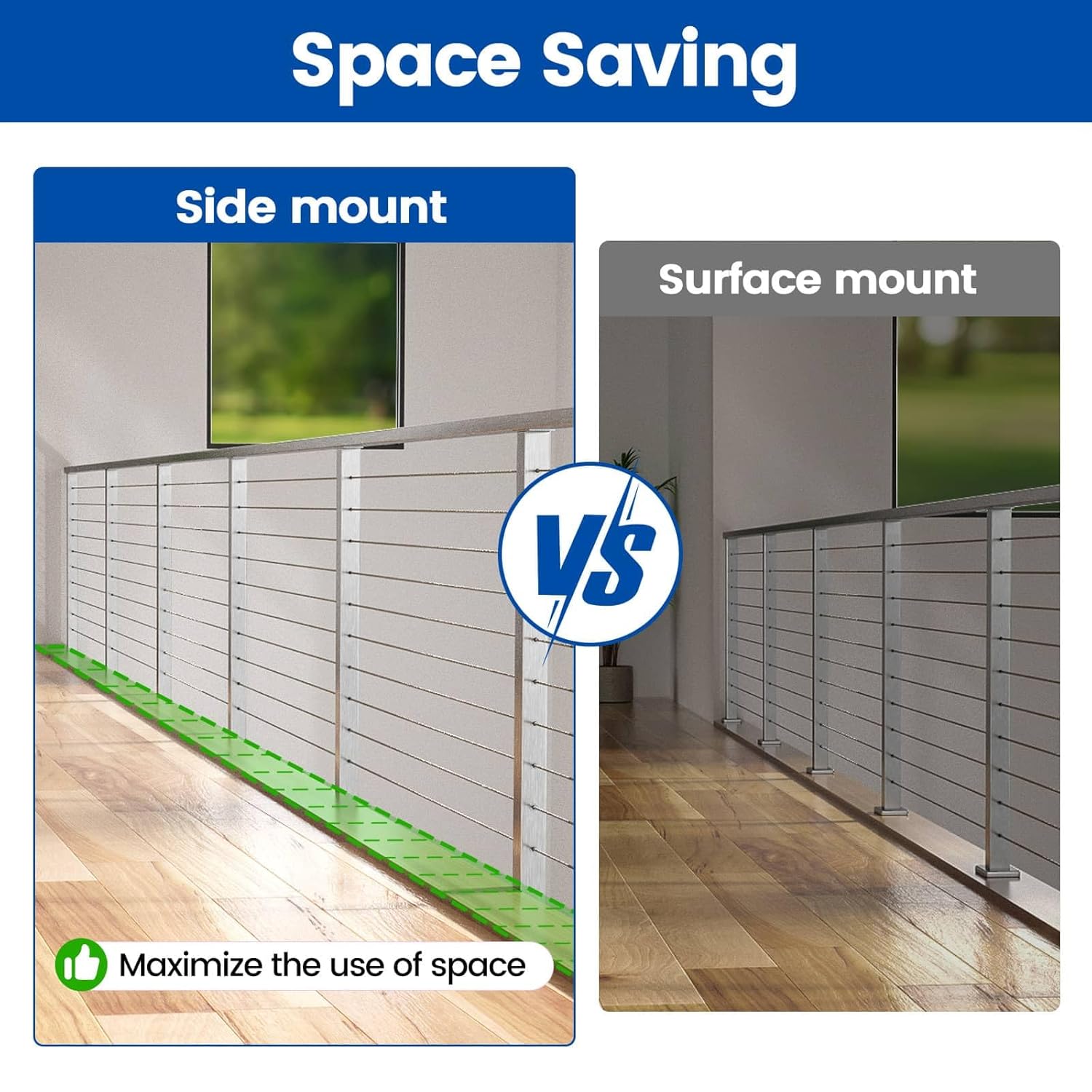

Figure 2: Visual comparison illustrating how side-mounted posts (left) maximize usable space on a deck or stair tread compared to surface-mounted posts (right).
2. اهم حفاظتي ڄاڻ
Read all instructions carefully before installation. Failure to follow these instructions may result in injury or product damage. Always wear appropriate personal protective equipment (PPE) during installation, including safety glasses and gloves.
- مقامي بلڊنگ ڪوڊ: It is crucial to consult local building offices regarding specific requirements and regulations for cable railing systems in your area. Code compliance may vary by state and region.
- ماحولياتي حدون: This PF02 post is not suitable for projects located within 10 miles of the sea or saltwater areas due to potential corrosion risks.
- پوسٽ اسپيسنگ: Generally, the span between two structural posts should not exceed 4 feet to pass the 4-inch sphere test, ensuring safety and compliance.
- محفوظ تنصيب: Ensure all fasteners are tightened securely to prevent movement or instability of the railing system.
3. پيڪيج مواد
انسٽاليشن شروع ڪرڻ کان اڳ پڪ ڪريو ته هيٺ ڏنل سڀئي جزا موجود آهن ۽ انهن کي نقصان نه پهتو آهي.
شڪل 3: تفصيلي view of the Muzata Side Mount Cable Railing Post and its included accessories, such as the fixed top bracket, bottom stopper, side mount spacer, lag screws, Allen wrench, nut setter, and user guide.
| شيءِ | وصف | مقدار |
|---|---|---|
| Cable Railing Post (36") | Pre-drilled square post for side mounting | 1 |
| Fixed Top Bracket | For securing flat handrails to the post | 1 |
| Bottom Stopper | Secures the base of the post | 1 |
| Side Mount Spacer | Provides proper spacing for side mounting | 1 |
| ST8x80mm Lag Screws | For securing the post to wood surfaces | 2 |
| آلن رنچ | گڏ ڪرڻ جو اوزار | 1 |
| نٽ سيٽ ڪندڙ | ڪڪڙ کي مضبوط ڪرڻ جو اوزار | 1 |
| لاڳاپيل لوازمات | Additional small parts (e.g., adhesive wafers) | مختلف |
| استعمال ڪندڙ ھدايت | ھي ھدايت وارو دستور | 1 |
4. انسٽاليشن گائيڊ
This section provides detailed instructions for installing your Muzata Side Mount Cable Railing Post. Ensure you have all necessary tools and safety equipment before proceeding.
4.1. جنرل انسٽاليشن اوورview
وڊيو 1: هڪ اوورview of the Muzata SpaceSaver cable railing system, demonstrating its side-mounted design for maximizing space on decks and stairs, weldless connections, weather protection, and general system components. This video also highlights related items that may be purchased separately.
4.2. Installing the Side Mount Post
The following video provides a step-by-step guide for installing the fascia side mount post.
Video 2: Detailed installation guide for the Muzata fascia side mount post. This video covers measuring, drilling pilot holes, securing the post to wood or concrete surfaces using appropriate fasteners, and covering the mounting holes with adhesive wafers for a clean finish. It also demonstrates handrail and cable installation.
قدم بہ قدم ھدايتون:
- ماپ ۽ نشان: Determine the precise location for each post. Ensure the post will be vertical to the deck surface. Mark the drilling points for the mounting screws.
- پائلٽ سوراخ ڪريو: For wood surfaces, drill pilot holes using a 5/16" (7mm) drill bit. For concrete, brick, or stone surfaces, use an appropriate masonry drill bit and expansion bolts (sold separately).
- Install the Post: Align the side mount spacer and the post with the drilled holes. Secure the post using the provided ST8x80mm lag screws for wood, or expansion bolts for concrete/brick/stone. Ensure the post is plumb using a level.
- بندن کي مضبوط ڪريو: Use the Allen wrench and nut setter to securely tighten all screws/bolts. Do not overtighten.
- Cover Holes: Apply the adhesive wafers over the exposed screw heads for a clean and finished appearance.
4.3. Handrail and Cable Installation (General Guidance)
Once the posts are securely installed, proceed with handrail and cable installation. Refer to the specific instructions provided with your Muzata handrail and cable kits for detailed steps.
- Handrail Attachment: Attach the handrail to the fixed top bracket using appropriate fasteners. Ensure the handrail is level and securely fastened.
- ڪيبل ٿريڊنگ: Thread the cable through the pre-drilled holes in the posts.
- ڇڪڻ: Use cable tensioners (e.g., Muzata CR23) and tools (e.g., hydraulic crimper CT01, cable cutter CR12) to secure and tension the cables. Follow the recommended sequence for tightening cables to ensure even tension and structural integrity.
Figure 4: A system recommendation diagram illustrating various Muzata components for a complete cable railing system, including different post types, handrail connectors (HA01, HA02, HA23), wire rope (WR02), protector sleeves (CR72, CR79, CR91), angled washers (CR25), and tools like cable cutters (CK12) and hydraulic crimpers (CT01).
5. سنڀال ۽ سار سنڀال
Regular maintenance will ensure the longevity and appearance of your Muzata cable railing system.
- صفائي: Clean stainless steel components regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
- چڪاس: Periodically inspect all posts, cables, and fasteners for any signs of wear, damage, or loosening. Tighten any loose connections immediately.
- سنکنرن جي روڪٿام: While T304 stainless steel is rust-resistant, it is not entirely corrosion-proof in all environments. For installations in coastal or high-salinity areas (though not recommended for this specific post), more frequent cleaning and specialized stainless steel protectants may be necessary.
Figure 5: This image emphasizes the long-term durability of the cable railing system, showcasing its resilience in various weather conditions (sunny and rainy) and highlighting benefits such as T304 stainless steel construction, UV resistance, rust resistance, and ease of maintenance.
6. مسئلا حل ڪرڻ
جيڪڏهن توهان کي انسٽاليشن دوران يا بعد ۾ ڪو مسئلو پيش اچي ٿو، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Post is not plumb/vertical | Improper measurement or tightening | Loosen fasteners, adjust post with a level, then re-tighten securely. |
| Cables are sagging | ناکافي ٽينشن | Re-tension cables using appropriate tools, following the recommended tightening sequence. |
| Rust spots appear on posts | Exposure to harsh chemicals or saltwater (if applicable) | Clean with a stainless steel cleaner. Avoid harsh chemicals. Ensure proper environmental conditions for T304 steel. |
| Handrail feels loose | Loose connection to post bracket | Inspect and tighten all fasteners connecting the handrail to the post bracket. |
7. مصنوعات جي وضاحت
| وصف | تفصيل |
|---|---|
| برانڊ | موزتا |
| ماڊل نمبر | PF02 |
| مواد | اسٽينلیس سٹیل 304 |
| شيون طول و عرض (L x W x H) | 3 x 3 x 44.5 inches (Note: 36" post height, 44.5" total length including base) |
| رنگ | برش ڪيل |
| شڪل | چورس |
| شين جي ٿلهي | 2 انچ |
| ڪيبل جي فاصلي | 3 inches (pre-drilled) |
| يو پي سي | 706597341891 |
8. سپورٽ ۽ وارنٽي
Muzata is committed to providing quality products and professional service. If you require assistance with your cable railing project, have questions during installation, or need after-sales support, please contact us.
8.1. Personalized Design Service
Muzata offers a free personalized railing design service. If you are a beginner or unsure about planning your railing project, you can provide a simple sketch and answer a few questions. Our engineers will assist you in designing the entire railing project and recommend the correct products. After the solution is confirmed, you will receive a shopping list with prices and a total budget.
8.2. ٽيڪنيڪل سپورٽ
Our experienced technical support team is available to assist you with any questions or challenges you may encounter during installation. You can find tutorial videos on our website or contact us directly for personalized help.
8.3. رابطي جي معلومات
To reach Muzata for support or design services, please visit the Muzata Store on Amazon or use the contact options provided on the product page (e.g., 'Ask a question' to the seller).
