FLEXISPOT EB2 Height-Adjustable Desk Frame User Manual

1. تعارف

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your FLEXISPOT EB2 electric height-adjustable desk frame. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The FLEXISPOT EB2 desk frame features dual motors for smooth and quiet height adjustments, a wide height adjustment range, and a smart control panel with memory functions. It is designed to support various desktop sizes, offering flexibility for your workspace.

2. حفاظت جي ڄاڻ

• هميشه احتياط سان اسيمبلي جي هدايتن تي عمل ڪريو.
• Ensure the desk frame is securely mounted to the tabletop to prevent tipping.
• Do not exceed the maximum weight recommendation of 100 kg (dynamic load) or 125 kg (static load) to maintain stability and safety.
• آپريشن دوران ٻارن ۽ پالتو جانورن کي ڊيسڪ کان پري رکو.
• پڪ ڪريو ته اوچائي جي ترتيب دوران ڊيسڪ جي رستي ۾ ڪا به رڪاوٽ نه آهي.
• Do not open the motor housing or attempt to repair the unit yourself. Contact customer support for assistance.
• صفائي ڪرڻ يا ڪنهن به سار سنڀال ڪرڻ کان اڳ بجلي بند ڪريو.

3. پيڪيج مواد

اسيمبلي شروع ڪرڻ کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن. پيڪيج ۾ عام طور تي شامل آهن:

• Desk Legs (2) with integrated motors
• Crossbar/Frame (adjustable width)
• Control Panel with digital display
• پاور اڊاپٽر ۽ ڪيبل
• اسيمبليءَ لاءِ سڀ ضروري پيچرا، بولٽ، ۽ اوزار
• Cable management accessories (e.g., clips, hooks)

4. سيٽ اپ ۽ اسيمبلي

Assembly is required for this product. Please follow the step-by-step instructions provided in the separate assembly guide included with your purchase. Ensure you have adequate space and assistance if needed.

اهم اسيمبلي جا خيال:

• ڊيسڪ ٽاپ مطابقت: The frame is designed for tabletops with a width of 120 cm to 180 cm and a depth of 60 cm to 80 cm. The frame width is adjustable from 107 cm to 160 cm.
• محفوظ بندش: Ensure all screws are tightened securely, especially those connecting the desktop to the frame.
• ڪيبل جو انتظام: Utilize the provided cable management solutions to keep wires tidy and prevent interference with desk movement.

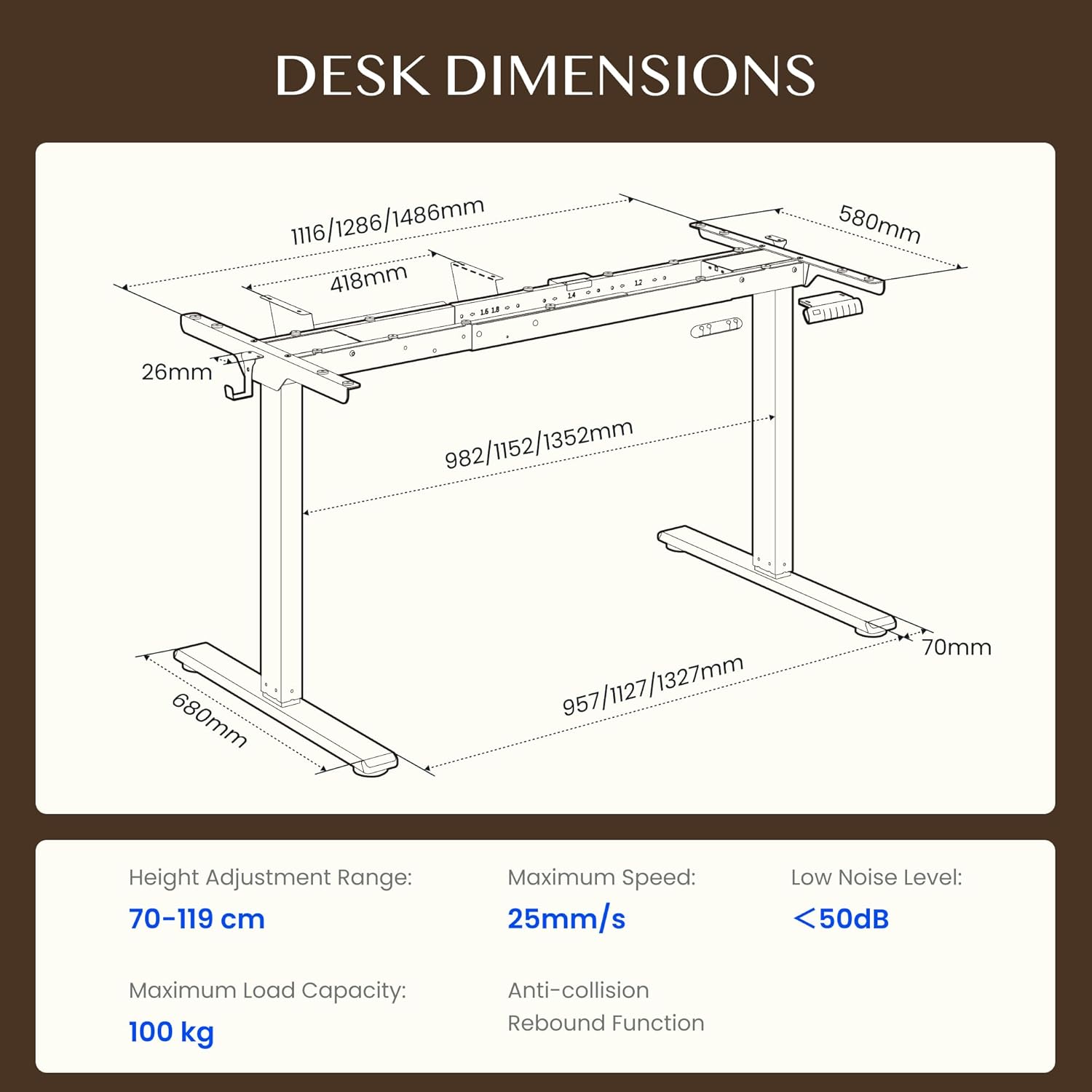

Figure 4.1: Detailed dimensions of the FLEXISPOT EB2 desk frame, showing adjustable width and height ranges, and overall structural measurements.

Figure 4.2: Illustration demonstrating the adaptable desktop size range for the FLEXISPOT EB2 frame, indicating minimum and maximum dimensions for compatible tabletops.

5. آپريٽنگ هدايتون

5.1 پاور آن

Connect the power cable to the desk frame and then to a standard electrical outlet. The digital display on the control panel should illuminate.

5.2 اوچائي کي ترتيب ڏيڻ

استعمال ڪريو Up ۽ هيٺ arrow buttons on the control panel to manually adjust the desk height. The height range is from 70 cm to 119 cm.

Figure 5.1: Visual representation of the desk's height adjustment range, illustrating the minimum and maximum heights achievable with the FLEXISPOT EB2 frame.

5.3 ميموري پري سيٽس

The control panel features 4 memory preset buttons (1, 2, 3, 4) to save and recall your preferred sitting and standing heights.

1. مٿي/هيٺ بٽڻن کي استعمال ڪندي ڊيسڪ کي پنهنجي گهربل اوچائي تي ترتيب ڏيو.
2. Press and hold one of the memory buttons (1, 2, 3, or 4) until the display flashes or beeps, indicating the height has been saved.
3. To recall a saved height, simply press the corresponding memory button. The desk will automatically move to that position.

شڪل 5.2: بند اپ view of the smart control panel, highlighting the Up/Down buttons, 4 memory presets, and LED display for effortless height adjustment.

5.4 Sit/Stand Reminder

The control panel may include a sit/stand reminder button. Consult your specific control panel's instructions for activation and customization of reminder intervals.

5.5 اينٽي ڪوليشن سسٽم

The desk frame is equipped with an anti-collision system. If the desk encounters an obstruction during height adjustment, it will automatically stop and reverse slightly to prevent damage.

Figure 5.3: Diagram illustrating the powerful dual motor system of the FLEXISPOT EB2, emphasizing stability, quiet operation, and efficiency.

شڪل 5.4: مثالamples of simple desk helpers, including under-desk cable management, side hooks, and adhesive cable clips, designed to keep your workspace organized.

6. سار سنڀال

• صفائي: Wipe the desk frame with a dry cloth. Avoid using abrasive cleaners or harsh chemicals that could damage the finish.
• چڪاس: وقت بوقت سڀني پيچرن ۽ ڪنيڪشنن کي چيڪ ڪريو ته جيئن اهي تنگ رهن. جيڪڏهن ضروري هجي ته ٻيهر مضبوط ڪريو.
• ڪيبل جو انتظام: Ensure cables are not pinched or tangled, which could impede desk movement or cause damage.

7. مسئلا حل ڪرڻ

If you encounter issues with your FLEXISPOT EB2 desk frame, refer to the following common troubleshooting steps:

• ڊيسڪ نه هلي رهيو آهي: Check if the power cable is securely connected to both the desk and the wall outlet. Ensure the outlet is functional.
• Uneven movement or strange noises: Ensure the desk is not overloaded. Check for any obstructions under or around the desk. Verify that all assembly screws are tight.
• ڊسپلي تي غلطي ڪوڊ: Refer to the specific error code in your detailed assembly guide or contact customer support for assistance.
• سسٽم کي ري سيٽ ڪرڻ: Some issues can be resolved by performing a system reset. Consult your assembly guide for specific reset procedures, which often involve holding down certain buttons.

If the problem persists after attempting these steps, please contact FLEXISPOT customer support.

8. وضاحتون

9. وارنٽي

The FLEXISPOT EB2 desk frame comes with a limited warranty. Please refer to the warranty card included with your product or visit the official FLEXISPOT webڪوريج ۽ مدت بابت تفصيلي شرطن ۽ ضابطن لاءِ سائيٽ.

10. ڪسٽمر سپورٽ

For technical assistance, warranty claims, or any questions regarding your FLEXISPOT EB2 desk frame, please contact FLEXISPOT customer support through their official webسائيٽ يا توهان جي پراڊڪٽ پيڪنگنگ ۾ ڏنل رابطي جي معلومات.

Please have your model number (EB2B) and purchase information ready when contacting support.
