1. تعارف
Thank you for choosing the Glen SA-3077IR 2200W Infrared Cooktop Stove. This appliance is designed to provide efficient and versatile cooking with its powerful infrared heating, touch controls, and compatibility with various cookware. Please read this manual thoroughly before operating the cooktop to ensure safe and optimal performance. Keep this manual for future reference.

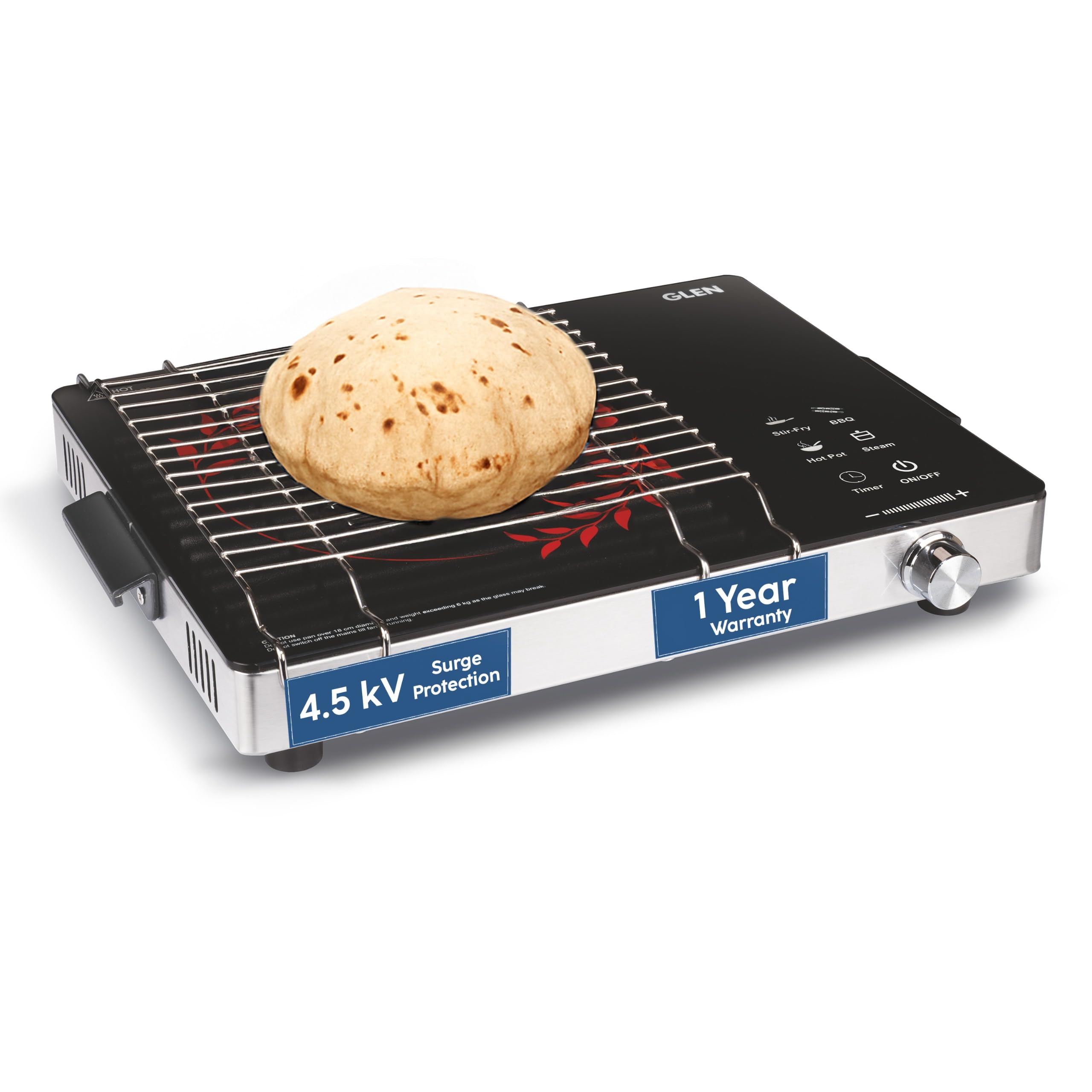

Image 1.1: Glen SA-3077IR Infrared Cooktop Stove. This image shows the overall design of the cooktop, featuring its black crystal glass surface, stainless steel frame, and control panel.
2. اھم حفاظتي ھدايتون
باهه، بجليءَ جي جھٽڪي ۽ زخم جي خطري کي گهٽائڻ لاءِ بجليءَ جا سامان استعمال ڪرڻ وقت هميشه بنيادي حفاظتي احتياطن تي عمل ڪريو.
- برقي حفاظت: Ensure the cooktop is connected to a properly grounded electrical outlet. Do not use if the power cord is damaged.
- سرج تحفظ: The cooktop features built-in 4.5kV surge protection to safeguard the PCB from sudden voltage fluctuations. However, it is advisable to use a voltage stabilizer in areas prone to extreme fluctuations.
- گرم سطح: The cooking surface becomes very hot during and after operation. Avoid touching the hot surface directly. Use the cool-touch handles for moving the appliance.
- گهڻي گرمي کان بچاءُ: The appliance is equipped with overheat protection. If the internal temperature exceeds safe limits, the cooktop will automatically shut off.
- وينٽيليشن: Ensure adequate ventilation around the cooktop. Do not block air vents.
- کائڻ جو سامان: Use only flat-bottomed cookware suitable for infrared heating. Do not place empty pots on the cooktop when it is operating.
- ٻار ۽ پالتو جانور: ٻارن ۽ پالتو جانورن کي اوزار جي آپريشن دوران ۽ ان جي ٿڌي ٿيڻ دوران ان کان پري رکو.
- صفائي: Always unplug the cooktop before cleaning. Allow it to cool completely.
Image 2.1: The cooktop highlighting its 4.5 kV Surge Protection feature. A blue shield icon with a lightning bolt symbolizes the protection against voltage fluctuations.
3. پراڊڪٽ ختمview
The Glen SA-3077IR Infrared Cooktop features a sleek design with intuitive controls for a superior cooking experience.
3.1 اجزاء
- Crystal Glass Plate: A premium 360x280 mm heat-resistant crystal glass surface for cooking.
- ڪنٽرول پينل: Modern touch sensor controls with an LED digital display.
- جوگ ويل: For precise adjustment of power and temperature settings.
- اسٽينلیس سٹیل فريم: Ensures durability and heat resistance.
- ٿڌي ٽچ هٿ: For safe handling and portability.
- گرل ريڪ: Included for barbecue and tandoor-style cooking.
Image 3.1: Close-up of the Crystal Glass Plate (360x280 mm) on the Glen SA-3077IR cooktop, highlighting its smooth, easy-to-clean surface.
Image 3.2: The touch control panel and digital display of the Glen SA-3077IR cooktop, showing a hand interacting with the controls.
Image 3.3: The stainless steel frame and jog wheel control of the Glen SA-3077IR cooktop, emphasizing its robust construction and ease of adjustment.
4. سيٽ اپ
- پيڪنگ کولڻ: Carefully remove the cooktop and all accessories from the packaging. Retain packaging for future transport or storage.
- لڳائڻ: Place the cooktop on a stable, flat, and heat-resistant surface. Ensure there is sufficient space around the appliance for proper air circulation (at least 10-15 cm from walls or other appliances).
- پاور ڪنيڪشن: بجلي جي تار کي هڪ مناسب گرائونڊ ٿيل بجلي جي آئوٽليٽ ۾ لڳايو. پڪ ڪريو ته وولٽيجtage اوزار جي وضاحتن سان ملندو آهي.
- شروعاتي صفائي: Before first use, wipe the crystal glass plate and exterior surfaces with a soft, damp ڪپڙو.
5. آپريٽنگ هدايتون
5.1 پاور آن/آف
- چالو ڪرڻ لاءِ ، پريس ڪريو آن/بند touch button. The digital display will illuminate.
- بند ڪرڻ ، پريس کي دٻايو آن/بند touch button again. The cooktop will enter standby mode.
5.2 ڪوڪ ويئر مطابقت
Unlike traditional induction cooktops, the Glen SA-3077IR infrared cooktop is compatible with all flat-bottomed pots and pans, including those made of stainless steel, aluminum, glass, ceramic, and copper. Ensure the cookware base is flat and covers the heating zone adequately.
Image 5.1: The cooktop demonstrating its compatibility with various flat-bottomed cookware types, including a pan for stir-fry, a pot for soup, and a tawa for roti.
5.3 طاقت ۽ گرمي پد کي ترتيب ڏيڻ
- After turning on, place suitable cookware on the heating zone.
- استعمال ڪريو جوگ ويل ويل to adjust the power level (100W to 2200W) or temperature. Turn clockwise to increase, counter-clockwise to decrease. The digital display will show the current setting.
5.4 Pre-Set Cooking Modes
The cooktop features 4 pre-set cooking modes for convenience:
- Stir-Fry: Optimized for high-heat, quick cooking.
- BBQ: Ideal for grilling, especially when using the included grill rack.
- گرم برتن: Maintains a consistent temperature for simmering.
- ٻاڦ: Suitable for steaming dishes.
To select a mode, simply touch the corresponding icon on the control panel. The cooktop will automatically adjust to the pre-set power/temperature for that mode.
Image 5.2: The control panel of the Glen SA-3077IR cooktop, illustrating the touch icons for the 3 pre-set cooking functions: Stir-Fry, BBQ, and Hot Pot/Steam.
5.5 ٽائمر فنڪشن
- کي دٻايو ٽائمر touch button to activate the timer.
- استعمال ڪريو جوگ ويل ويل گهربل پچائڻ جو وقت مقرر ڪرڻ لاء.
- مقرر وقت گذرڻ کان پوءِ ڪڪ ٽاپ پاڻمرادو بند ٿي ويندو.
5.6 Using the Grill Rack
The included grill rack allows for barbecue and tandoor-style cooking directly on the cooktop.
- Place the grill rack securely on the cooktop surface.
- منتخب ڪريو BBQ mode or adjust the power manually for grilling.
- Ensure proper ventilation when grilling indoors.
Image 5.3: The Glen SA-3077IR cooktop with the grill rack in place, showing food being grilled, demonstrating its barbecue capability.
5.7 پراڊڪٽ وڊيو اوورview
وڊيو 5.4: هڪ مختصر پراڊڪٽ اوورview video for the Glen SA-3077IR Infrared Cooktop Stove. This video highlights key features and demonstrates the product's design and functionality. While not a step-by-step instruction, it provides a visual introduction to the appliance.
6. سار سنڀال ۽ صفائي
Regular cleaning and maintenance will prolong the life of your cooktop and ensure optimal performance.
- هميشه پلگ ان ڪريو the cooktop from the power outlet and allow it to cool completely before cleaning.
- Crystal Glass Plate: شيشي جي مٿاڇري کي نرم، ڊي سان صاف ڪريوamp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for glass cooktops. Avoid abrasive pads or harsh chemicals.
- اسٽينلیس سٹیل فريم: Clean the stainless steel frame with a soft cloth and a stainless steel cleaner, if necessary.
- ڪنٽرول پينل: Wipe the touch control panel gently with a soft, dry cloth. Do not allow water to seep into the controls.
- گرل ريڪ: The grill rack can be washed with warm soapy water and a brush.
- ڪڪڙ کي پاڻي يا ڪنهن ٻئي مائع ۾ نه وجھو.
7. مسئلا حل ڪرڻ
If you encounter issues with your cooktop, refer to the following table for common problems and solutions.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪوڪ ٽاپ آن نٿو ٿئي. | بجلي جي فراهمي ناهي. | Check if the power cord is securely plugged in and the outlet is functioning. |
| ڪڪ ٽاپ آپريشن دوران گرم ٿيڻ بند ڪري ٿو. | Overheat تحفظ چالو. | Turn off the cooktop, unplug it, and allow it to cool down for at least 30 minutes. Ensure vents are not blocked. |
| Uneven heating or slow cooking. | Incorrect cookware or low power setting. | Ensure cookware has a flat bottom and is suitable for infrared heating. Increase the power setting using the jog wheel. |
| Glass surface cracks or shatters. | Impact, sudden temperature change, or manufacturing defect. | Discontinue use immediately. Contact customer support for assistance. This issue may not be covered under warranty if due to misuse. |
| Cooktop remains hot for a few minutes after switching off. | Normal operation for infrared heating elements. | This is normal. The infrared heating element retains heat. Exercise caution and do not touch the surface until it has cooled completely. |
If the problem persists after attempting these solutions, please contact Glen customer support.
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | SA-3077IR |
| برانڊ | گلن |
| واتtage | 2200 واٽ |
| پاور رينج | 100 واٽ - 2200 واٽ |
| حرارتي عنصر | انفراريڊ |
| حرارتي عنصرن جو تعداد | 1 |
| مواد | Crystal Glass Plate, Stainless Steel Frame |
| Glass Plate Dimensions | 360 x 280 ملي ميٽر |
| ڪنٽرولن جو قسم | Touch Control, Jog Wheel |
| خاص خاصيتون | Digital Display, Temperature Control, 4 Pre-set Modes, Timer, 4.5kV Surge Protection, Grill Rack Included |
| شيون طول و عرض (D x W x H) | 32D x 26W x 6H سينٽي ميٽر |
| شيءِ جو وزن | 4 ڪلوگرام |
| پاور ماخذ جو قسم | تار ٿيل برقي |
9. وارنٽي ۽ سپورٽ
9.1 وارنٽي ڄاڻ
This Glen SA-3077IR Infrared Cooktop Stove comes with a 1 سال وارنٽي from the date of purchase. The warranty covers manufacturing defects under normal use. Please retain your purchase receipt as proof of warranty.
The warranty does not cover damages resulting from misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
9.2 ڪسٽمر سپورٽ
For any product-related queries, service requests, or technical assistance, please contact Glen customer support:
- ٺاهيندڙ: Glen Appliances Private Limited
- ائڊريس: Plot No. 919, Sector 68, IMT, Faridabad, Haryana Pincode: 121004
- Please refer to the official Glen website or your purchase documentation for the most current contact information (phone numbers, email, etc.).
