1. تعارف
This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your Harbr Breeze Summersville 52-inch Outdoor Ceiling Fan. This fan features a textured black finish, five reversible driftwood/auburn blades, an integrated light kit with clear seeded glass, and a convenient remote control. Designed for both indoor and covered outdoor spaces, this fan enhances comfort and style.

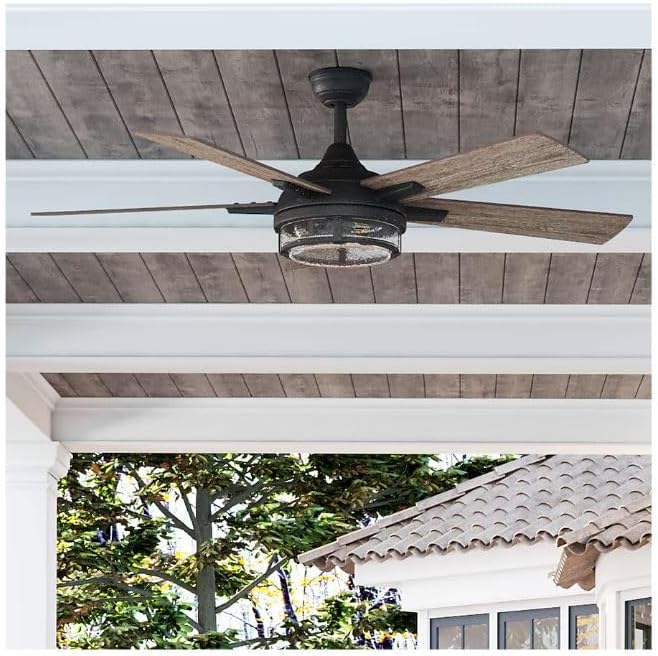

شڪل 1.1: Harbr Breeze Summersville ceiling fan installed on a covered patio, showcasing its textured black finish and driftwood blades.
2. اهم حفاظتي ڄاڻ
مھرباني ڪري انسٽاليشن شروع ڪرڻ کان پھريان سڀ ھدايتون پڙھو ۽ سمجھو. انھن ھدايتن تي عمل ڪرڻ ۾ ناڪامي بجليءَ جو جھٽڪو، باهه، يا ذاتي زخم جو سبب بڻجي سگھي ٿي.
- برقي حفاظت: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances.
- چڙهڻ: The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight (approximately 25 lbs). Use only outlet boxes marked "Acceptable for Fan Support."
- بليڊ ڪليئرنس: Ensure there is adequate clearance from the fan blades to any walls or obstructions. A minimum of 7 feet (2.1 meters) from the floor to the blade is recommended.
- Damp درجه بندي: This fan is ETL listed as damp rated, suitable for indoor use and covered outdoor spaces such as patios, pergolas, garages, and breezeways. Do not expose to direct water spray.
- روشني بلب: Use only the specified E26 B11 LED bulbs (included) or equivalent. Ensure bulbs are securely installed before operation.
- ريموٽ ڪنٽرول: Keep the remote control away from water and extreme temperatures. Replace batteries as needed.
3. پيڪيج مواد
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact customer service.
- 1pc 52-inch Outdoor Textured Black Ceiling Fan with Light
- 5 Reversible Driftwood/Auburn Blades
- ريموٽ ڪنٽرول
- 4 انچ ڊائونروڊ
- 3 E26 B11 LED Bulbs (Dimmable, 500 lumens, 5.5 watts, 2700K color temperature)
- لڳائڻ هارڊويئر

شڪل 3.1: Main components of the ceiling fan, showing the textured black motor housing and one side of the reversible blades.
4. سيٽ اپ ۽ تنصيب
پيشيورانه انسٽاليشن جي سفارش ڪئي وئي آهي. اڳتي وڌڻ کان اڳ پڪ ڪريو ته سرڪٽ بريڪر تي بجلي بند ٿيل آهي.
4.1 فين طول و عرض

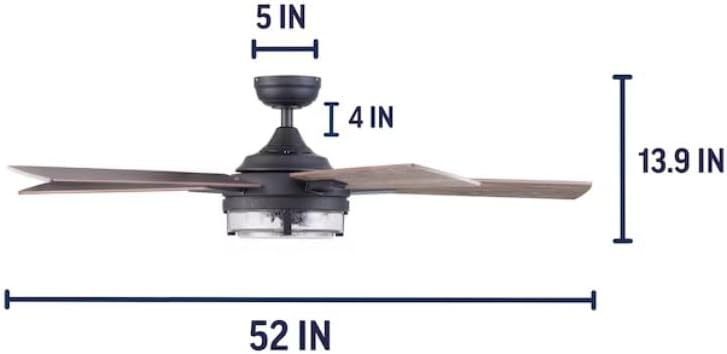

شڪل 4.1: Key dimensions of the Harbr Breeze Summersville ceiling fan.
- لڳائڻ جي جڳھ تيار ڪريو: Securely attach the mounting bracket to an approved ceiling fan electrical junction box. Ensure the box is rated for fan support.
- ڊائونروڊ گڏ ڪريو: ڊائون راڊ کي ڪينوپي ذريعي داخل ڪريو ۽ ان کي فين موٽر هائوسنگ سان ڳنڍيو. مهيا ڪيل پن ۽ اسڪرو سان محفوظ ڪريو.
- هينگ فين: Carefully lift the fan assembly and hang it from the mounting bracket using the hook provided on the downrod.
- برقي وائرنگ: Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full installation guide (not included here, refer to product packaging for detailed wiring instructions). Ensure all connections are secure.
- بليڊ لڳايو: Secure each of the five fan blades to the motor housing using the provided screws. Ensure the desired blade finish (driftwood or auburn) is facing downwards.
- لائيٽ ڪٽ انسٽال ڪريو: Connect the light kit wiring and attach the light kit assembly to the bottom of the fan motor housing. Install the three E26 B11 LED bulbs.
- Install Glass Globe: Secure the clear seeded glass globe to the light kit.
- فائنل چيڪ: Ensure all connections are tight and the fan is securely mounted. Restore power at the circuit breaker.

شڪل 4.2: Detail of the light kit and blade attachment point.
5. آپريٽنگ هدايتون
Your Harbr Breeze Summersville ceiling fan is operated using the included remote control.
5.1 ريموٽ ڪنٽرول افعال
- پنکھو آن/آف: فين کي آن يا آف ڪرڻ لاءِ فين بٽڻ کي دٻايو.
- فين جي رفتار: Use the speed buttons to adjust the fan speed (low, medium, high).
- روشني آن / بند: لائٽ بٽڻ کي دٻايو ته روشني کي بند يا بند ڪريو.
- روشني گهٽجڻ: Hold the light button to dim or brighten the light.
- ريورس فنڪشن: The remote control typically includes a button to reverse the fan's direction. This function can also be found on the fan motor housing itself.
5.2 Reversible Motor for Seasonal Use
The fan features a quiet, reversible motor to optimize air circulation throughout the year.
- سمر آپريشن (هيٺئين طرف هوا جو وهڪرو): پنکڙي کي گھڙيال جي مخالف طرف گھمائڻ لاءِ سيٽ ڪريو. اهو هيٺئين طرف هوا پيدا ڪري ٿو، جيڪو ٿڌي اثر پيدا ڪري ٿو.
- سياري جي آپريشن (مٿي هوا جو وهڪرو): Set the fan to rotate clockwise. This draws cool air up towards the ceiling, circulating warm air downwards and helping to reduce heating costs.

شڪل 5.1: Ceiling fan with the integrated light illuminated.

شڪل 5.2: Fan showcasing the auburn finish of the reversible blades.
6. سار سنڀال
باقاعده سار سنڀال بهترين ڪارڪردگي کي يقيني بڻائي ٿي ۽ توهان جي ڇت جي پنکڙي جي زندگي وڌائي ٿي.
- صفائي: وقتي طور تي فين بليڊ ۽ موٽر هائوسنگ کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو. صفائي ڪرڻ کان اڳ پڪ ڪريو ته بجلي بند آهي.
- بندن کي مضبوط ڪريو: Check all screws and fasteners annually to ensure they are secure. Loose connections can cause wobbling or noise.
- بلب مٽائڻ: When replacing bulbs, ensure power is off. Allow bulbs to cool before handling. Use E26 B11 LED bulbs or equivalent.
- بليڊ بيلنس: If the fan wobbles, ensure all blades are securely attached and balanced. A blade balancing kit (sold separately) can be used if necessary.
7. مسئلا حل ڪرڻ
Before attempting any repairs, ensure power is disconnected at the main circuit breaker.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| فين شروع نٿو ٿئي |
|
|
| روشني ڪم نه ڪندي آهي |
|
|
| پنن جا ڦڙا |
|
|
| شور وارو آپريشن |
|
|
8. وضاحتون
| برانڊ | عام |
| ماڊل نالو | 43328 |
| شيون ماڊل نمبر | 3856486 |
| پيداوار جي ماپ | 52"ڊي x 52"ڊي x 13.9"ايڇ |
| شيءِ جو وزن | 25 پائونڊ |
| رنگ | بناوت ڪارو |
| بليڊ ختم | Reversible Driftwood/Auburn |
| بلڊ جو تعداد | 5 |
| ڪمري جو قسم | اندروني/ٻاهران (ڊيamp درجه بندي ٿيل) |
| اندروني/ٻاهران (ڊيamp درجه بندي ٿيل) | |
| طاقت جو ذريعو | بجلي |
| ڪنٽرول جو طريقو | ريموٽ |
| لائٽ ڪٽ | Integrated, Clear Seeded Glass |
| بلب جو قسم | 3 x E26 B11 LED (Dimmable, 500 lumens, 5.5 watts, 2700K) |
| واتtage | 16.5 watts (fan motor) |
| خاص خصوصيت | Quiet, reversible motor |
| انسٽاليشن جو قسم | Ceiling mount (Downrod) |
9. وارنٽي ۽ سپورٽ
For warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
