Zilan Ceramic Wall Heater

1. تعارف

Thank you for choosing the Zilan Ceramic Wall Heater Model 2090. This high-quality wall-mounted fan heater combines comfort, efficiency, and safety, providing pleasant warmth at the touch of a button. Featuring two power levels (1000W/2000W) and modern ceramic heating technology, it ensures uniform heat distribution, making it ideal for bathrooms, offices, recreation rooms, or workshops.

This manual provides essential information for the safe and efficient operation of your heater. Please read it thoroughly before installation and use, and keep it for future reference.

2. حفاظتي هدايتون

باهه، بجليءَ جي جھٽڪي، يا زخم جي خطري کي گهٽائڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:

• هي هيٽر استعمال ڪرڻ کان پهريان سڀ هدايتون پڙهو.
• Do not use this heater outdoors or in wet locations not specified as suitable. The heater has an IPX22 rating, making it suitable for damp rooms like bathrooms, but it should not be directly exposed to water spray.
• هي هيٽر گرم هوندو آهي جڏهن استعمال ۾ هجي. جلن کان بچڻ لاء، ننگي چمڙي کي گرم سطحن کي ڇڪڻ نه ڏيو.
• باهه لڳڻ واري مواد، جهڙوڪ فرنيچر، تکيا، بسترا، ڪاغذ، ڪپڙا ۽ پردا، هيٽر جي اڳيان کان گهٽ ۾ گهٽ 1 ميٽر (3 فوٽ) پري رکو ۽ انهن کي پاسن ۽ پوئين پاسي کان پري رکو.
• انتهائي احتياط ضروري آهي جڏهن ڪو به هيٽر استعمال ڪيو وڃي يا ان جي ويجهو ٻارن يا غلط استعمال ڪيو وڃي ۽ جڏهن به هيٽر ڪم ڪري ڇڏي وڃي ۽ ان جو استعمال نه ڪيو وڃي.
• جڏهن استعمال ۾ نه هجي ته هميشه هيٽر کي انپلگ ڪريو.
• خراب ڪنڊ يا پلگ سان يا هنٽر جي خراب ٿيڻ کان پوءِ ڪنهن به هيٽر کي هلائڻ نه ڏبو ، ڇڏيو ويو آهي ، يا ڪنهن به طريقي سان نقصان ٿيو آهي. امتحان ، برقي يا ميخانياتي ترتيب ، يا مرمت لاءِ هاٽر کي بااختيار سهوليت واري سهولت ڏانهن موٽايو.
• قالين جي هيٺان ڪنڊ نه هلايو. ڊور کي اڇلائي قالين، رنرن، يا ساڳي طرح ڍڪڻ سان نه ڍڪيو. ٽريفڪ واري علائقي کان پري ڪنڊ کي ترتيب ڏيو ۽ جتي ان کي ختم نه ڪيو ويندو.
• هيٽر کي ختم ڪرڻ لاءِ، ڪنٽرول کي بند ڪريو، پوءِ آئوٽليٽ مان پلگ هٽايو.
• غير ملڪي شيون داخل ڪرڻ يا اجازت نه ڏيو ڪنهن به وينٽيليشن يا نڪرڻ واري اوپننگ ۾ داخل ٿيڻ جي ڇاڪاڻ ته اهو برقي جھٽڪو يا باهه جو سبب بڻجي سگهي ٿو، يا هيٽر کي نقصان پهچائي سگھي ٿو.
• ممڪن باهه کي روڪڻ لاءِ، ڪنهن به طريقي سان هوا جي داخل ٿيڻ يا خارج ٿيڻ کي نه روڪيو. نرم سطحن تي استعمال نه ڪريو، بستر وانگر، جتي کولڻ بند ٿي سگهي ٿي.
• هڪ هٽر اندر گرم ۽ آرسنگ يا چمڪندڙ حصا آهن. ان کي استعمال نه ڪريو علائقن ۾ جتي گئسولين، رنگ، يا ٻرندڙ مائع استعمال ٿيل يا ذخيرو ٿيل آهن.
• هي هيٽر استعمال ڪريو صرف جيئن هن دستور ۾ بيان ڪيو ويو آهي. ٺاهيندڙ طرفان سفارش نه ڪيل ڪو ٻيو استعمال شايد باهه، برقي جھٽڪو، يا ماڻهن کي زخمي ڪري سگهي ٿو.
• The integrated overheating protection automatically switches off the device if it becomes too hot.

3. پيڪيج مواد

پيڪيج کولڻ تي، مهرباني ڪري پڪ ڪريو ته سڀئي شيون موجود آهن ۽ سٺي حالت ۾ آهن:

• 1 x Zilan Ceramic Wall Heater
• 1 x ريموٽ ڪنٽرول
• 1 x Mounting Kit (screws, wall plugs)
• 1 x استعمال ڪندڙ دستياب

4. سيٽ اپ ۽ تنصيب

The Zilan Ceramic Wall Heater is designed for easy wall mounting. The complete mounting material is included for quick and simple installation.

4.1 جڳھ چونڊڻ

• Select a wall location that is clear of obstructions and away from flammable materials.
• Ensure there is sufficient space around the heater for proper air circulation.
• The heater is suitable for damp rooms (IPX22), but avoid direct water exposure.
• Consider the length of the power cable (approximately 145 cm) when choosing the mounting spot relative to a power outlet.

4.2 چڙهڻ جا مرحلا

1. مارڪ ڊرلنگ پوائنٽس: Hold the heater against the wall at the desired mounting height. Use a pencil to mark the positions for the mounting screws. Ensure the marks are level.
2. سوراخ سوراخ: Drill holes at the marked positions using an appropriate drill bit for your wall type.
3. وال پلگ داخل ڪريو: مهيا ڪيل وال پلگ کي سوراخ ٿيل سوراخن ۾ داخل ڪريو.
4. محفوظ اسڪرو: Insert the mounting screws into the wall plugs, leaving a small gap between the screw head and the wall.
5. ماؤنٽ هيٽر: Carefully align the heater's mounting slots with the screws and slide the heater onto the screws. Ensure it is securely seated.
6. پيچرن کي مضبوط ڪرڻ: Tighten the screws to firmly secure the heater to the wall. Do not overtighten.
7. پلگ ان: Once securely mounted, plug the power cable into a suitable electrical outlet (220-240 V, 50/60 Hz).

Image 1: Wall mounting diagram with dimensions (56cm width, 20cm height, 12cm depth) and labels for ceramic heating element and 12-hour timer.

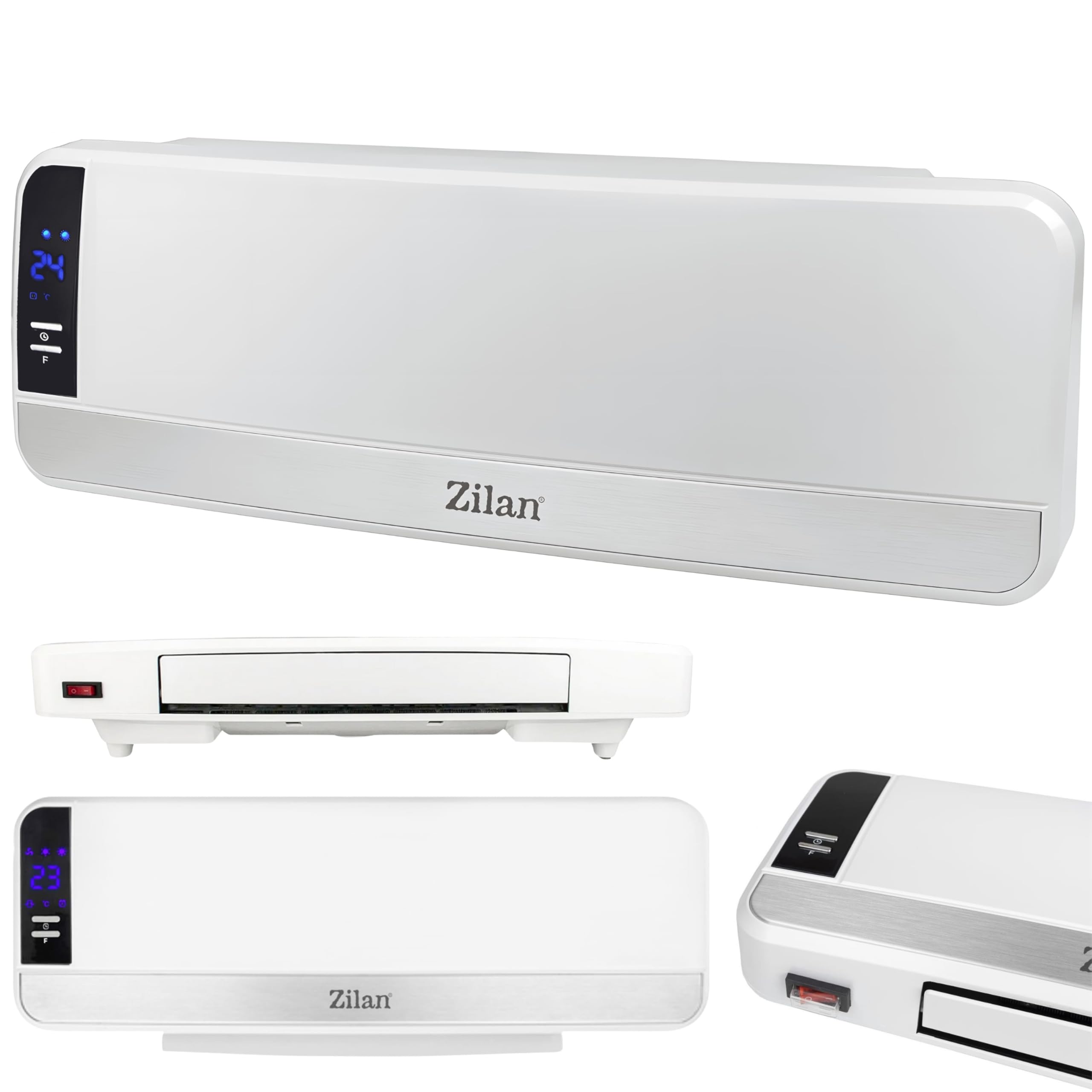

Image 2: The Zilan Ceramic Wall Heater, highlighting its compact dimensions and sleek design when mounted.

5. آپريٽنگ هدايتون

The Zilan Ceramic Wall Heater offers various functions for comfortable and efficient heating.

5.1 پاور آن/آف

• Press the power button on the unit or the remote control to turn the heater on or off.

5.2 پاور ليولز کي ترتيب ڏيڻ

The heater features two power settings:

• 1000 W: For energy-efficient basic heating.
• 2000 W: For intense heating power during colder conditions.

Use the corresponding buttons on the control panel or remote control to switch between these power levels.

5.3 ذهين درجه حرارت ڪنٽرول

The automatic temperature control ensures your room maintains the desired comfort temperature. Once the set temperature is reached, the fan heater automatically reduces power or switches off, saving energy.

• Set your desired temperature using the temperature adjustment buttons on the unit or remote control.
• The heater will work to reach and maintain this temperature.

Image 3: The heater in a bedroom setting, illustrating its intelligent temperature control capability.

5.4 Timer Function (12-hour)

The 12-hour timer allows you to flexibly set the heating duration. This is ideal for preheating a room or precisely planning operation time.

• Press the timer button on the remote control or unit.
• Adjust the desired operating time in hours.

5.5 Weekly Timer and Working Hours Planning

For advanced scheduling, the weekly timer function allows you to plan individual heating times for each day of the week. For example, you can set it to heat your bathroom in the morning on weekdays and for longer periods on weekends.

• Refer to the detailed instructions in the included user manual for setting up the weekly timer program.
• This feature ensures the room is warm according to your personal schedule, preventing you from entering a cold space.

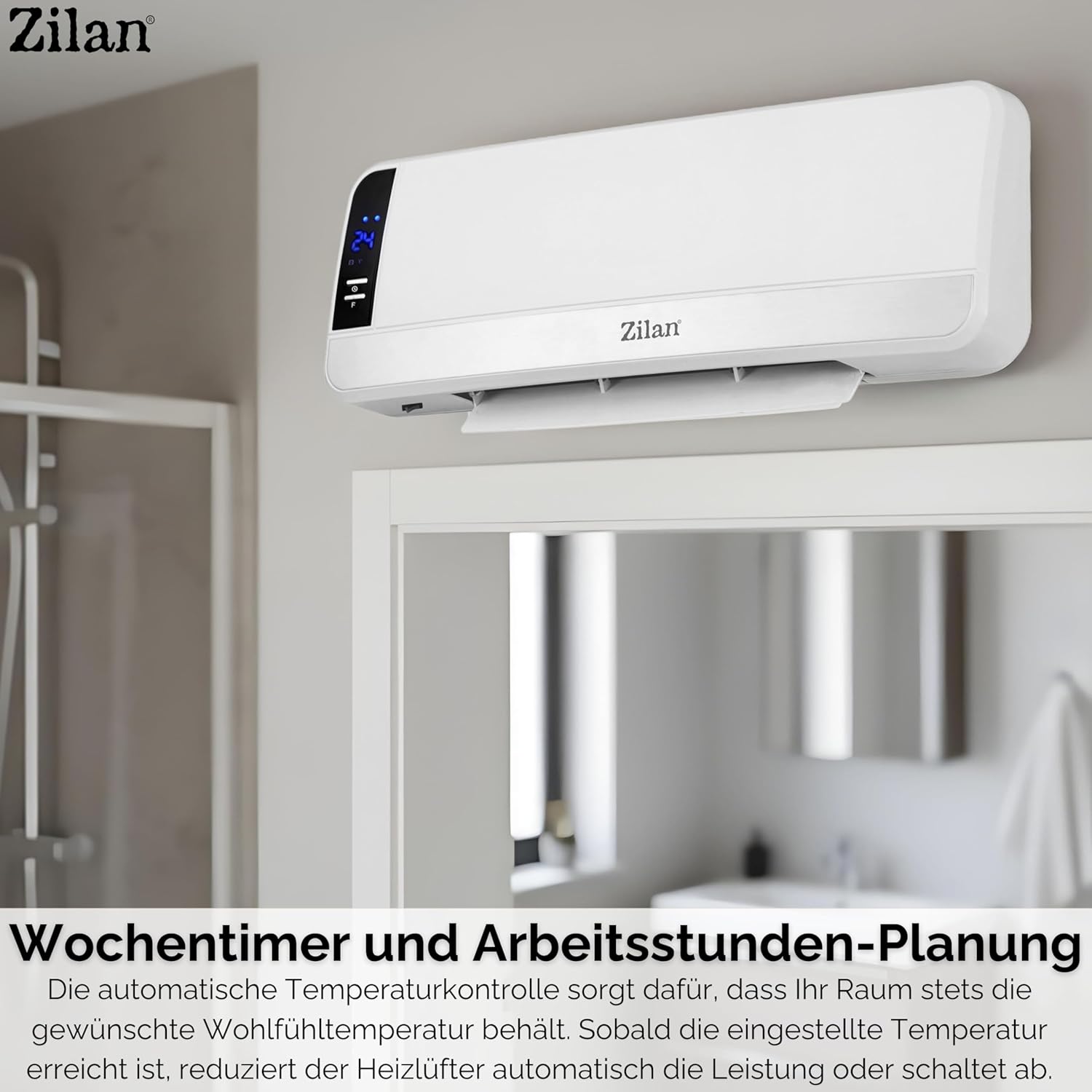

Image 4: The heater in a bathroom setting, highlighting its weekly timer and scheduling capabilities.

5.6 ريموٽ ڪنٽرول آپريشن

The included remote control allows you to conveniently manage all functions from a distance, whether from your sofa or bathtub. Power level, timer, or temperature settings can all be adjusted easily and intuitively.

Image 5: The remote control for the Zilan Ceramic Wall Heater, detailing its buttons for various functions.

6. سار سنڀال

Regular maintenance ensures the longevity and efficient operation of your Zilan Ceramic Wall Heater.

6.1 صفائي

• هميشه هيٽر کي ان پلگ ڪريو ۽ صاف ڪرڻ کان اڳ ان کي مڪمل طور تي ٿڌو ٿيڻ ڏيو.
• نرم استعمال ڪريو، ڊيamp هيٽر جي ٻاهرين سطحن کي صاف ڪرڻ لاءِ ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
• هيٽر کي پاڻيءَ ۾ نه ٻوڙيو ۽ نه ئي پاڻي کي اندرئين حصي ۾ ٽِپڻ ڏيو.
• Periodically clean the air intake and exhaust vents with a vacuum cleaner or a soft brush to remove dust and debris.

6.2 اسٽوريج

• If storing the heater for an extended period, unplug it and ensure it is clean and dry.
• ان کي ٿڌي، سڪل جاءِ تي ذخيرو ڪريو، ترجيحي طور تي ان جي اصل پيڪنگ ۾.

7. مسئلا حل ڪرڻ

If you encounter issues with your Zilan Ceramic Wall Heater, refer to the following common troubleshooting steps:

• هيٽر نه ٿو هلي:
  • پڪ ڪريو ته بجلي جي تار محفوظ طور تي ڪم ڪندڙ بجلي جي آئوٽليٽ ۾ لڳل آهي.
  • چيڪ ڪريو ته سرڪٽ برڪر ٽرپ ڪيو آهي.
  • Verify the power button on the unit or remote control has been pressed.
• Heater stops working unexpectedly:
  • The overheating protection may have activated. Unplug the heater, allow it to cool down for at least 30 minutes, and check for any blocked air vents before plugging it back in.
  • Check if the timer function has turned the unit off.
• ڪافي گرمي جي پيداوار:
  • Ensure the heater is set to the 2000W power level for maximum output.
  • Check if the desired temperature setting is higher than the current room temperature.
  • Ensure no objects are blocking the air vents.
• ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي:
  • جيڪڏهن ضروري هجي ته ريموٽ ڪنٽرول ۾ بيٽرين کي چيڪ ڪريو ۽ تبديل ڪريو.
  • Ensure there are no obstructions between the remote control and the heater's receiver.

جيڪڏهن انهن قدمن کي آزمائڻ کان پوءِ به مسئلو برقرار رهي ٿو، ته مهرباني ڪري ڪسٽمر سپورٽ سان رابطو ڪريو.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

For warranty information or technical support, please refer to the specific warranty card included with your product or contact the retailer/manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Zilan
