1. اھم حفاظتي ھدايتون
مھرباني ڪري انسٽاليشن ۽ استعمال کان اڳ ھي ھدايتون احتياط سان پڙھو. مستقبل جي حوالي لاءِ ھي دستوري رکو.
- پڪ ڪريو ته انسٽاليشن يا سار سنڀال کان اڳ پاور سپلائي منقطع آهي.
- مقامي وائرنگ جي ضابطن جي مطابق، انسٽاليشن هڪ قابل اليڪٽريشن طرفان ڪئي وڃي.
- The ceiling fan must be mounted on a structure capable of supporting its weight.
- Maintain a minimum distance of 2.3 meters (7.5 feet) from the floor to the blades.
- گھمندڙ بليڊن جي رستي ۾ شيون نه داخل ڪريو.
- هي اوزار صرف اندروني استعمال لاء آهي.
2. پراڊڪٽ ختمview ۽ خاصيتون
The Cecotec EnergySilence Aero 5230 is a 52-inch ceiling fan designed for efficient air circulation and lighting in your home. It features a silent DC motor, integrated LED light, and convenient remote control operation.
- 40W DC Motor: Direct current motor for improved efficiency, lower power consumption, and silent operation.
- 6 رفتار: Choose from 6 operating speeds to adjust airflow intensity to your needs.
- ايل اي ڊيamp: 18W LED ايلamp providing perfect lighting with 3 available color temperatures (warm, neutral, cool white).
- ريموٽ ڪنٽرول: Convenient and simple control of all fan functions.
- 8 ڪلاڪ ٽائمر: Programmable timer allows setting operation for up to 8 hours, after which the fan will automatically turn off.
- Winter/Summer Mode: Reversible motor system for year-round use. In summer, it creates a refreshing breeze; in winter, it pushes warm air down to complement heating.
- سٿري جي اوچائي: The fan's height can be adjusted between 15 and 25 cm from the ceiling.

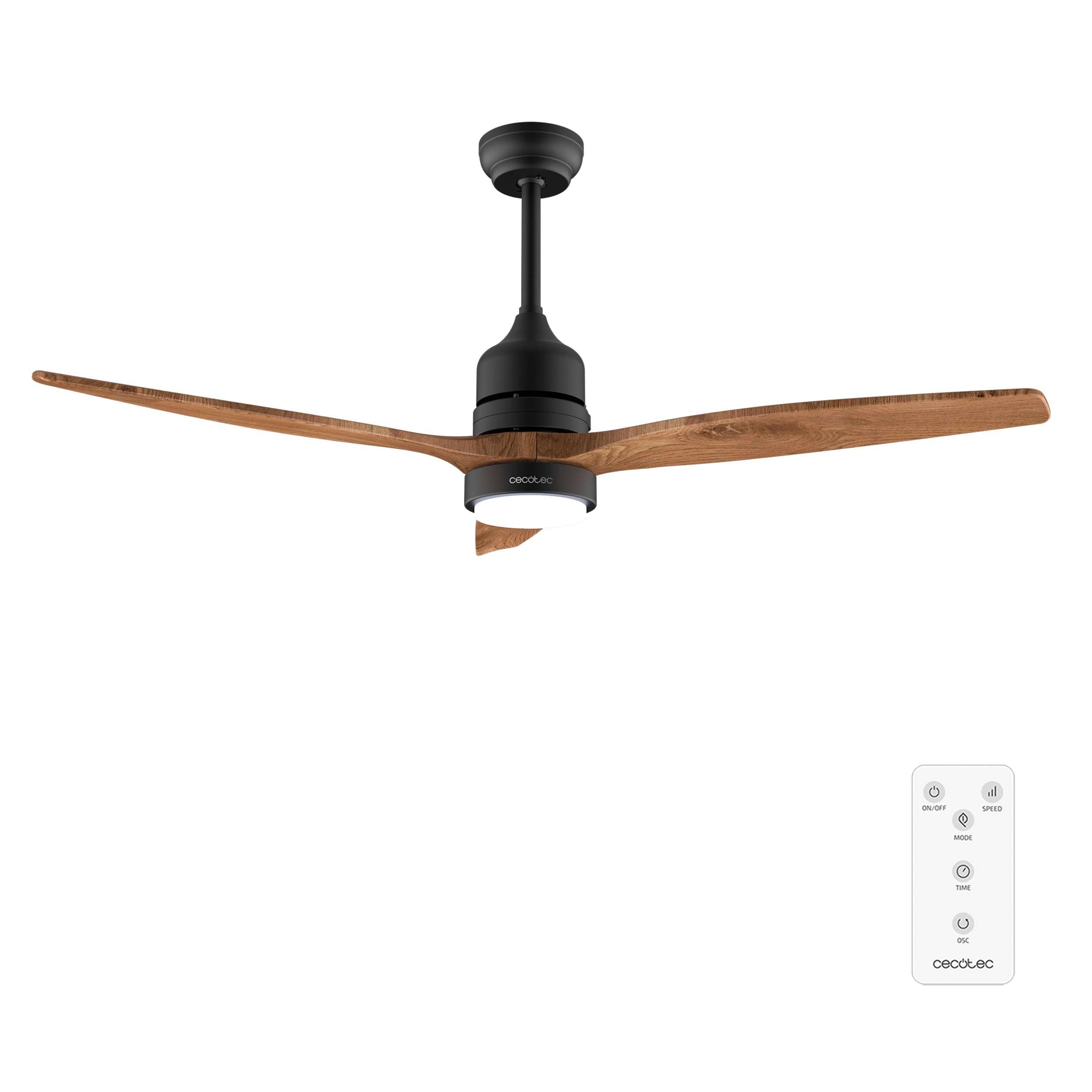

Image: The Cecotec EnergySilence Aero 5230 ceiling fan in a room, showcasing its design and integrated light. A remote control is also visible.
3. پيڪيج مواد
انسٽاليشن سان اڳتي وڌڻ کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي.
- Ceiling Fan Motor Unit with Integrated LED Light
- 3 فين بليڊ
- Downrod (for adjustable height)
- ڇت تي چڙهڻ واري بریکٹ
- ريموٽ ڪنٽرول
- استعمال ڪندڙ دستي
- Hardware Pack (screws, washers, etc.)
4. سيٽ اپ ۽ تنصيب
Installation of the ceiling fan requires electrical wiring and secure mounting. It is highly recommended to have a qualified electrician perform the installation to ensure safety and proper functioning.
4.1 قبل از انسٽاليشن چيڪ
- پڪ ڪريو ته مکيه سرڪٽ بريڪر تي بجلي بند آهي.
- Confirm the ceiling can support the fan's weight (approximately 4.72 kg).
- Verify that there is sufficient clearance for the 52-inch blades (133 cm diameter).
4.2 فين لڳائڻ
- Attach the mounting bracket securely to the ceiling joist or a suitable electrical junction box.
- Assemble the downrod to the motor unit. The adjustable height feature allows for installation between 15-25 cm from the ceiling.
- احتياط سان فين اسيمبلي کي مٿي کڻو ۽ ان کي ماؤنٽنگ بریکٹ کان لٽڪايو.
Image: Diagram illustrating the 52-inch (132 cm) diameter of the fan, indicating its suitability for rooms up to 30 m².
Image: The fan installed, with an arrow indicating the adjustable height range of 15-25 cm from the ceiling.
4.3 برقي ڪنيڪشن
Connect the fan's wiring to the household electrical supply according to the provided wiring diagram in the full manual. Ensure all connections are secure and properly insulated.
4.4 بليڊن کي ڳنڍڻ
Securely attach the three fan blades to the motor housing using the provided screws. Ensure they are balanced to prevent wobbling.
5. آپريٽنگ هدايتون
سيڪوٽيڪ انرجي سائلنس ايرو 5230 شامل ريموٽ ڪنٽرول استعمال ڪندي هلايو ويندو آهي.
Image: The remote control for the Cecotec EnergySilence Aero 5230, showing buttons for power, speed, mode, light, and timer.
5.1 ريموٽ ڪنٽرول افعال
- آن / آف بٽڻ: پنکڙي ۽ روشني کي آن يا آف ڪري ٿو.
- اسپيڊ بٽڻ (1-6): فين جي رفتار کي 1 (گهٽ ۾ گهٽ) کان 6 (وڌ ۾ وڌ) تائين ترتيب ڏئي ٿو.
Image: A visual representation of the fan operating at different speeds, from low to high, demonstrating the 6-speed functionality.
- هلڪو بٽڻ: Turns the LED light on or off.
- رنگ جي درجه حرارت بٽڻ: Cycles through the 3 available LED light color temperatures (warm, neutral, cool white).
Image: Three panels showing the fan's LED light emitting different color temperatures: cool white, neutral white, and warm white.
- ٽائمر بٽڻ (1H، 2H، 4H، 8H): Sets the fan to operate for 1, 2, 4, or 8 hours before automatically turning off.
Image: The fan installed in a bedroom, with an overlay graphic indicating an 8-hour timer setting.
- Winter/Summer Mode Button: Reverses the direction of the fan blades.
- سمر موڊ (گھڙيال جي مخالف طرف گردش): Creates a downward airflow for a cooling effect.
- سياري جو موڊ (گھڙيال جي رخ ۾ گردش): Creates an upward airflow to circulate warm air trapped near the ceiling, distributing it throughout the room.
Image: A split image showing the fan in two modes: one side with blue arrows indicating downward airflow for summer, and the other side with orange arrows indicating upward airflow for winter.
5.2 خاموش آپريشن
The DC motor ensures quiet operation, making the fan suitable for bedrooms and other quiet environments.
Image: A person sleeping peacefully in a bedroom with the ceiling fan operating, illustrating its silent performance.
6. سار سنڀال ۽ صفائي
باقاعده سار سنڀال بهترين ڪارڪردگي کي يقيني بڻائي ٿي ۽ توهان جي ڇت جي پنکڙي جي عمر وڌائي ٿي.
- صفائي: Turn off the power before cleaning. Use a soft, damp پنکڙي جي بليڊن ۽ موٽر هائوسنگ کي صاف ڪرڻ لاءِ ڪپڙو. رگڙيندڙ صاف ڪندڙ يا سالوينٽس استعمال نه ڪريو.
- بليڊ بيلنس: جيڪڏهن پنکڙو لرزجي ٿو، ته چيڪ ڪريو ته سڀئي بليڊ اسڪرو تنگ آهن ۽ بليڊ مڙيل يا خراب نه آهن.
- روشني جو ذريعو: The LED light source is integrated. If it malfunctions, contact qualified service personnel.
7. مسئلا حل ڪرڻ
عام مسئلن ۽ انهن جي امڪاني حلن لاءِ هن حصي جو حوالو ڏيو.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| فين شروع نٿو ٿئي | No power supply; Remote control battery low; Incorrect wiring. | Check circuit breaker; Replace remote control batteries; Consult an electrician to check wiring. |
| پنکڙو تمام گهڻو لرزندو آهي | ڍِلو بليڊ اسڪرو؛ غير متوازن بليڊ؛ ڍِلو ماؤنٽنگ بريڪٽ. | Tighten all blade screws; Check blade balance (use balancing kit if necessary); Ensure mounting bracket is secure. |
| روشني ڪم نه ڪندي آهي | No power to light; LED module failure. | Check light switch/remote setting; Contact customer support for LED module replacement. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي | Low battery; Obstruction; Remote not paired. | Replace batteries; Remove obstructions; Refer to pairing instructions in the full manual. |
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | Cecotec |
| ماڊل نمبر | A01_EU01_122275 |
| پيداوار جي ماپ | 133 سينٽي (L) x 133 سينٽي (W) x 42 سينٽي (H) |
| وزن | 4.72 ڪلو |
| موٽر جو قسم | ڊي سي موٽر |
| موٽر پاور | 40 ڊبليو |
| بلڊ جو تعداد | 3 |
| فين قطر | 52 انچ (132 سينٽي) |
| رفتار | 6 |
| روشني جو قسم | مربوط LED |
| LED پاور | 18 ڊبليو |
| هلڪي رنگ جي گرمي پد | 3 Tones (Warm, Neutral, Cool White) |
| ٽائمر | Up to 8 hours (1H, 2H, 4H, 8H) |
| موڊز | Winter / Summer |
| ڪنٽرول جو طريقو | ريموٽ ڪنٽرول |
| Adjustable اوچائي | 15-25 سينٽي ميٽر |
| طاقت جو ذريعو | اليڪٽرڪ ڪيبل |
| انسٽاليشن جو قسم | نيم فلش جبل |
| ارادو استعمال | Indoor, Home |
9. وارنٽي ۽ ڪسٽمر سپورٽ
Cecotec products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Cecotec webسائيٽ.
If you encounter any issues or have questions regarding your Cecotec EnergySilence Aero 5230 ceiling fan, please contact Cecotec customer support. Contact details can typically be found on the official webسائيٽ يا پيداوار جي پيڪنگنگ ۾.
آن لائن سپورٽ: www.cecotec.com
10. پراڊڪٽ وڊيو اوورview
بصري جائزو لاءِ هي وڊيو ڏسوview of the Cecotec EnergySilence Aero 5230 ceiling fan's features and operation.
وڊيو: هڪ مختصر پروموشنل وڊيو شوڪasing the Cecotec EnergySilence Aero 5230 ceiling fan, highlighting its silent operation, LED light, remote control, and winter/summer modes. The video demonstrates the fan in various room settings.
