1. تعارف
This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your Einhell BT-BD 501 Pillar Drill. Please read these instructions carefully before using the product and keep them for future reference.
The Einhell BT-BD 501 is a 500 W pillar drill featuring a 3-16 mm geared chuck, 9 speed settings (280 - 2,350 min-1), a B16 chuck mount, 115 mm throat depth, and a tiltable and rotatable work table with a maximum drilling depth of 50 mm.
2. حفاظتي هدايتون
بجلي جا اوزار هلائڻ وقت هميشه حفاظت کي ترجيح ڏيو. انهن هدايتن تي عمل ڪرڻ ۾ ناڪامي جي نتيجي ۾ اوزار کي سخت زخم يا نقصان ٿي سگهي ٿو.
- ھدايت پڙھو: Familiarize yourself with all controls, adjustments, and operating procedures before use.
- ذاتي حفاظتي سامان (پي پي اي) پائڻ: Always wear safety glasses or goggles. Hearing protection and a dust mask are also recommended, especially during prolonged use or when drilling materials that produce fine dust.
- محفوظ ورڪ پيس: هميشه clamp the workpiece firmly to the drill table. Never hold it by hand, as it can spin violently and cause injury.
- هٿ صاف رکو: Keep hands and fingers away from the rotating drill bit and chuck.
- ترتيب ڏيڻ کان اڳ ان پلگ ڪريو: Disconnect the drill from the power supply before changing drill bits, making adjustments, or performing any maintenance.
- صاف ڪم واري علائقي کي برقرار رکڻ: Keep your work area well-lit and free of clutter.
- Use Correct Drill Bits: Ensure the drill bit is sharp, correctly sized for the chuck, and suitable for the material being drilled.
- حد کان بچڻ: هر وقت مناسب پير ۽ توازن برقرار رکون.
- نقصان جي چڪاس ڪريو: Before each use, inspect the drill for any damaged parts. Do not operate if damaged.
- ايمرجنسي اسٽاپ: Know the location of the power switch and how to quickly turn off the machine in an emergency.
3. پيداوار جا حصا
The Einhell BT-BD 501 Pillar Drill consists of several key components:
- بنيادي پليٽ
- ڪالم
- Work Table (adjustable height, tilt, and rotation)
- Drill Head (motor, spindle, chuck)
- چيڪ گارڊ
- ڊيپٿ اسٽاپ
- کاڌ خوراڪ
- Speed Adjustment Mechanism (belt drive)
- پاور سوئچ
شڪل 1: ختمview of the Einhell BT-BD 501 Pillar Drill.
4. سيٽ اپ ۽ اسيمبلي
The assembly of the Einhell BT-BD 501 Pillar Drill is designed to be straightforward. Follow these steps:
- پيڪنگ کولڻ: Carefully remove all components from the packaging. Note that parts may be coated with industrial oil for rust prevention; clean these thoroughly before assembly.
- بيس ۽ ڪالمن اسيمبلي: Secure the column to the base plate using the provided screws.
- ڪم جي ٽيبل جي انسٽاليشن: Slide the work table onto the column and secure it at the desired height.
- Drill Head Mounting: Place the drill head assembly onto the top of the column and fasten it securely.
- Feed Handle Attachment: Screw the three feed handles into the drill head to control the spindle movement.
- چڪ جي انسٽاليشن:
- Open the chuck jaws to their maximum extent so they retract fully.
- Align the tapered end of the chuck with the spindle.
- Using a rubber mallet, firmly tap the chuck onto the spindle. The conical fit requires a few decisive taps to ensure a secure connection.
شڪل 2: بند اپ view of the drill chuck, showing its robust design.
- چڪ گارڊ: Attach the transparent chuck guard for safety. This guard can be adjusted for height and pivoted out of the way for bit changes.
Figure 3: The transparent chuck guard can be adjusted vertically and pivoted for access.
5. آپريٽنگ هدايتون
5.1. Adjusting Drilling Speed
The Einhell BT-BD 501 offers 9 different drilling speeds, ranging from 280 to 2,350 revolutions per minute (RPM). Speed adjustment is achieved by changing the position of the drive belt on the motor and spindle pulleys.
- بجلي بند ڪريو: Always unplug the drill before opening the belt compartment.
- کليل بيلٽ ڪَوَر: Open the top cover to access the drive belts and pulleys.
- Adjust Belt Tension: Loosen the motor mounting bolts slightly to allow the motor to move and relieve belt tension.
- رفتار چونڊيو: Refer to the speed chart located on the drill head (and inside the belt compartment) to determine the correct belt configuration for your desired speed and material. Move the belt to the appropriate pulley grooves.
- Re-tension Belt: Adjust the motor position to ensure the belt is properly tensioned. The belt should be taut but not overly tight.
- Secure Motor and Close Cover: Tighten the motor mounting bolts and close the belt compartment cover.
Figure 4: Adjusting the drilling speed by repositioning the drive belt on the pulleys.
Figure 5: Visual representation of the 9-speed adjustment mechanism.
5.2. Adjusting the Work Table
The work table can be adjusted for height, tilt, and rotation to accommodate various workpieces and drilling angles.
- اونچائي جي ترتيب: Loosen the table locking lever, move the table up or down the column to the desired height, and then firmly tighten the lever.
- جھڪڻ: The table can be tilted from -45° to +45°. Loosen the tilt locking bolt, adjust the table to the desired angle, and re-tighten the bolt.
- گردش: The table can be rotated around the column. Loosen the table locking lever, rotate the table, and re-tighten.
Figure 6: Arrows indicating vertical adjustment of the work table.
Figure 7: Arrows indicating the tilt and rotational capabilities of the work table.
5.3. سوراخ ڪرڻ جي کوٽائي مقرر ڪرڻ
The drill features a depth stop mechanism to ensure consistent drilling depth for repetitive tasks. The maximum drilling depth is 50 mm.
- Lower the drill bit until it just touches the workpiece.
- Adjust the depth stop collar to the desired depth on the scale.
- Tighten the depth stop to lock it in place. The drill will stop feeding once this depth is reached.
Figure 8: Illustration of the depth scale and stop mechanism for precise drilling.
5.4. Inserting Drill Bits
The geared chuck accommodates drill bits from 3 mm to 16 mm. Ensure the drill is unplugged before changing bits.
- Open the chuck jaws using the chuck key.
- Insert the drill bit into the chuck, ensuring it is centered and fully seated.
- Tighten the chuck jaws firmly with the chuck key. Remove the chuck key immediately after tightening.
شڪل 9: مثالample of a workpiece placed on the drill table, ready for drilling.
6. سار سنڀال
Regular maintenance ensures the longevity and safe operation of your pillar drill.
- صفائي: After each use, clean the drill to remove dust, chips, and debris. The drill may come with a protective grease coating; remove this before first use and apply anti-corrosion maintenance as needed.
- بيلٽ ٽينشن: Periodically check the drive belt tension. A loose belt can slip, reducing drilling efficiency. Adjust as described in Section 5.1.
- Spindle Play Adjustment: Over time, the spindle may develop excessive play. To adjust this:
- Fully extend the spindle by rotating the feed handles.
- Locate the black screw on the left side of the drill head, just above the chuck.
- Loosen the lock nut and then turn the black screw to reduce any excessive movement or play in the spindle.
- Once the desired adjustment is achieved, tighten the lock nut. This adjustment may need to be performed periodically.
- لوڻ: Apply light machine oil to moving parts and pivot points as necessary to ensure smooth operation.
- Electrical Cord Inspection: Regularly inspect the power cord for any signs of damage. Replace immediately if damaged.
7. مسئلا حل ڪرڻ
If you encounter issues with your Einhell BT-BD 501 Pillar Drill, refer to the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڊرل شروع نه ٿي ٿئي | بجلي جي فراهمي ناهي | Check power cord, outlet, and circuit breaker. |
| Safety switch in belt compartment activated | Ensure the belt compartment cover is fully closed. A safety switch prevents operation when the cover is open. Inspect the plastic element that activates the switch for damage. | |
| Drill bit slips or stops rotating | Loose chuck jaws | Tighten chuck jaws firmly with the chuck key. |
| لوز ڊرائيو بيلٽ | Adjust belt tension as described in Section 5.1. | |
| گهڻي وائبريشن يا لرزش | ڍلو ڊرل بٽ | Ensure drill bit is securely tightened in the chuck. |
| Worn or damaged drill bit | Replace with a sharp, undamaged drill bit. | |
| Excessive spindle play | Adjust spindle play as described in Section 6. |
8. وضاحتون
Technical data for the Einhell BT-BD 501 Pillar Drill:
| خاصيت | تفصيل |
|---|---|
| ٺاهيندڙ | اين هيل |
| ماڊل نمبر | 4250530 (BT-BD 501) |
| پاور ان پٽ | 500 واٽ |
| جلدtage | 230 وولٽ |
| تعدد | 50 هز |
| رفتار جو تعداد | 9 |
| رفتار جي حد | 280 - 2,350 آر پي ايم |
| شاه جو قسم | Geared Chuck |
| چڪر جي گنجائش | 3 - 16 ملي ميٽر |
| Chuck Mount | بي 16 |
| Throat Depth (Reach) | 115 ملي ميٽر |
| وڌ ۾ وڌ کوٽڻ جي کوٽائي | 50 ملي ميٽر |
| ڪم جي ٽيبل جي ماپ | 170 x 170 ملي ميٽر |
| بيس پليٽ جي ماپ | 320 x 200 ملي ميٽر |
| مجموعي اوچائي | لڳ ڀڳ. 650 ملي ميٽر |
| پيداوار جي ماپ (L x W x H) | 38 x 26 x 51 سينٽي |
| وزن | 17.6 ڪلو |
| مواد | Metal with rubber handles |
| پاور ڪنڊ ڊگھائي | 3 ميٽر |

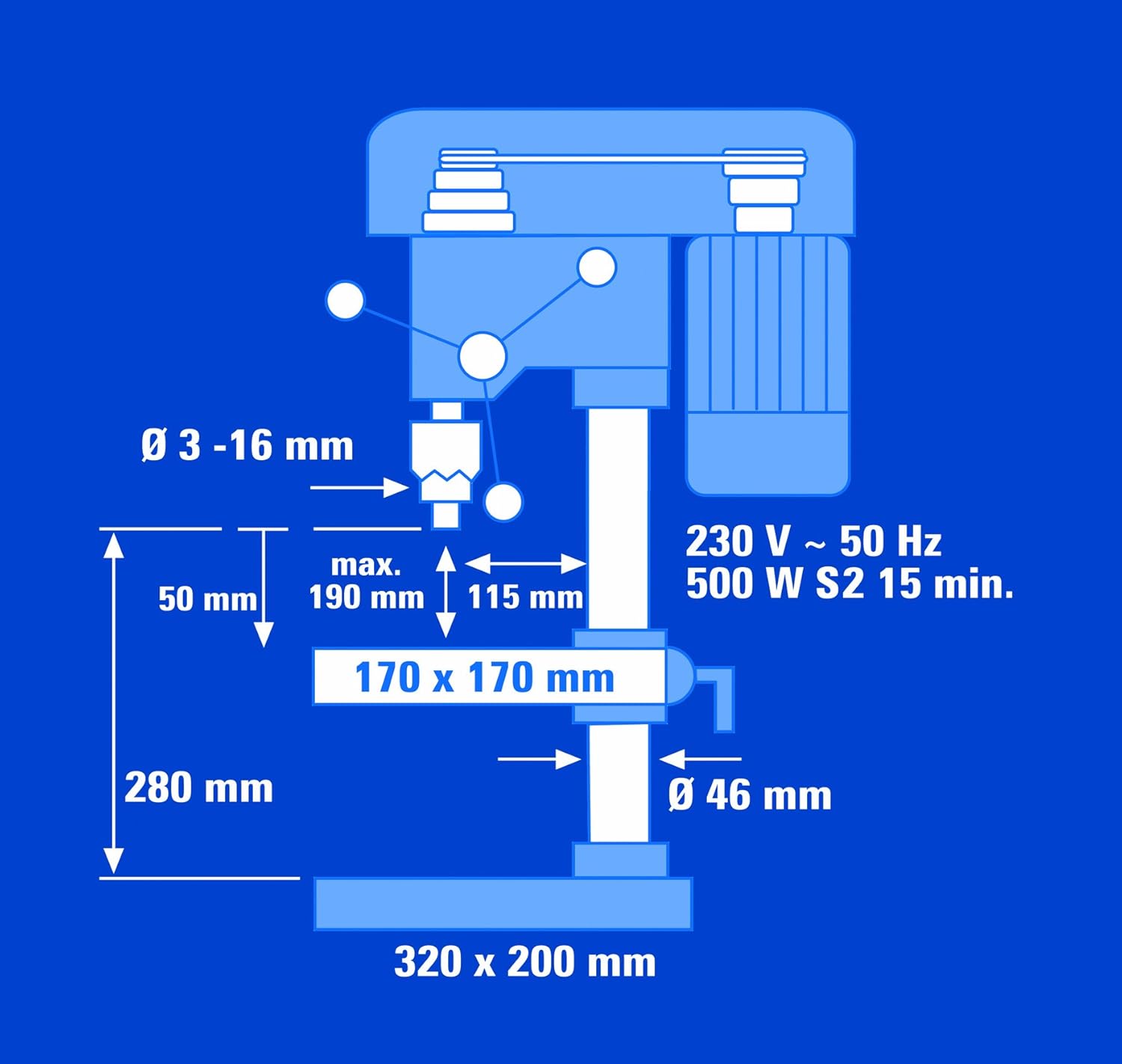

Figure 10: Technical drawing illustrating key dimensions and specifications.
Figure 11: Technical drawing showing the overall height and adjustability of the drill.
9. وارنٽي ۽ سپورٽ
For warranty information, please refer to the documentation provided with your purchase or visit the official Einhell website. In case of technical issues, spare parts inquiries, or support needs, please contact your retailer or the Einhell customer service department directly. Ensure you have your model number (BT-BD 501 or 4250530) and proof of purchase available when seeking support.
