رابرٽس 10-480 120-وولٽ ڊول ايئر گلائڊر هدايت نامو

1. پراڊڪٽ ختمview

The ROBERTS 10-480 Dual Air Glider is a specialized tool designed for moving heavy objects such as appliances, industrial equipment, and furniture. Utilizing hovercraft principles, it creates an air cushion that significantly reduces friction, allowing for easier and safer movement across various floor surfaces without causing damage. This unit features a powerful 1.75 HP 120-volt blower and dual lifting platforms, providing a substantial lifting capacity.

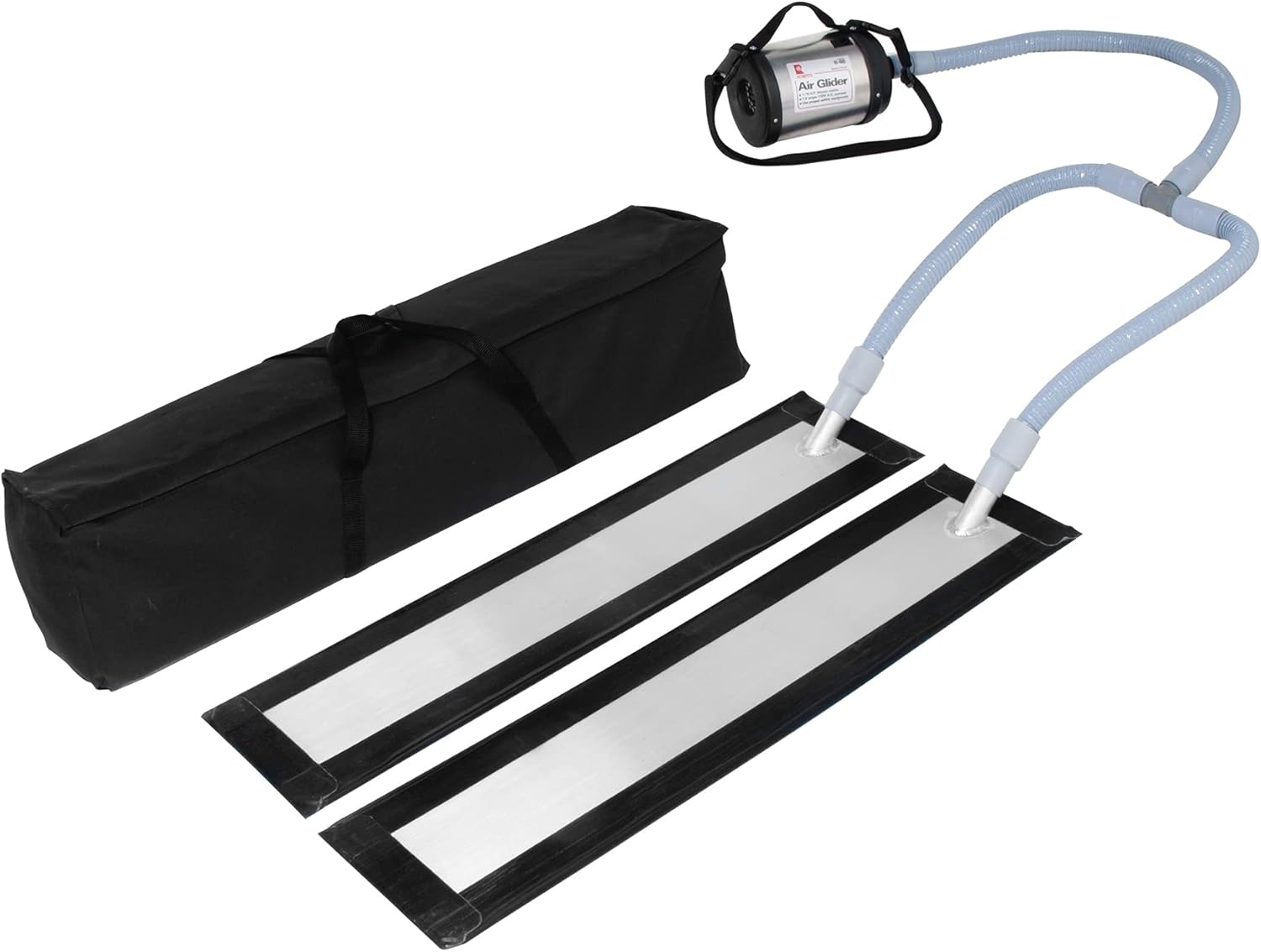

Figure 1: ROBERTS 10-480 Dual Air Glider with its components and carrying case.

اهم خاصيتون:

• 750-Pound Load Capacity: Capable of lifting and moving heavy items with ease.
• 1.75 HP 120-Volt Blower: Provides robust air-lifting power.
• Dual Lifting Platforms: Two 8.5-inch by 36-inch platforms distribute weight and enhance stability.
• Lightweight Metal Construction: Ensures durability while maintaining portability.
• فرش جي حفاظت: Designed to prevent damage to various floor types during movement.
• Motor Output Connector: Enhances the strength and reliability of the air tube system.

2. حفاظت جي ڄاڻ

Read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

عام حفاظتي احتياط:

• Always wear appropriate personal protective equipment (PPE), such as safety shoes and gloves.
• پڪ ڪريو ته ڪم جو علائقو رڪاوٽن کان پاڪ ۽ چڱي طرح روشن هجي.
• Keep children and bystanders away while operating the air glider.
• Do not operate the air glider in wet conditions or near flammable liquids or gases.
• Verify the weight of the object to be moved does not exceed the 750-pound capacity.
• Inspect the air glider, hoses, and platforms for damage before each use. Do not use if damaged.
• Ensure the power cord is in good condition and properly connected to a 120-volt outlet.
• Use an appropriate extension cord if necessary, ensuring it is rated for the tool's power requirements.
• Always maintain a stable stance and firm grip on the object being moved.
• Avoid sudden movements or jerking the object, as this can cause instability.
• Do not use on stairs or uneven surfaces.

3. پيڪيج مواد

پيڪيج کولڻ تي، تصديق ڪريو ته سڀئي جزا موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي:

• 1 x ROBERTS 10-480 120-Volt Blower Unit
• 2 x Air Lifting Platforms (8.5" x 36" each)
• Air Hoses and Connectors
• 1 x Storage and Carrying Case

Figure 2: Included storage and carrying case.

4. سيٽ اپ

Follow these steps to prepare your ROBERTS 10-480 Dual Air Glider for operation:

1. انپيڪ اجزاء: Remove the blower unit, air platforms, and hoses from the carrying case.
2. Connect Hoses to Blower: Attach the air hoses securely to the output connectors on the blower unit. Ensure a tight fit to prevent air leakage.
3. Connect Hoses to Platforms: Connect the other end of each air hose to the inlet on each lifting platform. Again, ensure connections are secure.
4. Position Platforms: Carefully tilt the object you intend to move and slide one lifting platform underneath each side, ensuring they are centered and fully beneath the object's base. The platforms should be positioned to distribute the weight evenly.
5. پاور ڪنيڪشن: Plug the blower unit's power cord into a standard 120-volt electrical outlet. If using an extension cord, ensure it is rated for outdoor use and appropriate ampزمانو

5. آپريٽنگ هدايتون

Once the air glider is set up, follow these instructions for safe and effective operation:

1. بلور کي چالو ڪريو: Turn on the blower unit. You will hear the motor start, and the platforms will begin to inflate, creating an air cushion beneath the object. The object should visibly lift slightly off the ground.
2. ٽيسٽ تحريڪ: Gently push the object to confirm it is floating on the air cushion and can be moved with minimal effort. If the object does not move freely, re-check platform placement and air hose connections.
3. Guide the Object: With the object floating, carefully guide it to its desired location. Use steady, controlled movements. For large or heavy objects, it is recommended to have a second person assist with guiding and stabilizing.
4. مٿاڇري جا خيال: The air glider performs best on smooth, hard surfaces like concrete, tile, or hardwood. For carpeted or uneven surfaces, it may be necessary to lay down temporary hardboard or fiberboard runners to create a smooth path.
5. ڦرڻ: To turn the object, apply gentle pressure to one side while pushing forward. Avoid abrupt turns.
6. Deactivate Blower: Once the object is in its final position, turn off the blower unit. The air platforms will deflate, and the object will settle back onto the floor.
7. Remove Platforms: Carefully tilt the object again, if necessary, and remove the deflated platforms.

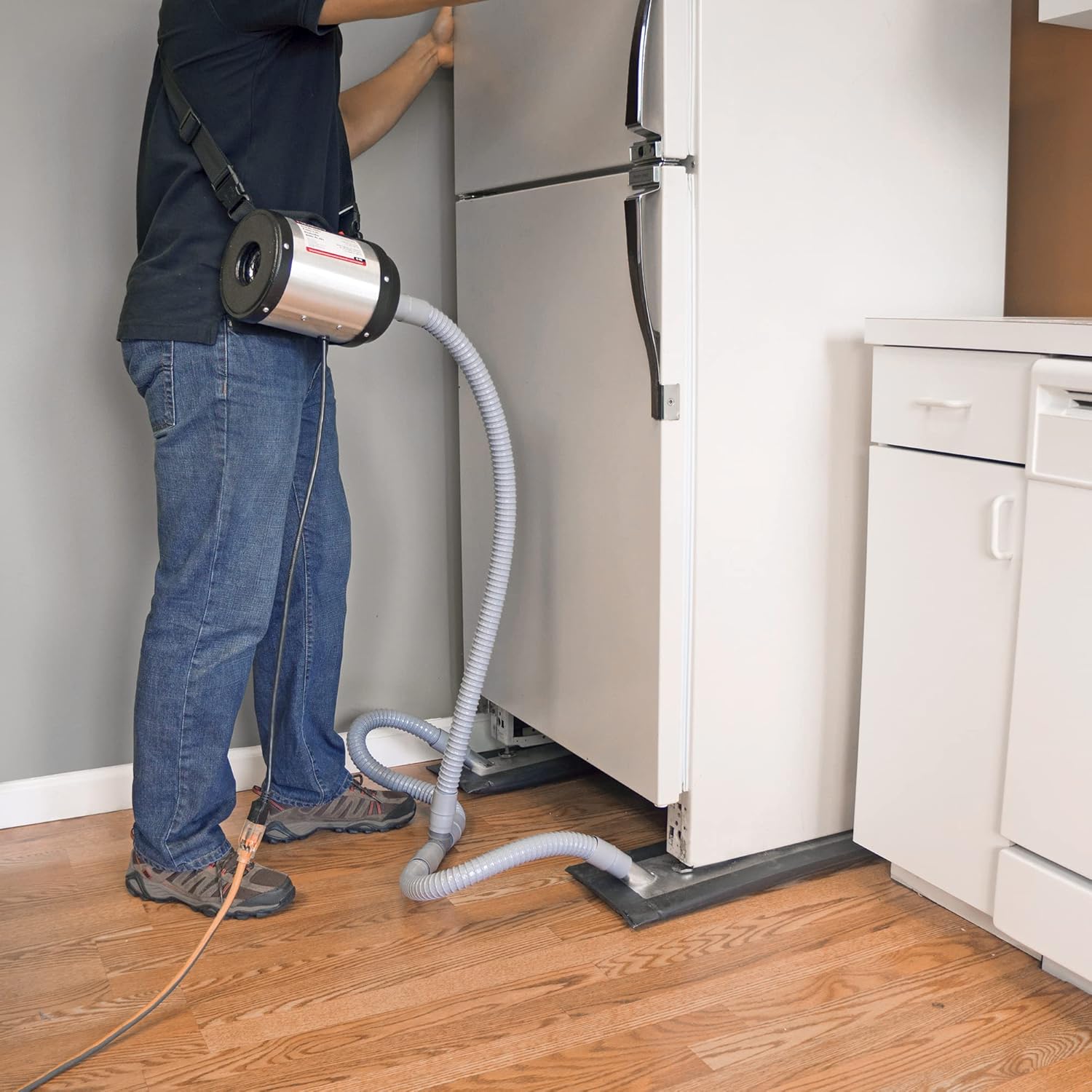

Figure 3: Operating the air glider to move a refrigerator.

6. سار سنڀال

Proper maintenance ensures the longevity and optimal performance of your ROBERTS 10-480 Dual Air Glider.

• صفائي: After each use, wipe down the blower unit, platforms, and hoses with a damp cloth to remove any dust or debris. Ensure all components are dry before storage.
• چڪاس: Regularly inspect the air platforms for punctures, tears, or excessive wear. Check hoses for cracks or loose connections. Inspect the power cord for cuts or fraying. Replace any damaged components immediately.
• اسٽوريج: Store the air glider and its components in the provided carrying case in a clean, dry place, away from direct sunlight and extreme temperatures.
• موٽر سنڀال: The blower motor is generally maintenance-free. Do not attempt to open or service the motor unit yourself. Refer to qualified service personnel if issues arise.

7. مسئلا حل ڪرڻ

If you encounter issues with your ROBERTS 10-480 Dual Air Glider, refer to the following troubleshooting guide:

8. وضاحتون

9. وارنٽي ۽ سپورٽ

For warranty information, technical support, or to inquire about replacement parts, please contact ROBERTS customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

ٺاهيندڙ: QEP Tools

For the most current support information, please visit the official ROBERTS webسائيٽ تي وڃو يا سڌو سنئون انهن جي ڪسٽمر سروس ڊپارٽمينٽ سان رابطو ڪريو.
