ايلٽ پي بي ايس-3 3-بٽن ڪنٽرول اسٽيشن هدايت نامو

1. تعارف

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Elite PBS-3 3-Button Control Station. This device is designed to provide reliable control for gate and door operators, featuring dedicated buttons for Open, Close, and Stop functions. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. حفاظت جي ڄاڻ

خبردار: Electrical shock hazard. Installation and wiring should only be performed by qualified personnel in accordance with all local electrical codes and regulations. Disconnect power to the operator before installing or servicing this control station.

• انسٽاليشن يا سار سنڀال شروع ڪرڻ کان اڳ پڪ ڪريو ته سڀ بجلي بند ٿيل آهي.
• Use appropriate tools and personal protective equipment.
• Verify wiring connections are secure and correct to prevent damage to the unit or operator.
• This unit is designed for indoor surface mount applications (NEMA 1).

3. پيڪيج مواد

• 1 x Elite PBS-3 3-Button Control Station
• ماؤنٽنگ هارڊويئر (اسڪرو، اينڪر) - پيڪيج جي لحاظ کان مختلف ٿي سگھي ٿو

4. پراڊڪٽ ختمview

The Elite PBS-3 is a robust 3-button control station housed in a steel enclosure, designed for reliable operation of gate and door systems. It features three distinct momentary contact buttons:

• OPEN Button (Green, Up Arrow): Initiates the opening sequence of the gate or door.
• CLOSE Button (Green, Down Arrow): Initiates the closing sequence of the gate or door.
• STOP Button (Red, Circle): Halts the current movement of the gate or door.

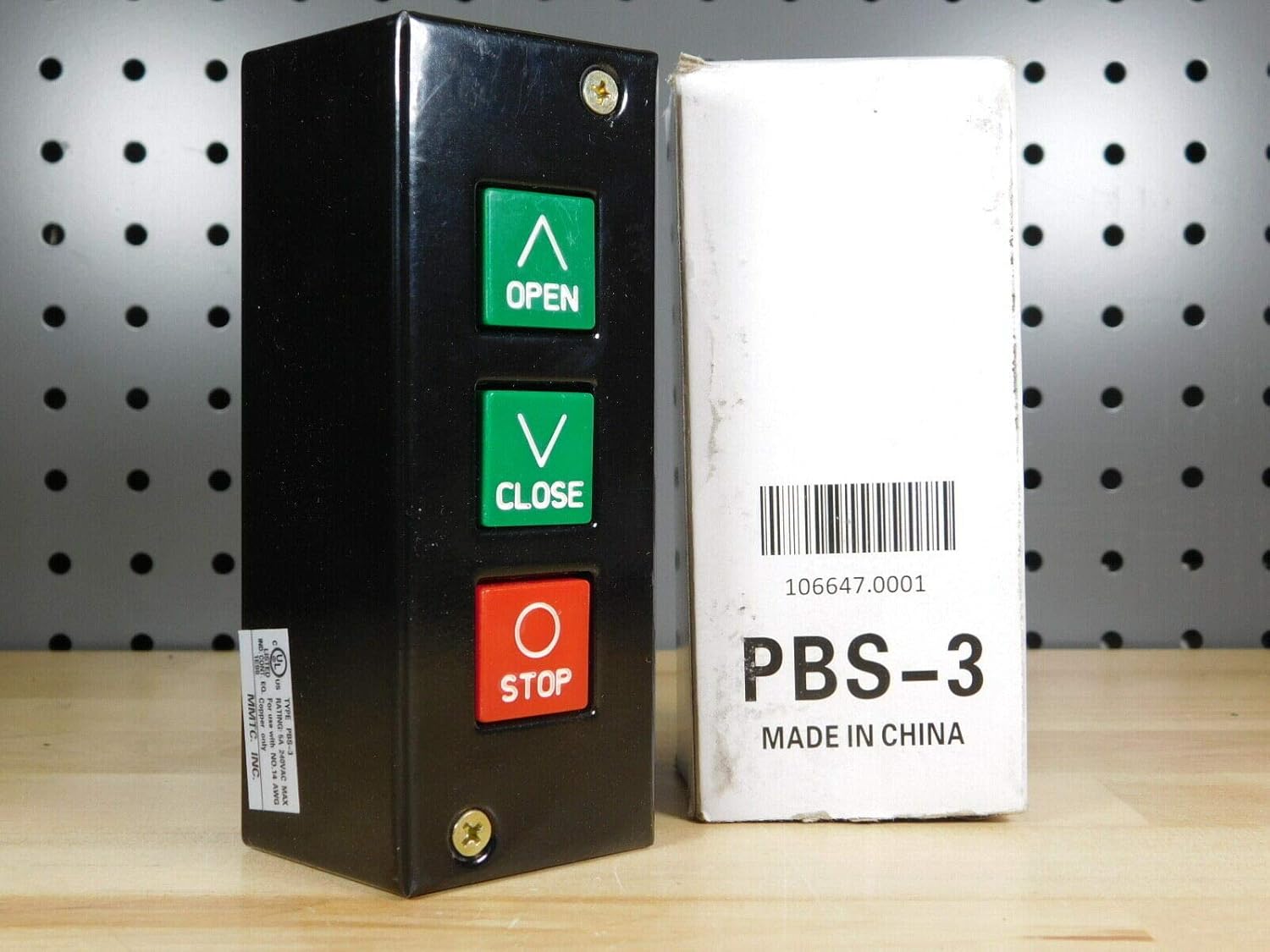

Figure 1: Elite PBS-3 3-Button Control Station. The image shows the black control station with three buttons: green 'OPEN' (up arrow), green 'CLOSE' (down arrow), and red 'STOP' (circle). A white product box labeled 'PBS-3' is visible next to it.

5. تنصيب ۽ سيٽ اپ

This control station is designed for surface mounting. Ensure the mounting location is secure, dry, and protected from direct weather exposure, consistent with its NEMA 1 rating.

5.1 Mounting the Control Station

1. Choose a suitable indoor location near the gate or door operator, ensuring easy access for users.
2. Mark the desired mounting points on the wall using the control station as a template.
3. Drill pilot holes if necessary and secure the control station to the surface using appropriate screws.

5.2 وائرنگ جون هدايتون

The PBS-3 uses screw terminals for wiring connections. Refer to your gate or door operator's manual for specific wiring diagrams and terminal designations. The control station provides momentary contact closures for Open, Close, and Stop commands.

• سڀ طاقت ختم ڪريو to the gate/door operator before making any wiring connections.
• Connect the appropriate wires from the operator's control board to the corresponding screw terminals within the PBS-3 unit.
• پڪ ڪريو ته سڀئي ڪنيڪشن مضبوط ۽ محفوظ آهن.
• The unit is rated for 5A 240VAC MAX and is designed for use with NO.14 AWG copper wire only.
• After wiring, carefully close the control station enclosure.

6. آپريشن

Once installed and wired correctly, the Elite PBS-3 provides straightforward control of your gate or door operator.

• کولڻ لاءِ: پريس ڪريو ۽ ڇڏڻ کوليو button. The gate/door will begin to open.
• بند ڪرڻ: پريس ڪريو ۽ ڇڏڻ CLOSE button. The gate/door will begin to close.
• روڪڻ: پريس ڪريو ۽ ڇڏڻ اسٽاپ button. The gate/door will immediately cease movement.

Note: The exact behavior (e.g., auto-close timers, safety reversal) is determined by the connected gate/door operator's settings, not the control station itself.

7. سار سنڀال

The Elite PBS-3 control station requires minimal maintenance.

• صفائي: Periodically wipe the exterior with a soft, damp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
• چڪاس: Annually inspect the wiring connections for tightness and signs of wear. Ensure the enclosure is securely mounted.
• ڪارڪردگي چيڪ: Regularly test all three buttons (Open, Close, Stop) to ensure they respond correctly.

8. مسئلا حل ڪرڻ

If troubleshooting steps do not resolve the issue, contact a qualified technician or the product support for further assistance.

9. وضاحتون

10. وارنٽي ۽ سپورٽ

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Elite customer service. Keep your purchase receipt as proof of purchase.
