DEGEN DE1125 User Manual

1. پراڊڪٽ ختمview

The DEGEN DE1125 is a compact and versatile portable device that integrates multiple functionalities into a single unit. It serves as a world-band radio, an MP3 player, a digital recorder, and an ebook reader. Designed for portability, it features a slim profile and lightweight construction, making it ideal for travel and on-the-go use.

اهم خاصيتون شامل آهن:

• Pocket-size world-band radio with built-in speaker and Digital Signal Processing (DSP) technology.
• 4 GB flash memory MP3 player for music playback.
• Digital recorder for radio programs and voice recording, offering up to 150 hours of recording time (at 32 kbps).
• 255 preset memories for radio stations.
• Built-in battery charger.
• LED back-lit display for clear visibility.
• Digital clock, sleep timer, key lock, and numeric volume indicator.

Figure 1.1: The DEGEN DE1125 portable radio and multimedia player, shown standing upright with its integrated kickstand.

2. سيٽ اپ گائيڊ

2.1 پيڪنگ ۽ شروعاتي معائنو

پيڪنگ مان سڀني حصن کي احتياط سان هٽايو. تصديق ڪريو ته هيٺ ڏنل سڀئي شيون موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي:

• DEGEN DE1125 Unit
• ائرفون
• AC Wall Plug (Charger)
• USB ڪيبل
• کڻڻ وارو ٿلهو
• Rechargeable بيٽري
• استعمال ڪندڙ جو دستياب (ھي دستاويز)

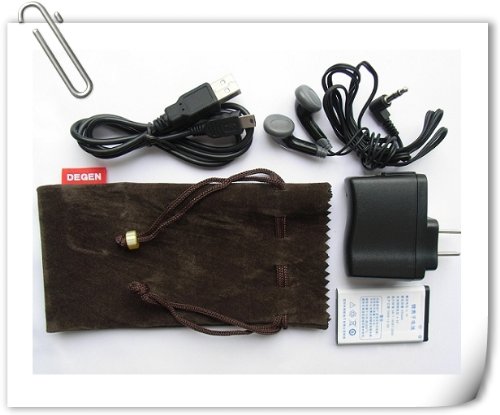

Figure 2.1: All included accessories for the DEGEN DE1125, including earphones, USB cable, AC adapter, carrying pouch, and rechargeable battery.

2.2 بيٽري لڳائڻ ۽ چارج ڪرڻ

The DE1125 is powered by a rechargeable lithium battery. Before first use, ensure the battery is properly installed and fully charged.

1. ڊوائيس جي پٺي تي بيٽري جي خاني کي ڳولھيو.
2. Insert the rechargeable battery, ensuring correct polarity as indicated inside the compartment.
3. بيٽري جي ڪمري واري ڍڪ کي محفوظ طور تي بند ڪريو.
4. Connect the small end of the USB cable to the mini-USB port on the side of the DE1125.
5. Connect the standard USB end of the cable to the AC wall plug, then plug the AC wall plug into a standard electrical outlet. Alternatively, connect the standard USB end directly to a computer's USB port for charging.
6. The display will indicate charging status. Allow the battery to fully charge before initial use.

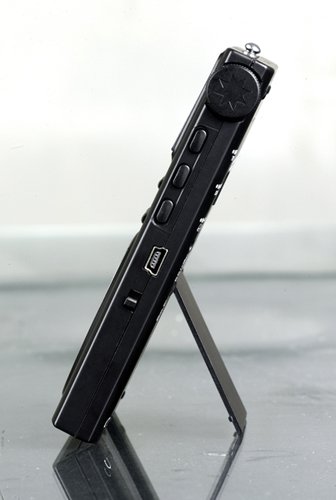

شڪل 2.2: پاسي view of the DEGEN DE1125, highlighting the mini-USB port for charging and data transfer.

3. آپريٽنگ هدايتون

3.1 عام ڪنٽرول

Familiarize yourself with the buttons and display on the DE1125:

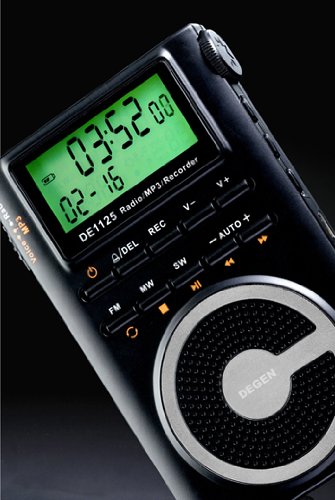

شڪل 3.1: بند اپ view of the DEGEN DE1125's display and control panel, showing buttons for power, mode selection, tuning, and volume.

• پاور بٽڻ (): ڊوائيس کي آن يا بند ڪرڻ لاءِ دٻايو ۽ رکو.
• Volume Buttons (V+, V-): آڊيو آئوٽ پُٽ ليول کي ترتيب ڏيو.
• مينيو بٽڻ: Access the main menu or settings within a mode.
• نيويگيشن بٽڻ (, ): Navigate through menus or adjust frequencies/tracks.
• Mode Buttons (FM, MW, SW, MP3, REC): مطلوب آپريٽنگ موڊ چونڊيو.
• راند/روڪ بٽڻ (): Start or pause playback in MP3 mode, or confirm selections.

3.2 Radio Operation (FM, AM, SW)

The DE1125 supports FM (64.0 - 108.0 MHz), MW (520-1710 KHz), and SW (2.3-23.0 MHz) bands.

1. ڊوائيس کي چالو ڪريو.
2. Press the corresponding mode button (FM, MW, or SW) to select the desired radio band.
3. ٽيوننگ جا آپشن:
   • خودڪار اسڪين: Press and hold the 'AUTO' button to automatically scan and store available stations.
   • دستي ترتيب نيويگيشن بٽڻ استعمال ڪريو (, ) to fine-tune the frequency step-by-step.
   • Digital Tuning: Enter the desired frequency directly using the numeric keypad (if available, or through menu options).
   • ATS (Auto Tuning Storage): Automatically scans and stores strong signals into memory presets.
4. اڳواٽ اسٽيشنون: The device can store up to 255 preset stations. Use the 'M+' and 'M-' buttons to navigate through stored presets.

3.3 MP3 پليئر فنڪشن

The DE1125 features 4GB of internal flash memory for MP3 playback.

Figure 3.2: The DEGEN DE1125 display indicating the 'Music' mode, ready for MP3 playback.

1. Press the 'MP3' button to enter MP3 player mode.
2. موسيقي کي منتقل ڪرڻ لاء files from your computer, connect the DE1125 to your computer using the provided USB cable. The device will appear as a removable disk drive. Drag and drop your MP3 fileڊوائيس جي اسٽوريج ۾ داخل ٿئي ٿو.
3. نيويگيشن بٽڻ استعمال ڪريو (, ) to select tracks.
4. پريس / رڪاوٽ جو بٽڻ دٻايو () to start or pause playback.

3.4 Digital Recorder Function

The DE1125 can record radio programs or function as a voice recorder.

Figure 3.3: The DEGEN DE1125 display showing the 'Record' mode, indicating readiness for audio capture.

Figure 3.4: The DEGEN DE1125 display showing the 'Voice' mode, used for voice recording functions.

1. Press the 'REC' button to enter recording mode.
2. Select either 'Radio Record' or 'Voice Record' from the menu.
3. Press the 'REC' button again to start recording. The display will show recording time.
4. Press the 'REC' button again to stop recording. Recorded files are saved to the internal memory.
5. To play back recordings, navigate to the 'Recordings' folder in MP3 mode.

3.5 Ebook Reader Function

The DE1125 supports basic ebook reading functionality.

Figure 3.5: The DEGEN DE1125 display showing the 'Ebook' mode, indicating readiness to display text files.

1. Connect the DE1125 to your computer via USB.
2. Transfer compatible text files (e.g., .TXT) to the device's internal memory.
3. ڊوائيس کي ڪمپيوٽر کان ڌار ڪريو.
4. Navigate to the 'Ebook' mode using the menu or mode selection.
5. Select the desired ebook file to open and read.

4. سنڀال ۽ سار سنڀال

Proper care ensures the longevity and optimal performance of your DEGEN DE1125.

• صفائي: Use a soft, dry cloth to clean the exterior of the device. Do not use liquid cleaners, aerosols, or abrasive materials.
• اسٽوريج: Store the device in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. Use the provided carrying pouch for protection during transport.
• بيٽري جي سنڀال: To maintain battery health, avoid fully discharging the battery frequently. If storing for an extended period, charge the battery to about 50% and recharge every few months.
• پاڻي جي نمائش: This device is not waterproof. Avoid exposure to water or other liquids.
• اثر: Protect the device from drops and impacts, which can damage internal components or the screen.

5. مسئلا حل ڪرڻ

If you encounter issues with your DEGEN DE1125, refer to the following common problems and solutions:

6. ٽيڪنيڪل وضاحتون

7. وارنٽي ۽ سپورٽ

7.1 وارنٽي ڄاڻ

This product is covered by a manufacturer's warranty. Please refer to the warranty policy provided at the time of purchase or contact your retailer for specific details regarding warranty duration and terms. Keep your proof of purchase for warranty claims.

7.2 ڪسٽمر سپورٽ

For technical assistance, troubleshooting beyond this manual, or inquiries about your DEGEN DE1125, please contact the retailer or the manufacturer's customer support. Refer to the contact information provided with your purchase documentation.
