SKIL 1215AA Belt Sander Instruction Manual

1. اھم حفاظتي ھدايتون

باهه، بجليءَ جي جھٽڪي، ۽ ذاتي زخمن جي خطري کي گهٽائڻ لاءِ بجليءَ جا اوزار استعمال ڪرڻ وقت هميشه بنيادي حفاظتي احتياطن تي عمل ڪريو. هن اوزار کي هلائڻ کان اڳ سڀ هدايتون احتياط سان پڙهو.

• ڪم واري علائقي جي حفاظت: ڪم واري علائقي کي صاف ۽ روشن رکو. گندو يا اونداهو علائقو حادثن کي دعوت ڏئي ٿو. بجلي جا اوزار ڌماڪيدار ماحول ۾ نه هلايو، جهڙوڪ ٻرندڙ مائع، گئس، يا مٽي جي موجودگي ۾.
• برقي حفاظت: پاور ٽول پلگ کي آئوٽ ليٽ سان ملائڻ گهرجي. ڪڏهن به پلگ کي ڪنهن به طرح تبديل نه ڪريو. ڪنڊ جو غلط استعمال نه ڪريو. ڪڏهن به پاور ٽول کي کڻڻ، ڇڪڻ، يا ان پلگ ڪرڻ لاءِ ڪنڊ استعمال نه ڪريو. ڪنڊ کي گرمي، تيل، تيز ڪنارن، يا حرڪت ڪندڙ حصن کان پري رکو.
• ذاتي حفاظت: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Dress properly. Do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• اوزار استعمال ۽ سنڀال: پاور ٽول کي زور سان نه لڳايو. پنهنجي ايپليڪيشن لاءِ صحيح پاور ٽول استعمال ڪريو. ڪا به ترتيب ڏيڻ، لوازمات تبديل ڪرڻ، يا پاور ٽولز کي ذخيرو ڪرڻ کان اڳ پاور سورس کان پلگ ڊسڪنيڪٽ ڪريو.
• مٽي گڏ ڪرڻ: This tool is equipped with a dust collection system. Always use it to minimize dust exposure. Empty the dust bag regularly.

2. پراڊڪٽ ختمview

The SKIL 1215AA Belt Sander is designed for efficient sanding of various surfaces. Familiarize yourself with its components before use.

2.1 اجزاء

• مکيه هٿ: Ergonomic grip for control during operation.
• معاون هٿ: Provides additional stability and control.
• آن/آف سوئچ: Controls power to the sander.
• Belt Release Lever ('Clic' System): جلدي ۽ آسان سينڊنگ بيلٽ جي تبديلين لاءِ.
• Automatic Belt Centering (ABC) System: Ensures the sanding belt remains centered during operation.
• مٽيءَ جو بندرگاهه: Connection point for the dust bag or vacuum adapter.

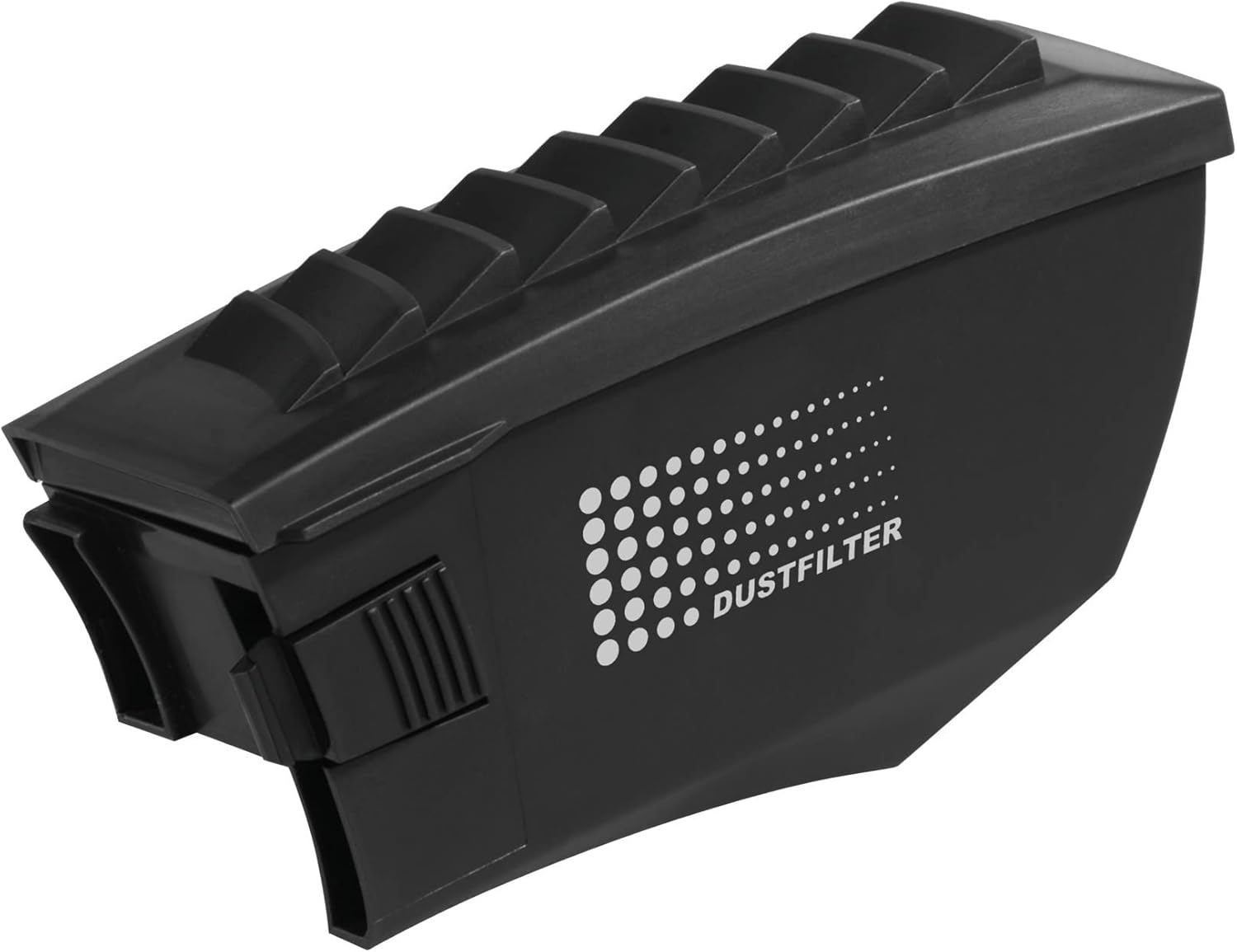

• Dust Bag/Filter: Collects sanding dust.
• Sanding Frame ('Equalizer'): Optional attachment for precise, level sanding.

2.2 ٽيڪنيڪل وضاحتون

3. سيٽ اپ

3.1 Attaching/Changing Sanding Belt

1. پڪ ڪريو ته اوزار پاور سورس کان ڌار ٿيل آهي.
2. Locate the belt release lever (often marked 'Clic') on the side of the sander.
3. Press or pull the lever to release tension on the sanding belt.
4. پراڻي سينڊنگ بيلٽ کي هٽايو.
5. Slide the new sanding belt onto the rollers, ensuring the arrow on the inside of the belt matches the direction of rotation indicated on the sander.
6. Release the lever to tension the new belt. The Automatic Belt Centering (ABC) system will adjust the belt position during initial operation.

3.2 Dust Collection System Setup

The SKIL 1215AA comes with a dust bag and can also be connected to an external vacuum cleaner for enhanced dust extraction.

• Using the Dust Bag: Attach the dust bag securely to the dust port on the sander. Ensure it clicks into place.
• Connecting to a Vacuum Cleaner: If using an external vacuum, attach the vacuum adapter to the dust port, then connect your vacuum hose to the adapter.

3.3 Attaching Sanding Frame ('Equalizer')

The 'Equalizer' sanding frame helps prevent gouging and ensures a flat sanding surface. Refer to the specific instructions included with the sanding frame for attachment details.

4. آپريٽنگ هدايتون

4.1 جنرل آپريشن

1. Ensure the correct grit sanding belt is installed for your task.
2. سينڊر کي مناسب پاور آئوٽليٽ ۾ لڳايو.
3. سينڊر کي ٻنهي هٿن سان مضبوطيءَ سان پڪڙيو.
4. Switch the tool on before making contact with the workpiece.
5. Apply light, even pressure and move the sander smoothly across the surface in the direction of the wood grain. Avoid tilting the sander or applying excessive pressure, as this can cause uneven sanding or damage to the workpiece.
6. Switch the tool off and wait for the belt to stop completely before lifting it from the workpiece.

4.2 Automatic Belt Centering (ABC)

The SKIL 1215AA features an Automatic Belt Centering (ABC) system. This system automatically adjusts the belt's position to keep it centered on the rollers, preventing it from running off the tool. No manual adjustment is typically required for belt tracking.

4.3 سينڊنگ ٽيڪنڪس

• Rough Sanding: Use coarse-grit belts (e.g., 60-80 grit) for rapid material removal.
• فائن سينڊنگ: Progress to finer-grit belts (e.g., 120-180 grit) for a smoother finish.
• ايج سينڊنگ: When sanding edges, ensure the sander is stable and supported to avoid rounding the edge.
• مٿاڇري جي تياري: Always clean the surface of any debris or old finishes before sanding.

5. سار سنڀال

Regular maintenance ensures the longevity and optimal performance of your SKIL 1215AA Belt Sander.

5.1 صفائي

• هميشه صاف ڪرڻ کان پهريان اوزار کي انپلگ ڪريو.
• Use a soft brush or compressed air to clean dust from the ventilation openings and around the belt area.
• Do not use water or chemical cleaners, as these can damage the tool.

5.2 Dust Filter Maintenance

The dust filter should be emptied regularly to maintain effective dust collection and prevent clogging.

1. Disconnect the dust bag from the sander.
2. Open the dust bag/filter housing and empty the collected dust into a waste receptacle.
3. Clean the filter element if necessary by tapping it gently or using compressed air.
4. Reattach the dust bag securely.

5.3 بيلٽ جي تبديلي

Replace sanding belts when they become worn or lose their abrasive quality. Refer to section 3.1 for detailed instructions on changing the sanding belt.

6. مسئلا حل ڪرڻ

If you encounter issues with your SKIL 1215AA Belt Sander, consult the following common troubleshooting tips:

7. وارنٽي ۽ سپورٽ

For warranty information, service, or technical support, please refer to the warranty card included with your product or visit the official SKIL webسائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
