1. اھم حفاظتي ھدايتون
Please read and save these important safety instructions before using this fan. Failure to follow these instructions may result in electric shock, fire, or injury.
- صاف ڪرڻ، سروس ڪرڻ، يا منتقل ڪرڻ کان اڳ هميشه فين کي پاور آئوٽليٽ مان ان پلگ ڪريو.
- خراب ٿيل ڪنڊ يا پلگ سان ڪو به پرستار نه هلايو. فين کي رد ڪريو يا امتحان ۽/يا مرمت لاءِ بااختيار سروس سهولت ڏانهن واپس وڃو.
- قالين جي هيٺان ڪنڊ نه هلايو. ڊور کي اڇلائي قالين، رنرن، يا ساڳي طرح ڍڪڻ سان نه ڍڪيو. ٽريفڪ واري علائقي کان پري ڪنڊ کي ترتيب ڏيو ۽ جتي ان کي ختم نه ڪيو ويندو.
- This fan is intended for indoor, residential use only. Do not use outdoors or for commercial purposes.
- جڏهن پنکڙو هلي رهيو هجي ته پنکڙي جي گارڊن ۾ آڱريون يا ڪا ٻي شيءِ نه وجهو.
- پڪ ڪريو ته پنکڙو هڪ مستحڪم، هموار مٿاڇري تي رکيل آهي ته جيئن ان کي ٽپڻ کان روڪيو وڃي.
- جڏهن ڪو به اوزار ٻارن يا گهٽ جسماني، حسي، يا ذهني صلاحيتن وارن ماڻهن پاران يا انهن جي ويجهو استعمال ڪيو وڃي ته ويجهي نگراني ضروري آهي.
2. پراڊڪٽ ختمview
The Air King 16-inch Oscillating Residential Pedestal Fan is designed to provide effective air circulation in various indoor settings. It features three speed settings, an oscillating function for wider coverage, and adjustable height and tilt for directional airflow.

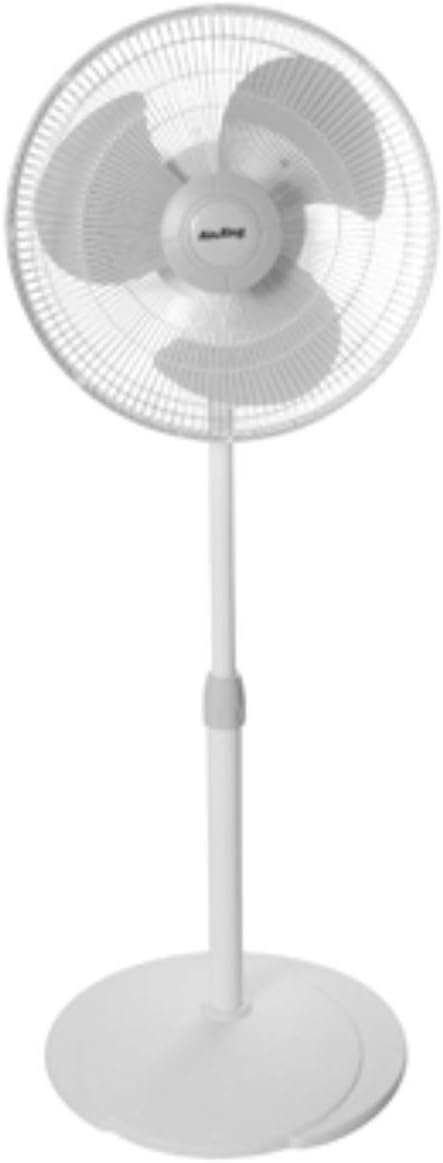

Image: The Air King 16-inch Oscillating Residential Pedestal Fan, featuring a round base, an adjustable stand, and a fan head with a protective grille and three blades. The fan is gray in color.
اهم خاصيتون:
- 16-inch Blade Diameter: Provides substantial airflow.
- 3 اسپيڊ سيٽنگون: Allows for customized airflow intensity.
- اوسيليٽنگ فنڪشن: Distributes air across a wider area.
- سٿري جي اوچائي: Column height can be adjusted from 36 inches to 52 inches.
- ترتيب ڏيڻ وارو جھڪو: Fan head can be tilted 30 degrees up to 15 degrees down.
- پائيدار تعمير: Features a powder-coated steel front guard and high-impact resistant plastic rear guard.
3. اسيمبليءَ جون هدايتون
Follow these steps to assemble your Air King Pedestal Fan:
- بنيادي اسيمبلي: Place the fan base on a flat, stable surface. Insert the lower pole section into the base and secure it according to the included hardware (typically a large screw or knob from underneath the base).
- ترتيب ڏيڻ وارو قطب: Insert the upper, adjustable pole section into the lower pole. Secure it with the provided locking mechanism or screw to prevent it from sliding down during initial setup.
- پرستار سر منسلڪ: Carefully attach the fan head assembly to the top of the adjustable pole. Ensure it is securely fastened using the designated screw or locking pin.
- Guard and Blade Installation: If the fan guards and blades are not pre-assembled, follow the specific instructions provided in the packaging to attach the rear guard, then the fan blades, and finally the front guard. Ensure all clips or screws are tightened to secure the guards.
Once assembled, ensure all connections are tight and the fan is stable before plugging it in.
4. آپريٽنگ هدايتون
To operate your Air King Pedestal Fan, follow these steps:
- پاور ڪنيڪشن: Plug the fan's power cord (NEMA 5-15P) into a standard 120V, 60Hz electrical outlet.
- رفتار جي چونڊ: Locate the speed control knob or buttons, usually on the fan motor housing. Select your desired speed: 1 (low), 2 (medium), or 3 (high).
- اوسيليشن فنڪشن: To activate oscillation, press down the oscillation knob located on top of the motor housing. To stop oscillation, pull the knob up.
- اونچائي جي ترتيب: To adjust the fan's height, loosen the height adjustment collar on the pole, raise or lower the upper pole section to the desired height (between 36 and 52 inches), and then securely tighten the collar.
- جھلڻ جي ترتيب: To adjust the fan head's angle, loosen the tilt adjustment knob or screw on the side of the fan head assembly. Tilt the head to the desired angle (30 degrees up to 15 degrees down) and then securely tighten the knob or screw.
- بجلي بند: To turn off the fan, set the speed control to the '0' or 'OFF' position. Unplug the fan from the outlet when not in use for extended periods.
5. سار سنڀال
باقاعده سار سنڀال توهان جي پرستار جي بهترين ڪارڪردگي ۽ ڊگهي عمر کي يقيني بڻائي ٿي.
صفائي:
- صاف ڪرڻ کان اڳ هميشه فين کي انپلگ ڪريو.
- نرم استعمال ڪريو، ڊيamp فين جي ٻاهرين سطحن کي صاف ڪرڻ لاءِ ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
- To clean the fan blades and inside the guards, you may need to remove the front guard. Refer to the assembly instructions for guard removal. Carefully wipe the blades and interior surfaces with a damp ڪپڙو. پڪ ڪريو ته پنکڙي کي ٻيهر گڏ ڪرڻ ۽ هلائڻ کان اڳ سڀئي حصا مڪمل طور تي سڪي ويا آهن.
- پنن کي پاڻي ۾ نه ٻوڙيو يا پاڻي کي موٽر هائوسنگ ۾ ٽپڻ جي اجازت نه ڏيو.
اسٽوريج:
When storing the fan, especially for extended periods, cover it to protect it from dust. Store it in a cool, dry place.
6. مسئلا حل ڪرڻ
جيڪڏهن توهان کي پنهنجي پرستار سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:
- فين چالو نه ٿيو:
- پڪ ڪريو ته بجلي جي تار محفوظ طور تي ڪم ڪندڙ بجلي جي آئوٽليٽ ۾ لڳل آهي.
- Check if the speed control is set to an 'ON' position (1, 2, or 3).
- پڪ ڪريو ته سرڪٽ بريڪر يا فيوز آئوٽ ليٽ ٽرپ نه ٿيو آهي.
- Fan does not oscillate:
- Ensure the oscillation knob on top of the motor housing is pressed down.
- Check for any obstructions preventing the fan head from rotating.
- هوائي وهڪري کي گهٽايو
- Clean the fan blades and guards to remove dust and debris that may be obstructing airflow.
- Ensure the fan is set to a higher speed setting.
جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي ته ڪسٽمر سپورٽ سان رابطو ڪريو.
7. وضاحتون
| تفصيل | تفصيل |
|---|---|
| برانڊ | هوائي بادشاهه |
| ماڊل نمبر | 9126 |
| بليڊ قطر | 16 انچ |
| رفتار جو تعداد | 3 |
| جلدtage | 120V |
| تعدد | 60 هز |
| هوا جو وهڪرو (CFM) | 1580 (High) / 1420 (Medium) / 1220 (Low) |
| آر پي ايم | 1450 (High) / 1320 (Medium) / 1050 (Low) |
| Ampعمر | 0.60 (High) / 0.50 (Medium) / 0.45 (Low) |
| واتtage | 77 (High) / 65 (Medium) / 57 (Low) |
| اوچائي | 36 انچ کان 52 انچ تائين ترتيب ڏيڻ وارو |
| ويڪر | 18 انچ |
| ڊگھائي | 18 انچ |
| رنگ | ڀورو |
| حفاظتي مواد | Powder Coated Steel Front with High Impact Resistant Plastic Rear |
| بليڊ مواد | پوليوپروپيلين |
| NEMA پلگ ان جي ترتيب | 5-15 پي |
| ڪنڊ ڊگھائي | 6 فوٽ. |
| معيار | ETL and OSHA Compliant Guards |
| شيءِ جو وزن | 0.93 پائونڊ (تقريبن 14.9 آونس) |
| مواد جو قسم | مصر جو فولاد، پلاسٽڪ |
8. وارنٽي ۽ ڪسٽمر سپورٽ
This Air King product is manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Air King webسائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Air King customer support. Contact details can typically be found on the product packaging or the manufacturer's official webسائيٽ.
