تعارف
Thank you for choosing the Olight T Series T15-T R5 Cree XP-G LED Flashlight. This compact and durable flashlight is designed for reliable illumination in various conditions. Featuring a Cree XP-G R5 LED, it offers three brightness levels and a strobe function, all housed in a solid aluminum body with an ultra-clear, anti-reflective lens. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device.

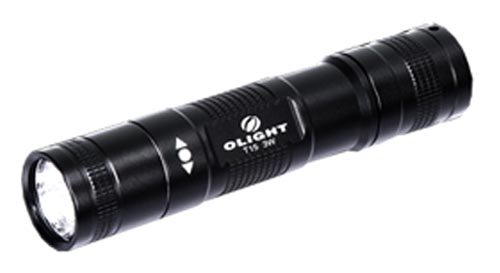

Image: The Olight T15-T R5 Cree XP-G LED Flashlight, showcasinان جي ڪمپيڪٽ ڊيزائن ۽ پائيدار تعمير جي ڪري.
سيٽ اپ ڪريو
-
1. ابتدائي معائنو:
Upon unpacking, inspect the flashlight for any visible damage. Ensure all components, including the tail cap and head, are securely fastened.
-
2. بيٽري لڳائڻ:
- ٽارچ جي پڇ واري ڪيپ کي گھڙيءَ جي مخالف طرف موڙي کوليو.
- Insert one AA battery (not included) with the positive (+) terminal facing towards the head of the flashlight.
- Carefully screw the tail cap back on clockwise until it is finger-tight. Avoid over-tightening.
نوٽ: Ensure correct battery polarity to prevent damage to the flashlight. Use high-quality AA batteries for optimal performance.
آپريٽنگ هدايتون
-
1. آن/بند ڪرڻ:
Press the tail switch completely to turn the flashlight ON. Press it again completely to turn the flashlight OFF.
-
2. Changing Brightness Levels:
With the flashlight ON, lightly press (half-press) the tail switch repeatedly to cycle through the three available brightness levels (Low → Medium → High). Release the switch to select the desired mode.
-
3. Activating Strobe Mode:
From any brightness mode, quickly double half-press the tail switch to activate the Strobe mode. Half-press again to return to the previous brightness level.
سار سنڀال
-
صفائي:
Wipe the flashlight body with a clean, soft cloth. For stubborn dirt, use a slightly damp ڪپڙو. استعمال نه ڪريو سخت ڪيميائي يا گھڻائي صاف ڪندڙ.
-
بيٽري جي سنڀال:
Remove the battery if the flashlight will not be used for an extended period to prevent leakage and potential damage. Dispose of used batteries responsibly.
-
او-رنگ لوبريڪيشن:
Periodically inspect the O-rings for wear and tear. Apply a thin layer of silicone grease to maintain water resistance. Replace damaged O-rings promptly.
-
Thread Cleaning:
Keep the threads of the tail cap and head clean from dirt and debris to ensure smooth operation and proper electrical contact.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ٽارچ نه ٿي روشن ٿئي. |
|
|
| روشني مدھم آهي يا ٽمٽار آهي. |
|
|
| ٽيل سوئچ غير جوابده آهي. |
|
|
وضاحتون
- ماڊل: T15-T
- روشني جو ذريعو: Cree XP-G R5 LED
- وڌ ۾ وڌ روشني: 115 ليمن
- طريقا: 3 brightness levels + Strobe
- تعمير: Solid aluminum
- لينس: Ultra clear glass, non-scratch with anti-reflective coating
- طاقت جو ذريعو: 1 x AA بيٽري (شامل نه آهي)
- وزن: 45.4 g (بغير بيٽري)
- خاصيتون: Shock-proof, dependable lighting
وارنٽي ۽ سپورٽ
Olight products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Olight website. If you encounter any issues not covered in this manual or require further assistance, please contact Olight customer support.
رابطي جي ڄاڻ: Please refer to your product packaging or the official Olight webجديد ترين ڪسٽمر سپورٽ رابطي جي تفصيلن لاءِ سائيٽ.
