Siemens QN2200R 200-Amp 2 Pole 240-Volt Circuit Breaker Instruction Manual

1. تعارف

This manual provides essential information for the safe and proper use of the Siemens QN2200R 200-Amp 2 Pole 240-Volt Circuit Breaker. This circuit breaker is designed for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers or meter combinations. It is a double pole breaker, rated for 240V, and can be used in single or 3-phase load centers. Please read all instructions carefully before installation and operation.

2. حفاظت جي ڄاڻ

خبردار: Electrical shock hazard. This product must be installed and serviced by a qualified electrician in accordance with all national and local electrical codes. Failure to follow these instructions can result in serious injury or death.

• Always turn off power at the main service panel before working on electrical circuits.
• Use only Siemens circuit breakers in Siemens panels to maintain warranty validity and ensure proper system function.
• Do not use "used" circuit breakers. Siemens strongly recommends against their use.
• Ensure proper wire gauge and torque settings for all connections.
• Protect the circuit breaker from moisture and extreme temperatures.

3. پراڊڪٽ ختمview

The Siemens QN2200R is a 200-Amp, 2-pole, 240-Volt plug-in type circuit breaker. It is designed to protect electrical circuits from overcurrents and short circuits, tripping to interrupt the flow of electricity when a fault is detected. Key features include:

• موجوده درجه بندي: 200 Amps
• پولس جو تعداد: 2
• جلدtagاي درجه بندي: 240 وولٽ
• چڙهڻ جو قسم: پلگ ان
• فريم سائيز: 4-انچ
• سرٽيفڪيشن: UL لسٽ

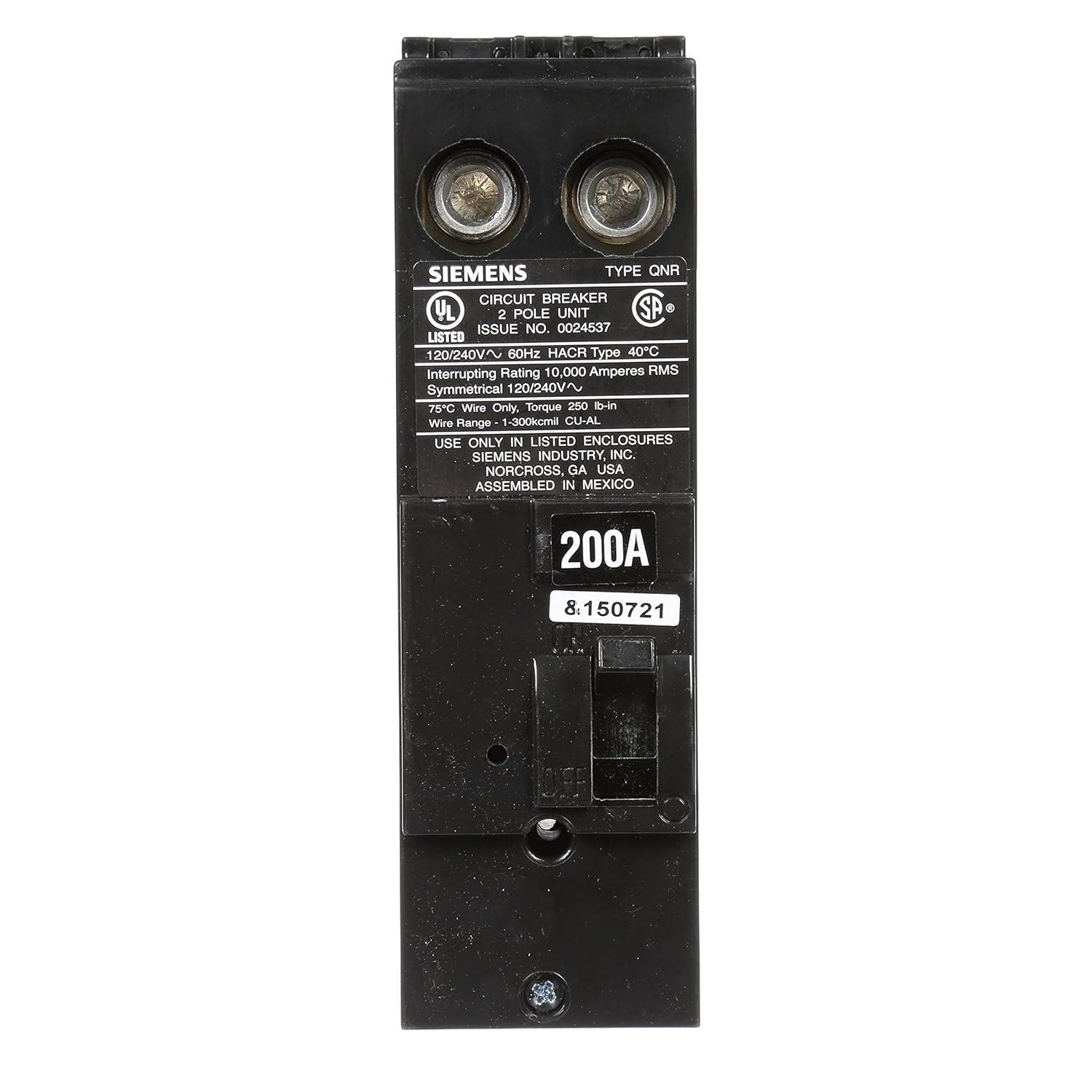

شڪل 1: سامهون view of the Siemens QN2200R circuit breaker, showing the 200A rating and ON/OFF switch.

4. وضاحتون

5. تنصيب

Installation of this circuit breaker must be performed by a qualified electrician. Refer to the specific instructions provided with your Siemens load center or meter combination for detailed installation procedures. Ensure the main power supply is disconnected before beginning any work.

1. پاور ڪنيڪشن: Turn off the main power to the electrical panel at the utility disconnect or main breaker. Verify power is off using a voltagاي جاچ ڪندڙ.
2. پينل رسائي: اليڪٽريڪل پينل جي ڍڪ کي احتياط سان هٽايو.
3. بريڪر جي جاءِ: Identify the appropriate slot in the bus bar for the 2-pole breaker.
4. ڪنيڪشن: Connect the load wires to the terminals on the circuit breaker. Ensure proper torque is applied to the terminal screws as specified by local codes and manufacturer guidelines.
5. چڙهڻ: سرڪٽ بريڪر کي بس بار سان ترتيب ڏيو ۽ ان کي مضبوطيءَ سان جاءِ تي دٻايو جيستائين اهو محفوظ طور تي ويٺي نه وڃي.
6. پينل ٻيهر گڏ ڪرڻ: اليڪٽريڪل پينل جو ڍڪ تبديل ڪريو.
7. پاور بحالي: مکيه سروس پينل کي بجلي بحال ڪريو.

شڪل 2: پاسي view of the Siemens QN2200R circuit breaker, showing its profile ۽ ڪنيڪشن پوائنٽون.

شڪل 3: پوئتي view of the Siemens QN2200R circuit breaker, highlighting the plug-in connectors for the bus bar.

6. آپريشن

The circuit breaker features a toggle switch for manual operation and an internal mechanism for automatic tripping.

• پوزيشن تي: Push the toggle switch fully to the "ON" position to allow electricity to flow through the circuit.
• آف پوزيشن: Push the toggle switch fully to the "OFF" position to manually interrupt the flow of electricity to the circuit.
• ٽرپ ٿيل پوزيشن: If an overcurrent or short circuit occurs, the breaker will automatically trip. The toggle switch will move to an intermediate position, typically between "ON" and "OFF". To reset a tripped breaker, first push the switch firmly to the "OFF" position, then push it to the "ON" position. If the breaker immediately trips again, there is still a fault in the circuit that needs to be addressed by a qualified electrician.

7. سار سنڀال

Circuit breakers generally require minimal maintenance. However, periodic inspection by a qualified electrician is recommended to ensure continued safe operation.

• بصري چڪاس: جسماني نقصان، رنگ بدلجڻ، يا ڍلو ڪنيڪشن جي ڪنهن به نشاني لاءِ وقتي طور تي سرڪٽ بريڪر جو معائنو ڪريو.
• جاچ: Some electrical codes recommend periodic testing of circuit breakers. Consult a qualified electrician for appropriate testing procedures.
• صفائي: Ensure the area around the circuit breaker is free from dust and debris. Do not use liquids to clean electrical components.

8. مسئلا حل ڪرڻ

If the circuit breaker trips frequently or fails to reset, it indicates an electrical issue that requires attention.

• بار بار ٽپڻ: This often indicates an overloaded circuit or a short circuit. Disconnect some appliances or devices from the circuit and try resetting the breaker. If it continues to trip, there may be a fault in the wiring or an appliance.
• Failure to Reset: If the breaker does not stay in the "ON" position after being reset (pushed to OFF then ON), it suggests a persistent fault. Do not force the breaker into the "ON" position.
• طاقت ناهي: If a circuit has no power and the breaker is in the "ON" position, check for loose connections or other issues within the electrical panel or circuit.

For any persistent electrical issues, contact a qualified electrician immediately.

9. وارنٽي ۽ سپورٽ

Siemens circuit breakers are manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official Siemens website. For technical support or inquiries, please contact Siemens customer service.

Using non-Siemens breakers in a Siemens panel may void the panel's warranty.

10. اضافي پراڊڪٽ Views

شڪل 4: زاويه view of the Siemens QN2200R circuit breaker, showing its overall form factor.
