Magellan RoadMate 2230T-LM GPS Navigator User Manual

1. تعارف

The Magellan RoadMate 2230T-LM is a portable GPS navigation device designed to provide reliable guidance for your journeys. It features lifetime map updates and lifetime traffic alerts, ensuring you have the most current road information and can avoid congestion. This manual provides essential information for setting up, operating, and maintaining your device.

شڪل 1.1: سامهون view of the Magellan RoadMate 2230T-LM GPS Navigator.

2. حفاظت جي ڄاڻ

Please read and understand all safety information before using your Magellan RoadMate 2230T-LM. Failure to follow these instructions could result in injury or damage.

• ڊرائيونگ جي حفاظت: Always prioritize safe driving. Do not operate the device or input data while driving. Pull over to a safe location before making any adjustments or entering information.
• ٽريفڪ قانون: Always obey all traffic laws and regulations. The GPS device is a navigational aid and should not supersede actual road signs or traffic conditions.
• چڙهڻ: پڪ ڪريو ته ڊوائيس محفوظ طور تي لڳل آهي ۽ توهان جي ڪم ۾ رڪاوٽ نه بڻجي view روڊ کان هيٺ يا گاڏين جي ڪنٽرول ۾ مداخلت.
• طاقت جو ذريعو: Use only the provided power adapter and cables. Using unauthorized accessories may damage the device and void the warranty.
• گرمي پد: ڊوائيس کي انتهائي گرمي پد، ڊگهي عرصي تائين سڌي سج جي روشني، يا گهڻي نمي جي سامهون رکڻ کان پاسو ڪريو.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي شيون توهان جي پراڊڪٽ پيڪيج ۾ موجود آهن:

• Magellan RoadMate 2230T-LM GPS Navigator
• ونڊ شيڊ جو جبل
• USB ڪيبل
• گاڏي پاور اڊاپٽر
• Lithium Ion Battery (pre-installed)

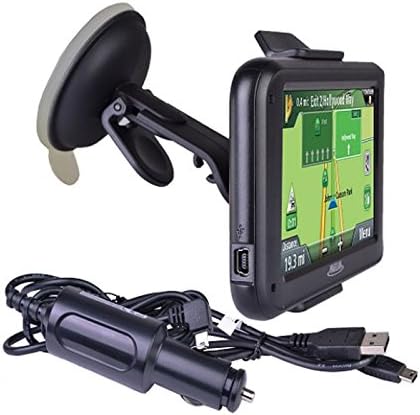

Figure 3.1: Included accessories: GPS unit, windshield mount, and charging cables.

4. سيٽ اپ

4.1 ڊوائيس چارج ڪرڻ

Before first use, fully charge your RoadMate 2230T-LM. Connect the USB cable to the device and then to the vehicle power adapter or a computer USB port. The battery indicator on the screen will show charging status. A full charge typically takes approximately 2 hours.

4.2 ڊوائيس تي چڙهڻ

The RoadMate 2230T-LM comes with a windshield mount for secure placement in your vehicle.

1. Clean the desired area on your windshield with a non-abrasive cleaner.
2. Attach the mounting bracket to the back of the GPS unit until it clicks into place.
3. Press the suction cup firmly against the clean windshield surface and flip the lever to secure it.
4. Adjust the angle of the device for optimal viewتوهان جي ڊرائيونگ ۾ رڪاوٽ وجهڻ کان سواءِ view.

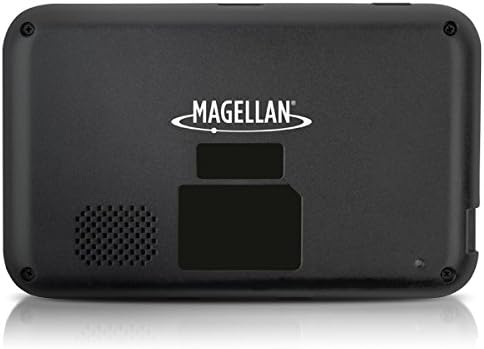

شڪل 4.1: پوئتي view of the GPS unit, showing the speaker and mounting area.

5. آپريٽنگ هدايتون

5.1 پاور آن/آف

Press and hold the power button located on the device's top edge to turn it on or off. A short press will put the device into sleep mode.

5.2 بنيادي نيويگيشن

The RoadMate 2230T-LM features a touchscreen interface for all operations.

1. Enter Destination: From the main menu, tap 'Go To' or 'New Destination'. You can enter an address, point of interest (POI), or select from recent destinations.
2. رستي جو حساب: After entering your destination, the device will calculate the fastest or shortest route based on your preferences.
3. ھدايتن تي عمل ڪريو: Follow the spoken turn-by-turn directions and on-screen map guidance. The device will display upcoming turns, speed limits, and estimated arrival times.

5.3 لائف ٽائيم نقشي جون تازه ڪاريون

Your device includes lifetime map updates. To ensure you have the latest maps, connect your device to a computer with internet access and use the Magellan Content Manager software (available for download from the Magellan website). Follow the on-screen instructions to download and install map updates. Regular updates are recommended for optimal navigation accuracy.

5.4 Lifetime Traffic Alerts

The RoadMate 2230T-LM provides real-time traffic information to help you avoid delays. Traffic alerts are automatically received and displayed on the map. The device may suggest alternative routes to bypass heavy traffic or incidents.

5.5 خاص خاصيتون

• Traffic Camera Alerts: Receive audible and visual warnings for upcoming traffic cameras.
• Best Parking: Find nearby parking options at your destination.
• رفتار جون حدون: The device displays the current speed limit for the road you are on.

6. سار سنڀال

6.1 ڊوائيس کي صاف ڪرڻ

Use a soft, lint-free cloth to clean the screen and exterior of the device. Do not use abrasive cleaners or solvents, as they may damage the surfaces.

6.2 سافٽ ويئر ۽ نقشي جون تازه ڪاريون

Regularly check for software and map updates via the Magellan website. Keeping your device updated ensures optimal performance and the most accurate navigation data.

6.3 بيٽري جي سنڀال

بيٽري جي زندگي کي وڌائڻ لاءِ، بيٽري کي بار بار مڪمل طور تي چارج ڪرڻ کان پاسو ڪريو. جڏهن ڊگهي عرصي تائين استعمال ۾ نه هجي ته ڊوائيس کي ٿڌي، سڪل جاءِ تي رکو.

7. مسئلا حل ڪرڻ

If you encounter issues with your Magellan RoadMate 2230T-LM, refer to the following common problems and solutions:

• ڪوبه GPS سگنل ناهي: پڪ ڪريو ته ڊوائيس صاف آهي view of the sky. Move away from tall buildings or dense foliage. Allow several minutes for the device to acquire satellites.
• Unit Freezes or Reboots: Try performing a soft reset by pressing and holding the power button for 10-15 seconds until the device restarts. If the issue persists, ensure the software is up to date.
• Inaccurate Routing/Voice Prompts: Verify that your maps are up to date. Check your navigation settings for route preferences (e.g., fastest, shortest, avoid tolls). Ensure the device's time and date settings are correct.
• خراب آڊيو معيار: ڊوائيس تي واليوم سيٽنگز چيڪ ڪريو. پڪ ڪريو ته اسپيڪر ۾ رڪاوٽ نه آهي.
• بيٽري چارج نه ٿيڻ: Ensure the USB cable and power adapter are securely connected. Try a different USB port or power source.

For further assistance, visit the official Magellan support webسائيٽ يا ڪسٽمر سروس سان رابطو ڪريو.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

For information regarding your product's warranty, please refer to the warranty card included in your original packaging or visit the official Magellan website. For technical support, frequently asked questions, and additional resources, please visit ميگيلن سپورٽ.
