SIEMENS Murray MP360 60-Amp Three Pole Type MP-T Circuit Breaker Instruction Manual

1. پراڊڪٽ ختمview

The SIEMENS Murray MP360 is a three-pole, 60-amp, 240-volt Type MP-T thermal-magnetic circuit breaker designed for critical overload and short-circuit protection within your electrical system. This breaker is compatible with Murray enclosures and load centers, featuring easy plug-in connections and the Insta-Wire feature for efficient installation. It provides essential protection against high temperatures caused by excess current, safeguarding your home's wiring.

اهم خاصيتون:

• Three pole, 60 Amp, 240V Type MP-T Circuit Breaker
• 10,000 AIC interrupting rating
• Easy plug-in connections in Murray enclosures
• Time-saving Insta-Wire feature
• Compatible with Murray rock solid load centers
• Provides overload and short-circuit protection

تصوير 1.1: سامهون view of the SIEMENS Murray MP360 60-Amp Three Pole Type MP-T Circuit Breaker.

2. حفاظت جي ڄاڻ

خبردار: بجليءَ جي جھٽڪي يا باهه جو خطرو.

• Installation and servicing of this circuit breaker must be performed by a qualified electrician in accordance with all national and local electrical codes.
• Always turn off the main power supply at the service panel before installing, removing, or servicing circuit breakers.
• Do not use "used" breakers. The installation of used breakers in a Murray panel will void the warranty on the panel and may pose significant safety risks.
• Ensure proper wire gauge is used for the circuit breaker's ampايج جي درجه بندي.
• Never bypass or tampسرڪٽ بريڪر جي حفاظتي ميڪانيزم سان.
• Wear appropriate personal protective equipment (PPE), including insulated gloves and safety glasses, when working with electrical systems.

3. انسٽاليشن (سيٽ اپ)

The SIEMENS Murray MP360 circuit breaker is designed for plug-in installation into compatible Murray load centers. Follow these general guidelines for installation. Always refer to the specific instructions provided with your Murray load center and consult local electrical codes.

1. پاور ڪنيڪشن: Before beginning any work, ensure the main power supply to the electrical panel is completely disconnected. Verify with a voltagاي جاچ ڪندڙ.
2. سلاٽ جي سڃاڻپ ڪريو: Locate an available slot in your Murray load center that is compatible with a three-pole breaker.
3. وائر ڳنڍڻ:
   • Connect the line wires to the appropriate terminals on the circuit breaker.
   • Utilize the Insta-Wire feature for quick and secure wire connections.
   • پڪ ڪريو ته سڀئي ڪنيڪشن مضبوط ۽ محفوظ آهن.
4. پلگ ان جي انسٽاليشن: Align the circuit breaker with the bus bar stabs in the load center and firmly push it into place until it is fully seated.
5. محفوظ ٽوڙيندڙ: Ensure the breaker is securely fastened within the panel, if applicable, according to the load center's design.
6. وائرنگ ڊراگرام: Refer to the wiring diagrams below for typical configurations.

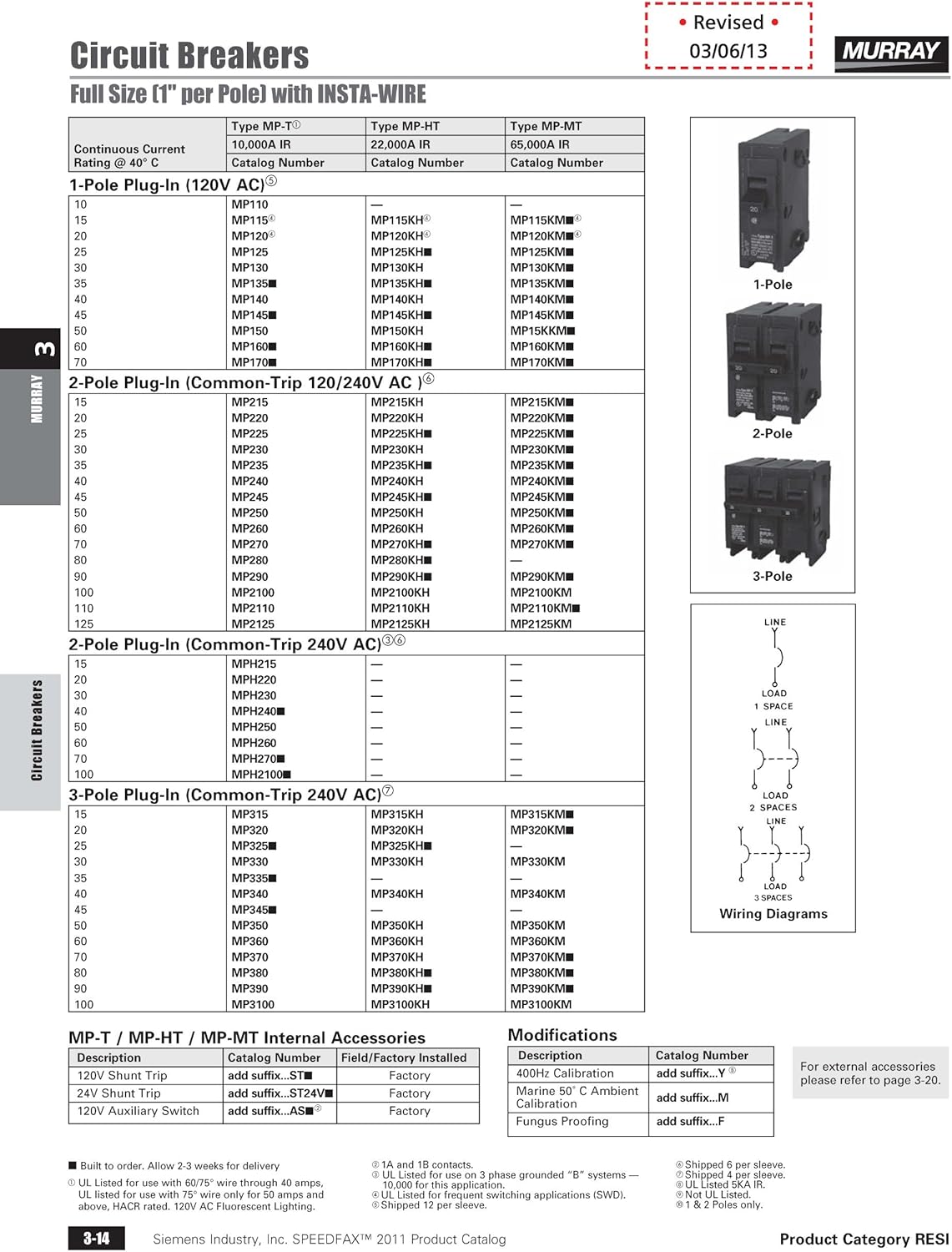

Image 3.1: Detailed catalog information for Murray circuit breakers, including wiring diagrams for 1-pole, 2-pole, and 3-pole configurations. This image also shows various breaker types (MP-T, MP-HT, MP-MT) and their corresponding catalog numbers and interrupting ratings.

Note: The MP360 is a 3-pole breaker. Consult the "3-Pole Plug-In (Common-Trip 240V AC)" section and the corresponding wiring diagram in Image 3.1 for specific details.

4. آپريشن

The SIEMENS Murray MP360 circuit breaker operates automatically to protect electrical circuits from damage caused by overcurrent, which can result from an overload or a short circuit. It also functions as a manual switch to turn power on or off to a specific circuit.

• عام آپريشن: In normal conditions, the breaker handle will be in the "ON" position, allowing electricity to flow through the circuit.
• ڦاسي جي حالت: If an overcurrent condition occurs, the breaker will automatically trip to the "TRIP" (or center) position, interrupting the flow of electricity to prevent damage.
• دستياب تي / بند: To manually turn a circuit off, move the handle to the "OFF" position. To turn it back on, move it to the "ON" position.

5. سار سنڀال

Circuit breakers are generally maintenance-free devices. However, periodic inspection by a qualified electrician is recommended to ensure the continued safe operation of your electrical system.

• بصري چڪاس: جسماني نقصان، رنگ بدلجڻ، يا ڍلو ڪنيڪشن جي ڪنهن به نشاني لاءِ وقتي طور تي سرڪٽ بريڪر جو معائنو ڪريو.
• جاچ: Do not attempt to test the breaker's tripping mechanism yourself by creating a short circuit. This should only be done by qualified personnel using appropriate testing equipment.
• صفائي: Keep the area around the circuit breaker free from dust and debris. Do not use liquids to clean the breaker.

6. مسئلا حل ڪرڻ

If your SIEMENS Murray MP360 circuit breaker trips, it indicates an overcurrent condition on the circuit it protects. Follow these steps:

1. ٽرپ ٿيل بريڪر جي سڃاڻپ ڪريو: Locate the breaker with its handle in the "TRIP" (center) position.
2. بند ڪريو: Firmly push the handle to the full "OFF" position.
3. Investigate Cause:
   • Unplug or turn off all appliances and lights on the affected circuit.
   • Check for overloaded outlets (too many devices plugged into one circuit).
   • Look for damaged appliance cords or electrical wiring.
4. ري سيٽ برڪر: Once the cause is identified and corrected, firmly push the handle to the "ON" position.
5. Repeated Tripping: If the breaker trips immediately after being reset, or if it trips frequently, do not continue to reset it. This indicates a persistent electrical problem that requires immediate attention from a qualified electrician.

7. وضاحتون

Internal Accessories and Modifications (Refer to Image 3.1)

The following internal accessories and modifications are available for MP-T/MP-HT/MP-MT type breakers. Availability for the specific MP360 model may vary and should be confirmed with the manufacturer.

• 120V Shunt Trip: Add suffix ST (Factory installed)
• 24V Shunt Trip: Add suffix ST24V (Factory installed)
• 120V Auxiliary Switch: Add suffix AS (Factory installed)
• 400Hz Calibration: Add suffix Y
• Marine 50° C Ambient Calibration: Add suffix M
• Fungus Proofing: Add suffix F

8. وارنٽي ڄاڻ

SIEMENS (Murray) products are manufactured to high standards. The warranty for this circuit breaker is subject to the terms and conditions provided by SIEMENS. Please retain your proof of purchase.

اهم وارنٽي نوٽ:

The installation of "used" circuit breakers in a Murray panel will void the warranty on the panel. SIEMENS (Murray) does not sell used breakers and has not approved any third-party sellers to do so. Always ensure you are installing new, genuine SIEMENS (Murray) products.

9. ڪسٽمر سپورٽ

For technical assistance, product inquiries, or warranty claims, please contact SIEMENS customer support. Refer to the official SIEMENS webتازي رابطي جي معلومات لاءِ سائيٽ يا پراڊڪٽ پيڪنگنگ.

آن لائين وسيلا: سرڪاري SIEMENS جو دورو ڪريو webپراڊڪٽ دستاويزن، اڪثر پڇيا ويندڙ سوالن، ۽ سپورٽ رابطن لاءِ سائيٽ.
