تعارف
The Performance Tool W181 Brake Fluid Moisture Tester is designed to accurately determine the moisture content in automotive brake fluid. This device helps ensure optimal vehicle safety by providing clear indications of fluid degradation, which can lead to reduced braking performance. It features a 5-LED readout for easy interpretation of moisture levels and is specifically calibrated for DOT 4 brake fluid, with applicability for estimates with DOT 3 brake fluid. It is not suitable for use with DOT 5 brake fluid.
حفاظت جي ڄاڻ
- Always wear appropriate personal protective equipment, including safety glasses and gloves, when handling brake fluid.
- Brake fluid is corrosive and can damage painted surfaces. Avoid contact with vehicle paintwork.
- Keep the tester and brake fluid out of reach of children and pets.
- Do not ingest brake fluid. In case of accidental ingestion, seek immediate medical attention.
- Dispose of used brake fluid and batteries according to local environmental regulations.
- Ensure the vehicle is on a level surface and the engine is off before performing any tests.
پيڪيج مواد
- 1 x Performance Tool W181 Brake Fluid Moisture Tester
- 1 x AAA بيٽري
سيٽ اپ ڪريو
The Performance Tool W181 Brake Fluid Moisture Tester comes with a 1-AAA battery included, allowing for immediate use. To install or replace the battery:
- Unscrew the cap at the top of the tester to reveal the battery compartment.
- Insert one AAA battery, ensuring the correct polarity (+/-) as indicated inside the compartment.
- Securely screw the cap back onto the tester.
آپريٽنگ هدايتون
Follow these steps to accurately test the moisture content of your brake fluid:
- Ensure the tester is clean and dry before use.
- Remove the cap from the tester to expose the probe.
- Locate the vehicle's brake fluid reservoir. Carefully remove the reservoir cap.
- Dip the probe of the tester into the brake fluid, ensuring the two metal pins are fully submerged. Avoid touching the sides or bottom of the reservoir.
- Press the button on the tester to activate the LED indicators.
- Observe the illuminated LEDs to determine the moisture content. Refer to the interpretation guide below.
- After testing, wipe the probe clean with a dry, lint-free cloth. Do not use water or solvents.
- Replace the brake fluid reservoir cap and the tester cap.

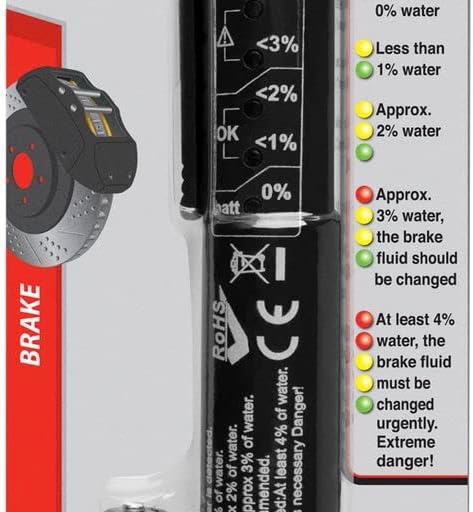

LED اشارو تعبير:
- گرين لائيٽ: Battery OK / No water detected.
- Green / Yellow LED: Less than 1% water.
- Green / Yellow / Yellow LED: Approximately 2% water.
- Green / Yellow / Yellow / Red LED: Approximately 3% water. A change of liquid is recommended.
- Green / Yellow / Yellow / Red / Red LED: At least 4% water. An urgent change of liquid is necessary. Danger!
نوٽ: This tester is calibrated for DOT 4 brake fluid. While it can provide estimates for DOT 3 fluid, it is not compatible with DOT 5 brake fluid.
سار سنڀال
- صفائي: After each use, thoroughly wipe the probe with a clean, dry, lint-free cloth. Do not use water, solvents, or abrasive cleaners, as these can damage the sensor.
- بيٽري مٽائڻ: Replace the AAA battery when the "batt" indicator light (if present and separate from moisture indicators) or the green "OK" light does not illuminate, or if readings become inconsistent.
- اسٽوريج: Store the tester in a cool, dry place, away from direct sunlight and extreme temperatures. Always replace the protective cap on the probe when not in use to prevent damage and contamination.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Tester does not turn on. | بيٽري ختم يا غلط طور تي نصب ٿيل. | Check battery polarity or replace with a new AAA battery. |
| Inconsistent or erratic readings. | Probe not fully submerged, dirty probe, or low battery. | Ensure probe is fully submerged. Clean probe thoroughly. Replace battery. |
| All LEDs illuminate immediately upon dipping. | Probe may be touching the bottom or side of the reservoir, or fluid is extremely contaminated. | Reposition the probe to ensure it is suspended in the fluid. If problem persists, fluid is likely highly contaminated and requires immediate change. |
| No LEDs illuminate when probe is dipped. | Tester not activated, or fluid has extremely low conductivity (unlikely for brake fluid). | Ensure the activation button is pressed. Verify battery is functional. |
وضاحتون
- ماڊل: W181
- برانڊ: ڪارڪردگي جو اوزار
- طول و عرض (L x W x H): 8.6 x 2.75 x 1 انچ (21.8 x 7 x 2.5 سينٽي)
- وزن: تقريبن 2.4 آونس (68 گرام)
- طاقت جو ذريعو: 1 x AAA بيٽري (شامل)
- Brake Fluid Compatibility: Calibrated for DOT 4, suitable for estimates with DOT 3. Not for use with DOT 5.
- پڙھيو 5 LED indicators for moisture percentage
- مواد: Steel, plastic, or a combination of materials
- اصليت جو ملڪ: تائيوان
- UPC: 039564045981، 632963511912
وارنٽي ۽ سپورٽ
For warranty information or technical support regarding your Performance Tool W181 Brake Fluid Moisture Tester, please refer to the manufacturer's official webسائيٽ تي وڃو يا انهن جي ڪسٽمر سروس ڊپارٽمينٽ سان رابطو ڪريو. ڪنهن به وارنٽي دعوائن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
Manufacturer: Wilmar Corporation
