GIGABYTE GA-H77N-WIFI ميني ITX مدر بورڊ يوزر مينوئل

1. تعارف

This manual provides detailed instructions for the installation, operation, and maintenance of your GIGABYTE GA-H77N-WIFI Mini ITX Motherboard. This motherboard supports 3rd and 2nd generation Intel Core processors with an LGA1155 socket, features Intel H77 chipset, integrated Wi-Fi and Bluetooth 4.0, dual Gigabit LAN, and multiple display outputs including HDMI and DVI.

2. سيٽ اپ ۽ تنصيب

2.1 مدر بورڊ لي آئوٽ

شڪل 1: مٿي کان هيٺ view of the GA-H77N-WIFI motherboard, showing CPU socket, DIMM slots, and various connectors.

Familiarize yourself with the layout of the motherboard before proceeding with installation. Refer to Figure 1 for a general overview جزو جي جڳهه جو.

2.2 CPU تنصيب

1. مدر بورڊ تي LGA1155 CPU ساکٽ ڳوليو.
2. لوڊ ليور کي نرميءَ سان مٿي ڪريو ۽ سي پي يو ساڪٽ ڪَوَر کوليو.
3. سي پي يو تي ٽڪنڊي نشان کي ساکٽ تي لاڳاپيل نشان سان ترتيب ڏيو. احتياط سان سي پي يو کي ساکٽ ۾ رکو بغير ان کي زور ڏيڻ جي.
4. Close the socket cover and press down the load lever until it locks into place.
5. سي پي يو ڪولر کي ان جي ٺاهيندڙ جي هدايتن مطابق انسٽال ڪريو.

2.3 ميموري (RAM) جي انسٽاليشن

1. Locate the two DDR3 DIMM sockets.
2. DIMM ساکٽ جي ٻنهي پاسن تي ڪلپس کوليو.
3. DDR3 ميموري ماڊيول تي نشان کي DIMM ساکٽ ۾ چاٻي سان ترتيب ڏيو.
4. Insert the memory module firmly into the socket until the clips snap into place. Ensure both clips are closed.

2.4 اسٽوريج ڊوائيس جي تنصيب

Connect your SATA 6Gb/s storage devices (HDDs, SSDs) to the SATA ports on the motherboard using SATA data cables. Ensure the power cables from your power supply are also connected to the storage devices.

2.5 پاور ڪنيڪشن

1. Connect the 24-pin ATX main power connector from your power supply to the corresponding socket on the motherboard.
2. Connect the 4-pin ATX 12V power connector to its socket, typically located near the CPU.

2.6 Front Panel and Peripheral Connections

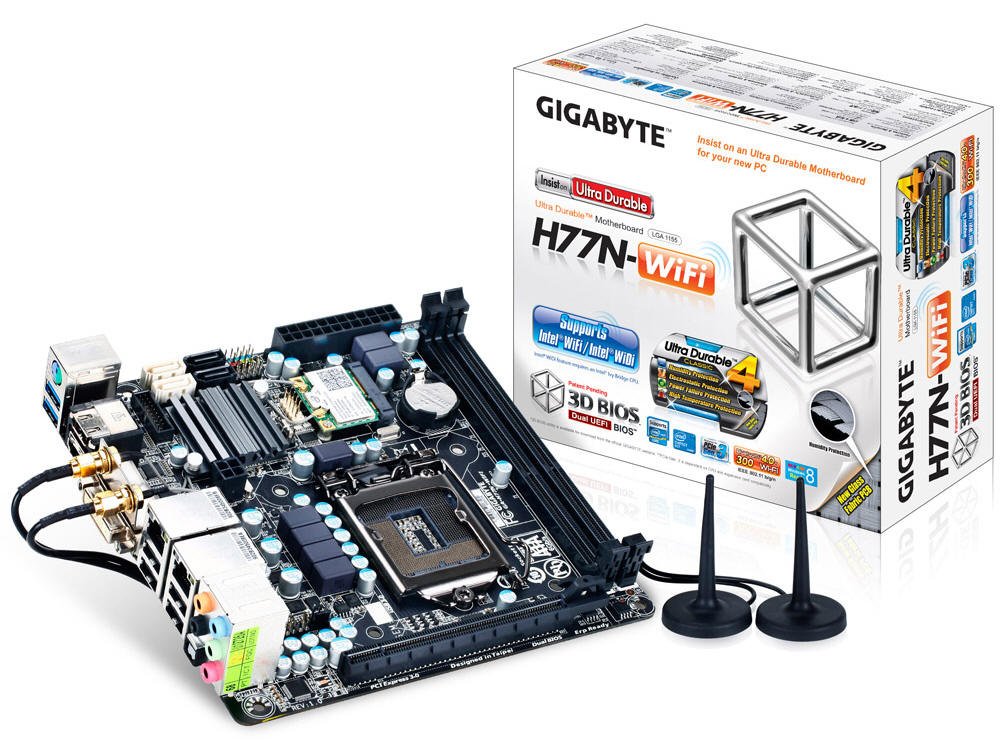

شڪل 2: زاويه view of the GA-H77N-WIFI motherboard, showing various onboard headers and rear I/O ports.

Connect the front panel headers (power switch, reset switch, HDD LED, power LED, front audio, front USB) from your computer case to the corresponding pins on the motherboard. Refer to the motherboard's printed labels for correct orientation.

2.7 Rear I/O Panel Connections

Figure 3: Rear I/O panel of the GA-H77N-WIFI motherboard, showing connectivity options.

Connect your peripherals to the rear I/O panel (Figure 3):

• USB بندرگاهن: Connect USB devices such as keyboard, mouse, and external drives.
• وڊيو آئوٽ پُٽ: Connect your monitor(s) to the HDMI or DVI ports.
• LAN بندرگاهن Connect Ethernet cables for network access.
• آڊيو جڪس: Connect speakers, headphones, or microphones.
• وائرليس اينٽينا: Screw in the included Wi-Fi antennas to the connectors.

3. آپريٽنگ هدايتون

3.1 BIOS/UEFI ترتيب

Upon initial power-on, press the ڊي ايل key during the POST (Power-On Self-Test) to enter the BIOS Setup Utility. The GIGABYTE 3D BIOS (Dual UEFI) provides an intuitive interface for configuring system settings, boot order, and hardware parameters.

3.2 آپريٽنگ سسٽم جي انسٽاليشن

Insert your operating system installation media (USB drive or DVD) and set the boot priority in the BIOS to boot from the installation media. Follow the on-screen instructions to install your preferred operating system.

3.3 ڊرائيور لڳائڻ

After installing the operating system, install the necessary drivers for the motherboard components. These typically include chipset drivers, graphics drivers (if using integrated graphics), audio drivers, LAN drivers, and Wi-Fi/Bluetooth drivers. Drivers are usually provided on a support CD or can be downloaded from the GIGABYTE webسائيٽ.

3.4 نيٽورڪ جي ٺاھ جوڙ

The motherboard features dual Realtek Gigabit Ethernet LAN for wired network connections and an Intel Wi-Fi module for wireless connectivity. Configure your network settings within your operating system. For Wi-Fi, ensure the antennas are connected and select your network from the available options.

3.5 GIGABYTE On/Off Charge

The GIGABYTE On/Off Charge feature allows for faster charging of USB devices, even when the PC is turned off or in standby mode. Ensure the necessary drivers/utilities are installed for this feature to function.

4. سار سنڀال

4.1 صفائي

Regularly clean the interior of your computer case to prevent dust buildup, which can lead to overheating. Use compressed air to remove dust from components, especially heatsinks and fans. Ensure the system is powered off and unplugged before cleaning.

4.2 BIOS and Driver Updates

وقتي طور تي GIGABYTE چيڪ ڪريو website for updated BIOS versions and drivers. Updating these can improve system stability, performance, and compatibility. Follow the instructions provided by GIGABYTE carefully when performing updates.

5. مسئلا حل ڪرڻ

جيڪڏهن توهان کي مسئلا درپيش اچن ٿا، ته هيٺ ڏنل بنيادي مسئلن جي حل جي قدمن تي غور ڪريو:

• طاقت ناهي: Check all power connections from the power supply to the motherboard and components. Ensure the power supply switch is on.
• ڪابه ڊسپلي: Verify that the monitor is connected correctly to the motherboard's video output (HDMI/DVI) and is powered on. Try reseating the memory modules.
• سسٽم جي عدم استحڪام: Ensure all components are properly seated. Check for overheating by monitoring CPU and system temperatures. Update BIOS and drivers.
• نيٽ ورڪ مسئلا: Verify Ethernet cables are securely connected. Check Wi-Fi antenna connections. Ensure network drivers are installed and configured correctly.
• پردي جي سڃاڻپ نه ٿي: Ensure USB devices are connected to functional ports. Check device manager for driver issues.

For more advanced troubleshooting or persistent issues, refer to the GIGABYTE support webسائيٽ تي وڃو يا انهن جي ٽيڪنيڪل سپورٽ سان رابطو ڪريو.

6. وضاحتون

7. وارنٽي ۽ سپورٽ

For information regarding product warranty, please refer to the warranty card included with your motherboard or visit the official GIGABYTE website. For technical support, driver downloads, and BIOS updates, please visit the GIGABYTE support portal:

GIGABYTE Official Support
