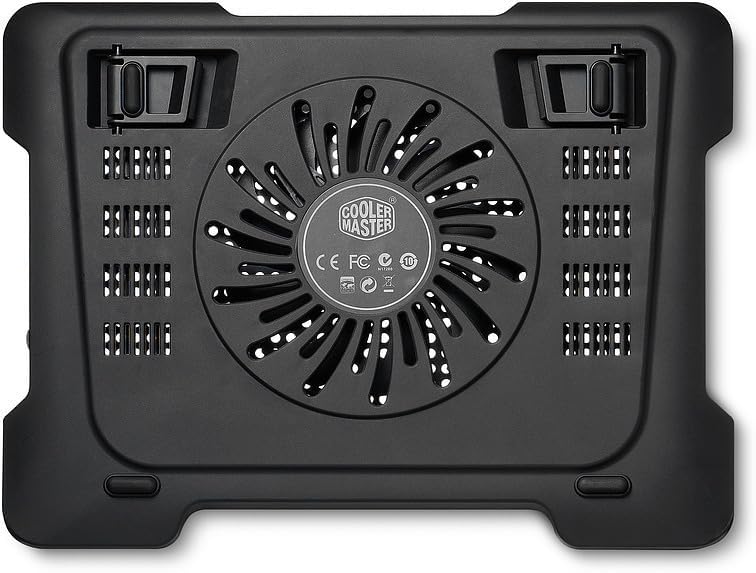

Cooler Master Notepal X-Lite II Laptop Cooling Pad (Model R9-NBC-XL2K-GP) Instruction Manual

1. کانview

The Cooler Master Notepal X-Lite II is a laptop cooling pad designed to enhance the thermal performance of laptops up to 15.6 inches. It features a silent 140mm fan and an integrated USB hub for convenient connectivity. The ergonomic design provides a comfortable typing angle, making it suitable for extended use.

This cooling pad is engineered to provide efficient heat dissipation, preventing your laptop from overheating during intensive tasks or prolonged usage. Its slim and lightweight design ensures portability, while the adjustable height settings offer improved ergonomics.

2. سيٽ اپ

1. کولنگ پيڊ کوليو: Carefully remove the Notepal X-Lite II from its packaging.
2. کولنگ پيڊ کي پوزيشن ڪريو: Place the cooling pad on a flat, stable surface where you intend to use your laptop.
3. اوچائي ترتيب ڏيو (اختياري): The cooling pad features adjustable feet at the rear. Lift the pad and extend the feet to your desired ergonomic height. There are multiple height settings available to suit your preference.
4. پنھنجي ليپ ٽاپ کي جڳھ ڪريو: Carefully place your laptop on top of the cooling pad. Ensure it is centered and stable. The front of the pad has a slightly curved design for wrist comfort.
5. USB پاور سان ڳنڍيو: Locate the mini USB port on the cooling pad and the USB 2.0 cable. Connect the mini USB end to the cooling pad and the standard USB-A end to an available USB port on your laptop. The cooling pad will draw power from your laptop's USB port.
6. Utilize USB Hub: The cooling pad includes two additional USB 2.0 ports. These can be used to connect other USB devices, such as a mouse, keyboard, or flash drive, without occupying additional ports on your laptop.

3. آپريٽنگ هدايتون

1. پاور آن / آف: The cooling pad is powered by your laptop's USB port. Once connected, the fan should begin operating automatically. There is no separate power switch on this model.
2. فين آپريشن: The integrated 140mm fan operates silently to draw heat away from your laptop's underside.
3. خاموش آپريشن: The fan is designed for quiet operation, ensuring minimal distraction during use.

4. سار سنڀال

Regular maintenance ensures optimal performance and longevity of your cooling pad.

• Cleaning the Fan and Grille: Over time, dust can accumulate on the fan blades and the metal mesh grille, reducing cooling efficiency.
  • Disconnect the cooling pad from your laptop.
  • Use a can of compressed air to blow away dust from the fan and the grille.
  • Alternatively, use a soft, dry cloth or a small brush to gently clean the surfaces. Avoid using liquid cleaners directly on the fan or electronic components.
• ڪيبل جو انتظام: پڪ ڪريو ته USB ڪيبل نقصان کان بچڻ لاءِ ڦاسي يا تنگ نه آهي.
• اسٽوريج: When not in use, store the cooling pad in a clean, dry place. The USB cable can be neatly tucked away in the designated storage area underneath the pad for portability.

5. مسئلا حل ڪرڻ

• نه ڦرندڙ پنکڙو:
  • Ensure the USB cable is securely connected to both the cooling pad and a functioning USB port on your laptop.
  • Try connecting the cooling pad to a different USB port on your laptop or another device to rule out a faulty port.
  • Check for any obstructions (e.g., dust, debris) preventing the fan from spinning. Clean as per maintenance instructions.
• ناکافي کولنگ:
  • Verify that the fan is spinning.
  • Ensure your laptop's ventilation grilles are aligned with the cooling pad's fan area for optimal airflow.
  • Clean any dust from the cooling pad's fan and your laptop's internal fans/vents.
  • Ensure the cooling pad is on a flat, hard surface to allow proper air intake from below. Avoid placing it on soft surfaces like beds or couches.
• Unusual Noise from Fan:
  • پنکڙي جي بليڊن ۾ ڪنهن به غير ملڪي شيءِ يا ملبي جي پڪڙڻ جي جانچ ڪريو.
  • If the noise persists after cleaning, the fan may be worn. Contact Cooler Master support for assistance.

6. وضاحتون

7. وارنٽي ۽ سپورٽ

وارنٽي جي معلومات ۽ ٽيڪنيڪل سپورٽ لاءِ، مھرباني ڪري سرڪاري ڪولر ماسٽر ڏانھن رجوع ڪريو. webسائيٽ تي وڃو يا سڌو سنئون انهن جي ڪسٽمر سروس سان رابطو ڪريو. ڪنهن به وارنٽي دعوائن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.

ڪولر ماسٽر آفيشل Webسائيٽ: www.coolemaster.com
