The Performance Tool W83110 Heater Hose Disconnect Tool is designed for the efficient and safe separation of spring lock connectors found in automotive air conditioning, fuel, and transmission lines. Its specialized design helps to deflect spray when disconnecting lines, enhancing user safety.

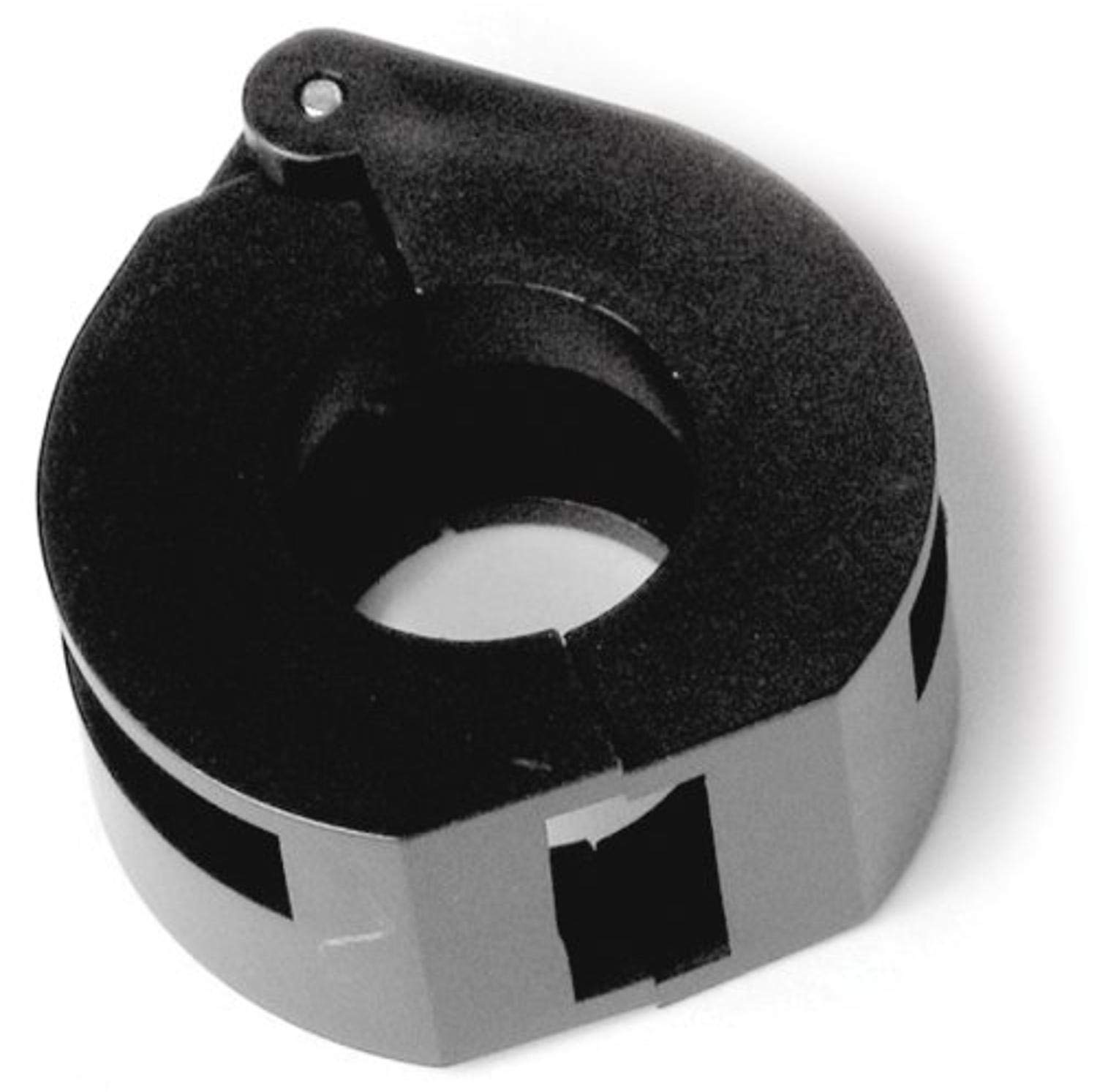

Image: The Performance Tool W83110 Heater Hose Disconnect Tool. This image shows the black, circular tool with a hinged lever on top, designed to fit around automotive lines for disconnection.
اهم خاصيتون
- ورسٽائل ايپليڪيشن: Separates spring lock connectors in air conditioning, fuel, and transmission lines.
- حفاظت ڊيزائن: Features a spring-loaded closed clamp that helps deflect spray during line disconnection.
- Specific Size: Designed for 5/8" lines.
سيٽ اپ ڪريو
The Performance Tool W83110 is a hand tool that requires no assembly or complex setup. Ensure the tool is clean and free of debris before use. Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working with automotive fluids and systems.
آپريٽنگ هدايتون
- ڪنيڪٽر جي سڃاڻپ ڪريو: Locate the spring lock connector on the air conditioning, fuel, or transmission line that needs to be disconnected. Ensure it is a 5/8" size connector.
- اوزار کي پوزيشن ڪريو: Open the disconnect tool and position it around the line, ensuring the tool's opening aligns with the spring lock mechanism.
- Engage the Tool: Close the tool around the line. The spring-loaded clamp should securely hold the tool in place and engage the spring lock.
- Disconnect the Line: Apply firm, steady pressure to the tool while simultaneously pulling the line apart. The tool will compress the spring lock, allowing the line to separate. Be prepared for potential fluid spray, which the tool is designed to help deflect.
- Remove the Tool: Once the line is disconnected, open the tool and remove it from the line.
نوٽ: Refer to your vehicle's service manual for specific instructions regarding the disconnection of air conditioning, fuel, or transmission lines, as procedures may vary by vehicle model.
سار سنڀال
- صفائي: After each use, wipe the tool clean with a dry cloth to remove any fluid residue or dirt. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
- اسٽوريج: Store the tool in a dry environment to prevent corrosion. Keep it away from excessive heat or direct sunlight.
- چڪاس: Periodically inspect the tool for any signs of wear, damage, or deformation. Ensure the hinge mechanism operates smoothly. Do not use a damaged tool.
مشڪلاتون
This tool is mechanical and has few points of failure. Most issues arise from improper application or incorrect sizing.
- Tool does not fit the line:
- Ensure the line connector is 5/8". This tool is specifically designed for that size.
- Check for obstructions or debris on the line or within the tool's opening.
- Line does not disconnect:
- Verify the tool is fully engaged with the spring lock mechanism.
- Apply firm and steady pressure. Avoid jerky movements.
- Ensure the line is not under excessive pressure. Consult a professional if unsure.
- اوزار سخت يا چپچپا محسوس ٿئي ٿو:
- Clean the tool thoroughly, especially around the hinge and moving parts.
- Apply a small amount of light machine oil to the hinge if necessary, then wipe off excess.
وضاحتون
| وصف | تفصيل |
|---|---|
| برانڊ | ڪارڪردگي جو اوزار |
| ماڊل نمبر | W83110 |
| شيءِ جو وزن | 0.32 اونس |
| پيداوار جي ماپ | 7.2 x 2.9 x 1.2 انچ |
| اصل جو ملڪ | تائيوان |
| درخواست | Air conditioning, fuel, and transmission line spring lock connectors |
| ماپ | 5/8" |
وارنٽي ۽ سپورٽ
For information regarding product warranty, returns, or technical support, please contact Performance Tool directly or refer to their official webسائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.
ٺاهيندڙ: ڪارڪردگي جو اوزار
Webسائيٽ: Visit the Performance Tool Store on Amazon (عام برانڊ جي معلومات لاءِ)
