Performance Tool W2977 CAN OBD II Scanner Tool User Manual

پيداوار ختمview

The Performance Tool W2977 CAN OBD II Scanner Tool is an essential diagnostic device for vehicle owners and professionals. It provides a straightforward way to interact with your vehicle's On-Board Diagnostics (OBD-II) system, allowing you to quickly identify and resolve issues indicated by the Check Engine Light.

اهم خاصيتون:

• گاڏين جي وسيع ڪوريج: Compatible with most 1996 and newer American, European, and Asian vehicles.
• Powerful Scan Tool: Reads and erases Diagnostic Trouble Codes (DTCs) to pinpoint engine and emissions system problems.
• استعمال ڪندڙ-دوست انٽرفيس: Simple operation with clear display and intuitive buttons.
• Emissions Readiness Check: Verifies your vehicle's emissions system status for compliance.
• Full OBD2 Protocol Support: Includes support for the Controller Area Network (CAN) protocol.
• Note: Does not work with 2007 Chevy Silverado models.

سيٽ اپ گائيڊ

Follow these steps to set up and begin using your W2977 CAN OBD II Scanner Tool:

1. OBD-II پورٽ ڳوليو: OBD-II پورٽ عام طور تي گاڏي جي ڊرائيور جي پاسي ڊيش بورڊ جي هيٺان واقع هوندو آهي. جيڪڏهن توهان کي اهو نه ملي ته پنهنجي گاڏي جي مالڪ جي مينوئل جو حوالو ڏيو.
2. اسڪينر کي ڳنڍيو: Plug the scanner's cable connector firmly into the vehicle's OBD-II port. Ensure a secure connection.

Image: Connecting the scanner to the vehicle's OBD-II port.

Image: The W2977 scanner held in hand, connected and ready for use.

Once connected, the scanner will power on automatically. Ensure your vehicle's ignition is in the 'ON' position or the engine is running, as required for proper communication.

آپريٽنگ هدايتون

Reading Diagnostic Trouble Codes (DTCs)

1. With the scanner connected and powered on, the display will show 'C.A.N. OBD2'.


Image: Initial display screen of the scanner.

2. کي دٻايو داخل ڪريو button to initiate the scan. The display will show 'SCAN...' as it communicates with the vehicle.
3. Once the scan is complete, the scanner will display 'Menu: 1. DTC'. Press داخل ڪريو جي طرف view the Diagnostic Trouble Codes.


Image: Menu option to view ڊي ٽي سيز.

4. If codes are present, they will be displayed. Use the سکرول button to navigate through multiple codes if applicable.
5. If 'NO CODES' is displayed, it means no active Diagnostic Trouble Codes are currently stored in the vehicle's computer.


Image: Display indicating no trouble codes found.

Erasing Diagnostic Trouble Codes (DTCs)

Note: Erasing DTCs will turn off the Check Engine Light, but it will not fix the underlying problem. Ensure the issue has been resolved before clearing codes.

1. From the main menu, use the سکرول button to navigate to 'Menu: 2. ERASE'.

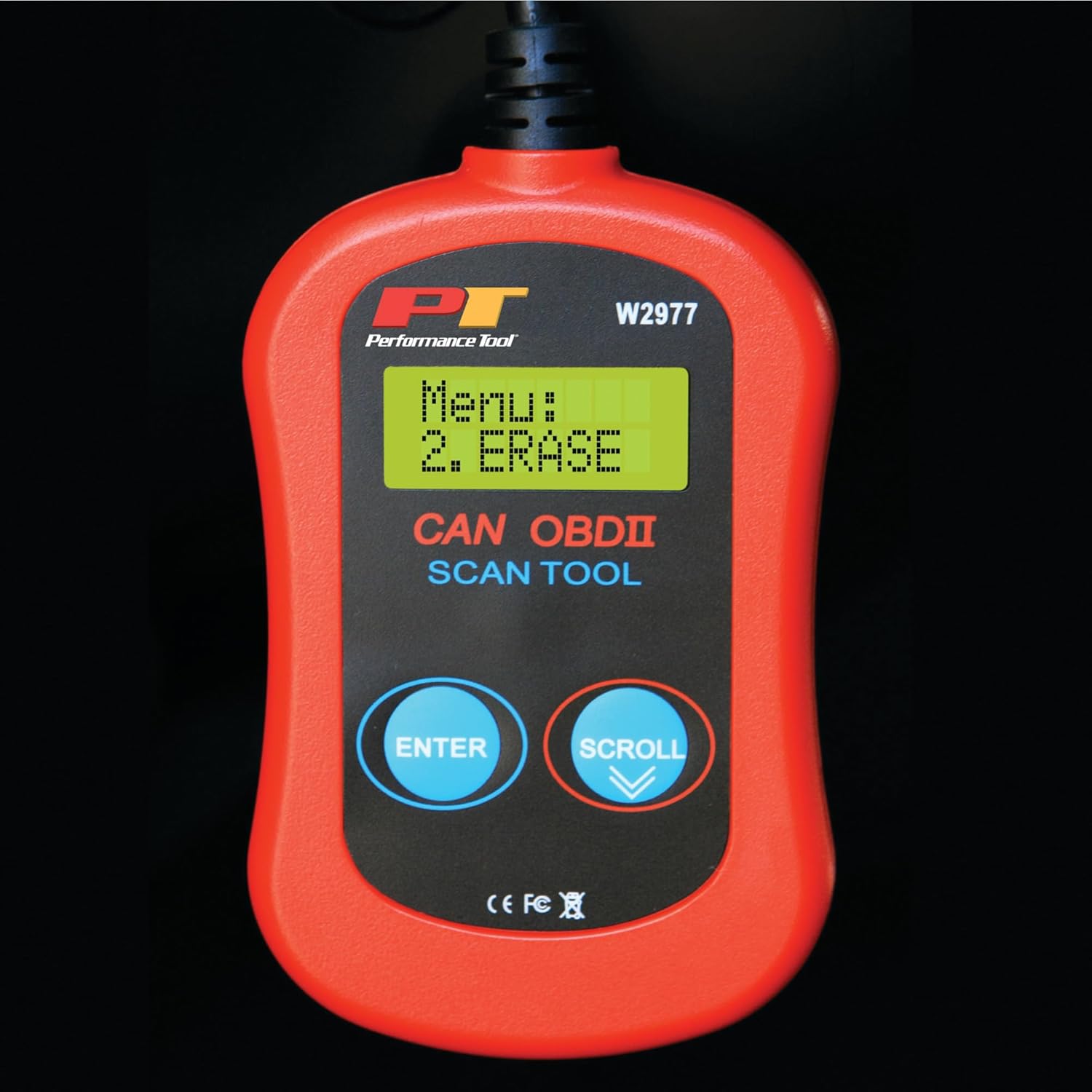

Image: Menu option to erase DTCs.

2. کي دٻايو داخل ڪريو button. The scanner will ask 'ERASE? YES NO'.
3. دٻايو داخل ڪريو again to confirm 'YES'. The display will show 'ERASE DONE!' indicating the codes have been cleared.

سار سنڀال

To ensure the longevity and proper functioning of your Performance Tool W2977 scanner, follow these maintenance guidelines:

• صفائي: نرم، سڪل ڪپڙي سان ڊوائيس کي صاف ڪريو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
• اسٽوريج: اسڪينر کي انتهائي گرمي پد ۽ سڌي سج جي روشني کان پري صاف، سڪل ماحول ۾ رکو.
• ڪيبل جي سنڀال: Avoid kinking or sharply bending the cable. Store it neatly coiled to prevent damage.

مشڪلاتون

عام مسئلا:

• 'LINK ERROR!' Displayed:
  This indicates a communication issue between the scanner and the vehicle.


Image: Display indicating a communication error.

• Ensure the scanner cable is securely connected to the OBD-II port.
• Verify the vehicle's ignition is in the 'ON' position or the engine is running.
• Check if your vehicle is compatible with OBD-II (most vehicles 1996 and newer).
• Try connecting the scanner to a different compatible vehicle to rule out a scanner issue.
• اسڪينر آن نٿو ٿئي:

  • The scanner draws power from the vehicle's OBD-II port. Ensure the connection is secure.
  • Check the vehicle's fuse for the OBD-II port (often labeled 'CIGAR' or 'AUX POWER').
• No Codes Found, But Check Engine Light is On:

  • Some intermittent issues may not store a permanent code immediately. Drive the vehicle for a short period and re-scan.
  • Ensure the vehicle's ignition is on or engine is running during the scan.

ٽيڪنيڪل وضاحتون

وارنٽي ۽ سپورٽ

The Performance Tool W2977 CAN OBD II Scanner Tool comes with a 1-year limited warranty. For detailed warranty information and terms, please refer to the official documentation.

For further assistance, troubleshooting, or to access the complete user manual, please refer to the official PDF document:

يوزر مينوئل (PDF) ڊائون لوڊ ڪريو

توھان پڻ دورو ڪري سگھو ٿا Performance Tool Store on Amazon وڌيڪ پراڊڪٽ جي معلومات ۽ سپورٽ وسيلن لاءِ.
