CARISMA RC M10DT/ M10SC/ M10DB Main Chassis Instruction Manual

تعارف

This manual provides essential information for the installation, maintenance, and general understanding of your CARISMA RC M10DT, M10SC, or M10DB Main Chassis (Part Number 15094). This component is a critical structural part of your remote-controlled vehicle, designed for durability and performance.

حفاظت جي ڄاڻ

WARNING: This product is NOT A TOY. It is intended for users aged 14 years and above. Adult supervision is recommended for younger users within this age range. Always handle with care and follow all assembly instructions to prevent injury or damage.

پيداوار ختمview

The main chassis serves as the foundational frame for your CARISMA RC M10DT, M10SC, or M10DB vehicle. It provides the mounting points for all other components, including the suspension, drivetrain, electronics, and body. Its design is crucial for the vehicle's structural integrity, weight distribution, and overall handling characteristics.

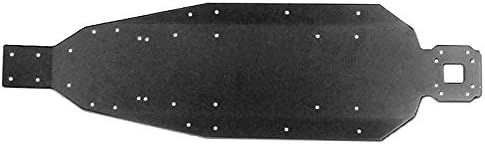

شڪل 1: مٿي کان هيٺ view of the CARISMA RC M10DT/ M10SC/ M10DB Main Chassis. This image displays the flat, elongated chassis plate with numerous pre-drilled holes for mounting various RC components such as suspension arms, motor, battery, and steering servo. The front and rear sections show specific cutouts and mounting patterns for differential housings and bumper attachments.

سيٽ اپ ۽ تنصيب

Installing the main chassis requires careful attention to detail. Refer to your specific CARISMA M10DT, M10SC, or M10DB vehicle's assembly manual for detailed, step-by-step instructions. The following are general guidelines:

1. تياري: Ensure your workspace is clean and organized. Have all necessary tools (e.g., screwdrivers, hex wrenches) readily available.
2. جزو جي منتقلي: Carefully remove all components from the old chassis (if replacing) or unpackage new components. This includes suspension arms, shock towers, gearbox assemblies, motor mount, battery tray, and electronics.
3. چڙهڻ: Attach components to the new chassis using the appropriate screws and hardware. Pay close attention to screw lengths and torque specifications to avoid stripping threads or overtightening.
4. ترتيب ڏيڻ: Ensure all components, especially suspension and drivetrain parts, are correctly aligned and move freely without binding.
5. فائنل چيڪ: Before operating the vehicle, double-check all fasteners for tightness and ensure no parts are loose.

سار سنڀال

Regular maintenance of your chassis will extend its lifespan and ensure optimal performance:

• صفائي: After each use, especially in dirty or dusty conditions, clean the chassis to remove dirt, debris, and moisture. Use a soft brush, compressed air, or a damp ڪپڙو. سخت ڪيميائي کان بچاء.
• چڪاس: Periodically inspect the chassis for cracks, bends, or signs of stress, particularly around mounting points. Check for loose screws and tighten them as needed.
• هارڊويئر: Ensure all screws, nuts, and bolts are secure. Replace any stripped or damaged hardware immediately.

مشڪلاتون

Issues related to the chassis are typically structural. Here are common problems and their solutions:

• Vehicle Handling Issues: If the vehicle pulls to one side or handles inconsistently, inspect the chassis for any bending or twisting. A bent chassis can significantly affect suspension geometry.
• لوز اجزاء: If parts like suspension arms or gearboxes feel loose, check the chassis mounting points for damage or stripped screw holes. Use thread-locking compound on metal-to-metal screws where appropriate (consult your vehicle manual).
• Cracks or Breaks: In the event of a hard impact, the chassis may crack or break. This requires replacement of the chassis.

وضاحتون

وارنٽي ۽ سپورٽ

For specific warranty information regarding this CARISMA product, please refer to the documentation included with your original CARISMA RC vehicle or contact CARISMA customer support directly. For technical assistance or spare parts inquiries, please visit the official Carisma RC website or consult your authorized dealer.
