Performance Tool W2446 3D LED Firepoint Flashlight User Manual

تعارف

Thank you for choosing the Performance Tool W2446 3D LED Firepoint Flashlight. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new flashlight. Designed for durability and versatility, this flashlight features a super bright Nichia LED, multiple output modes, and a robust aircraft-grade aluminum construction.

شڪل 1: Performance Tool W2446 3D LED Firepoint Flashlight. This image shows the sleek black body of the flashlight with a textured grip section and a green ring near the LED head.

اهم حفاظتي ڄاڻ

• اکين جي حفاظت: Do not look directly into the LED light or shine it directly into the eyes of people or animals. The intense light can cause temporary vision impairment or permanent eye damage.
• بيٽري جي حفاظت:
  • Use only the specified battery type (3-D batteries).
  • پراڻي ۽ نئين بيٽرين، يا بيٽرين جي مختلف قسمن کي گڏ نه ڪريو.
  • Ensure correct battery polarity (+/-) when installing.
  • جيڪڏهن ٽارچ ڊگهي عرصي تائين استعمال نه ٿيندي ته جيئن ليڪيج کي روڪي سگهجي، ته پوءِ بيٽريون ڪڍي ڇڏيون.
  • مقامي ضابطن جي مطابق ذميواري سان استعمال ٿيل بيٽرين کي ختم ڪريو.
• گرمي: The flashlight head may become warm during prolonged use. This is normal. Avoid prolonged direct contact with hot surfaces.
• ٻار: ٻارن جي پهچ کان پري رکو. هي ڪو رانديڪو ناهي.
• ماحول: Do not expose the flashlight to extreme temperatures, open flames, or immerse it in water unless specified as waterproof (this model is not specified as waterproof).

پيڪيج مواد

Please check the package contents to ensure all items are present and in good condition.

• Performance Tool W2446 3D LED Firepoint Flashlight (x1)
• D-Cell Batteries (x3)

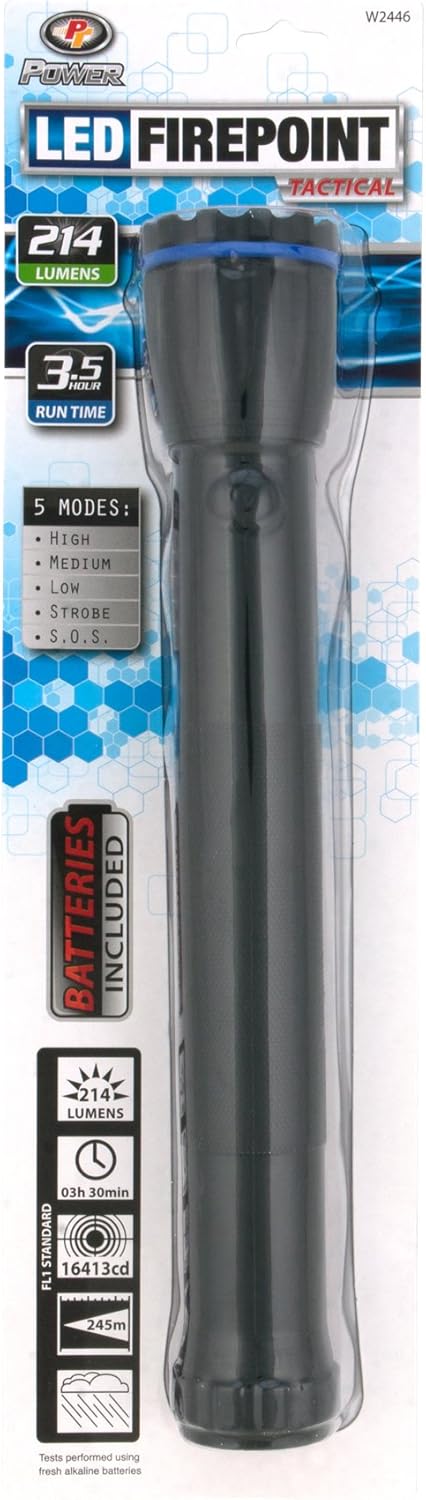

شڪل 2: Packaging of the Performance Tool W2446 Flashlight. This image displays the retail packaging, highlighting features like 214 lumens, 3.5-hour run time, 5 modes, and "Batteries Included".

سيٽ اپ: بيٽري لڳائڻ

Your Performance Tool W2446 flashlight requires three (3) D-cell batteries for operation. Batteries are included in the package.

1. ٽيل ڪيپ کوليو: Hold the flashlight firmly and twist the tail cap (the end opposite the light head) counter-clockwise until it detaches.
2. بيٽري داخل ڪريو: Insert three D-cell batteries into the battery compartment, ensuring the positive (+) end of each battery faces towards the flashlight head. Follow the polarity markings inside the battery tube if available.
3. Replace Tail Cap: Carefully screw the tail cap back onto the flashlight body by twisting it clockwise until it is securely tightened. Do not overtighten.
4. ٽيسٽ: Press the power button to ensure the flashlight turns on.

آپريٽنگ هدايتون

The Performance Tool W2446 flashlight features a single power button located on the side of the body, which controls both power and mode selection.

پاور آن / آف

• ٽارچ روشن ڪرڻ لاءِ ON، هڪ ڀيرو پاور بٽڻ کي دٻايو.
• ٽارچ روشن ڪرڻ لاءِ بند, press and hold the power button for approximately 1-2 seconds, or cycle through all modes until the light turns off.

آئوٽ پٽ موڊس

The flashlight offers 5 distinct output modes. To cycle through these modes, quickly press the power button repeatedly while the flashlight is on.

1. اعلي: Provides maximum brightness (200 lumens) for powerful illumination.
2. وچولي: A balanced brightness level for general use, conserving battery life.
3. گھٽ: Lowest brightness setting, ideal for close-up tasks or extended runtimes.
4. اسٽروب: A rapid flashing light, useful for signaling or disorienting.
5. SOS: Flashes the international Morse code signal for distress (three short, three long, three short flashes).

The flashlight will typically remember the last used mode when turned off and on again, but this may vary. If not, it will default to the first mode (High).

سار سنڀال

• صفائي: ٽارچ جي جسم کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
• بيٽري مٽائڻ: Replace batteries when the light dims significantly or fails to turn on. Refer to the "Setup: Battery Installation" section for instructions.
• اسٽوريج: Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period (more than a month), remove the batteries to prevent leakage and corrosion.
• LED: The Nichia LED is designed for long life and typically does not require replacement.

مشڪلاتون

وضاحتون

وارنٽي ۽ سپورٽ

For specific warranty information regarding your Performance Tool W2446 Flashlight, please refer to the documentation included with your purchase or visit the official Performance Tool webسائيٽ. وارنٽي جون شرطون ۽ ضابطا مختلف ٿي سگهن ٿا.

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Performance Tool customer support. Contact details are typically available on the product packaging or the manufacturer's official webسائيٽ.

توھان پڻ دورو ڪري سگھو ٿا Performance Tool Store on Amazon وڌيڪ پراڊڪٽ جي معلومات ۽ سپورٽ وسيلن لاءِ.
