This manual provides essential information for the safe and effective installation, operation, and maintenance of your RIELLO 3005843 Oil Burner Motor. This motor is designed for use with RIELLO F3, F5, and F10 series oil burners. Please read this manual thoroughly before attempting any procedures.
اهم حفاظتي نوٽيس: Installation and servicing of this oil burner motor should only be performed by a qualified and authorized technician. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Always disconnect power before servicing.
پيداوار ختمview

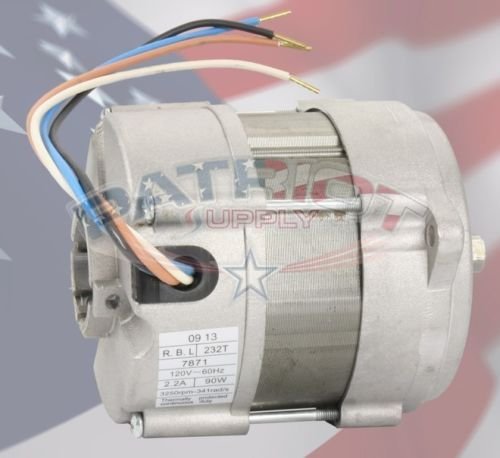

The RIELLO 3005843 (C7001034, 7001034) is a replacement motor for specific RIELLO oil burner models. It is an integral component responsible for driving the fan and fuel pump within the burner assembly, ensuring proper air-fuel mixture and combustion.
سيٽ اپ ۽ تنصيب
Installation of the RIELLO 3005843 Oil Burner Motor requires technical expertise and should only be performed by a certified HVAC or oil burner technician. Refer to the specific RIELLO oil burner service manual for detailed instructions pertaining to your burner model (F3, F5, or F10).
عام لڳائڻ جا مرحلا:
- بجلي بند ڪريو: Ensure the main power supply to the oil burner and heating system is completely disconnected at the circuit breaker or fuse box. Verify with a voltagاي جاچ ڪندڙ.
- Access Burner: Open the burner housing to access the motor assembly. This may involve removing covers or panels.
- پراڻي موٽر هٽايو: Carefully disconnect the electrical wiring from the old motor, noting the color coding and connection points. Unbolt or unmount the old motor from its position. Be aware that the fan and pump may need to be detached from the motor shaft.
- نئين موٽر لڳائڻ: Mount the new RIELLO 3005843 motor in the exact position of the old one. Ensure it is securely fastened. Reattach the fan and pump to the motor shaft, if they were removed.
- وائرنگ ڳنڍڻ: Reconnect the electrical wiring to the new motor, matching the color codes and terminals precisely. Refer to the burner's wiring diagram if available.
- Reassemble Burner: Close and secure all burner covers and panels.
- ٽيسٽ سسٽم: Restore power to the burner. Perform a functional test according to the burner manufacturer's guidelines to ensure proper operation, including ignition, flame sensing, and safety cut-offs.
آپريٽنگ هدايتون
The RIELLO 3005843 Oil Burner Motor operates automatically as part of the oil burner's control sequence. Once properly installed and the burner is powered, the motor will engage when a call for heat is initiated by the thermostat or control system.
- Ensure the burner is receiving adequate fuel and air supply.
- Monitor the burner's operation for any unusual noises, vibrations, or odors during startup and running cycles.
- If the burner fails to ignite or operates abnormally, refer to the troubleshooting section or contact a qualified technician.
سار سنڀال
Regular maintenance helps ensure the longevity and efficient operation of your oil burner motor. All maintenance should be performed by a qualified technician.
- سالياني چڪاس: Have the motor inspected annually as part of your oil burner's routine maintenance.
- لباس لاء چيڪ ڪريو: Inspect the motor for any signs of physical damage, corrosion, or excessive wear.
- وائرنگ ڪنيڪشن: پڪ ڪريو ته سڀئي بجلي جا ڪنيڪشن صاف، تنگ، ۽ زنگ کان پاڪ آهن.
- صفائي: Keep the motor and surrounding area free from dust, dirt, and oil residue to prevent overheating and ensure proper ventilation.
- Bearing Noise: Listen for any unusual noises from the motor, which could indicate worn bearings. While the motor is a sealed unit, excessive noise warrants professional inspection.
مشڪلاتون
If you experience issues with your oil burner, the motor may be a contributing factor. Always ensure power is disconnected before inspecting components.
| علامتي | ممڪن سبب | عمل |
|---|---|---|
| موٽر شروع نٿو ٿئي | No power, faulty wiring, seized motor/bearings, control issue | Check power supply and circuit breaker. Inspect wiring connections. If motor is seized or humming but not turning, contact a qualified technician. |
| Motor runs but burner does not ignite | Fuel supply issue, ignition system fault, photocell issue, pump fault | This indicates a problem beyond the motor itself. Consult the burner's manual or a technician for diagnosis of fuel, ignition, or pump issues. |
| Excessive noise or vibration from motor | Worn bearings, loose mounting, fan imbalance | Disconnect power. Check motor mounting bolts for tightness. If noise persists, motor bearings may be failing. Contact a qualified technician for replacement. |
| موٽر اوور گرم | Poor ventilation, excessive load, internal motor fault | Ensure burner housing is clear of obstructions. Verify fan is spinning freely. If overheating continues, contact a qualified technician. |
For any issues not resolved by these steps, or if you are unsure, always contact a qualified service technician.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | 3005843 (C7001034, 7001034) |
| برانڊ | ريلو |
| مطابقت | RIELLO F3, F5, F10 Oil Burners |
| جلدtage | 120V |
| تعدد | 60Hz |
| موجوده | 2.2A |
| طاقت | 90W |
| آر پي ايم | 3250 rpm |
| پيداوار جي ماپ | Approximately 1 x 1 x 1 inches (packaging dimensions may vary) |
| شيءِ جو وزن | تقريبن 0.01 آونس |
| ٺاهيندڙ | ريليلو |
| يو پي سي | 000330058436 |
وارنٽي ۽ سپورٽ
For warranty information regarding your RIELLO 3005843 Oil Burner Motor, please refer to the documentation provided at the time of purchase or contact your seller or the manufacturer directly. Protection plans may be available from third-party providers at the point of sale.
For technical support, service, or replacement parts, please contact a qualified RIELLO service technician or your authorized RIELLO dealer. Do not attempt repairs yourself unless you are a certified professional.
ٺاهيندڙ رابطو: ريليلو
