AGPtek A3 LED آرٽ ڪرافٽ ٽريڪنگ لائيٽ پيڊ هدايت نامو

1. پراڊڪٽ ختمview

The AGPtek A3 LED Artcraft Tracing Light Pad is an ultra-thin, portable, and dimmable light pad designed for various creative and professional applications. It provides a perfectly even illuminated surface, making it ideal for tasks requiring precise tracing and viewing.

2. ڇا شامل آهي

• 1x LED Tracing Light Pad
• 1x USB اڊاپٽر
• 1x USB ڪيبل
• 1x استعمال ڪندڙ دستياب

3. سيٽ اپ

1. Connect the provided USB cable to the micro-USB port on the side of the LED Tracing Light Pad.
2. Connect the other end of the USB cable to a power source. This can be:
   • The included USB adapter, plugged into a wall outlet.
   • A computer's USB port.
   • A power bank.
3. Ensure the connection is secure. The light pad is now ready for operation.

Figure 1: Connecting the light pad to a USB power source.

Figure 2: The included USB adapter and cable.

4. آپريٽنگ هدايتون

1. پاور آن / آف: Gently touch the power button icon on the light pad to turn it on or off.
2. روشني کي ترتيب ڏيو: To adjust the brightness, touch and hold the power button. The brightness will cycle through three adjustable levels (low, medium, high). Release your finger when the desired brightness is reached. The light pad features a memory function that will recall your last brightness setting when powered on again.

Figure 3: Location of the touch-sensitive power button.

5. خاصيتون

• Ultra-Thin & Portable Design: With a thickness of only 0.24 inches and a weight of 1.4 lbs, the light pad is highly portable and easy to store or carry.
• 3-سطح جي ترتيب واري روشني: Easily switch between three brightness settings to suit your needs and the opacity of your materials.
• Tough Sensor Switch: The intuitive touch sensor allows for simple power control and brightness adjustment.
• USB طاقت: Conveniently powered via USB, allowing connection to various devices such as computers, USB wall adapters, or power banks.
• Integrated Rulers: The light pad features integrated centimeter rulers along its edges for precise measurements during your work.

Figure 4: The ultra-thin design of the light pad.

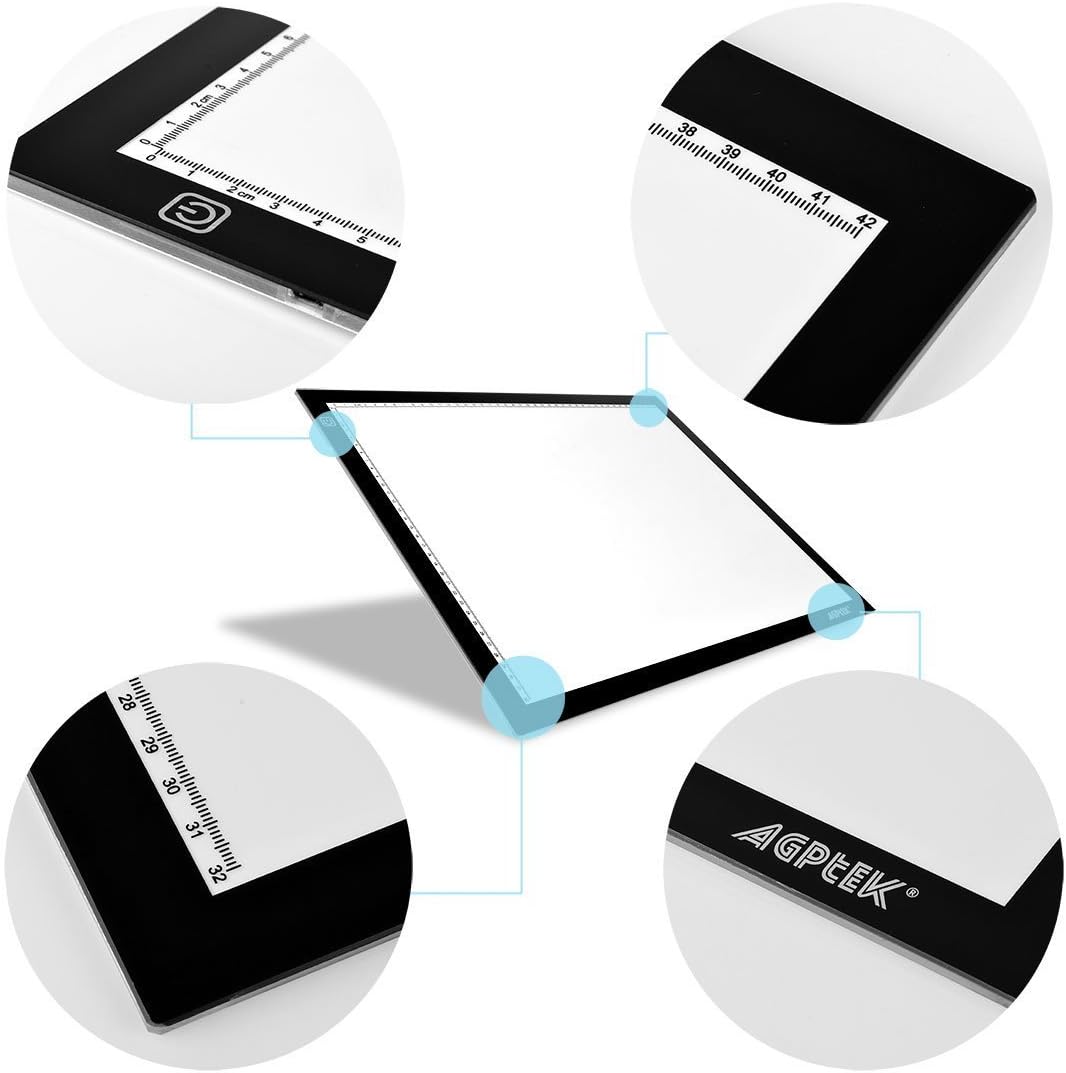

شڪل 5: تفصيلي view of the integrated rulers.

6. ايپليڪيشنون

The AGPtek A3 LED Artcraft Tracing Light Pad is versatile and suitable for a wide range of activities, including but not limited to:

• اسٽينسلنگ
• 2D انيميشن
• خطاطي
• امباس ڪرڻ
• اسڪراپ بکنگ
• ٽتوٽ جي منتقلي
• خاڪو ۽ ڊرائنگ
• Sewing projects
• داغدار گلاس
• رٻڙ
• ايڪس ري Viewing

Figure 6: The light pad in use for tracing designs.

Figure 7: The light pad facilitating detailed drawing.

7. سار سنڀال

• Clean the surface of the light pad with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• ڊوائيس کي پاڻيءَ ۾ نه ٻوڙيو يا ان کي گهڻي نمي جي سامهون نه آڻيو.
• Store the light pad in a safe place to prevent scratches or damage to the surface.

8. مسئلا حل ڪرڻ

• Light Pad does not turn on: Ensure the USB cable is securely connected to both the light pad and a functioning power source. Try a different USB port or power adapter if necessary.
• غير مطابقت واري روشني: Ensure the touch sensor is clean and free from obstructions. Try adjusting the brightness again by touching and holding the power button.

9. وضاحتون

10. وارنٽي ۽ سپورٽ

For any questions, technical support, or warranty inquiries regarding your AGPtek A3 LED Artcraft Tracing Light Pad, please refer to the contact information provided in your product packaging or visit the official AGPTEK webسائيٽ.
