1. تعارف
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Daitsu ADDH10 Digital Dehumidifier. Please read these instructions thoroughly before using the appliance and retain them for future reference.
The Daitsu ADDH10 is designed to reduce humidity levels in indoor environments, helping to prevent mold, mildew, and other moisture-related issues. It features a digital display and automatic functions for user convenience.

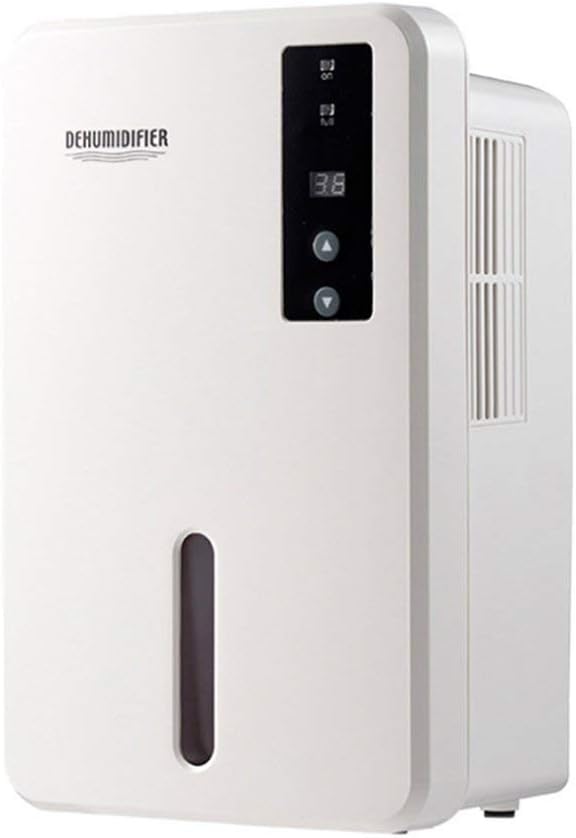

تصوير 1.1: سامهون view of the Daitsu ADDH10 Digital Dehumidifier, showing the control panel and water tank window.
2. حفاظت جي ڄاڻ
باهه، بجليءَ جي جھٽڪي ۽ زخم جي خطري کي گهٽائڻ لاءِ بجليءَ جا سامان استعمال ڪرڻ وقت هميشه بنيادي حفاظتي احتياطن تي عمل ڪريو.
- ڊيهوميڊفائر استعمال ڪرڻ کان اڳ سڀ هدايتون پڙهو.
- پڪ ڪريو ته بجلي جي فراهمي جي مقدار سان ملي ٿيtage جي درجه بندي ليبل تي بيان ڪيو ويو آهي.
- ڊيهوميڊفائر کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو.
- اوزار کي گرمي جي ذريعن، سڌي سج جي روشني، ۽ ٻرندڙ مواد کان پري رکو.
- Do not block the air inlet or outlet. Ensure adequate air circulation around the unit.
- ڊيهوميڊفائر کي هميشه هڪ مستحڪم، برابر سطح تي رکو.
- Unplug the unit before cleaning, maintenance, or when not in use for extended periods.
- هي اوزار استعمال ڪرڻ جو ارادو نه ڪيو ويو آهي ماڻهن (بشمول ٻارن سميت) گھٽ جسماني، حسي يا ذهني صلاحيتن سان، يا تجربو ۽ ڄاڻ جي کوٽ، جيستائين انهن جي حفاظت لاء ذميوار شخص طرفان اوزار جي استعمال بابت نگراني يا هدايت نه ڏني وئي آهي.
Image 2.1: Illustration of the dehumidifier's double security protection, including automatic shut-off when the water tank is full and over-temperature protection (auto-stop if heat sink exceeds 80°C).
3. پراڊڪٽ جا جزا ۽ خاصيتون
پنهنجي ڊيهوميڊفائر جي مکيه حصن کان واقف ٿيو:
- ڪنٽرول پينل: Digital display and buttons for operation.
- ايئر انٽ: جتي نم هوا يونٽ ۾ ڇڪي ويندي آهي.
- ايئر آئوٽليٽ: جتي سڪي هوا ڪڍي ويندي آهي.
- پاڻي جي ٽانڪي: Collects condensed water. Features a transparent window to monitor water level.
- Water Tank Handle/Lid: For easy removal and emptying.
Image 3.1: Diagram showing the key components: Air outlet, Control panel, Air inlet, and the 1.5L water tank capacity.
The dehumidifier has a 1.5-liter water tank capacity and features automatic shut-off when the tank is full, indicated by a float sensor. It also includes over-temperature protection.
4. سيٽ اپ ۽ تنصيب
4.1 کولڻ
- ڊيهوميڊفائر کي ان جي پيڪنگ مان احتياط سان هٽايو.
- سڀ پيڪنگ مواد، ٽيپ، ۽ حفاظتي فلمون هٽايو.
- Inspect the unit for any signs of damage. If damaged, do not operate and contact your retailer.
4.2 لڳائڻ
- ڊيهوميڊفائر کي هڪ مضبوط، هموار مٿاڇري تي رکو جيڪو پاڻي جي ٽانڪي ڀرجڻ تي ان جي وزن کي سهارو ڏئي سگهي.
- Ensure there is at least 20 cm (8 inches) of space around the air inlet and outlet for proper air circulation.
- Avoid placing the unit near walls, furniture, or curtains that could obstruct airflow.
- Do not place the unit in direct sunlight or near heat-generating appliances.
- For optimal performance, operate the dehumidifier in an enclosed area. Close all doors and windows in the room.
4.3 پاور ڪنيڪشن
- Ensure your hands are dry before plugging in the unit.
- پاور ڪنڊ کي صحيح طرح edريل برقي دڪان ۾ وجھو.
5. آپريٽنگ هدايتون
5.1 ڪنٽرول پينل ختمview
The control panel features a digital display and control buttons:
- ڊجيٽل ڊسپلي Shows current humidity level or settings.
- پاور بٽڻ: يونٽ کي آن يا بند ڪري ٿو.
- مٿي/هي Butيون بٽڻ: Adjust desired humidity level or other settings.
Image 5.1: Various angles of the dehumidifier, highlighting the digital control panel with up/down buttons and the transparent water tank.
5.2 بنيادي آپريشن
- هلايو: Press the Power button to turn on the dehumidifier. The digital display will light up, showing the current room humidity.
- گهربل نمي مقرر ڪريو: Use the Up and Down buttons to set your desired humidity level. The unit will operate until the room humidity reaches the set level, then cycle on and off to maintain it.
- بند ڪريو: Press the Power button again to turn off the dehumidifier.
5.3 پاڻي جي ٽانڪي کي خالي ڪرڻ
When the water tank is full, the dehumidifier will automatically stop operating, and an indicator light (if available) may illuminate. The unit will not resume operation until the tank is emptied and reinserted correctly.
- يونٽ جي اڳيان کان پاڻي جي ٽانڪي کي احتياط سان ڪڍو.
- احتياط سان ٽانڪي کي سنڪ يا ڊرين ۾ کڻي وڃو.
- Remove the tank lid (if applicable) and pour out the collected water.
- Replace the lid securely and slide the empty water tank back into the dehumidifier until it clicks into place.
- The unit will resume operation automatically if the power is on and the desired humidity level has not been reached.
Image 5.2: The transparent water tank, designed for easy removal and emptying.
6. سار سنڀال
Regular maintenance ensures optimal performance and extends the lifespan of your dehumidifier. Always unplug the unit before performing any maintenance.
6.1 پاڻي جي ٽانڪي کي صاف ڪرڻ
- Clean the water tank regularly (e.g., every few weeks) to prevent mold and bacteria growth.
- Remove the water tank as described in Section 5.3.
- Wash the tank with mild detergent and warm water. Rinse thoroughly.
- يونٽ ۾ ٻيهر داخل ڪرڻ کان اڳ ٽينڪ کي مڪمل طور تي خشڪ ڪريو.
6.2 ٻاهران صاف ڪرڻ
- dehumidifier جي ٻاهرئين حصي کي نرم سان صاف ڪريو، ڊيamp ڪپڙو.
- گھڙڻ وارا صاف ڪندڙ، محلول، يا سخت ڪيميڪل استعمال نه ڪريو، ڇاڪاڻ ته اهي مٿاڇري کي نقصان پهچائي سگهن ٿا.
- پڪ ڪريو ته پاڻي اندروني حصن ۾ داخل نه ٿئي.
6.3 اسٽوريج
- If storing the dehumidifier for an extended period, ensure the water tank is empty and clean.
- يونٽ جي ٻاهرئين حصي کي صاف ڪريو.
- يونٽ کي سڌي سنئين روشني ۽ انتهائي گرمي پد کان پري، ٿڌي، سڪل جاءِ تي سڌي پوزيشن ۾ رکو.
7. مسئلا حل ڪرڻ
ڪسٽمر سپورٽ سان رابطو ڪرڻ کان اڳ، مھرباني ڪري عام مسئلن لاءِ ھيٺ ڏنل مسئلو حل ڪرڻ واري گائيڊ جو حوالو ڏيو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڊيهوميڊائيفائر آن نٿو ٿئي. | بجلي جي فراهمي ناهي. بجلي جي تار محفوظ طور تي پلگ ان ٿيل نه آهي. |
چيڪ ڪريو ته پاور آئوٽ ڪم ڪري رهيو آهي. پڪ ڪريو ته پاور ڪنڊ مضبوطيءَ سان يونٽ ۽ وال آئوٽليٽ ۾ لڳل آهي. |
| يونٽ هلي رهيو آهي پر پاڻي گڏ نه ڪري رهيو آهي. | ڪمري ۾ نمي اڳ ۾ ئي گهٽ آهي. گرمي پد تمام گهٽ آهي. هوا جو وهڪرو بند آهي. |
Check the current humidity level on the display. If it's below your set point, the unit will not collect water. ڊيهوميڊائيفائر تمام ٿڌي ماحول ۾ گهٽ اثرائتا هوندا آهن. پڪ ڪريو ته هوائي داخل ٿيڻ ۽ ٻاهر نڪرڻ ۾ رڪاوٽ نه آهي. |
| يونٽ ڪم ڪرڻ بند ڪري ٿو ۽ اشاري جي روشني هلي ٿي. | پاڻي جي ٽانڪي ڀريل آهي. پاڻي جي ٽانڪي صحيح طرح سان نه لڳائي وئي آهي. |
پاڻي جي ٽانڪي کي خالي ڪريو. Reinsert the water tank correctly until it clicks into place. |
| آپريشن دوران غير معمولي شور. | يونٽ هڪ سطح جي سطح تي نه آهي. اندروني جزو جو مسئلو. |
پڪ ڪريو ته يونٽ هڪ مستحڪم، سطحي سطح تي رکيل آهي. جيڪڏهن شور جاري رهي، استعمال بند ڪريو ۽ ڪسٽمر سپورٽ سان رابطو ڪريو. |
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | ديتسو |
| ماڊل نمبر | ADDH10 (Technical Model: bb_S0403263) |
| رنگ | اڇو |
| شيءِ جو وزن | 10 ڪلوگرام |
| پيداوار جا طول و عرض (تقريبن) | 286mm (اوچائي) x 180mm (ويڪر) x 134mm (ڊٿ) |
| پاڻي جي ٽانڪي گنجائش | 1.5 ليٽر |
| آپريٽنگ موڊ | خودڪار |
| شامل اجزاء | Dehumidifier |
Image 8.1: Diagram illustrating the dimensions of the dehumidifier: 286mm height, 180mm width, and 134mm depth.
9. وارنٽي ۽ سپورٽ
For warranty information, please refer to the documentation included with your product packaging or visit the official Daitsu webسائيٽ. وارنٽي جون شرطون ۽ ضابطا علائقي ۽ پرچون ڪندڙ جي لحاظ کان مختلف ٿي سگهن ٿا.
If you encounter issues not covered in the troubleshooting section or require further assistance, please contact your retailer or the manufacturer's customer support. Have your model number (ADDH10) and purchase details ready when contacting support.
