1. تعارف
Thank you for choosing an Electrolux appliance. This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Electrolux ESF2400OW countertop dishwasher. Please read these instructions carefully before using your appliance and keep them for future reference.
2. حفاظت جي ڄاڻ
For your safety and to ensure correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
- هي اوزار صرف گهريلو استعمال لاء آهي.
- ٻارن کي اوزار سان راند ڪرڻ جي اجازت نه ڏيو.
- صفائي يا سار سنڀال کان اڳ هميشه بجلي جي فراهمي کان اوزار کي الڳ ڪريو.
- جيڪڏهن بجلي جي تار يا پلگ خراب ٿي وڃي ته ڊش واشر نه هلايو.
- برقي حفاظت لاء مناسب گرائونڊ کي يقيني بڻايو وڃي.
- تيز شين کي زخم کان بچڻ لاءِ پوائنٽس ڊائون سان لوڊ ڪيو وڃي.
3. پراڊڪٽ ختمview
The Electrolux ESF2400OW is a compact countertop dishwasher designed for efficient cleaning of up to 6 place settings. It features multiple wash programs and indicators for ease of use.
3.1 Interior Components
شڪل 1: اندروني view with dish racks and cutlery basket. This image shows the upper and lower racks, along with the removable cutlery basket, designed for optimal loading of various dishware.
شڪل 2: اندروني view with the lower rack. The lower rack is suitable for larger plates and bowls, ensuring thorough cleaning.
شڪل 3: خالي اندروني حصو view. This shows the clean, stainless steel interior of the dishwasher, highlighting its compact design.
Figure 4: Close-up of the filter and spray arm. The central spray arm and filter system are crucial for effective cleaning and require regular maintenance.
4. تنصيب ۽ سيٽ اپ
4.1 کولڻ
احتياط سان سڀ پيڪنگنگ مواد هٽايو. ٽرانزٽ دوران ڪنهن به نقصان لاءِ ڊش واشر جو معائنو ڪريو. ڪنهن به نقصان جي فوري طور تي پنهنجي پرچون ڪندڙ کي رپورٽ ڪريو.
4.2 لڳائڻ
Place the dishwasher on a stable, level countertop near a water supply, drain, and electrical outlet. Ensure there is adequate space for the door to open fully.
4.3 پاڻي ۽ ڊرين جو ڪنيڪشن
Connect the water inlet hose to a cold water tap. Connect the drain hose to a suitable drain point, ensuring it is securely fastened to prevent leaks. Refer to the diagram below for hose connections.
شڪل 5: پوئتي view with connections. This image illustrates the proper connection points for the water inlet hose (left), drain hose (right), and power cable (bottom center).
4.4 برقي ڪنيڪشن
اوزار کي گرائونڊ ٿيل بجلي جي آئوٽليٽ ۾ لڳايو. پڪ ڪريو ته وولٽيجtage ۽ تعدد ريٽنگ پليٽ تي وضاحتن سان ملن ٿا.
5. آپريٽنگ هدايتون
5.1 ڪنٽرول پينل
The dishwasher features a user-friendly control panel with buttons for program selection and an integrated display for cycle information. The control type is push-button.
5.2 ڊش واشر لوڊ ڪرڻ
Load dishes according to the rack design, ensuring water can reach all surfaces. Place larger items in the lower rack and smaller items, glasses, and cups in the upper rack. Use the cutlery basket for forks, knives, and spoons.
5.3 ڊٽرجنٽ ۽ رين ايڊ شامل ڪرڻ
Add the appropriate amount of dishwasher detergent to the dispenser. Check the rinse aid indicator; if low, refill the rinse aid dispenser to ensure optimal drying performance and to prevent water spots.
5.4 Adding Dishwasher Salt
If your water is hard, add dishwasher salt to the dedicated compartment. The salt level indicator will illuminate when a refill is needed. Adjust the water softening setting based on your local water hardness.
5.5 ڌوئڻ جو پروگرام چونڊڻ
Choose from the 6 available wash programs based on the soil level of your dishes. The integrated display will show the remaining wash time.
- Number of wash programs: 6
- Number of temperature settings: 4
- Cycle time: 150 minutes (average)
5.6 هڪ سائيڪل شروع ڪرڻ
Close the dishwasher door firmly. Press the start button to begin the selected wash program. The remaining time display will count down until the cycle is complete.
6. سار سنڀال ۽ سنڀال
6.1 فلٽر صاف ڪرڻ
Regularly clean the filter system located at the bottom of the dishwasher tub (refer to Figure 4). Remove food particles and rinse under running water. Reassemble correctly to prevent damage and ensure efficient operation.
6.2 اسپري آرمز کي صاف ڪرڻ
Check the spray arms for clogged nozzles. If necessary, remove the spray arms and clean the holes with a thin object like a toothpick. Ensure they rotate freely after reinstallation.
6.3 ٻاهرئين صفائي
ڊش واشر جي ٻاهرين سطحن کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
6.4 ڊس ڪلنگ
If you notice limescale buildup, use a dishwasher-safe descaling product according to its instructions. Ensure the salt dispenser is always filled if you have hard water.
7. مسئلا حل ڪرڻ
سروس سان رابطو ڪرڻ کان اڳ، مھرباني ڪري ھيٺ ڏنل عام مسئلا ۽ حل چيڪ ڪريو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڌوئڻ شروع نٿو ٿئي | بجلي جي فراهمي جو مسئلو، دروازو صحيح طرح بند نه ٿيو، پروگرام نه چونڊيو ويو. | بجلي ڪنيڪشن چيڪ ڪريو، پڪ ڪريو ته دروازو بند ٿيل آهي، واش پروگرام چونڊيو. |
| ٿانو صاف نه هوندا آهن | غلط لوڊنگ، بند ٿيل اسپري آرمز، ناکافي ڊٽرجنٽ، بند ٿيل فلٽر. | Reload dishes, clean spray arms and filters, add more detergent. |
| Water spots on dishes | Low rinse aid level, hard water. | Refill rinse aid dispenser, ensure salt dispenser is filled and water softening is set correctly. |
| ڊش واشر جون ڳالهيون | Improper hose connection, damaged door seal. | Check hose connections for tightness, inspect door seal for damage. |
8. وضاحتون
Detailed technical specifications for the Electrolux ESF2400OW countertop dishwasher:
- ماڊل نمبر: ESF2400OW
- پيداوار جي ماپ (W x D x H): 55 x 50 x 43.8 سينٽي
- وزن: 20.6 ڪلو
- گنجائش: 6 جڳھ سيٽنگون
- توانائي جي ڪارڪردگي ڪلاس: A+ (old rating) / F (new rating)
- سالياني توانائي واپرائڻ: 174 kWh
- توانائي واپرائڻ في سائيڪل: 0.61 kWh
- پاڻي جو ساليانو استعمال: 1820 ليٽر
- پاڻي جو استعمال في سائيڪل: 6.5 ليٽر
- سڪل نظام: ڪنڊينسيشن
- شور جي سطح: 50 dB (old rating) / 52 dB (new rating)
- Number of Wash Programs: 6
- Number of Temperature Settings: 4
- سائيڪل جو وقت: 150 minutes (average) / 3:50 (new rating)
- ڪنٽرول قسم: بٽڻ د Pايو
- مواد: Stainless steel (interior)
- AC ان پٽ Voltage: 230 V
- ڳنڍيل لوڊ: 1180 ڊبليو
- موجوده: 10 اي
8.1 توانائي ليبل

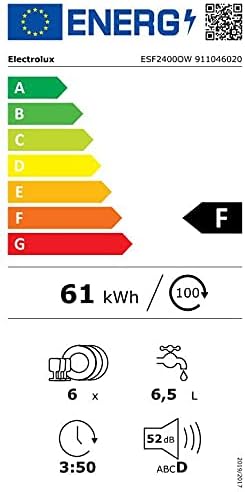

Figure 6: Energy Label for Electrolux ESF2400OW. This label provides key information on energy consumption, water usage, noise level, and capacity according to current EU standards.
8.2 Product Dimensions Diagram
Figure 7: Product Dimensions Diagram. This technical drawing provides precise measurements for installation planning.
9. وارنٽي ۽ سپورٽ
Your Electrolux ESF2400OW dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service requests, please contact your local Electrolux customer service or visit the official Electrolux webسائيٽ.
When contacting support, please have your model number (ESF2400OW) and serial number ready.
