تعارف
This manual provides comprehensive instructions for the safe and effective use of the Proster RZMT-10 MD Digital Wood Moisture Meter. This device is designed to measure the moisture content of wood, paper, and cardboard using electrical resistance. Please read this manual thoroughly before operation to ensure accurate measurements and to prevent damage to the device or injury.
حفاظت جي ڄاڻ
خبردار: The electrode pins are sharp. Exercise caution when handling this instrument. Do not point the probe pins towards humans or animals to avoid injury. Keep the device out of reach of children.
پيداوار ختمview

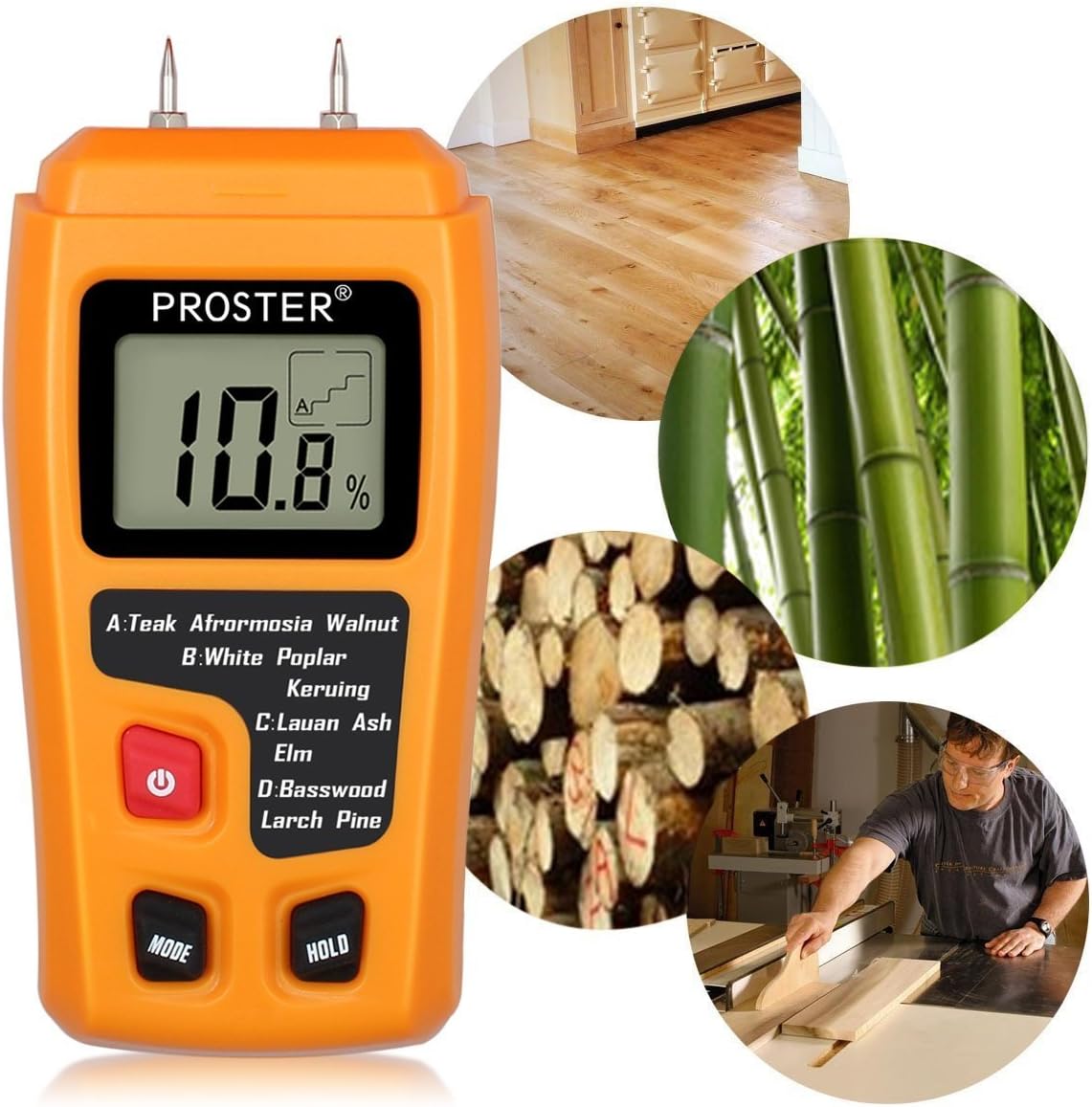

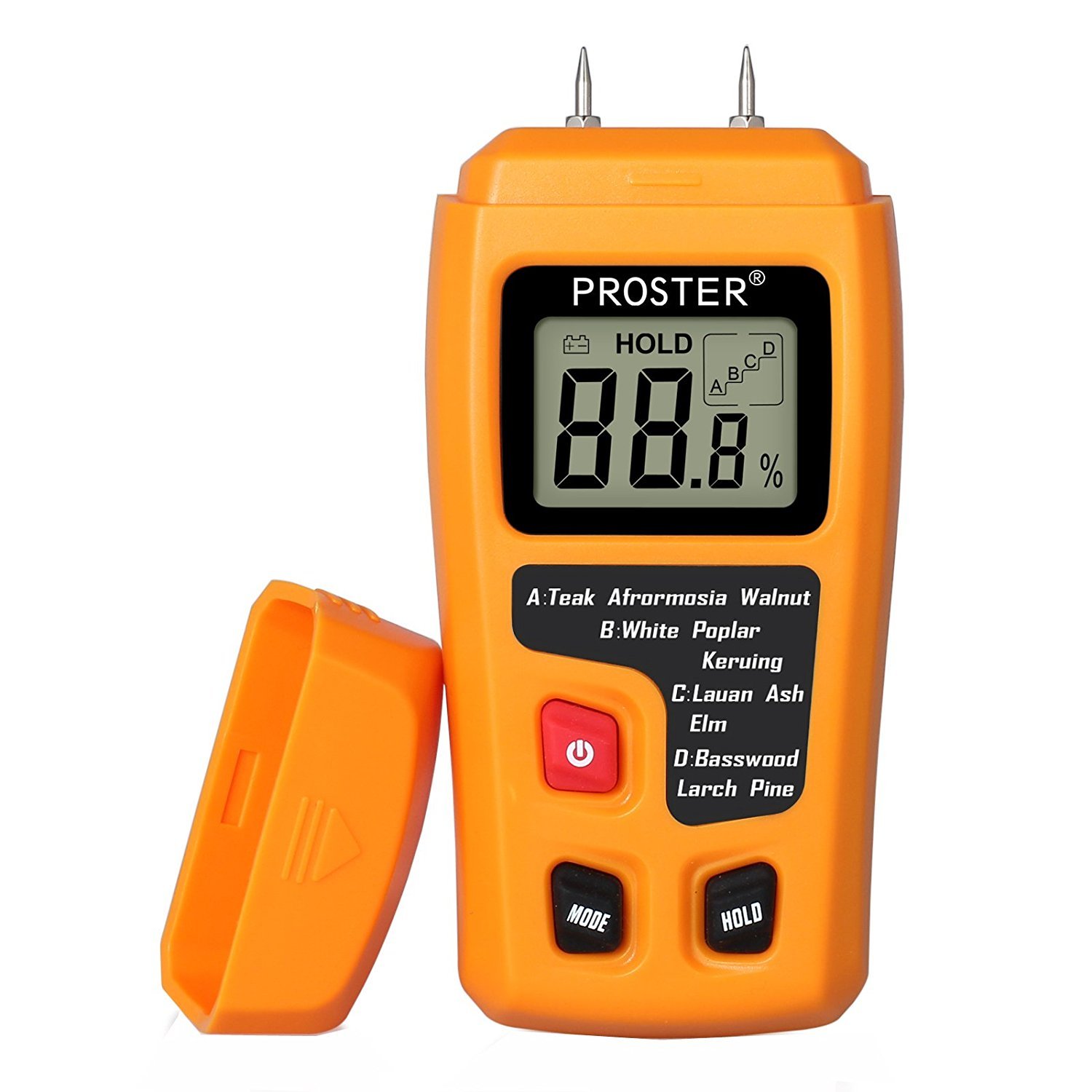

The Proster RZMT-10 MD Digital Wood Moisture Meter is a handheld device featuring an HD LCD for clear readings. It includes integrated electrode pins for measurement and a protective cap for safety.
اهم خاصيتون:
- Displays wood moisture content on an LCD screen.
- Suitable for wood, paper, and cardboard.
- Measurement principle: Electrical resistance.
- Memory for 4 wood groups with calibrations for approximately 50 species.
- Impact-proof housing for durability.
- Automatic power-off function to conserve battery.
- Data hold function for stable readings.
- Built-in battery check and low battery indicator.
- Comes with a protective cap.

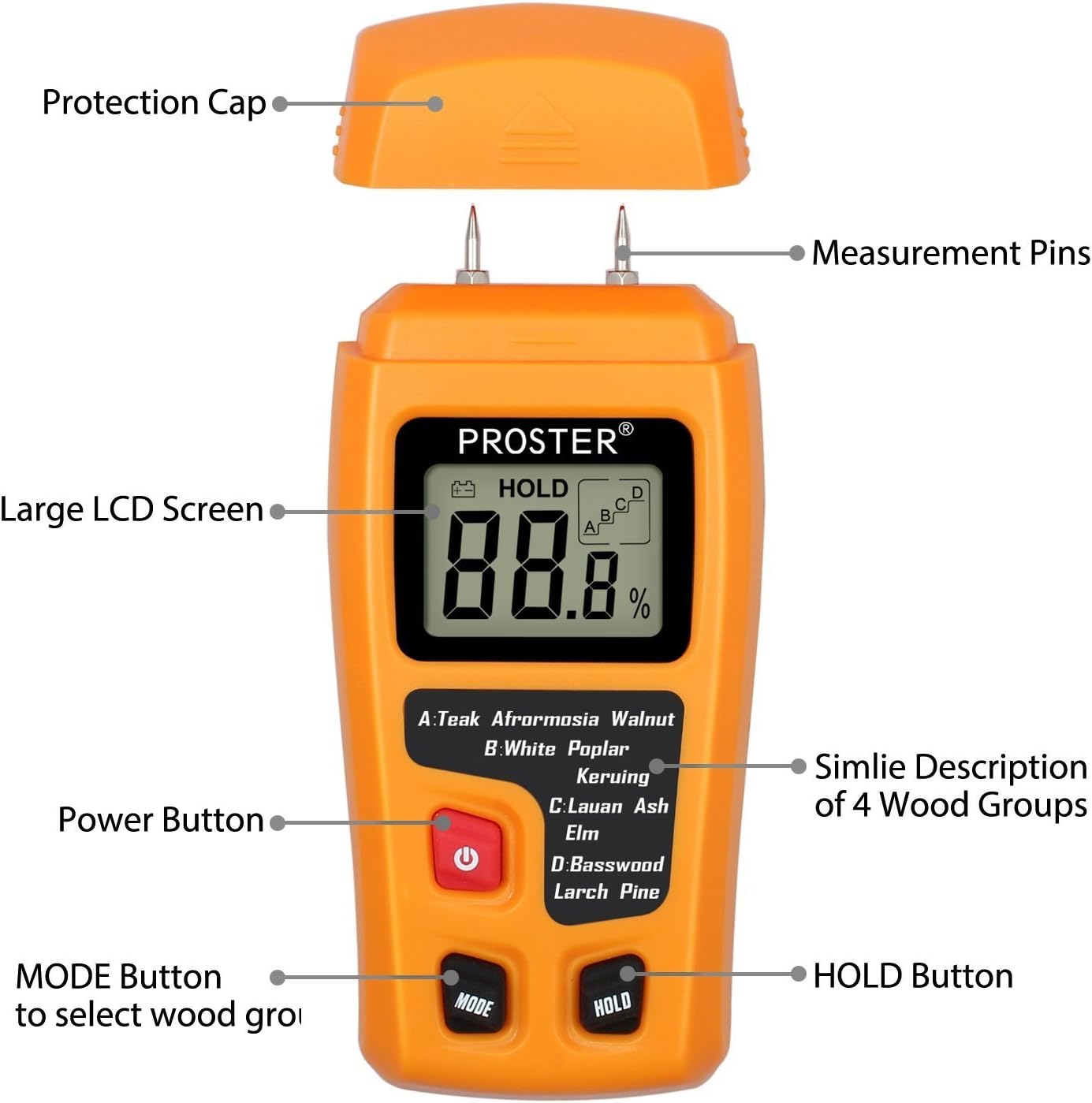

اجزاء جي سڃاڻپ:
سيٽ اپ ڪريو
بيٽري لڳائڻ:
- ڊوائيس جي پٺي تي بيٽري جي خاني کي ڳولھيو.
- بيٽري جي ڪمري واري ڍڪ کي کوليو.
- هڪ 9V بيٽري داخل ڪريو، صحيح پولارٽي (+/-) کي يقيني بڻائي.
- بيٽري جي ڪمري واري ڍڪ کي محفوظ طور تي بند ڪريو.
- ڊوائيس هاڻي استعمال لاء تيار آهي.
نوٽ: A 9V battery is included with the product.
آپريٽنگ هدايتون
Follow these steps to accurately measure moisture content:
- Step 1: Remove Protection Cap and Power On
Carefully remove the protective cap from the measurement pins. Press the "پاور" button to turn on the device. - Step 2: Select Wood Group
دٻايو "موڊ" button to cycle through the available wood groups (A, B, C, D) until the appropriate group for your material is selected. Refer to the "Wood Group Selection" section for details. - Step 3: Take Measurement
Gently push the measurement pins into the material (wood, paper, cardboard) to be tested. Ensure the pins penetrate sufficiently for a stable contact. The moisture reading will be displayed on the LCD screen. - Step 4: Hold Reading (Optional)
Once the reading stabilizes, press the "رکو" button to freeze the displayed value. This allows you to record the measurement after removing the pins from the material. Press "رکو" again to release the reading. - قدم 5: پاور آف
دٻايو "پاور" button to turn off the device. The meter also features an automatic power-off function after approximately 15 minutes of inactivity to conserve battery life.
Wood Group Selection
The meter has four pre-programmed wood groups (A, B, C, D) to provide accurate readings for approximately 50 different wood species. Select the group that best matches the material you are testing.
| ميڙ | ڪاٺ جون جنسون |
|---|---|
| A | Teak, Walnut, Afromosia, Rubber tree |
| B | Keruing, White poplar, Beech, Cedar, Tola |
| C | Lauan, Ash, Elm, Fir, Maple, Padauk, Tola |
| D | Basswood, Larch, Pine, Birch |
سار سنڀال
صفائي:
- Wipe the meter's housing with a soft, dry cloth.
- استعمال نه ڪريو abrasive cleaners يا solvents.
- Ensure the measurement pins are clean and free of debris for accurate readings.
اسٽوريج:
- Always replace the protective cap over the measurement pins when not in use to prevent damage and injury.
- ڊوائيس کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
- جيڪڏهن گهڻي عرصي تائين ذخيرو ڪري رهيا آهيو، ته پوءِ 9V جي بيٽري کي هٽائي ڇڏيو ته جيئن ليڪيج کي روڪي سگهجي.
مشڪلاتون
عام مسئلا ۽ حل:
- No Display / Device Not Turning On:
- چيڪ ڪريو ته ڇا 9V بيٽري صحيح طرح سان نصب ٿيل آهي ۽ صحيح پولارٽي آهي.
- Replace the 9V battery if it is depleted.
- غلط پڙھڻ:
- Ensure the measurement pins are clean and fully inserted into the material.
- Verify that the correct wood group (A, B, C, D) is selected for the material being tested.
- Ensure the material surface is free of moisture or contaminants that could affect readings.
- The device is designed for wood, paper, and cardboard. Using it on other materials may yield inaccurate results.
- "LOW BATTERY" Indicator:
- Replace the 9V battery immediately to ensure continued accurate operation.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماپ جو اصول | برقي مزاحمت |
| ماپ جي حد | 0% ~ 99.9% wood |
| قرارداد | 0.1% |
| درستگي | ±0.5% |
| اليڪٽرروڊ ڊگھائي | 10 ملي ميٽر (0.4 انچ) |
| Electrode Pins | ضم ٿيل |
| خودڪار پاور بند | تقريبن کان پوءِ. 15 منٽن جي غير فعاليت |
| Meter Housing Material | ABS پلاسٽڪ |
| آپريٽنگ جي درجه حرارت | 0 ℃ ~ 40 ℃ (32 ° F ~ 104 ° F) |
| آپريٽنگ نمي | 85% Relative Humidity Maximum |
| طول و عرض (L x W x H) | 145 x 67 x 32 ملي (5.71 x 2.64 x 1.26 انچ) |
| وزن | 140 جي |
| رنگ | نارنگي |
| بجلي جي فراهمي | 1 x 9V بيٽري (شامل) |
وارنٽي ڄاڻ
Specific warranty details for the Proster RZMT-10 MD Digital Wood Moisture Meter are typically provided with the product packaging or on the manufacturer's official website. Please refer to these sources for the most accurate and up-to-date warranty terms and conditions. Generally, warranties cover defects in materials and workmanship under normal use. Keep your purchase receipt as proof of purchase.
حمايت
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Proster RZMT-10 MD Digital Wood Moisture Meter, please contact Proster customer support. Contact information can usually be found on the product packaging, the official Proster webسائيٽ، يا پرچون ڪندڙ ذريعي جتي پراڊڪٽ خريد ڪئي وئي هئي.
