InnoGear AD150

InnoGear 150ml Ultrasonic Essential Oil Diffuser AD150 User Manual

Model: AD150 | Brand: InnoGear

تعارف

This manual provides detailed instructions for the safe and effective use of your InnoGear 150ml Ultrasonic Essential Oil Diffuser, Model AD150. Please read this manual thoroughly before operation and retain it for future reference.

InnoGear 150ml Ultrasonic Essential Oil Diffuser, white, emitting a blue light.

Image: The InnoGear 150ml Ultrasonic Essential Oil Diffuser, showcasing its compact design and LED light feature.

حفاظت جي ڄاڻ

محفوظ آپريشن کي يقيني بڻائڻ ۽ نقصان کي روڪڻ لاءِ، هيٺ ڏنل احتياطي تدبيرن تي عمل ڪريو:

Image showing a baby near the diffuser, highlighting its BPA-free material and safe waterless auto-off feature.

Image: The diffuser is constructed from BPA-free materials and includes a waterless auto shut-off for safety.

پيڪيج مواد

سيٽ اپ جون هدايتون

  1. ڊفيوزر رکو: ڊفيوزر کي سڌي سج جي روشني يا گرمي جي ذريعن کان پري هڪ فليٽ، مستحڪم مٿاڇري تي رکو.
  2. ڪپڙا هٽايو: ڊفيوزر جي مٿئين ڍڪ کي نرميءَ سان مٿي ڪريو.
  3. پاڻي شامل ڪريو: Fill the water tank with clean tap water up to the 150ml maximum fill line. Do not overfill.
  4. لازمي تيل شامل ڪريو: Add 5-10 drops of your preferred essential oil directly into the water tank. Adjust the quantity based on personal preference and room size.
  5. ڪپڙا تبديل ڪريو: Securely place the top cover back onto the diffuser. Ensure it is properly aligned.
  6. پاور Connectنيو: Plug the power adapter into the diffuser's power input port, then plug the adapter into a standard electrical outlet.

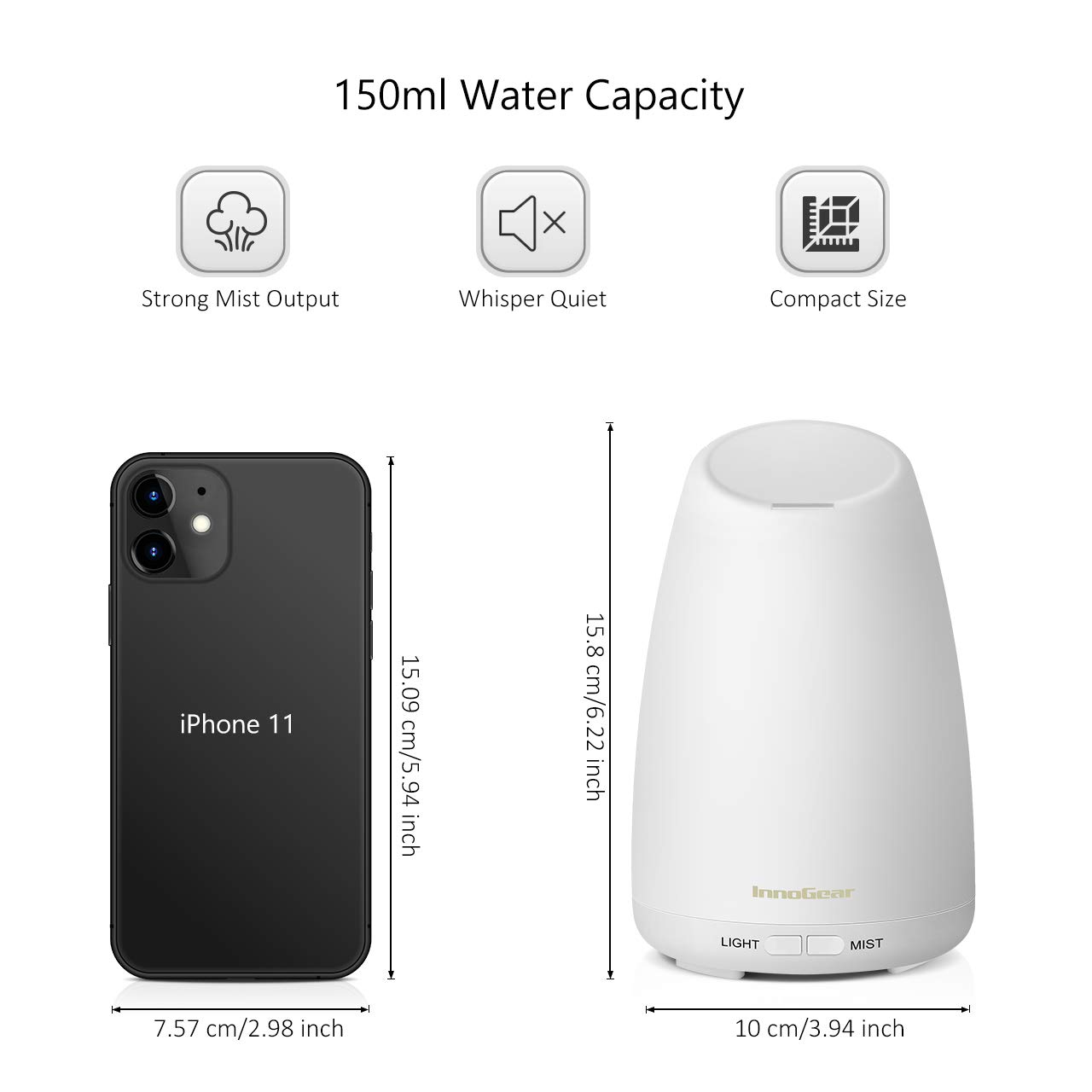

Image showing the compact size of the diffuser compared to a smartphone, indicating its 150ml water capacity.

Image: The diffuser's compact size and 150ml water capacity, suitable for everyday use.

آپريٽنگ هدايتون

The diffuser features two buttons: روشني ۽ MIST.

ڌنڌ تي ضابطو:

Image showing the diffuser with mist buttons, indicating red light for continuous mode and green light for intermittent mode.

Image: Mist button functionality, showing red light for continuous mist and green light for intermittent mist.

روشني ڪنٽرول:

Image of the diffuser on a bedside table, emitting a soft blue light, suitable for night use.

Image: The diffuser providing soft light, ideal for nighttime use or as a night light.

سار سنڀال ۽ صفائي

Regular cleaning helps maintain optimal performance and extends the lifespan of your diffuser. Clean the diffuser after every 3-5 uses, or when changing essential oils.

  1. پلگ ان ڪريو ۽ خالي ڪريو: Disconnect the power adapter and remove the top cover. Carefully pour out any remaining water from the drain side of the tank. Avoid pouring water into the air outlet.
  2. Wipe the Tank: Use a cotton swab or soft cloth dampened with clean water to gently wipe the inside of the water tank and the ultrasonic plate.
  3. ڪپڙا صاف ڪريو: Wipe the inside and outside of the top cover with a soft, damp ڪپڙو.
  4. چڱي طرح سڪي: Ensure all parts are completely dry before reassembling or storing the diffuser.

اهم: Do not use corrosive detergents or harsh chemicals to clean the diffuser. Do not immerse the diffuser base in water.

Step-by-step visual guide on how to clean the diffuser, including adding water, wiping with a cotton swab, draining from the correct side, and drying.

Image: Visual instructions for cleaning the diffuser, emphasizing proper water drainage and wiping.

مشڪلاتون

مسئلوممڪن سببحل
ڪابه ڌنڌ يا گهٽ ڌنڌ جي پيداوار ناهي.
  • ٽانڪي ۾ پاڻي جي کوٽ.
  • پاڻي جي سطح MAX لائن کان وڌي وئي آهي.
  • Ultrasonic plate is dirty.
  • Diffuser not plugged in.
  • پاڻي کي مناسب سطح تي شامل ڪريو.
  • وڌيڪ پاڻي خالي ڪريو.
  • سار سنڀال جي هدايتن مطابق الٽراسونڪ پليٽ صاف ڪريو.
  • پڪ ڪريو ته پاور اڊاپٽر محفوظ طور تي ڳنڍيل آهي.
Diffuser automatically shuts off.
  • Water level is too low (auto shut-off feature).
  • Timer setting has expired.
  • پاڻي جي ٽانڪي کي ٻيهر ڀريو.
  • Restart the diffuser if desired.
No power/lights.
  • پاور اڊاپٽر ڳنڍيل نه آهي يا خراب آهي.
  • آئوٽ ليٽ مان بجلي نه آهي.
  • پاور ڪنيڪشن چيڪ ڪريو.
  • ٻئي ڊوائيس سان آئوٽليٽ کي جانچيو.

وضاحتون

ماڊل نمبرAD150
پاڻي جي ٽانڪي گنجائش150 ملي
موادUpper parts PP + lower base ABS (BPA-free)
ان پٽ پاورAC 100-240V 50/60HZ
الٽراسونڪ ٽيڪنالاجي2.4MHz
طول و عرضApproximately 6.22 inches (15.8 cm) height, 3.94 inches (10 cm) diameter
وزنتقريبن 11.68 آونس
خاص خاصيتون7-Color LED Night Lights, Waterless Auto Shut-Off

وارنٽي ۽ سپورٽ

For product support, warranty information, or inquiries, please visit the official InnoGear webسائيٽ تي وڃو يا انهن جي ڪسٽمر سروس سان رابطو ڪريو. وارنٽي دعوائن لاءِ پنهنجي خريداري جي رسيد رکو.

توهان وڌيڪ معلومات ۽ رابطي جي تفصيل تي ڳولي سگهو ٿا InnoGear Store on Amazon.
